Helix Compose i5 Ci5 M80FM-S3 Midrange Speakers 3 Inch 80 mm FlexMount 90w RMS

HELIX Ci5 M80FM-S3

HELIX COMPOSE. The perfect speaker for any composition. 

Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.

• 3.15” / 80 mm advanced midrange speaker with exceptional sound performance and versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Silicon coated paper cone for excellent impulse response and unmatched frequency response

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Special rubber surround and optimized magnet system for large linear cone excursion

• Dedicated surround manufacturing allows for a smaller installation diameter and a maximized effective cone area compared to typical 80 mm speakers

• Aluminum dustcap for optimized frequency response in the upper midrange area

• Automotive grade FlexConnect terminal for fast, secure and fail-safe connection

• Powerful push-pull neodymium magnet system for highest efficiency and extremely low distortion

• Two universal FlexMount80 mounting rings for car-specific adaption (e.g.
• Mercedes, Porsche, Tesla etc.) or universal use included in delivery

• Optionally available: CFM80-100 adaptor ring that enables the use of optionally available car-specific FlexMount100 adaptors for an acoustically optimized and professional integration into the vehicle’s original mounting location

• Universal mounting ring with grille included in delivery

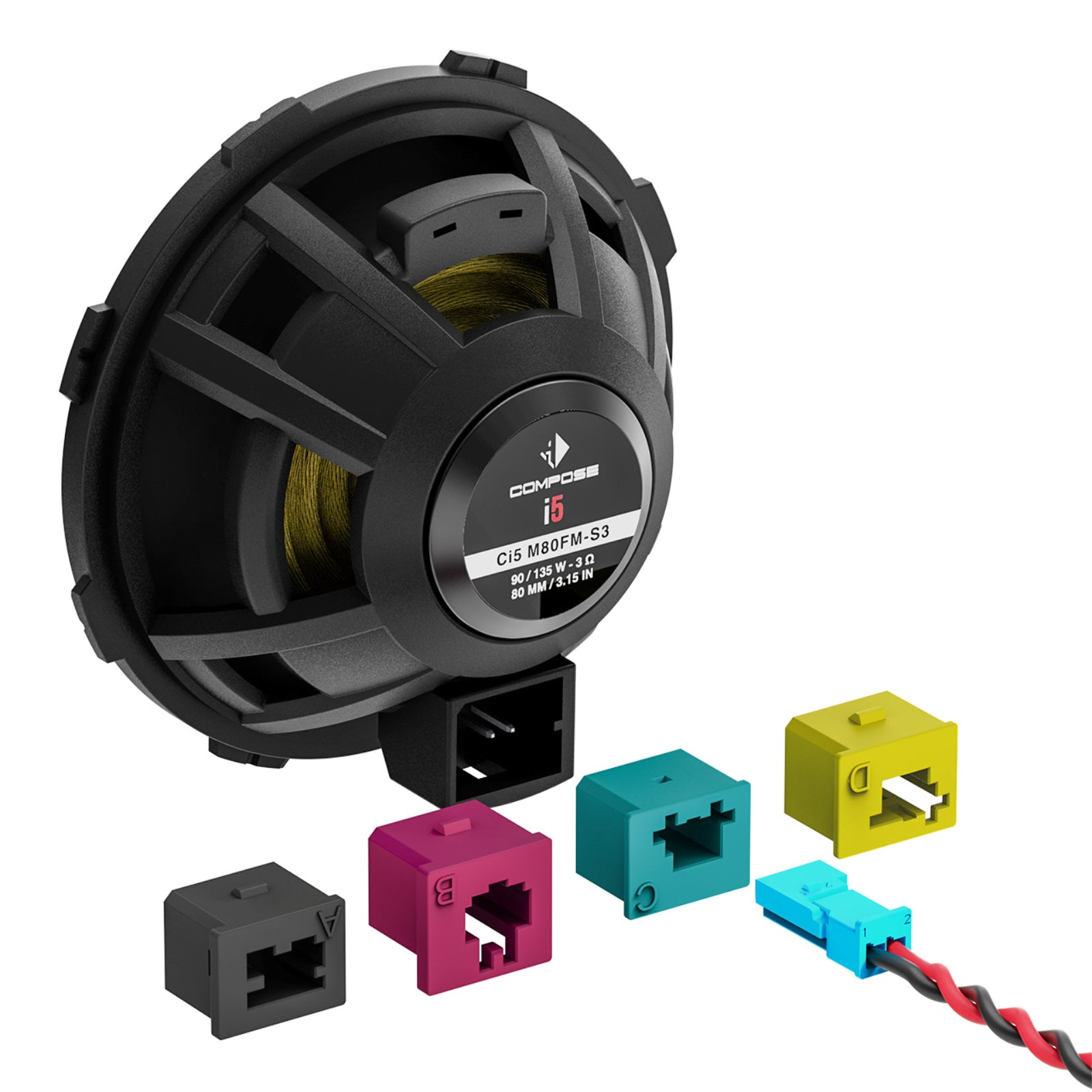

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

The Sound Sensation for sophisticated music lovers 

The HELIX COMPOSE i5 series is the link between i7 and i3, created for sophisticated music lovers with a sparked ambition for a true hi-fi experience. A lovechild of phenomenal sound and unmatched practicality: Developed with the vision of unique speaker highlights that are also true problem solvers. All speaker impedances are perfectly matched for the combination with our HELIX and MATCH amplifiers, guaranteeing maximum performance at any time. In addition, we implemented our COMPOSE-exclusive mechanical technologies that offer unbeatable practical benefits. 

High efficiency

HELIX COMPOSE equals smart engineering and accordingly implements highly efficient 3 Ohm technology, that perfectly harmonizes with all HELIX and MATCH amplifiers and at the same time allows a clearly perceptible plus in efficiency and maximum sound pressure.

Precise midrange performance for demanding multi-way systems

The Ci5 M80FM-S3 has been engineered as an audiophile midrange driver designed to deliver exceptionally accurate midband reproduction in high-quality three-way systems. Its wide usable frequency range, high power handling and generous linear excursion make it ideal for applications where clarity, natural tonality and dynamics are essential.
Thanks to its significantly reduced outer diameter compared with conventional 3” drivers as well as the FlexMount technology, the Ci5 M80FM-S3 also offers outstanding integration flexibility – even in tight OEM openings, without compromising the cone area size. This makes it perfectly suited for demanding multi-way systems, DSP-optimized setups or vehicles where precise midrange reproduction and a compact form factor are equally important.

Sophisticated engineering for dynamics, efficiency and low distortion

The remarkable performance of the Ci5 M80FM-S3 is the result of a carefully coordinated combination of materials and mechanical design. Its silicon-coated paper cone provides high internal damping, an exceptionally natural and accurate midrange reproduction and suppresses unwanted resonance frequencies. The particularly narrow surround structure, whose inward-folded surround edge is bonded in a complex manufacturing process, works in conjunction with the innovative magnet system to allow for a large linear excursion – a key factor behind the driver’s high power handling and low-distortion behavior, ensuring confident performance even at elevated listening levels.
Furthermore, it noticeably reduces the outer diameter while increasing the effective cone area. The result is a compact form factor paired with high acoustic efficiency. Completing the design is an aluminum dustcap that enhances upper-midrange performance, along with a powerful push-pull neodymium magnet system that combines high efficiency with minimal distortion – contributing significantly to the precise, dynamic sonic character of the Ci5 M80FM-S3.

FlexMount80 – Universal meets car-specific

FlexMount is a mounting system based on specially developed adaptor rings, allowing the installation of COMPOSE FlexMount speakers in an almost infinite number of vehicles. Thus, the universal loudspeaker effortlessly becomes a vehicle-specific loudspeaker, that can be easily installed in the original installation position of the vehicle in an acoustically optimized way with the matching FlexMount adaptor ring.
