Helix Compose i3 Ci3 W200FM-S2 Woofers 8 Inch FlexMount Speakers 100w RMS
Couldn't Load Pickup availability

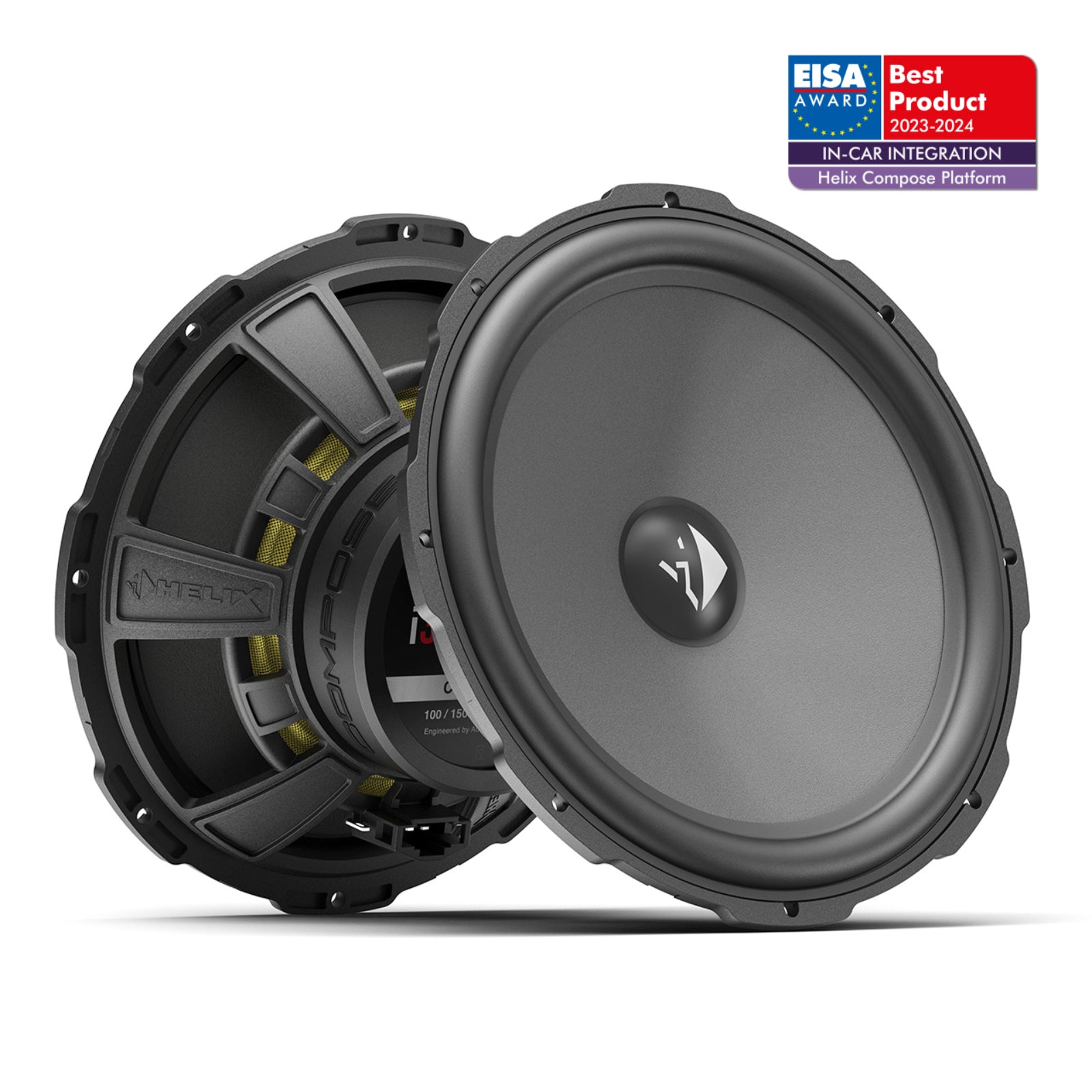

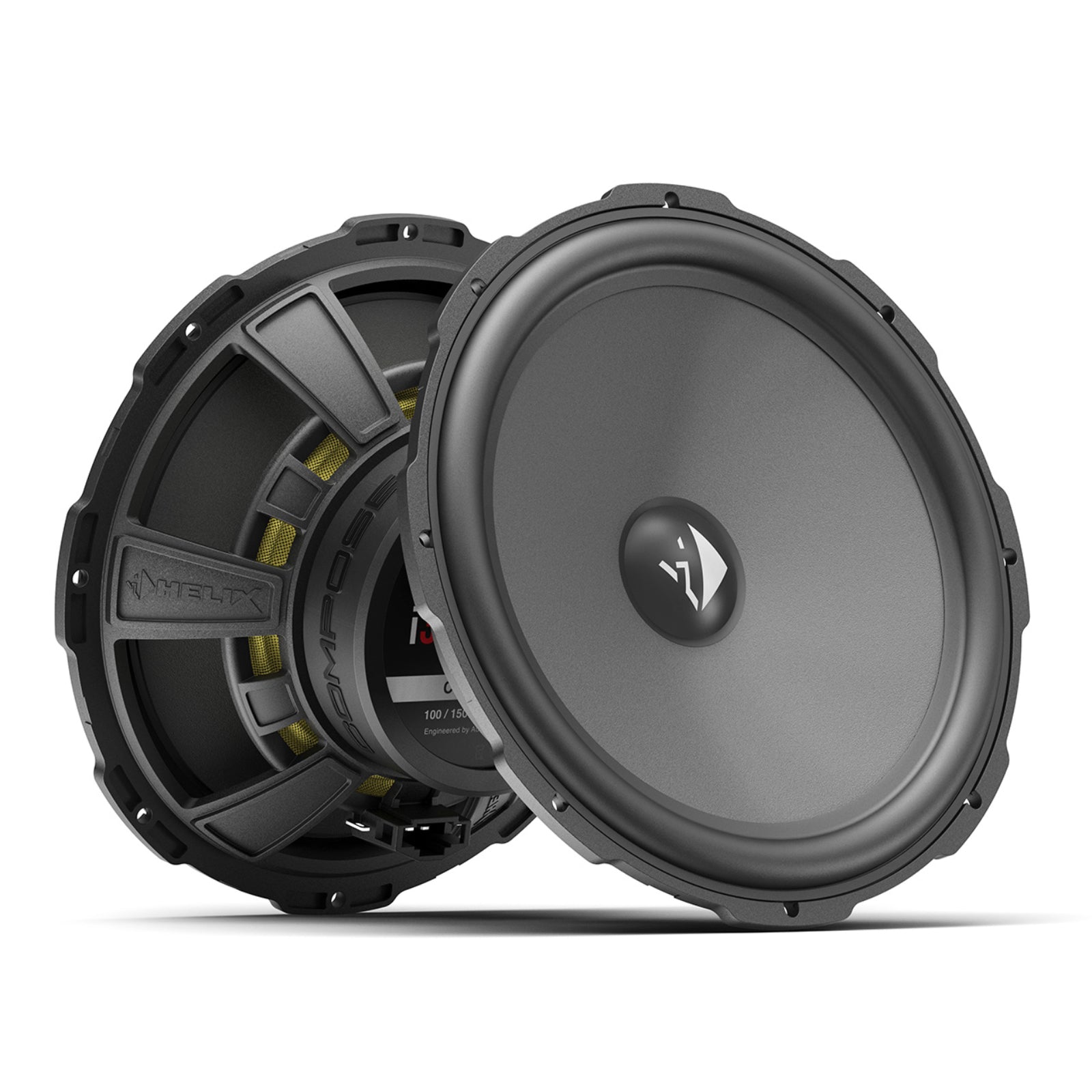

The Helix Compose i3 Ci3 W200FM-S2 is a pair of 8 inch (200mm) 2 ohm woofers rated at 100W RMS, part of the Helix Compose i3 platform. They are designed to work with FlexMount200 vehicle-specific adaptor rings and WireKits for a precise, vehicle-specific installation.
Key specifications
- Size: 8" / 200mm woofer (pair)
- Power handling: 100W RMS / 150W max
- Impedance: 2 ohms
- Sensitivity: 96dB @ 2.83V / 1m (90dB @ 1W / 1m)
- Frequency response: 50Hz – 3,000Hz
- Cone: paper with Cenosphere coating
- Installation depth: 63.7mm
- Installation diameter: 173.5mm
- Mounting: universal ring and grille included; FlexMount200 adaptors and WireKits optional
Helix Compose: the perfect speaker for any composition
The Helix Compose platform was developed in response to the challenges of modern vehicle acoustics. The goal was to combine the flexibility of universal speakers with the fit and finish of vehicle-specific systems — developed inside the vehicle, for the vehicle. High efficiency, strong dynamics and genuine sound quality, designed to fit any car.
Price-performance highlight
The Helix Compose i3 series delivers a first-class sound experience through high-quality components and smart engineering. The same practical mechanical technologies found in the i7 series are carried over here. All speaker impedances are matched for use with Helix and MATCH amplifiers for maximum performance. The Helix Compose i3 Ci3 K100.2FM-S3 component speakers are a natural partner in an i3-based system build.
High efficiency, 2 ohm version
Helix Compose speakers use highly efficient 3 ohm technology as standard, which works well with all Helix and MATCH amplifiers. Certain models are also offered as 2 ohm variants — the Ci3 W200FM-S2 is one of them, delivering maximum power and performance when paired with a suitable amplifier.
Cenosphere paper cone
The Cenosphere coating applies hollow spheres into a polyamide layer bonded to the cone. This increases stiffness and improves internal damping, resulting in an exceptionally stable yet lightweight cone with outstanding precision in sound reproduction.
High-tech polymer basket
The Compose i3 basket is made from a high-tech polymer composite reinforced with glass spheres. This delivers maximum stability with minimal self-resonance, eliminates flux modulation in the magnetic system and resists thermal influences. It also allows for compact basket dimensions — useful for tight installation spaces.
FlexMount200: universal meets car-specific
FlexMount is a mounting system using specially developed adaptor rings that allow Compose FlexMount speakers to be fitted in an almost unlimited range of vehicles. With the correct FlexMount200 adaptor ring, the speaker installs in the original factory position in an acoustically optimised way — a universal speaker that behaves like a vehicle-specific one.
ProConnect terminal
The ProConnect terminal is a professional automotive connector that accepts conventional speaker cables or flat-plug connections via Helix WireKits. The connection is interlocked, reverse polarity protected and built to handle the electrical and mechanical demands of automotive installation.
WireKits: plug and play
WireKits connect Helix Compose components directly to the vehicle's original wiring harness, or optionally to the crossover. Built to automotive industry standards, these lockable adaptor cables are designed to cope with the harsh conditions encountered during everyday vehicle installation.
Explore the full range in Helix Compose i3.
Specification
| Power handling | RMS / max. (P) 100 / 150 Watts |
|---|---|
| Impedance | (Z) 2 Ω |
| DC resistance (Re) | 1.8 Ω |
| Frequency response | 50 Hz - 3,000 Hz |
| Resonance frequency (Fs) | 72 Hz |
| Mechanical Q factor (Qms) | 4.56 |
| Electrical Q factor (Qes) | 1.09 |
| Total Q factor (Qts) | 0.88 |
| Compliance (Cms) | 230 µm/N |
| Equivalent air volume (Vas) | 14.5 L |
| Force factor (B*l) | 4.0 Tm |
| Sensitivity | (SPL) 96 dB @ 2.83 V / 1m, 90 dB @ 1W / 1m |
| Cone | area (Sd) 214 cm² |
| Moving mass (Mms) | 20.8 g |
| Cone | material Paper with Cenosphere coating |
| Mechanical resistance (Rms) | 2.07 kg/s |
| Voice coil | diameter 25 mm |
| Voice coil | winding height 11.9 mm |
| Max. linear excursion (Xmax) | +/- 4.0 mm |
| Outer diameter | 195 mm / 7.68" |
| Installation diameter | 173.5 mm / 6.83" |
| Installation depth | 63.7 mm / 2.51" |
| Features | ProConnect terminal, FlexMount200, grille |
More specs
| |
What's Included
- 2 x Ci3 W200FM-S2
- 2 x Universal mounting ring with grille
- 2 x Mounting material
Helix
About the Helix CI21801
From our tech experts at CEN
The Helix Ci3 W200FM-S2 is a pair of 8 inch (200 mm) woofers from the Compose i3 range, rated at 100 W RMS and 150 W maximum at 2 ohms. They cover 50 Hz to 3 kHz with 96 dB sensitivity, and come with universal mounting rings and grilles.
Who it suits
Factory 8 inch woofer positions driven by an amplifier that is happy at 2 ohms, where the lower load gives more output. If your amplifier prefers 3 ohms, choose the Ci3 W200FM-S3. Optional FlexMount200 adaptors fit many factory locations.
Our tech experts advise
Check the amplifier channel is stable at 2 ohms. Installation depth is 63.7 mm with a 173.5 mm installation diameter, so confirm door clearance first. Run them with a low-pass from a DSP or crossover. Get in touch with your vehicle details.
Explore the full Helix range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Helix
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Audiotec Fischer Brands
High-End Car Hifi components from Audiotec Fischer
More from Helix Compose i3
More options from the same range, in stock and ready to go

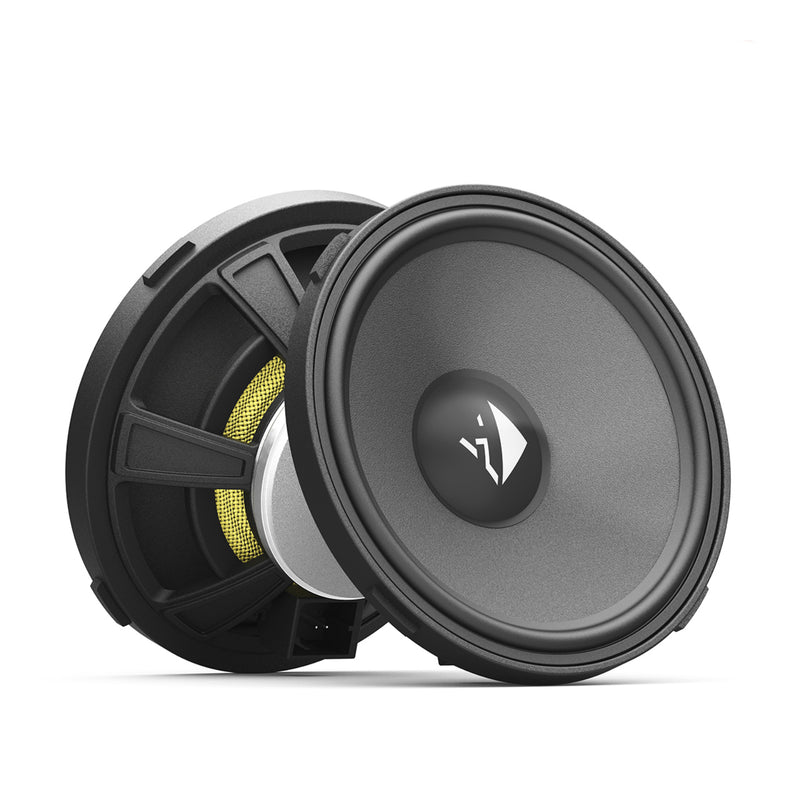

Helix Compose i3 Ci3 M100FM-S3 Midrange 4 Inch 10cm FlexMount Speakers 80w RMS
£129.99
View product

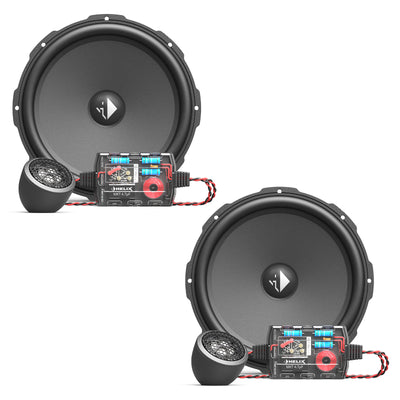

Helix Compose i3 Ci3 K200.2FM-S3 Component 8 Inch FlexMount Speakers 100w RMS
£299.99

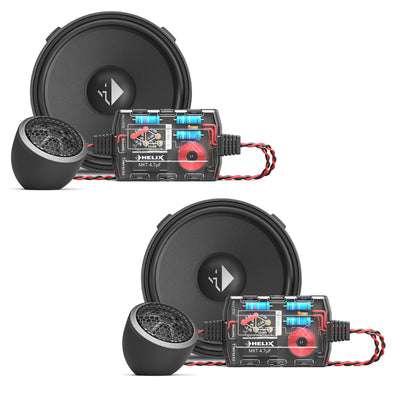

Helix Compose i3 Ci3 K100.2FM-S3 MK2 Component 4 Inch FlexMount Speakers 80w RMS
£259.99

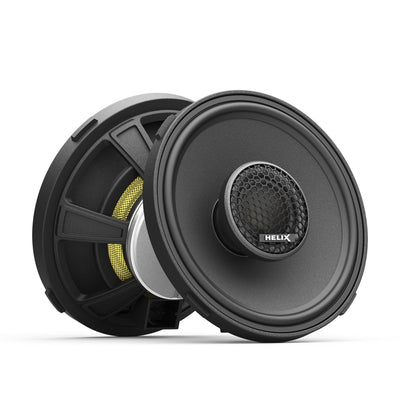

Helix Compose i3 Ci3 C100.2FM-S3 MK2 Coaxial 4 Inch FlexMount Speakers 80w RMS
£174.99

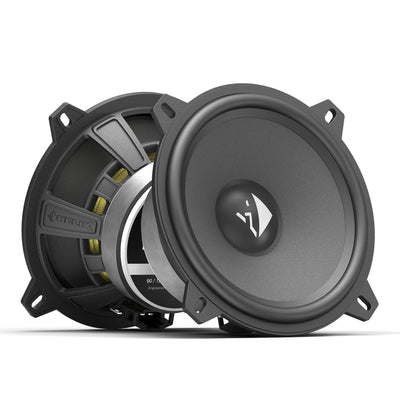

Helix Compose i3 Ci3 W130-S3 Midbass 5.25 Inch 13cm Speakers 90w RMS
£129.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What impedance is the HELIX Ci3 W200FM-S2?
A: The Ci3 W200FM-S2 is the 2 ohm version, with a DC resistance of 1.8 ohms, for maximum power output from a suitable amplifier.
Q: Do I need a FlexMount adaptor to fit the Ci3 W200FM-S2?
A: A universal mounting ring with grille is included. For a vehicle-specific fit in the original mounting location, use the optional car-specific FlexMount200 adaptor, and WireKits for non-destructive plug-in wiring.
Q: What's in the box with the Ci3 W200FM-S2?
A: 2 x Ci3 W200FM-S2 woofers, 2 x universal mounting rings with grille and 2 x sets of mounting material.
