Helix Compose i3 Ci3 W200FM-S3 Woofers 8 Inch FlexMount Speakers 100w RMS

RRP £179.99 £179.00 Save 1%
In stock
SKU: 90713MPN: Ci3 W200FM-S3
Part of the range · 19 productsPart of the Helix Compose i3 range · 19 products See the range →

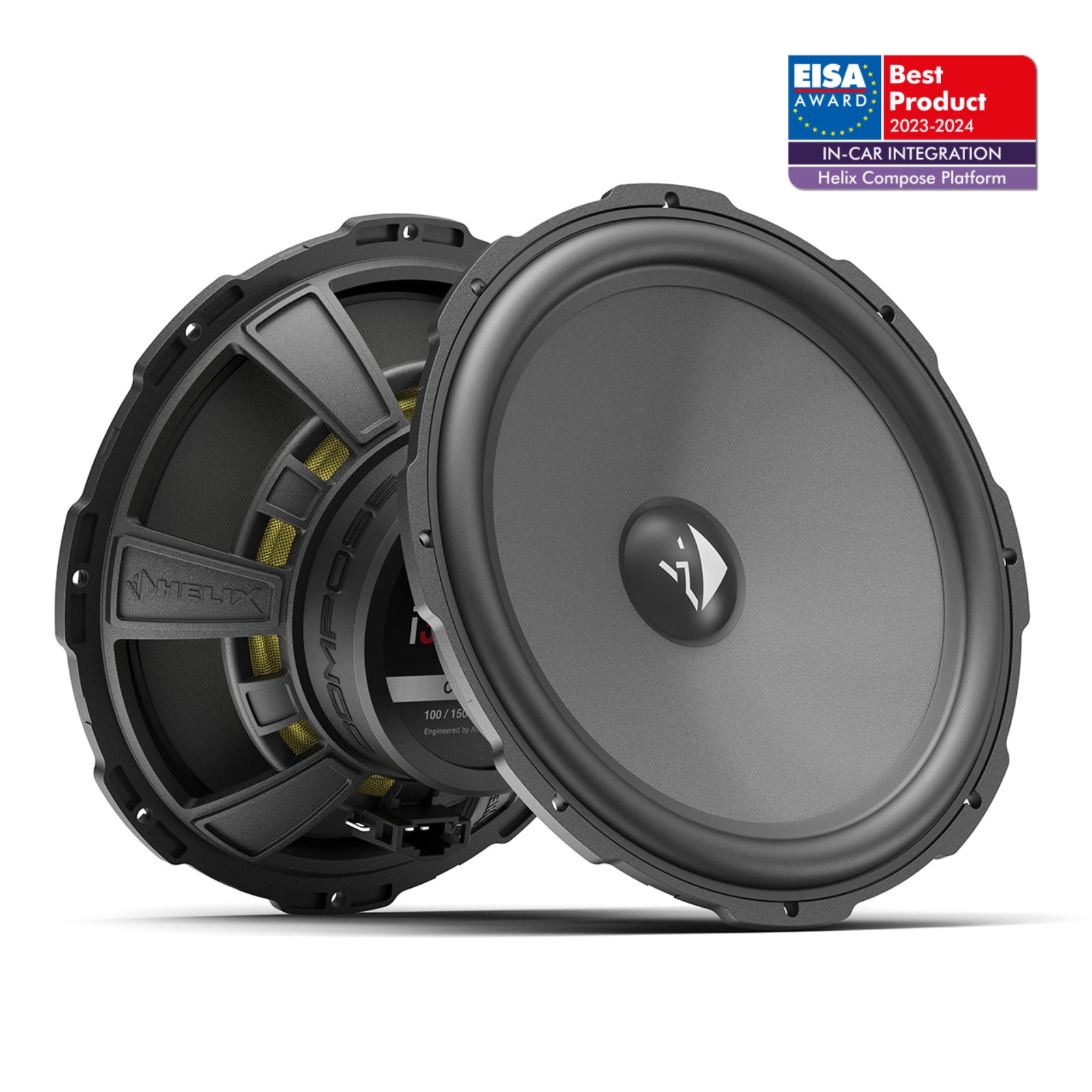

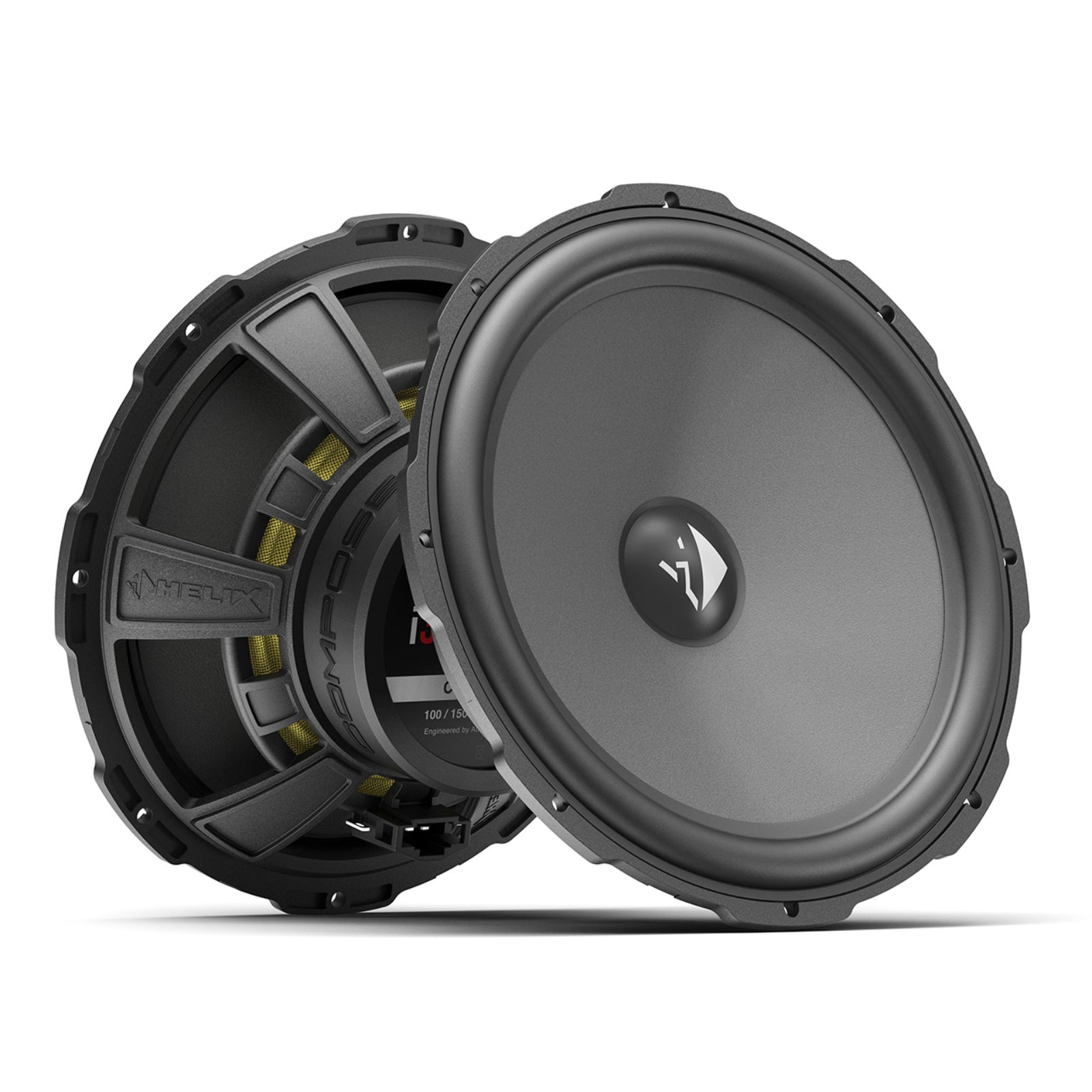

The Helix Ci3 W200FM-S3 is a pair of 8-inch (200 mm) woofers from the Helix Compose i3 range, rated at 100 W RMS at 3 ohms. They are designed to suit factory 8-inch woofer positions, with a universal mounting ring and grille included, and optional FlexMount200 adaptors available separately.

This listing is for the Ci3 W200FM-S3 woofers. The Compose i3 range also includes the Ci3 K100.2FM-S3 4-inch component speakers.

FlexMount200 rings include the CFMK200 UNI.1 (universal), CFMK200 VW.1 and CFMK200 VW.2. This woofer is also supplied as part of the Ci3 K200.2FM-S3 component set.

Key specifications

  • Size: 8" / 200 mm woofer
  • Power handling: 100 W RMS / 150 W max
  • Impedance: 3 ohms
  • Frequency response: 50 Hz to 3 kHz
  • Sensitivity: 94 dB @ 2.83 V / 1 m (90 dB @ 1 W / 1 m)
  • Outer diameter: 195 mm (208.9 mm with universal ring)
  • Installation depth: 63.7 mm
  • Xmax: +/- 3.8 mm

HELIX COMPOSE. The perfect speaker for any composition.

The Helix Compose platform combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies are paired with smart, practical engineering to deliver high efficiency, strong sound quality and excellent dynamics across a wide range of vehicles.

Price-performance highlight

The Compose i3 series delivers a first-class sound experience using high-quality components and smart engineering. Speaker impedances are matched for use with Helix and MATCH amplifiers, ensuring maximum performance at all times.

High efficiency

Compose i3 speakers use 3-ohm technology, which works in harmony with Helix and MATCH amplifiers to deliver a clear improvement in efficiency and maximum sound pressure. Select models are also available in optional 2-ohm variants for even greater performance with a suitable amplifier.

Cenosphere paper cone

The cone uses an innovative Cenosphere coating, in which hollow spheres are incorporated into a polyamide layer applied to the cone surface. This increases stiffness and optimises internal damping, resulting in an exceptionally stable yet lightweight cone with outstanding precision in sound reproduction.

High-tech polymer basket

The baskets on Compose i7 and i3 speakers are made from a high-tech polymer composite reinforced with glass spheres. This delivers maximum stability with minimal self-resonance, eliminates flux modulation of the magnetic system and provides strong resistance to thermal influences — while keeping basket dimensions compact for easier installation in tight spaces.

FlexMount200 – Universal meets car-specific

FlexMount is a mounting system based on specially developed adaptor rings, allowing Compose FlexMount speakers to be installed in a wide range of vehicles at the original factory speaker position. The matching FlexMount adaptor ring ensures an acoustically optimised, straightforward fit.

ProConnect – The new industry standard

The ProConnect terminal is a professional automotive connector that accepts conventional speaker cables and is also designed for flat-plug connection via Helix WireKits. The connection is interlocked, reverse-polarity protected and built to withstand high electrical and mechanical stress.

WireKits – Plug & Play at its best

WireKits connect Helix Compose components to the vehicle's original wiring harness, or optionally to the crossover. Built to automotive industry standards, these lockable adaptor cables are designed to handle the demanding conditions found in everyday vehicle installations.

Specification
Power handlingRMS / max. P 100 / 150 Watts
ImpedanceZ 3 Ω
Frequency response50 Hz - 3,000 Hz
SensitivitySPL 94 dB @ 2.83 V / 1m 90 dB @ 1W / 1m
Conearea Sd 214 cm²
Conematerial Paper with Cenosphere coating
Voice coildiameter ø 25 mm
Voice coilwinding height 11.6 mm
More specs
  • 8” / 200 mm performance woofer which combines outstanding sound quality with versatile physical integration options
  • High efficiency and 3 Ohms technology for maximized power output of the amplifier
  • Unique Cenosphere coated paper cone for precise and detailed sound reproduction
  • High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
  • Specially shaped rubber surround for high linear cone excursion
  • Polyurethane dustcap for optimized frequency response in the upper midrange area
  • 1” / 25 mm voice coil ensures high power handling
  • Compact dimensions with maximum performance - despite the small outer diameter, this woofer comes with the same cone area known from typical 200 mm chassis
  • Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits
  • Powerful magnet system for high efficiency and optimum impulse response
  • Universal mounting ring with grille included in delivery
  • Designed for the optionally available car-specific FlexMount200 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
  • Designed for optionally available, car-specific WireKits which allow a non-destructive integration
  • DC resistance Re 3.0 Ω
  • Resonance frequency Fs 67 Hz
  • Mechanical Q factor Qms 4.25
  • Electrical Q factor Qes 0.93
  • Total Q factor Qts 0.76
  • Compliance Cms 300 µm/N
  • Equivalent air volume Vas 19.0 L
  • Force factor B*I 5.1 Tm
  • Moving mass Mms 18.8 g
  • Mechanical resistance Rms 1.87 kg/s
  • Max. linear excursion Xmax +/- 3.8 mm
  • Outer diameter ø 195 mm / 7.68"
  • Outer diameter with universal mounting ring ø 208.9 mm / 8.22"
  • Installation diameter ø 173.5 mm / 6.83"
  • Installation depth 63.7 mm / 2.51"
  • Features ProConnect terminal, FlexMount200, grille
  • Flexmount200
  • WireKits
What's Included
  • 2 x Ci3 W200FM-S3
  • 2 x Universal mounting ring with grille
  • 2 x Mounting material
Product information

Helix

About the Helix CI21800

From our tech experts at CEN

The Helix Ci3 W200FM-S3 is a pair of 8 inch (200 mm) woofers from the Compose i3 range, rated at 100 W RMS and 150 W maximum at 3 ohms. They cover 50 Hz to 3 kHz with 94 dB sensitivity, and come with universal mounting rings and grilles.

Who it suits

Cars with factory 8 inch door woofer positions, and owners of the Ci3 K200.2FM-S3 set, which uses this driver. Optional FlexMount200 adaptors, such as the CFMK200 UNI.1, fit many factory locations. The 2 ohm Ci3 W200FM-S2 suits amplifiers that make more power into a lower load.

Our tech experts advise

Installation depth is 63.7 mm and the outer diameter is 195 mm, or 208.9 mm with the universal ring. Run them from a DSP channel or a crossover with a suitable low-pass. Get in touch with your vehicle details.

Explore the full Helix range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Helix

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: Will these speakers fit my car?

A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.

Q: Do I need an amplifier to run these speakers?

A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.

Q: What is the difference between coaxial and component speakers?

A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.

Q: Do these come as a pair?

A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.

Q: Can CEN fit these speakers for me?

A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.

Q: What is the mounting depth of the Ci3 W200FM-S3?

A: Installation depth is 63.7 mm with a 173.5 mm installation diameter. Outer diameter is 195 mm, or 208.9 mm with the universal mounting ring.

Q: Which FlexMount adaptors fit the Ci3 W200FM-S3?

A: It uses FlexMount200 adaptors, such as the CFMK200 UNI.1 universal ring and the CFMK200 VW.1 and VW.2 Volkswagen rings.

Q: What comes in the box with the Ci3 W200FM-S3?

A: 2 x Ci3 W200FM-S3 woofers, 2 x universal mounting rings with grille and 2 x mounting material.
