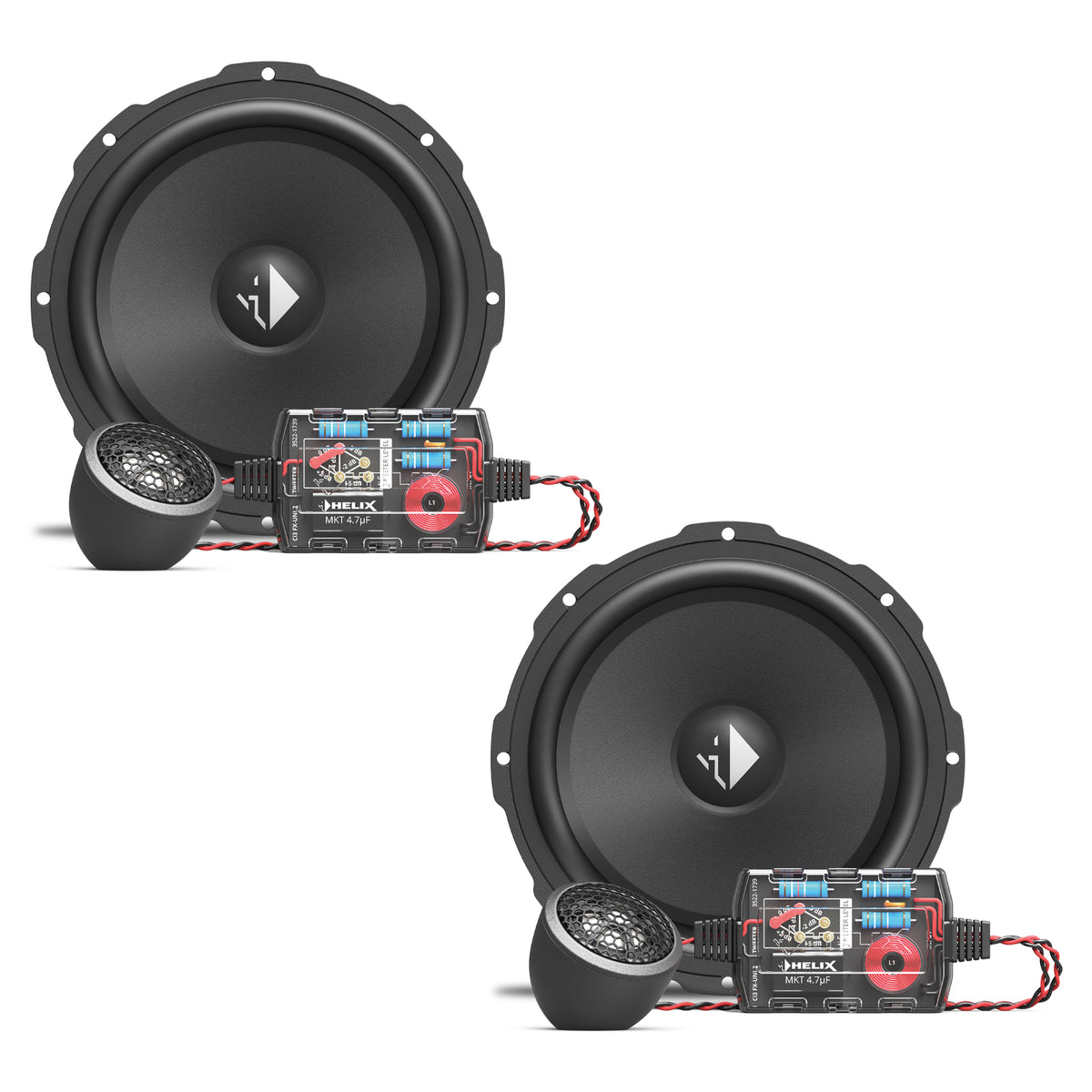

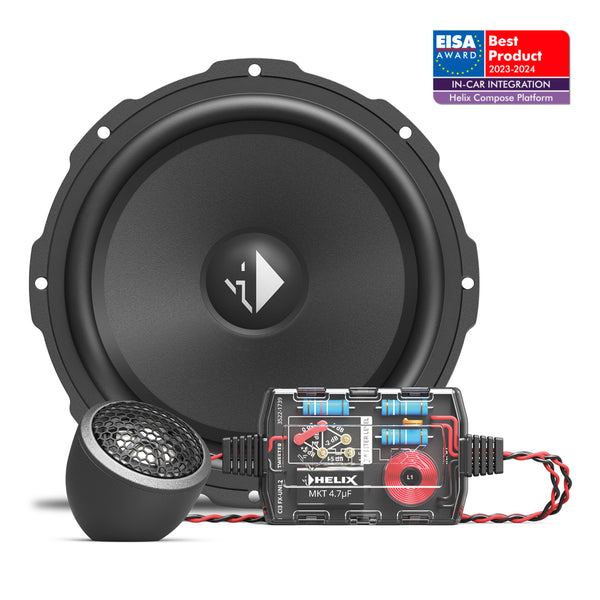

Helix Compose i3 Ci3 K165.2FM-S2 Component 6.5 Inch FlexMount Speakers 100w RMS

The HELIX Ci3 K165.2FM-S2 is a 6.5 inch (165 mm) two-way component speaker set from the HELIX COMPOSE i3 range, rated at 100 W RMS at 2 ohms — the 2 ohm version for maximum output with a suitable amplifier.

This listing is the 6.5 inch component set. The HELIX COMPOSE i3 component range is also available in a 4 inch FlexMount version (Ci3 K100.2FM-S3, 80 W RMS).

The 3 ohm alternative is the Ci3 K165.2FM-S3 MK2. This set includes the Ci3 T20FM-TI tweeter, Ci3 W165FM-S2 midbass, Ci3 FX-UNI.2 crossover and Ci3 FX-WLP.2 lowpass cable crossover.

Key specifications

• Size: 6.5" / 165 mm component set
• Power handling: 100 W RMS / 150 W max
• Impedance: 2 ohms
• Frequency response: 60 Hz to 25 kHz
• Sensitivity: 94 dB @ 2.83 V / 1 m (88 dB @ 1 W / 1 m)
• Midbass mounting depth: 60.7 mm
• Tweeter: 0.75" / 20 mm titanium dome
• Fitting: Designed for optional FlexMount165 and FlexMount20 adaptors

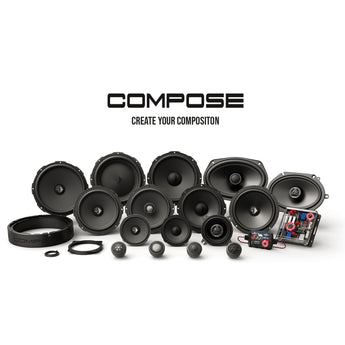

HELIX COMPOSE. The perfect speaker for any composition.

HELIX COMPOSE was developed to meet the demands of modern vehicle installations. It combines classic universal speakers with the advantages of vehicle-specific systems, using innovative materials and smart engineering to deliver high efficiency, strong dynamics and excellent sound quality in virtually any car.

Performance highlight

The i3 component systems deliver a high-quality two-way sound experience. All components are engineered to work together and pair well with HELIX and MATCH amplifiers. Mechanical connection technologies are designed with safety in mind, making integration straightforward and maximising compatibility across a wide range of vehicles.

High efficiency

HELIX COMPOSE primarily uses 3 ohm technology, which is optimised for use with HELIX and MATCH amplifiers for increased efficiency and maximum sound pressure. The Ci3 K165.2FM-S2 is the 2 ohm variant, providing absolute maximum performance when paired with an appropriate amplifier.

Cenosphere paper cone

The cone features a "Cenosphere" coating — hollow spheres incorporated into a polyamide layer applied to the cone surface. This increases stiffness and optimises internal damping, producing an exceptionally stable yet lightweight cone for precise sound reproduction.

High-tech polymer basket

The HELIX COMPOSE i3 speaker baskets are made from a high-tech polymer composite reinforced with glass spheres. This delivers maximum stability with minimal self-resonance, eliminates flux modulation of the magnetic system and resists thermal stress — while keeping basket dimensions compact for easier installation in tight spaces.

Stunning highs and outstanding stability

The 0.75" / 20 mm titanium dome tweeter combines outstanding stability with low moving mass, high internal damping and strong thermal resistance, producing brilliant, compression-free treble reproduction.

Perfectly separated

The included Ci3 FX-UNI.2 crossover is tuned specifically for HELIX COMPOSE i3 components. It features a 6-stage tweeter level adjustment with a 12 dB slope and integrated tweeter protection. Its compact dimensions suit tight installation spaces, and it is compatible with COMPOSE Connect and WireKit technologies for safe, polarity-proof connections to automotive standards.

COMPOSE Connect

COMPOSE Connect is a plug-in connection system that simplifies car audio installation. Standard flat plugs and couplings snap into proprietary plastic housings, creating a secure, automotive-standard connection that prevents polarity reversal — no soldering required.

FlexMount20 & FlexMount165 – Universal meets car-specific

FlexMount uses specially developed adaptor rings to allow COMPOSE FlexMount speakers to be installed in a vast range of vehicles. With the matching FlexMount adaptor ring, these universal speakers fit neatly into the vehicle's original speaker position for an acoustically optimised, vehicle-specific installation.

WireKits – Plug & Play at its best

HELIX WireKits connect HELIX COMPOSE speaker kits directly to the vehicle's original wiring harness. Built to automotive industry standards, these lockable adaptor cables are designed to withstand the demanding environmental conditions found in vehicle installations.
