Helix Compose i3 Ci3 M100FM-S3 Midrange 4 Inch 10cm FlexMount Speakers 80w RMS

£129.99
In stock
SKU: 90707MPN: Ci3 M100FM-S3
Part of the range · 19 productsPart of the Helix Compose i3 range · 19 products See the range →

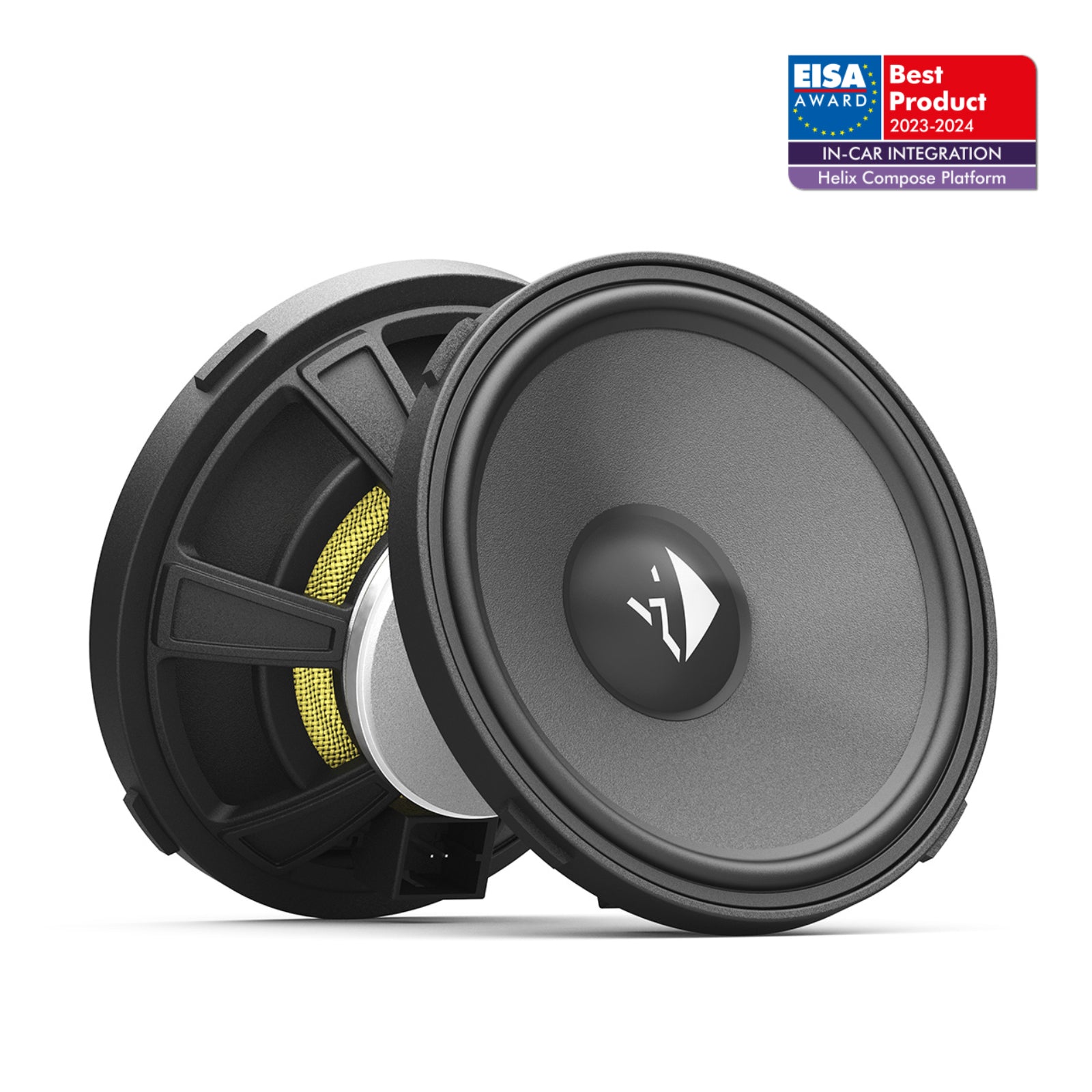

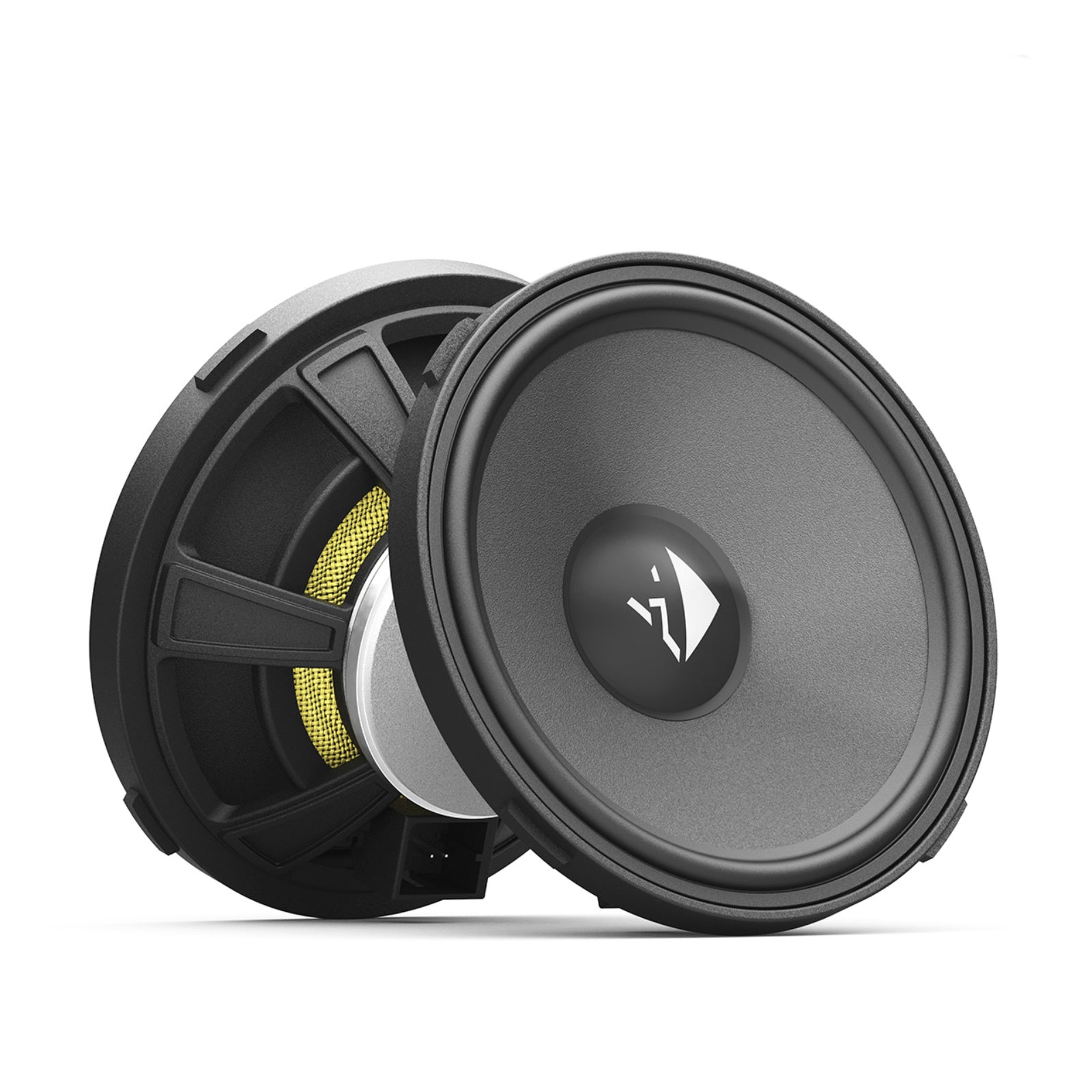

The Helix Ci3 M100FM-S3 is a pair of 4-inch (100 mm) midrange speakers from the Helix Compose i3 series, rated at 80W RMS and built around 3-ohm technology. Supplied with FlexMount100 universal adaptor rings and FlexConnect terminals, they suit both universal and vehicle-specific installations.

This listing is the 4-inch midrange. The Helix Compose i3 range is also available as a Ci3 K100.2FM-S3 4-inch component speaker set.

Key specifications

  • Type: 4-inch (100 mm) midrange speaker
  • Power handling: 80W RMS, 120W max
  • Impedance: 3 ohms
  • Frequency response: 120 Hz to 6,000 Hz
  • Sensitivity: 87 dB @ 1W/1m (91 dB @ 2.83V/1m)
  • Cone: paper with Cenosphere coating
  • Voice coil: 25 mm
  • Installation diameter: 89 mm
  • Installation depth: 30 mm

Helix Ci3 M100FM-S3

The Helix Compose platform was designed to bring together the flexibility of universal speakers and the fit of vehicle-specific systems. Built around the principle of being developed inside the vehicle, for the vehicle, Compose combines smart engineering with high efficiency and strong dynamics across a wide range of installations.

Price and performance

The Compose i3 series delivers a first-class sound experience at an accessible price. High-quality components and the same mechanical technologies found in the i7 series are used throughout. All speaker impedances are matched for use with Helix and MATCH amplifiers.

High efficiency

The 3-ohm design harmonises with Helix and MATCH amplifiers, delivering a measurable improvement in efficiency and maximum sound pressure compared with standard 4-ohm drivers.

Cenosphere paper cone

The cone uses a Cenosphere coating — hollow spheres incorporated into a polyamide layer applied to the cone surface. This increases stiffness and improves internal damping, producing a lightweight yet exceptionally stable cone with precise sound reproduction.

High-tech polymer basket

The basket is made from a glass-sphere-reinforced high-tech polymer composite, giving maximum stability with minimal self-resonance. It also eliminates flux modulation of the magnetic system, resists thermal influences, and keeps overall dimensions compact for straightforward fitting in tight spaces.

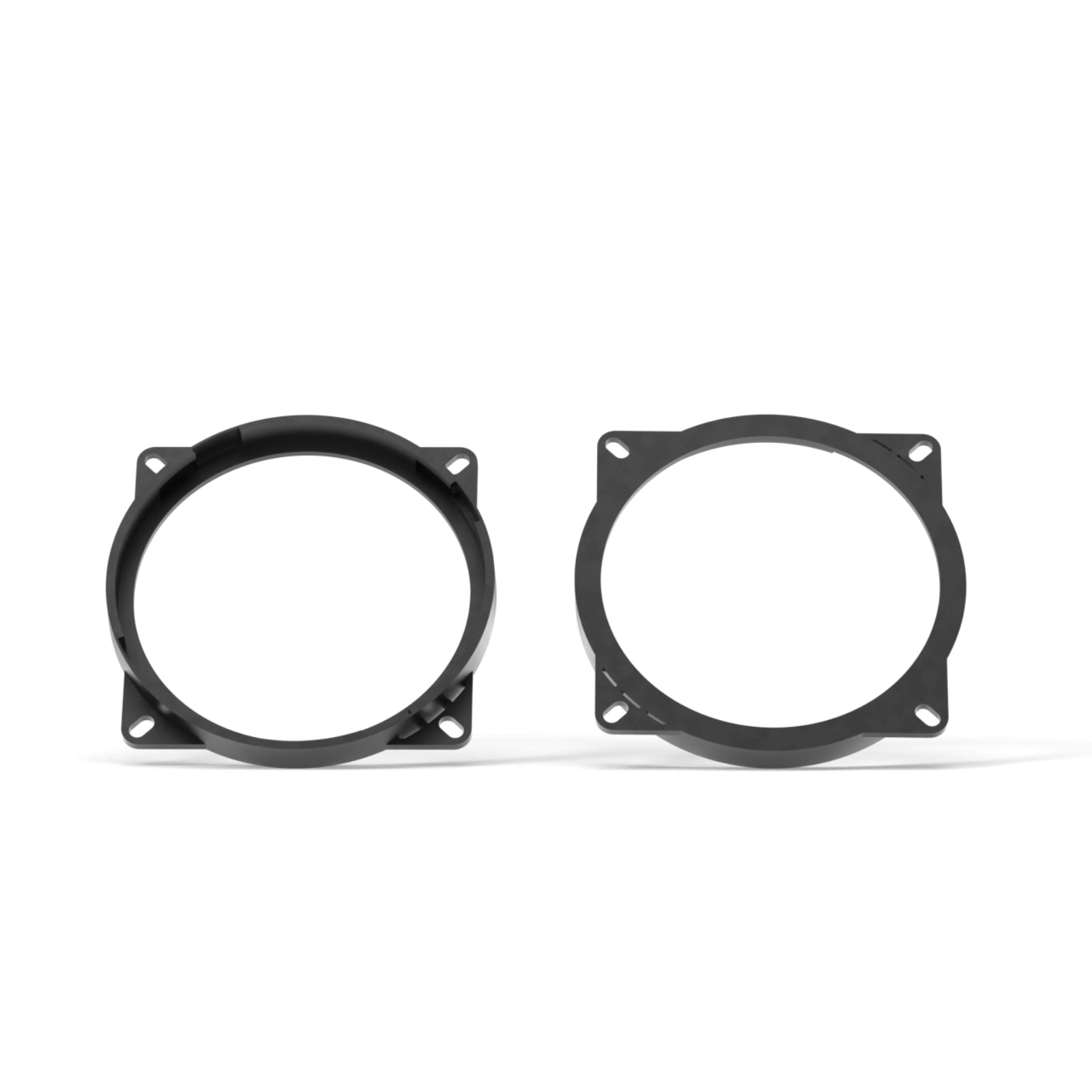

FlexMount100 – universal meets car-specific

FlexMount100 adaptor rings allow the Ci3 M100FM-S3 to be installed in the original factory speaker position of a wide range of vehicles. The twist-lock design secures the speaker in an acoustically optimised position without permanent modification.

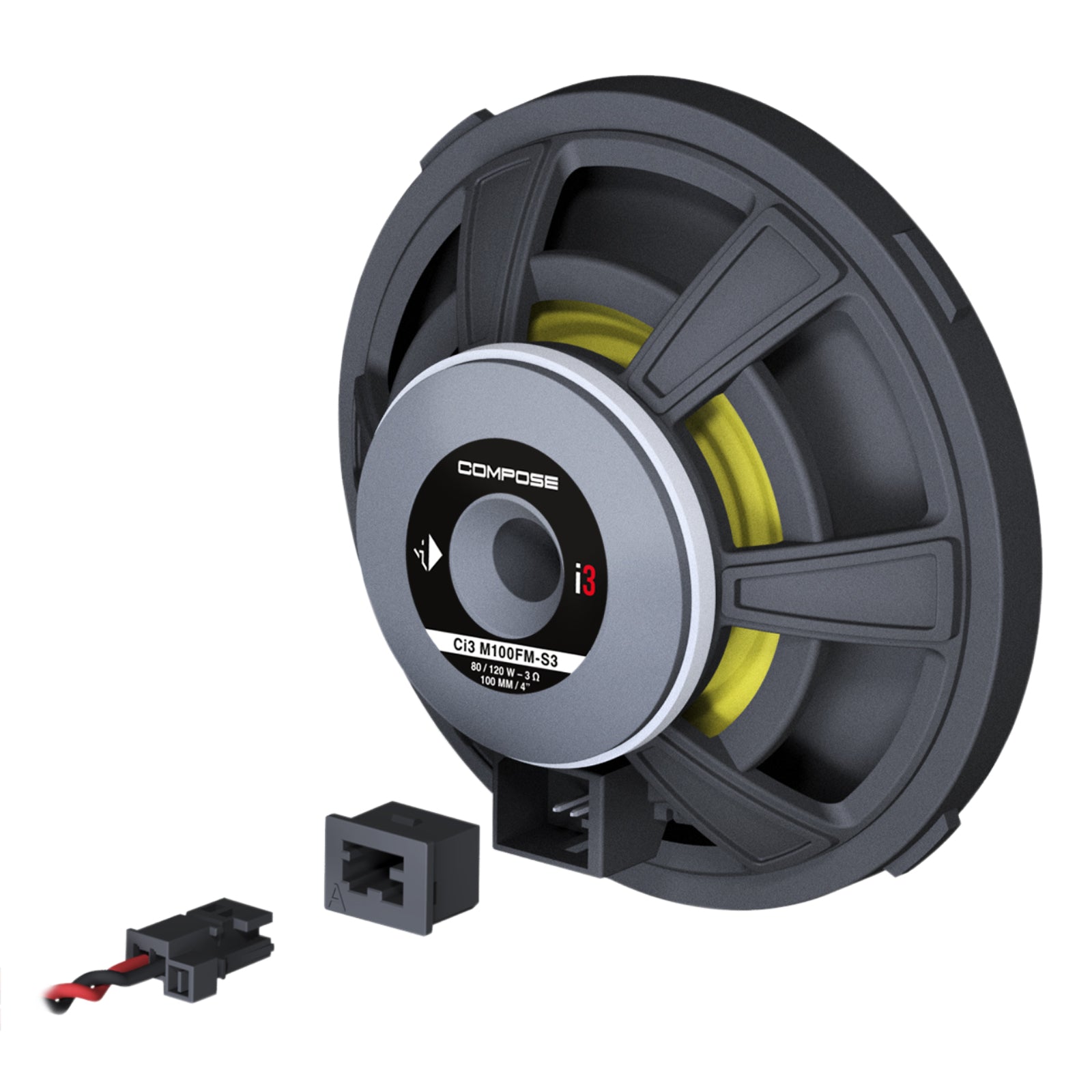

FlexConnect – one terminal for all cases

The FlexConnect terminal allows direct connection to a vehicle's original wiring harness, maintaining automotive connector standards and providing reverse polarity protection. Vehicle-specific FlexConnect adaptors are available separately.

Specification
Power handlingRMS / max. P 80 / 120 Watts
ImpedanceZ 3 Ω
Frequency response120 Hz - 6,000 Hz
SensitivitySPL 91 dB @ 2.83 V / 1m 87 dB @ 1W / 1m
Conearea Sd 53 cm²
Conematerial Paper with Cenosphere coating
Voice coildiameter ø 25 mm
Voice coilwinding height 4.8 mm
More specs
  • 4” / 100 mm performance midrange speaker which combines outstanding sound quality with versatile physical integration options
  • High efficiency and 3 Ohms technology for maximized power output of the amplifier
  • Unique Cenosphere coated paper cone for precise and detailed sound reproduction
  • High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
  • Specially shaped rubber surround for high linear cone excursion
  • Polyurethane dustcap for optimized frequency response in the upper midrange area
  • 1” / 25 mm voice coil ensures high power handling
  • Automotive grade FlexConnect terminal for fast, secure and fail-safe connection
  • Shallow neodymium magnet system for low installation depth and high efficiency
  • Universal FlexMount100 mounting ring included in delivery
  • Designed for the optionally available car-specific FlexMount100 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
  • DC resistance Re 3.0 Ω
  • Resonance frequency Fs 146 Hz
  • Mechanical Q factor Qms 4.49
  • Electrical Q factor Qes 1.02
  • Total Q factor Qts 0.83
  • Compliance Cms 280 µm/N
  • Equivalent air volume Vas 1.1 L
  • Force factor B*I 3.4 Tm
  • Moving mass Mms 4.3 g
  • Mechanical resistance Rms 0.87 kg/s
  • Max. linear excursion Xmax +/- 2.0 mm
  • Outer diameter ø 98 mm / 3.86"
  • Outer diameter with universal mounting ring ø 104,5 mm / 4.11"
  • Installation diameter ø 89 mm / 3.50"
  • Installation depth 30 mm / 1.18"
  • Features FlexConnect terminal, powerful push-pull neodymium magnet system, FlexMount100
  • FlexMount100
  • FlexConnect Inlays
What's Included
  • 2 x Ci3 M100FM-S3
  • 2 x Universal FlexMount100 (with standard 4-point mounting)
  • 2 x FlexConnect inlay A
  • 2 x Universal connection cable
  • 1 x Mounting material
Product information

Helix

About the Helix CI21400

From our tech experts at CEN

The Helix Ci3 M100FM-S3 is a pair of 4 inch (100 mm) midrange speakers from the Compose i3 range, rated at 80 W RMS and 120 W maximum at 3 ohms. They cover 120 Hz to 6 kHz with Cenosphere-coated paper cones, and come with FlexMount100 rings and FlexConnect terminals.

Who it suits

Dash and factory 4 inch positions in a three-way i3 build, between a tweeter and door midbass. With 30 mm of depth and an 89 mm installation diameter they suit shallow locations. For a complete 4 inch set with tweeters and crossovers, see the Ci3 K100.2FM-S3.

Our tech experts advise

They need band-pass filtering from a DSP or crossover, as they are not built for deep bass. Car-specific FlexMount100 adaptors can drop them into many factory positions. Get in touch with your vehicle details.

Explore the full Helix range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Helix

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: Will these speakers fit my car?

A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.

Q: Do I need an amplifier to run these speakers?

A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.

Q: What is the difference between coaxial and component speakers?

A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.

Q: Do these come as a pair?

A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.

Q: Can CEN fit these speakers for me?

A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.

Q: What frequency range does the HELIX Ci3 M100FM-S3 cover?

A: It is a midrange speaker with a frequency response of 120 Hz to 6,000 Hz, so it is used alongside separate tweeters and woofers rather than as a full-range speaker.

Q: Why is the Ci3 M100FM-S3 rated at 3 ohms?

A: HELIX uses 3-ohm technology across the COMPOSE range to get more output from the amplifier. It is matched to HELIX and MATCH amplifiers for higher efficiency and maximum sound pressure.

Q: What is FlexMount100 and is it included?

A: FlexMount100 is HELIX's adaptor ring system. A universal FlexMount100 ring with standard 4-point mounting is included for each speaker, and optional car-specific FlexMount100 adaptors allow installation in the original factory location.

Q: What's in the box?

A: 2 x Ci3 M100FM-S3 speakers, 2 x universal FlexMount100 rings (with standard 4-point mounting), 2 x FlexConnect inlay A, 2 x universal connection cables and 1 x set of mounting material.
