Helix Compose i3 Ci3 W165FM-S3 Woofers 6.5 Inch FlexMount Speakers 100w RMS

£129.99
In stock
SKU: 90711MPN: Ci3 W165FM-S3
Part of the range · 19 productsPart of the Helix Compose i3 range · 19 products See the range →

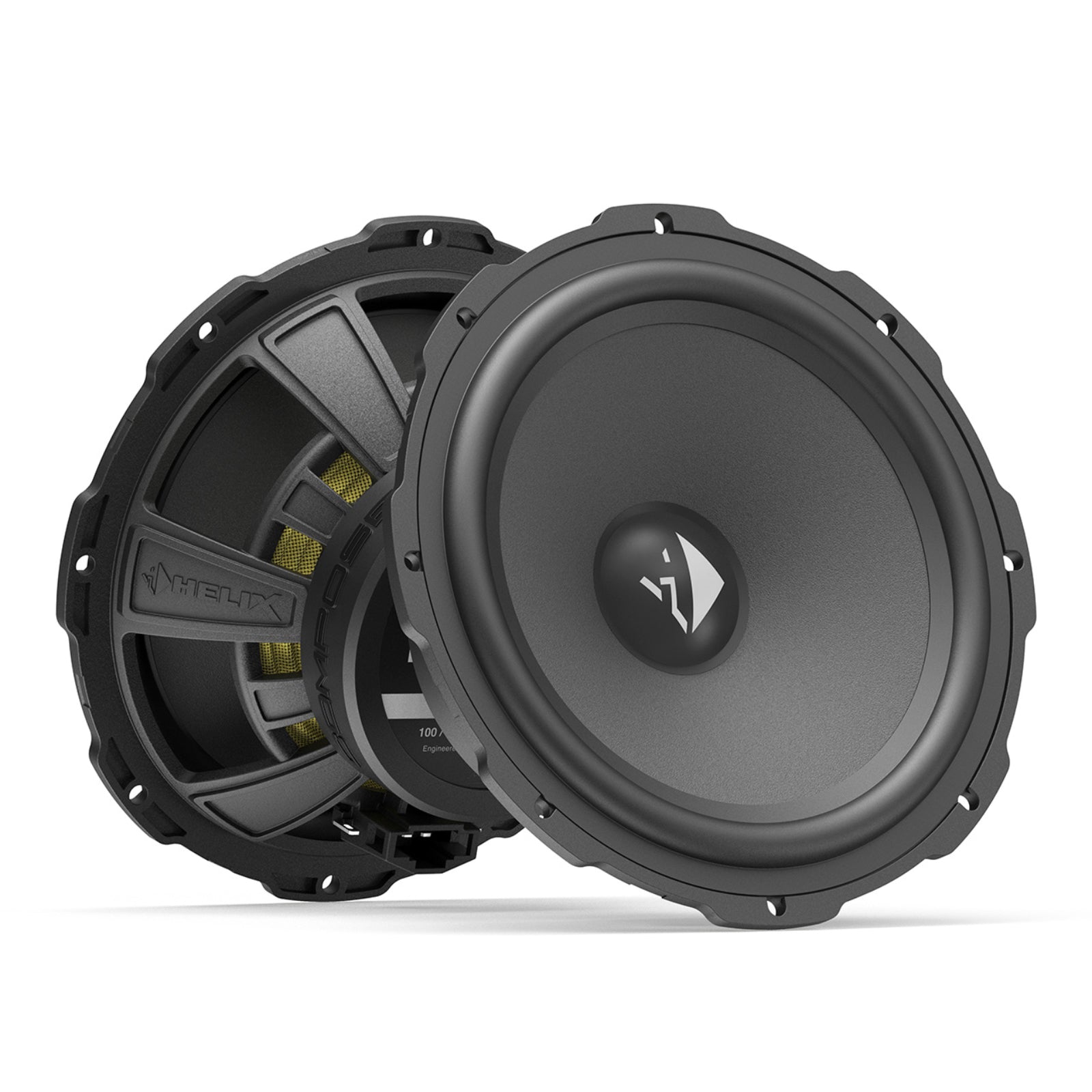

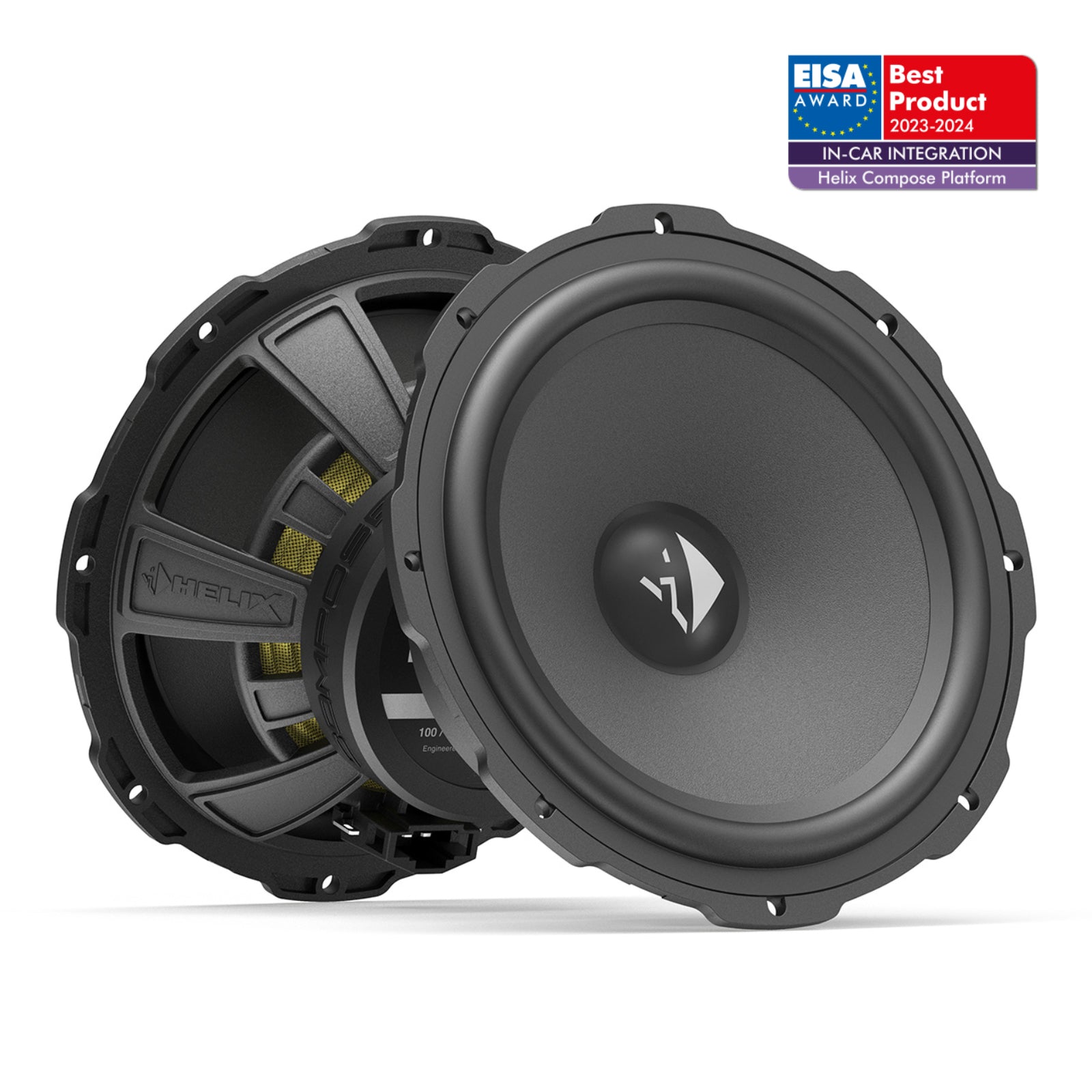

The HELIX Ci3 W165FM-S3 is a pair of 6.5 inch / 165 mm midbass drivers from the HELIX COMPOSE i3 range, rated at 100 W RMS at 3 ohms. Designed for door upgrades and custom component builds, they are compatible with optional FlexMount165 adaptors.

This listing is the 3-ohm variant. The Ci3 W165FM is also available in 2-ohm (Ci3 W165FM-S2).

This midbass is supplied in the Ci3 K165.2FM-S3 MK2 component set and connects to the Ci3 FX-UNI.2 via the Ci3 FX-WLP.2.

Key specifications

  • Size: 6.5" / 165 mm midbass
  • Power handling: 100 W RMS / 150 W max
  • Impedance: 3 ohms
  • Frequency response: 60 Hz to 3.5 kHz
  • Sensitivity: 92 dB @ 2.83 V / 1 m (88 dB @ 1 W / 1 m)
  • Installation diameter: 142 mm
  • Installation depth: 60.7 mm
  • Xmax: +/- 3.2 mm

HELIX COMPOSE. The perfect speaker for any composition.

The HELIX COMPOSE platform combines the flexibility of universal speakers with the fit and acoustic benefits of vehicle-specific systems. Innovative materials and smart engineering deliver high efficiency, strong dynamics and excellent sound quality in a wide range of vehicles.

Price-performance highlight

The COMPOSE i3 series delivers a first-class sound experience through high-quality components and smart engineering. Speaker impedances are matched for use with HELIX and MATCH amplifiers, ensuring maximum performance at all times.

High efficiency

The i3 uses 3-ohm technology, optimised for HELIX and MATCH amplifiers to deliver a clear gain in efficiency and maximum sound pressure. Select models are also available as 2-ohm variants for absolute maximum power output with a compatible amplifier.

Cenosphere paper cone

The cone features an innovative Cenosphere coating — hollow spheres incorporated into a polyamide layer applied to the cone surface. This increases stiffness and improves internal damping, producing an exceptionally stable yet lightweight cone with precise sound reproduction.

High-tech polymer basket

HELIX COMPOSE i7 and i3 baskets are made from a high-tech polymer composite reinforced with glass spheres. This delivers maximum stability, minimal self-resonance, no flux modulation of the magnetic system, and strong resistance to thermal stress — while keeping basket dimensions compact for easier installation.

FlexMount165 – Universal meets car-specific

FlexMount is a mounting system using specially developed adaptor rings, allowing COMPOSE FlexMount speakers to be installed in an almost unlimited range of vehicles. The matching FlexMount adaptor ring positions the speaker in the vehicle's original location for an acoustically optimised fit.

ProConnect – The new industry standard

The ProConnect terminal is a professional automotive connector compatible with standard speaker cables and flat-plug WireKits. The connection is interlocked, offers reverse polarity protection, and is designed to withstand high electrical and mechanical stress.

WireKits – Plug & Play at its best

WireKits connect HELIX COMPOSE components to the vehicle's original wiring harness or crossover with ease. Built to automotive industry standards, these arrestable adaptor cables are designed to cope with the demanding conditions encountered during vehicle installation.

Specification
Power handlingRMS / max. P 100 / 150 Watts
ImpedanceZ 3 Ω
Frequency response60 Hz - 3,500 Hz
SensitivitySPL 92 dB @ 2.83 V / 1m 88 dB @ 1W / 1m
Conearea Sd 133 cm²
Conematerial Paper with Cenosphere coating
Voice coildiameter ø 25 mm
Voice coilwinding height 10.5 mm
More specs
  • 6.5” / 165 mm performance midbass which combines outstanding sound quality with versatile physical integration options
  • High efficiency and 3 Ohms technology for maximized power output of the amplifier
  • Unique Cenosphere coated paper cone for precise and detailed sound reproduction
  • High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
  • Specially shaped rubber surround for high linear cone excursion
  • Polyurethane dustcap for optimized frequency response in the upper midrange area
  • 1” / 25 mm voice coil ensures high power handling
  • Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via
  • optionally available WireKits
  • Powerful magnet system for high efficiency and optimum impulse response
  • Designed for the optionally available car-specific FlexMount165 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
  • Designed for optionally available, car-specific WireKits which allow a non-destructive integration
  • DC resistance Re 3.0 Ω
  • Resonance frequency Fs 70 Hz
  • Mechanical Q factor Qms 4.17
  • Electrical Q factor Qes 1.05
  • Total Q factor Qts 0.84
  • Compliance Cms 454 µm/N
  • Equivalent air volume Vas 11.2 L
  • Force factor B*I 4.0 Tm
  • Moving mass Mms 11.3 g
  • Mechanical resistance Rms 1.18 kg/s
  • Max. linear excursion Xmax +/- 3.2 mm
  • Outer diameter ø 165 mm / 6.5"
  • Installation diameter ø 142 mm / 5.59"
  • Installation depth 60.7 mm / 2.39"
  • Features ProConnect terminal, FlexMount165
  • FlexMount165
  • WireKits
What's Included
  • 2 x Ci3 W165FM-S3
  • 2 x Mounting material
Product information

Helix

About the Helix CI21600

From our tech experts at CEN

The Helix Ci3 W165FM-S3 is a pair of 6.5 inch (165 mm) midbass drivers from the Compose i3 range, rated at 100 W RMS and 150 W maximum at 3 ohms. They cover 60 Hz to 3.5 kHz with 92 dB sensitivity and need a 142 mm cut-out and 60.7 mm of depth.

Who it suits

Door upgrades with a separate tweeter or an active DSP system, and owners of the Ci3 K165.2FM-S3 MK2 set, which uses this driver. The 2 ohm Ci3 W165FM-S2 suits amplifiers that make most power into a low load.

Our tech experts advise

For a passive build they connect to the Ci3 FX-UNI.2 through the Ci3 FX-WLP.2 lowpass cable. Optional FlexMount165 adaptors fit many factory door positions without cutting. Get in touch with your make, model and year.

Explore the full Helix range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Helix

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: Will these speakers fit my car?

A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.

Q: Do I need an amplifier to run these speakers?

A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.

Q: What is the difference between coaxial and component speakers?

A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.

Q: Do these come as a pair?

A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.

Q: Can CEN fit these speakers for me?

A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.

Q: What impedance is the Ci3 W165FM-S3?

A: It is a 3 ohm midbass. A 2 ohm version, the Ci3 W165FM-S2, is also available.

Q: What is the mounting depth of the Ci3 W165FM-S3?

A: Installation depth is 60.7 mm with a 142 mm installation diameter.

Q: Does the Ci3 W165FM-S3 fit FlexMount adaptors?

A: Yes. It is designed for optional car-specific FlexMount165 adaptors and WireKits.
