Edge Xtreme Series EDX15D2-E3 Car Sub Dual 2 Ohms 15 Inch Subwoofer 2250w RMS
Couldn't Load Pickup availability

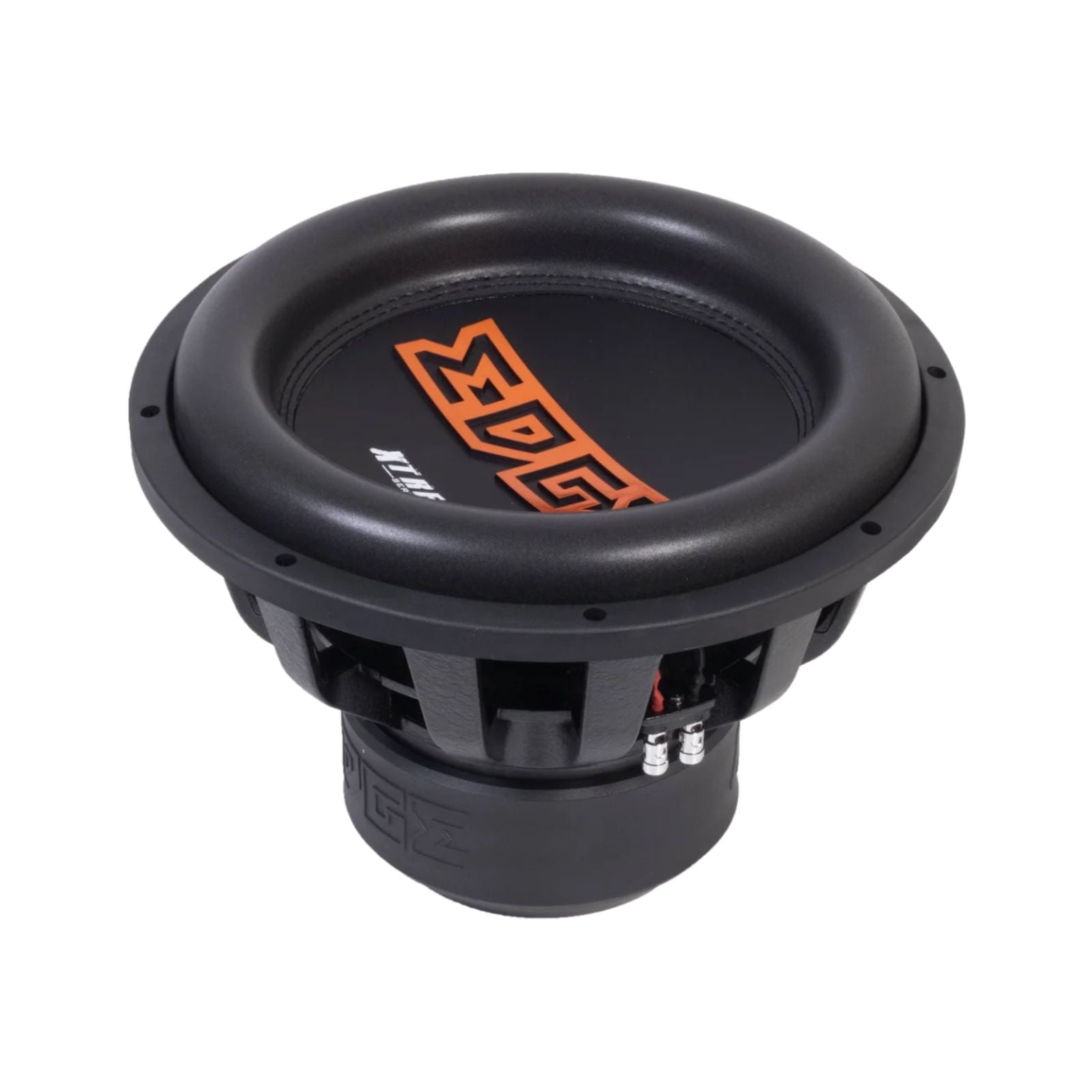

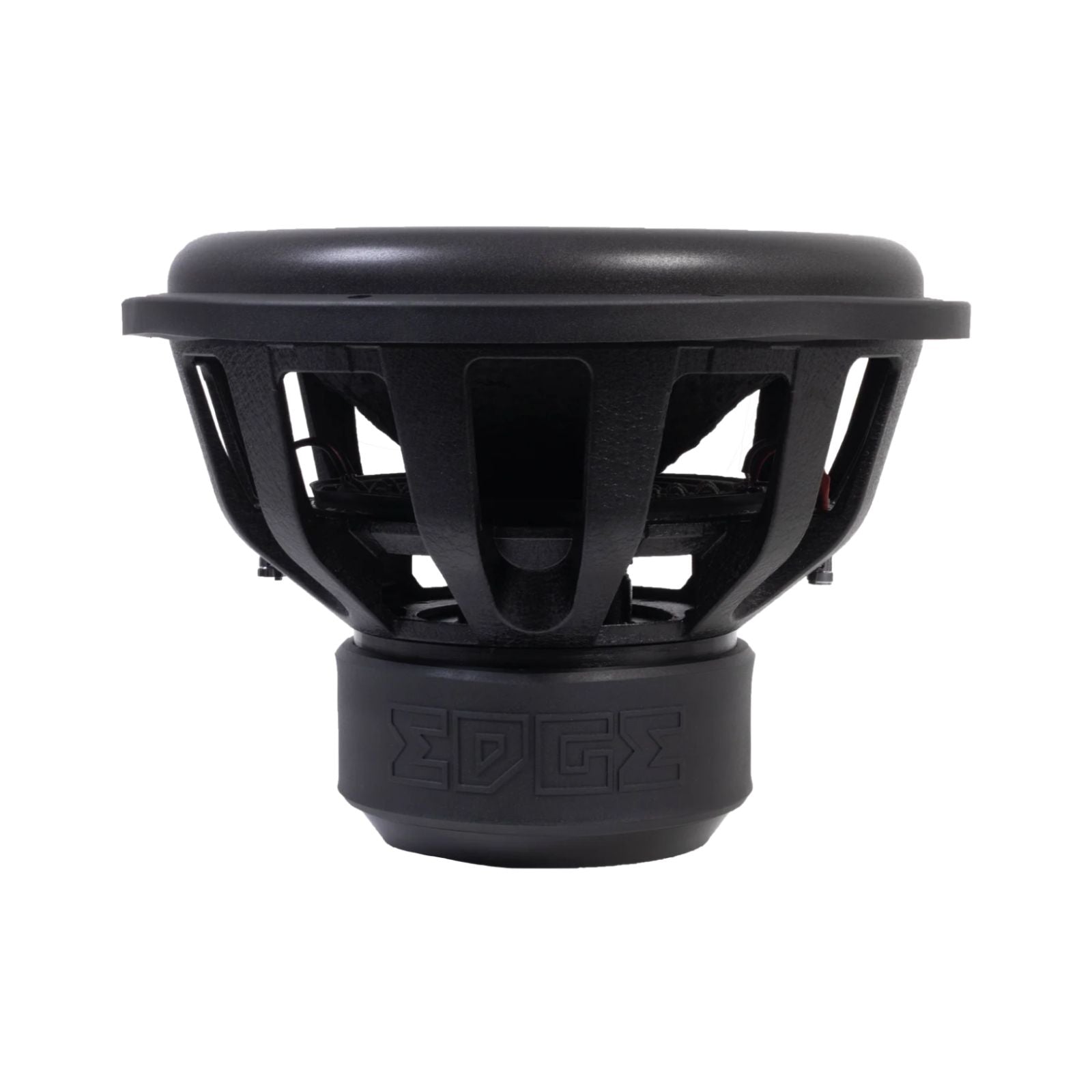

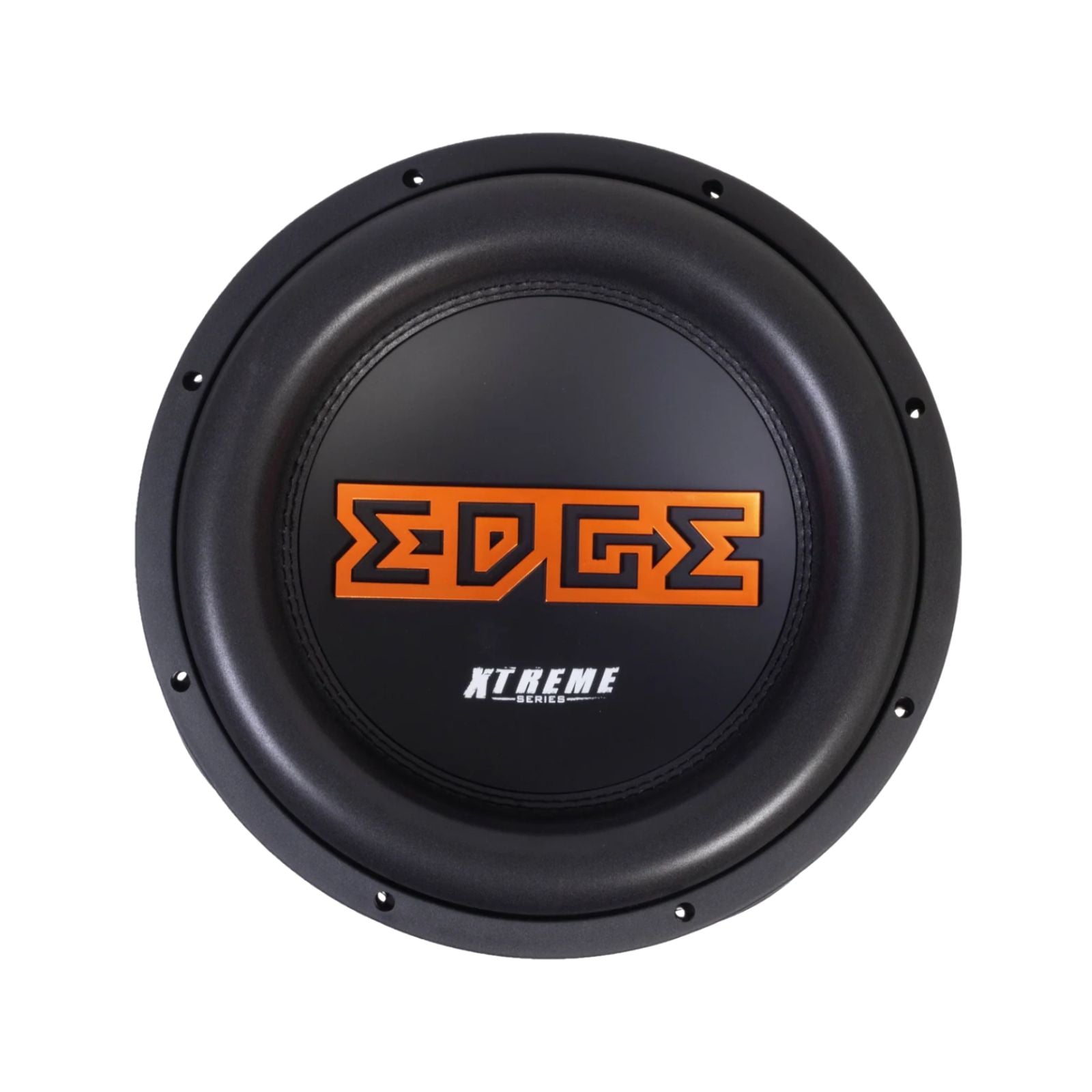

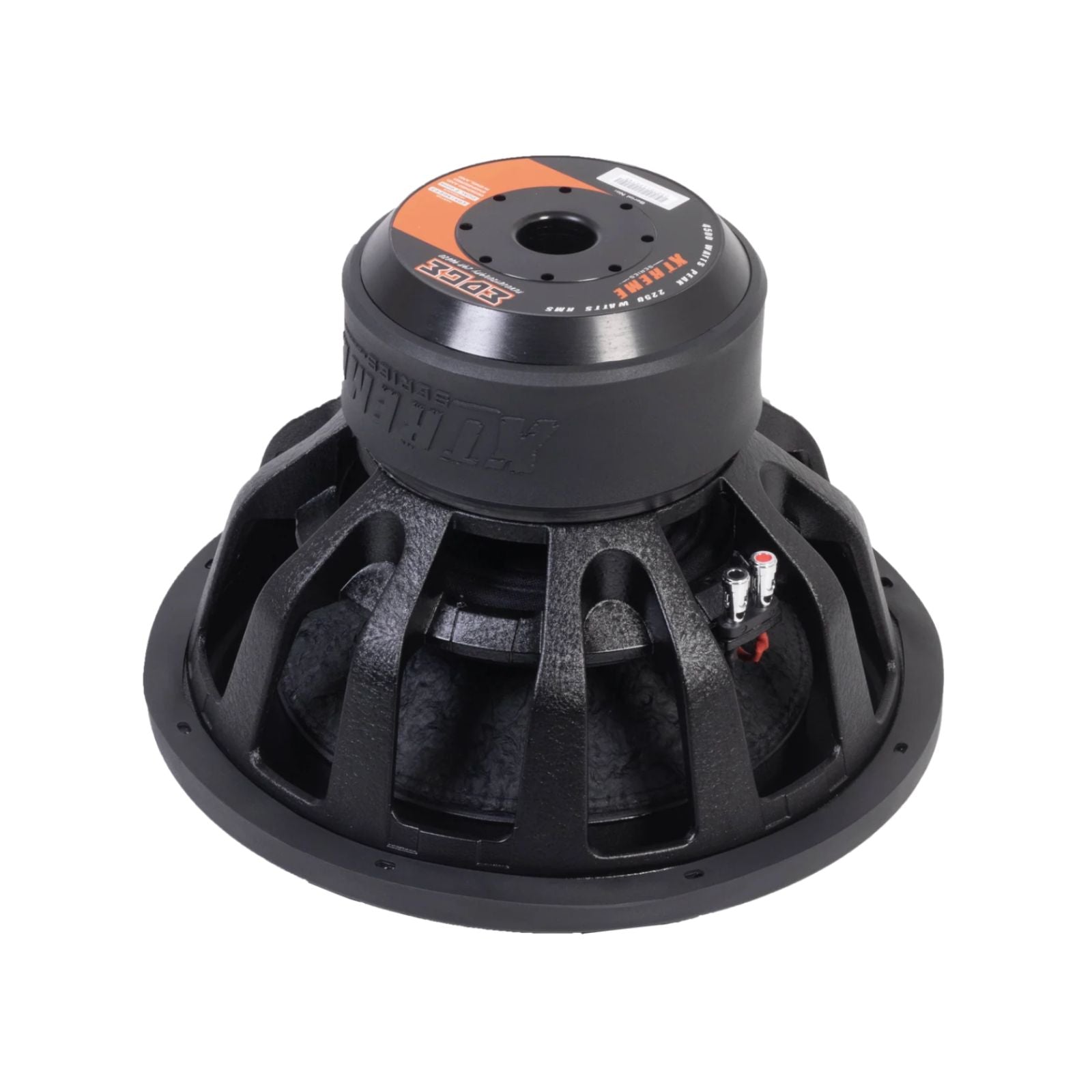

The Edge Xtreme Series EDX15D2-E3 is a 15 inch car subwoofer rated at 2250W RMS and 4500W peak, with dual 2 ohm voice coils, a triple Y35 ferrite motor and quad Nomex spiders. It is part of Edge's Xtreme Series, designed for street and competition SPL builds.
This listing is the 15 inch. The Xtreme Series subwoofer range is also available in 10 inch (EDX10D2-E3) and 12 inch (EDX12D2-E3).
Key specifications
- Size: 15 inch, 15.4 inch (392mm) overall diameter
- Power handling: 2250W RMS, 4500W peak
- Impedance: dual 2 ohms
- Voice coil: 3 inch, 4 layer, black aluminium, USA made
- Magnet: triple Y35 ferrite
- Spiders: 4 x black Nomex (10 inch)
- Dust cap: custom tooled 2-piece IMPP with EDGE outline logo
- Basket: cast aluminium
- Cone: non-pressed paper composite
- Surround: wide roll double-stitched high roll foam
EDGE Xtreme Series 15 inch 4500 watts subwoofer (EDX15D2-E3)
The Xtreme Series was designed with both street bass and competition bass in mind. All models feature triple stacked motor structures across three cast aluminium basket types, paired with polycotton spiders, stitched tinsel leads, non-pressed paper cones and 3 inch voice coils. New for 2023, a custom tooled basket increases excursion on low bass, a wider foam surround handles that extra excursion, and a new custom tooled 2-piece dust cap gives the driver a distinctive finish.
If pushing the limits of excursion and SPL is your goal, the Xtreme Series is built for the job.
Sound
A double-stitched high-roll foam surround and paper composite cone keep the soft parts lightweight but strong, allowing for massive output.
Design
The custom tooled 2-piece dust cap features the EDGE outline logo for a premium appearance.
Motor
Triple stacked Y35 ferrite magnets provide strong motor force for deep, punchy bass.
Power handling
The 3 inch 4-layer aluminium voice coil and custom soft parts deliver high power handling suited to the 15 inch driver.
Features
- Non-pressed paper cone
- Wide roll foam surround
- Quad 10 inch black Nomex spiders
- Triple Y35 ferrite magnets
- USA made 4-layer black aluminium voice coil
Explore the full range in Edge Xtreme Series.
Specification
| Speaker Size | 15.4" (392mm) |
|---|---|
| Cone | Non-pressed paper cone |
| Surround | Big roll foam - stitched |
| Dustcap | Custom tooled IMPP |
| Voice Coil | 3" Black Aluminium |
| Spider | 4pcs Black NOMEX |
| Gasket | Rubber |
| Top Plate | 15mm Black anodised |
| Terminal | Spring loaded |
| Impedance | Dual 2 Ohms |
| RMS Power | 2250 watts |
| Peak Power | 4500 watts |
What's Included
- EDX15D2-E3
Edge
About the Edge EDX15D2-E3
From our tech experts at CEN
An Edge 15 inch subwoofer, dual voice coil, 2 ohm, handling 2250w RMS.
Who it suits
Drivers building a system where the bass does real work, and SPL builds where output is the point.
Our tech experts advise
Enclosure volume and tuning decide most of what you hear, and the dual coils give you wiring options. Bigger output builds also need the electrical side checked, because large amplifiers pull current the standard charging system was never designed for. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge
More options from the same range, in stock and ready to go
Staff PickEdge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3
£179.00
View product
Best SellerEdge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair
£39.99
Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS
£174.99
Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS
£249.99
Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair
£49.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: What impedance is the EDX15D2-E3?
A: It has dual 2 ohm voice coils, so it can be wired to 1 ohm or 4 ohms to suit your amplifier.
Q: How much power can the EDX15D2-E3 handle?
A: It is rated at 2250W RMS and 4500W peak.
