Edge Street Series EDS3000.1FD-E3 Amp Class D 1 Channel Mono Amplifier 3300w RMS
Couldn't Load Pickup availability

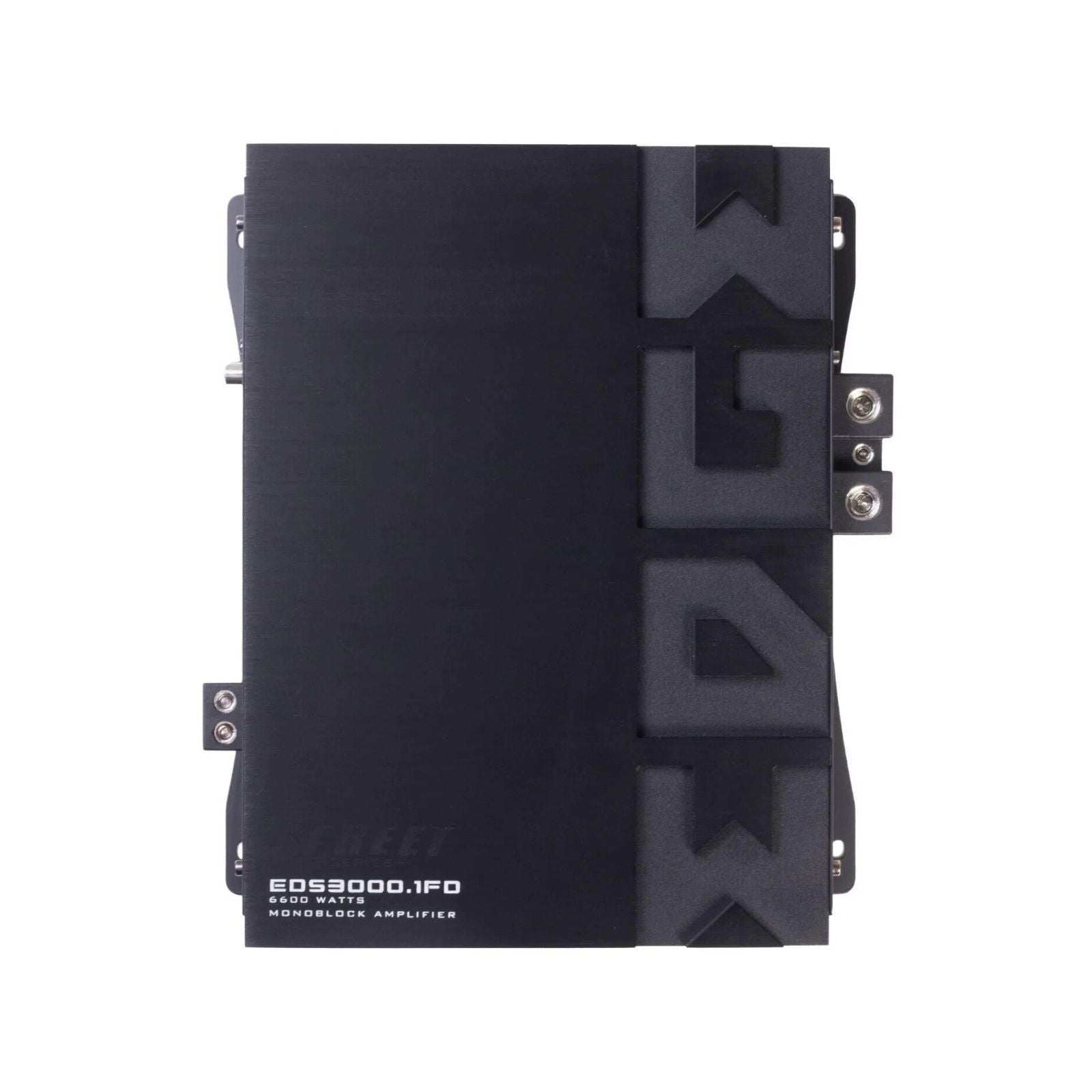

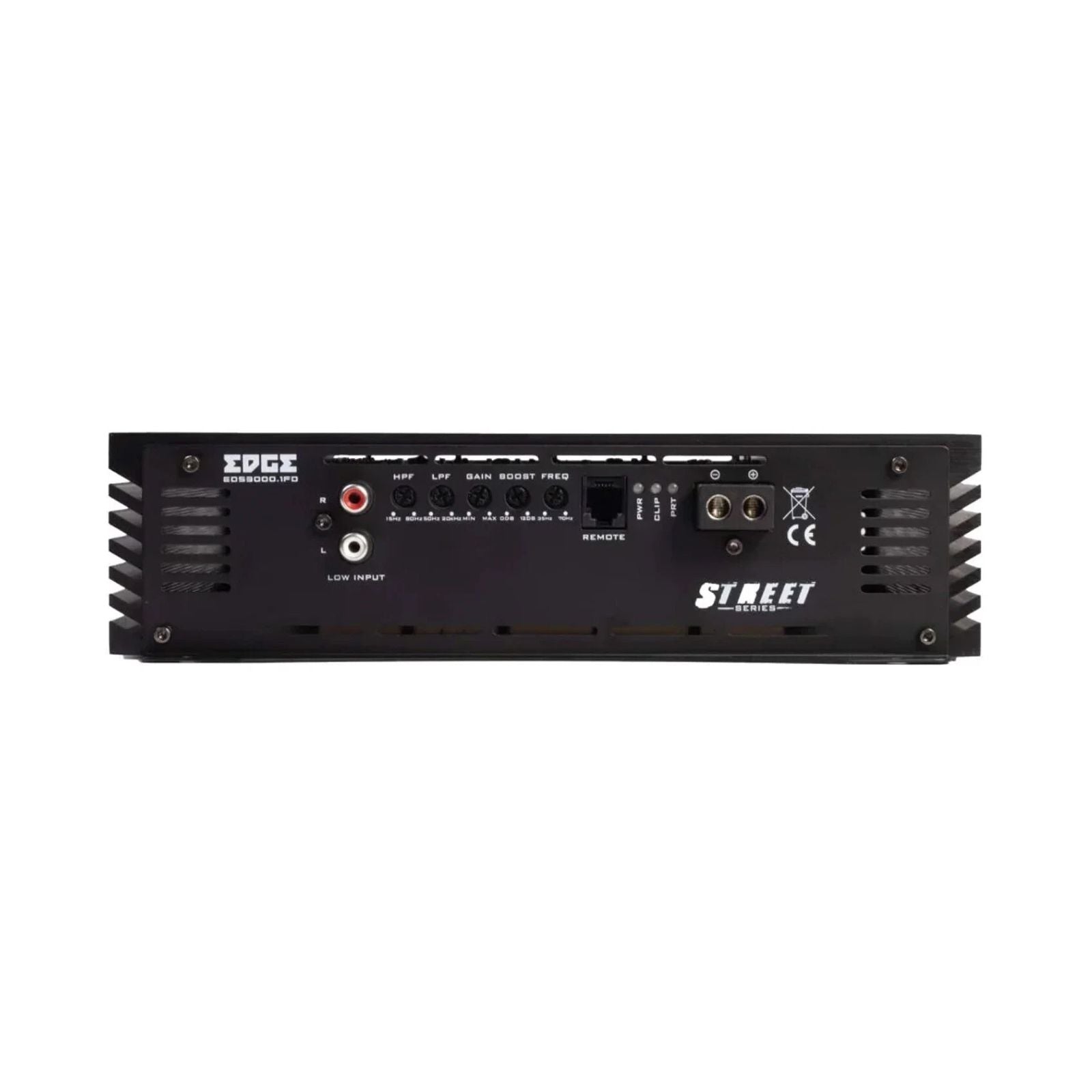

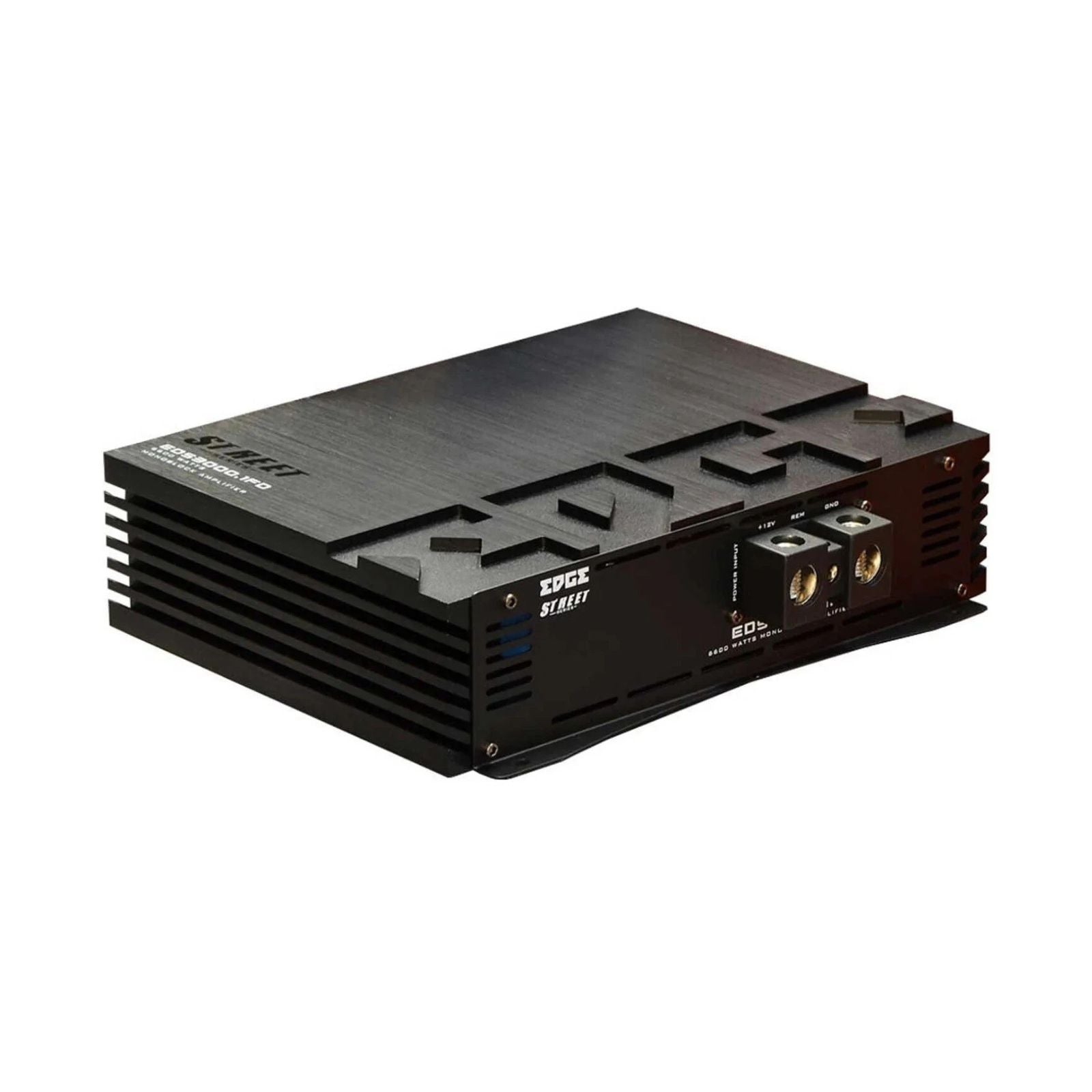

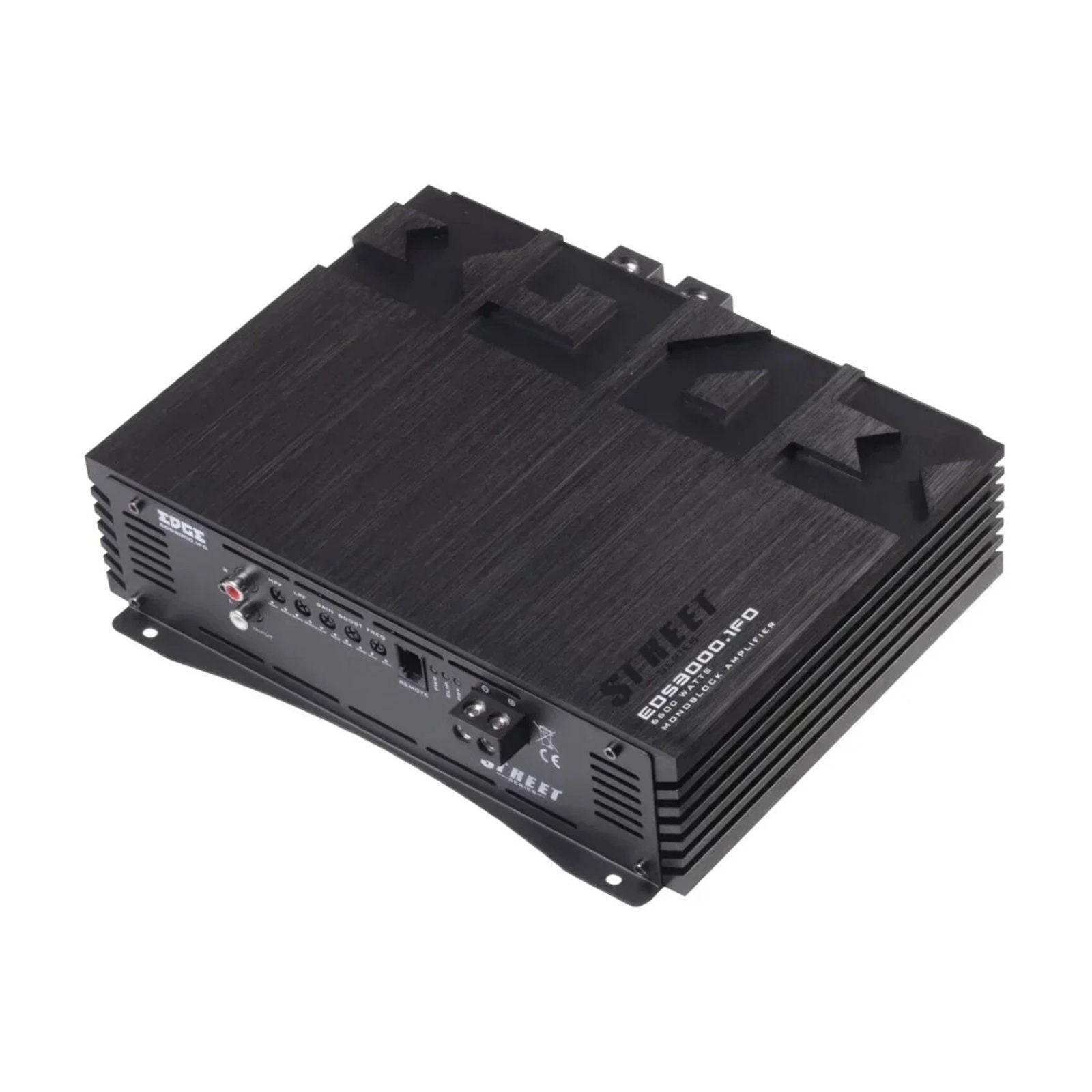

The Edge EDS3000.1FD-E3 is a Street Series Class D full bridge monoblock amplifier delivering 3300W RMS at 1 ohm, 2050W at 2 ohms, and 1100W at 4 ohms (6600W maximum power). It is part of the Edge Street Series range.
Key specifications
- Model: EDS3000.1FD-E3
- Channels: 1 (monoblock), Class D full bridge
- RMS @ 1 ohm: 1 x 3300W
- RMS @ 2 ohms: 1 x 2050W
- RMS @ 4 ohms: 1 x 1100W
- Maximum power: 6600W
- Frequency response: 15Hz - 20kHz
- Crossover: LP / HP, 15Hz - 20kHz
- Recommended fuse: 250A external
EDGE Street Series 6600W Monoblock Amplifier
A compact mono amplifier using full bridge Class D topology to deliver serious power in a small footprint.
Full bridge technology converts DC power from your battery to AC output more efficiently than a standard half bridge design, producing 3300W RMS from a chassis that fits where larger amplifiers won't. If you need a step down in power, the Edge DBX Series EDBX2200.1D-E4 offers a similar Class D mono format at 2200W RMS.
The custom heatsink uses deep-cut fins to manage temperatures during extended use, keeping the amp running reliably when pushed hard.
Built-in active crossovers and a bass boost circuit are included on all Street Series models. The wide frequency response (15Hz–20kHz) means this amp can drive subwoofers, midrange drivers or tweeters depending on your setup.
Features
- Built-in active crossovers
- Bass boost circuit
- Ultra-efficient Class D topology
- Wideband frequency response up to 20kHz
- Full bridge technology
- Compact footprint
Explore the full range in Edge Street Series.
Specification
| Configuration | Monoblock |
|---|---|
| RMS @ 4 Ohms Mono | 1 x 1100 watts |
| RMS @ 2 Ohms Mono | 1 x 2050 watts |
| RMS @ 1 Ohms Mono | 1 x 3300 watts |
| Maximum Power | 6600 watts |
| Frequency Response | 15Hz - 20kHz |
| Crossover Type | LP / HP |
| Crossover Range | 15Hz - 20kHz |
| Recommended Fuse | 250A external fuse |
| Topology | Class D |
What's Included
- EDS3000.1FD-E3
Edge
About the Edge EDS3000.1FD-E3
From our tech experts at CEN
A monoblock subwoofer amplifier from Edge, Class D, rated at 3300w RMS.
Who it suits
Anyone adding a subwoofer who wants solid power without a specialist budget. Edge is built for people who want loud and reliable rather than boutique.
Our tech experts advise
Matching the amplifier to the speakers matters more than headline watts, and gains want setting with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge
More options from the same range, in stock and ready to go
Staff PickEdge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3
£179.00
View product
Best SellerEdge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair
£39.99
Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS
£174.99
Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS
£249.99
Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair
£49.99
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the EDS3000.1FD-E3 deliver?
A: It delivers 1 x 3300W RMS at 1 ohm, 1 x 2050W RMS at 2 ohms and 1 x 1100W RMS at 4 ohms, with a maximum power of 6600W.
Q: What fuse does the EDS3000.1FD-E3 need?
A: Edge recommends a 250A external fuse. Size the power and earth cable to suit that current.
Q: Can the EDS3000.1FD-E3 power speakers as well as subwoofers?
A: Yes. It has a wideband 15Hz to 20kHz response with low pass and high pass crossovers, so it can drive subwoofers, midrange drivers or tweeters.
