Edge DB Series EDBPRO36T-E1 Pro Audio Tweeters 3.8 Inch 80w RMS Pair
Couldn't Load Pickup availability

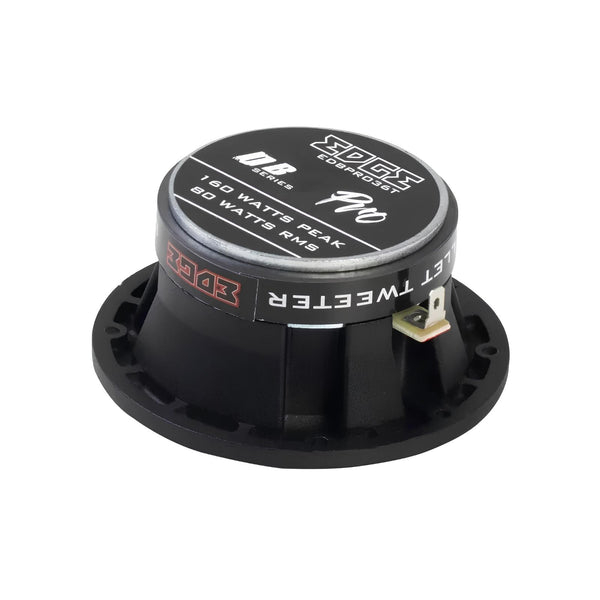

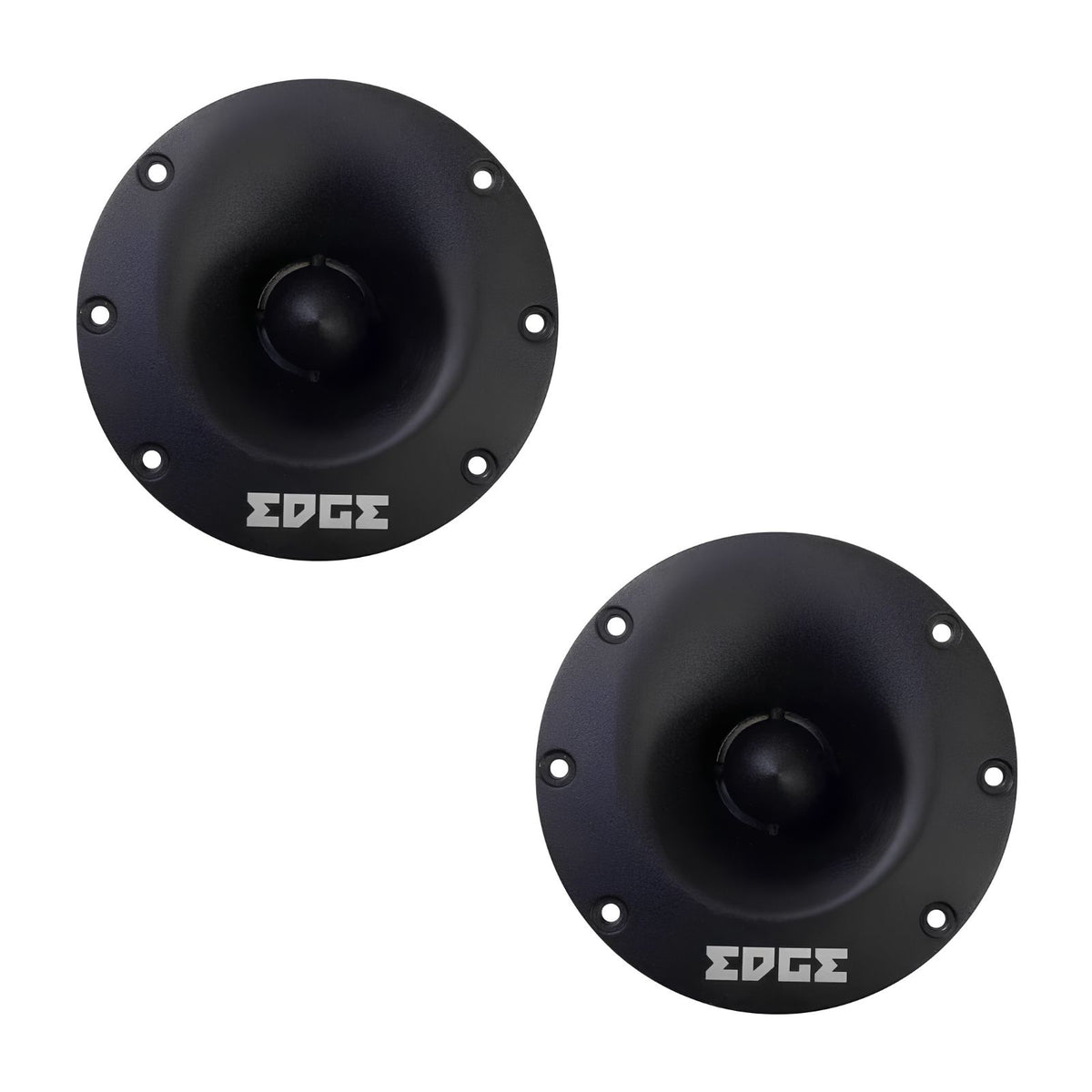

The Edge EDBPRO36T-E1 is a pair of 98mm pro audio bullet tweeters rated at 80W RMS each, from the Edge DB Series.
This listing is the 98mm EDBPRO36T-E1. The DB Series Pro Audio Tweeter range is also available as the EDBPRO37T-E0 3.7 inch 75W RMS pair.
Key specifications
- Size: 98mm
- RMS power: 80W
- Peak power: 160W
- Sensitivity: 103dB
- Frequency response: 2kHz – 20kHz
- Impedance: 4 ohms
- Mounting depth: 36mm
- Mounting diameter: 80mm
- Sold as: pair
EDBPRO36T-E1 pro audio bullet tweeters
The DB Series is Edge's first range of pro audio tweeters, using a bullet tweeter design for high frequencies at high volume.

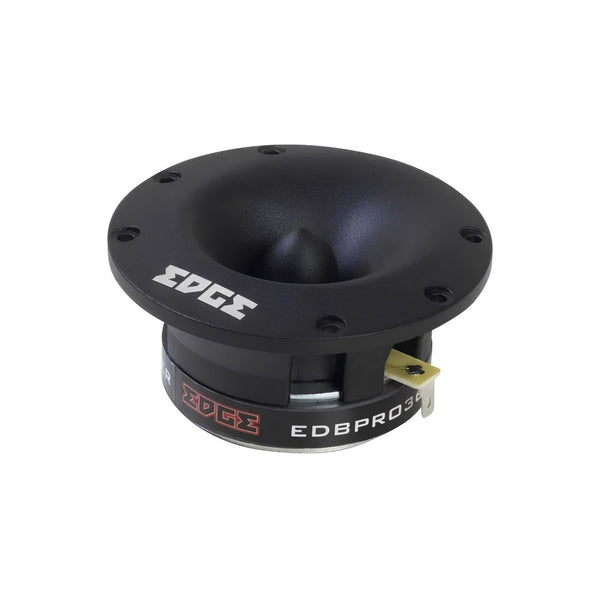

The EDBPRO36T-E1 uses a ferrite magnet driver with an aluminium diaphragm. Its asymmetrical horn design produces a less linear polar dispersion with high efficiency — positioning affects where output is focused. The cast aluminium housing adds rigidity and minimises resonance.
Engineered to match the Edge DB Series pro audio speakers, the EDBPRO36T-E1 delivers a full-range, high-volume pro audio sound when paired with compatible drivers.
Explore the full range in Edge DB Series.
Specification
| Configuration | 1 way |
|---|---|
| Speaker Size | 3.8" (98mm) |
| RMS Power | 80 watts |
| Peak Power | 160 watts |
| Frequency Response | 2kHz - 20kHz |
| Sensitivity | 103dB |
| Impedance | 4 Ohms |
| Mounting Depth | 1.5" (36mm) |
More specs
| |
What's Included
- EDBPRO36T-E1
Edge
About the Edge EDBPRO36T-E1
From our tech experts at CEN
The Edge EDBPRO36T-E1 is a pair of pro audio bullet tweeters from the DB Series, rated at 80w RMS and 4 ohm each, with 103 dB sensitivity. The spec lists the size as 3.8 inch (98mm). They need an 80mm mounting hole and 36mm of depth.
Who it suits
Entry-level pro audio builds that want loud, clear treble alongside DB Series pro midranges such as the EDBPRO6-E3. The EDBPRO37T-E0 is the smaller DB Series option at 75w RMS with a 73mm mounting diameter.
Our tech experts advise
Pro audio tweeters must be high-passed so they never see bass, either by the amplifier's crossover or a suitable passive filter. Their efficiency means they will easily outrun normal door speakers, so balance levels on the amplifier. Mount them high in the door, A-pillar or a pod. Installation is priced per vehicle, so get in touch.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Edge DB Series
More options from the same range, in stock and ready to go
Save 6% Best Seller Edge 12 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB12A 300w RMS RRP£159.00£149.00 / Save 6%Low stock
Edge DB Series EDB1000.1D-E4 Amp Class D 1 Channel Monoblock Amplifier 1000w RMS £149.99 /Low stock
Save 7% Edge 10 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB10A 250w RMS RRP£149.00£139.00 / Save 7%In stock
Frequently Asked Questions
Q: What is the frequency range of the EDBPRO36T-E1?
A: 2kHz to 20kHz. They are high frequency drivers and should be used with a suitable crossover or high pass filter alongside pro midrange speakers.
Q: How sensitive are the EDBPRO36T-E1 tweeters?
A: They are rated at 103dB, so they play very loud from modest amplifier power. Each tweeter handles 80W RMS and 160W peak at 4 ohms.
Q: Do the EDBPRO36T-E1 come as a pair?
A: Yes, the title lists them as a pair. Check the What's Included tab for exact contents.
Q: Can CEN fit these tweeters for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
