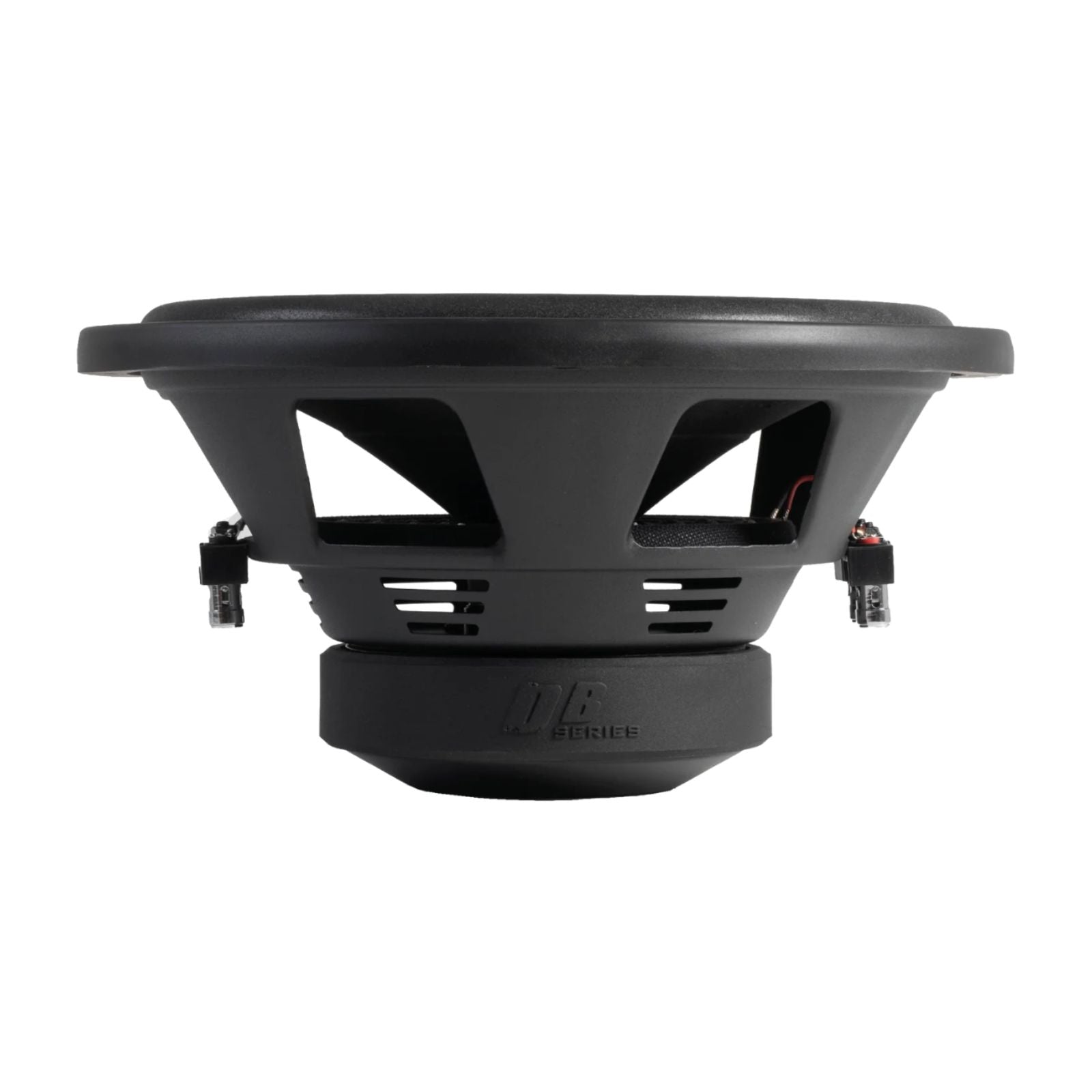

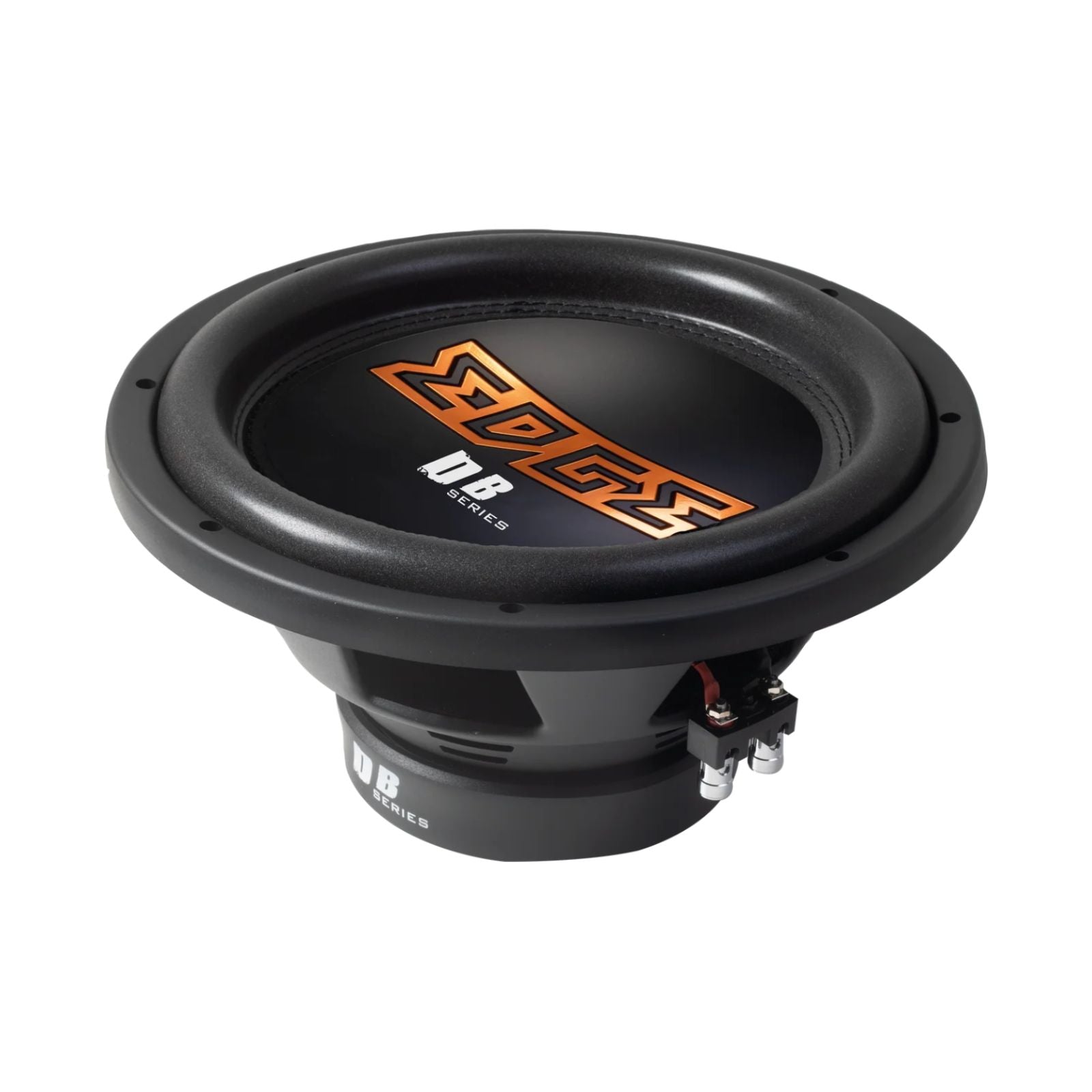

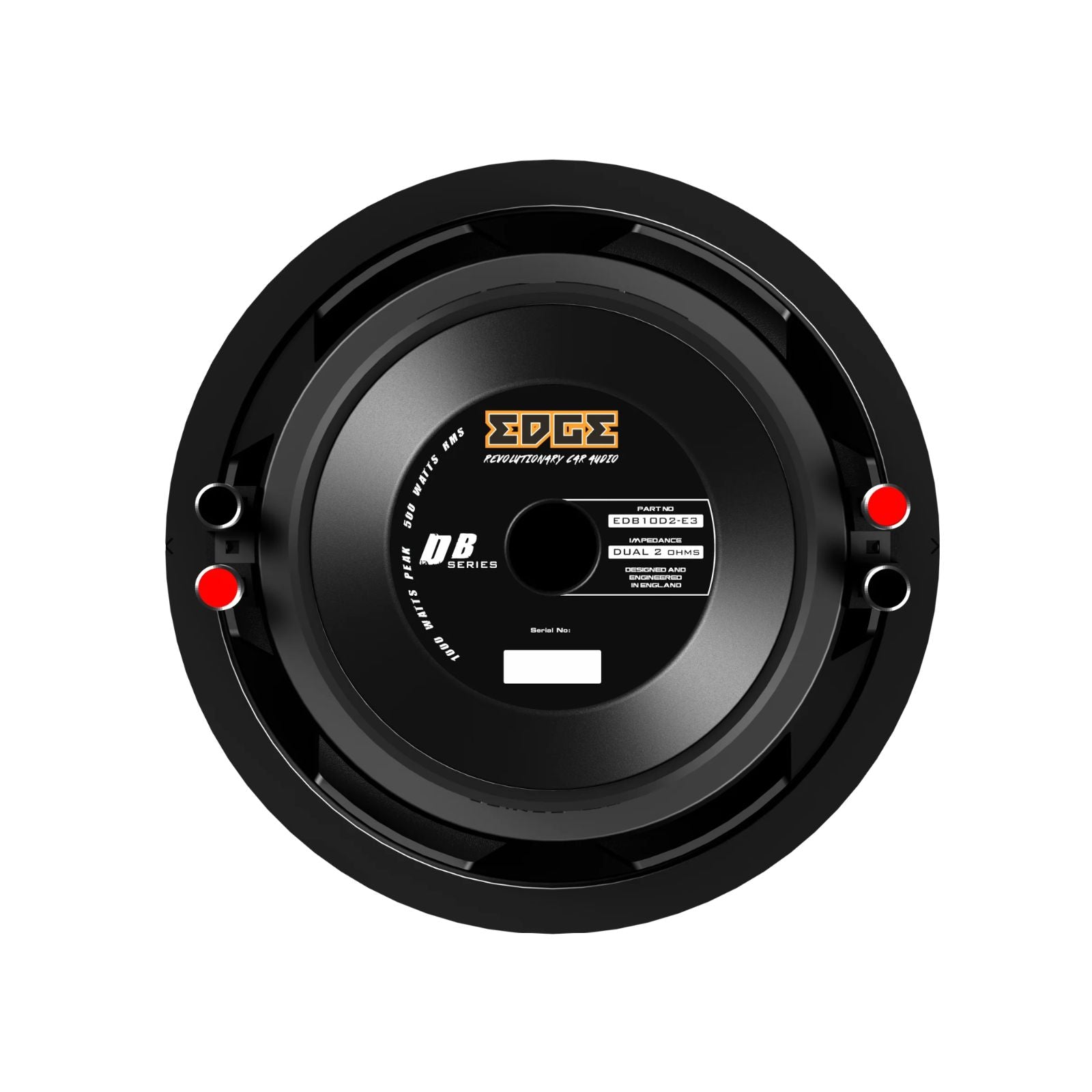

Edge DB Series EDB10D2-E3 Car Sub 2 Ohms 10 Inch Subwoofer 500w RMS
Couldn't Load Pickup availability
The Edge EDB10D2-E3 is a 10 inch car subwoofer from the Edge DB Series, rated at 500W RMS (1000W peak) with dual 2 ohm voice coils and a 135 mm mounting depth.
Key specifications
- Size: 10 inch (10.8" / 274 mm overall)
- Power handling: 500W RMS, 1000W peak
- Impedance: dual 2 ohm
- Voice coil: 2 inch, 4 layer
- Sensitivity: 84 dB
- Frequency response: 30 Hz to 1 kHz
- Mounting depth: 135 mm (5.3")
- Mounting diameter: 232 mm (9.2")
Edge DB Series 10 inch subwoofer
The Edge DB Series covers a range of power and size applications across three subwoofers. Each uses carefully selected components and a structurally engineered motor to deliver precise bass reproduction and strong SPL output.
- Performance: precision-engineered design combines effective soft parts with a robust motor for strong bass reproduction.
- Premium aesthetics: a single-piece dust cap gives smoother sound reproduction and a clean look.
- Sound: warm, rounded and accurate audio, crafted with music in mind for straightforward integration into any system.
- Engineering: designed and engineered in-house by Edge's R&D team, with over 50 years of combined experience.
Features
- Non pressed paper cone
- Wide roll foam surround
- Dual poly cotton spiders
- Spring loaded connectors
- Y35 ferrite magnet
- Double stitched surround
If you'd prefer a ready-to-fit solution, the Edge EDB10A 10 inch active bass box enclosure pairs a subwoofer and ported enclosure in one unit.
Explore the full range in Edge DB Series.
Specification
| Speaker Size | 10.8" (274mm) |
|---|---|
| Sensitivity | 84dB |
| Frequency Response | 30Hz - 1kHz |
| Impedance | Dual 2 Ohms |
| Voice coil | 2" 4 layer |
| Terminal | Spring loaded |
| Mounting Depth | 5.3" (135mm) |
| Mounting Diameter | 9.2" (232mm) |
| RMS Power | 500 watts |
| Peak Power | 1000 watts |
What's Included
- EDB10D2-E3
Edge
About the Edge EDB10D2-E3
From our tech experts at CEN
An Edge 10 inch subwoofer, dual voice coil, 2 ohm, handling 500w RMS.
Who it suits
Drivers building a system where the bass does real work, and SPL builds where output is the point.
Our tech experts advise
Enclosure volume and tuning decide most of what you hear, and the dual coils give you wiring options. Bigger output builds also need the electrical side checked, because large amplifiers pull current the standard charging system was never designed for. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge DB Series
More options from the same range, in stock and ready to go
Best SellerEdge DB Series EDB1TN-E1 Component Dome Tweeters 1.8 Inch 25w RMS Pair
£19.99
View product
Edge 10 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB10A 250w RMS
RRP £149.00Save 6%£139.00
Edge DB Series EDB1000.1D-E4 Amp Class D 1 Channel Monoblock Amplifier 1000w RMS
£149.99
Edge DB Series EDB500.1-E9 Amp Class D 1 Channel Monoblock Amplifier 500w RMS
£84.99
Edge DB Series EDBPRO8-E3 Pro Audio Midrange Speakers 8 Inch 175w RMS Pair
£64.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: What impedance is the EDGE EDB10D2-E3?
A: It has dual 2 ohm voice coils, so it can be wired to suit your amplifier.
Q: How deep is the EDB10D2-E3 and what cutout does it need?
A: Mounting depth is 135 mm (5.3 inch) and the mounting diameter is 232 mm (9.2 inch).
