BlackVue Dash Cam DR770X Box Pro 3ch Full HD Starvis WiFi GPS 3 Channel Camera

The BlackVue DR770X Box Pro 3CH is a three-channel Full HD dash cam featuring front, rear and infrared interior cameras, all using Sony STARVIS sensors, housed in a separate secure recording box with external GPS, built-in Wi-Fi and BlackVue Cloud connectivity. It is part of the BlackVue DR770X Box series, aimed at drivers, taxi and rideshare operators needing full front, rear and interior coverage with native parking mode.

Key specifications

• Channels: 3 (front, rear and interior IR), Full HD on all three
• Frame rate: front 1920×1080 @ 60 fps; rear and interior 1920×1080 @ 30 fps
• Image sensors: Sony STARVIS CMOS (approx. 2.1 MP) on each camera
• Viewing angle (diagonal): front 139°, rear 116°, interior IR 180°
• Interior camera: infrared, 940 nm (2 IR LEDs)
• Parking mode: yes, with 3-wire hardwiring cable included and built-in voltage monitoring
• Connectivity: built-in Wi-Fi, BlackVue Cloud, external dual-band GPS (GPS, GLONASS), optional LTE module
• Input power: DC 12V to 24V; backup: built-in supercapacitor

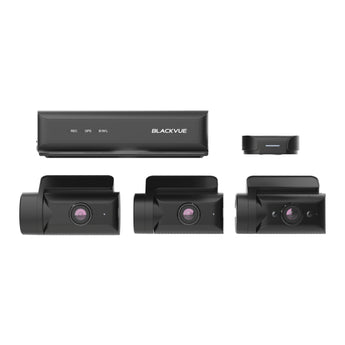

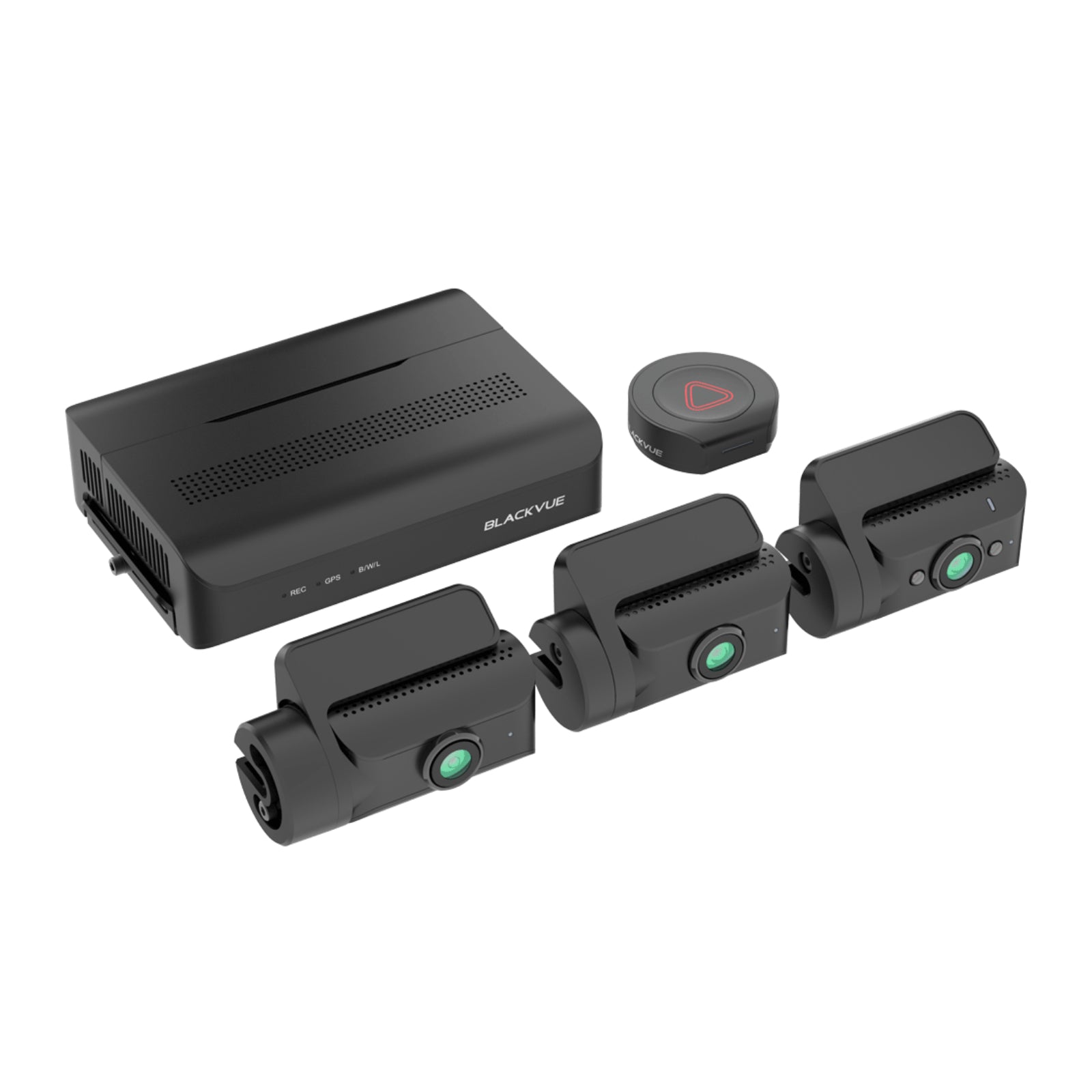

Three cameras and secure recording box

The DR770X Box-3CH Pro covers front, interior and rear simultaneously. All three cameras use back-illuminated STARVIS sensors, producing clear detail in both shadows and highlights through high sensitivity and wide dynamic range.

The ultra-wide interior-facing camera has a 180° viewing angle, covering both driver-side and passenger-side windows in most vehicles. Its infrared illumination LEDs capture clear detail even in complete darkness.

Native parking mode is supported via the included hardwiring cable, with a built-in voltage monitor to protect your vehicle battery. The free BlackVue Cloud service lets you check on your vehicle from anywhere, at any time.

GPS, Wi-Fi and optional LTE

External GPS (included): embeds speed and location data directly into your footage, enabling real-time vehicle tracking via BlackVue Cloud and map-based playback in the BlackVue App or Viewer.

Wi-Fi: connect a smartphone or tablet to your BlackVue for fast file transfer. Wi-Fi also enables BlackVue Cloud connectivity via a mobile Wi-Fi hotspot or router.

LTE: connect the optional LTE connectivity module to the USB port for the best Cloud experience. SIM card not included.

Native parking mode

Hardwiring cable included. The DR770X Box series can be hardwired directly to your vehicle's fuse panel for parking mode without any additional optional accessories. The dash cam switches to parking mode automatically when the ignition is turned off. Voltage cutoff and timer settings are configurable in the BlackVue App.

The DR770X Box series is also compatible with all BlackVue Parking Mode Kits and Batteries.

SOS button

Easily and safely trigger manual event recording.

1. Install the button in an easy-to-reach location.
2. Hold the button to pair it with the box unit (first-time use only).
3. Press the button to trigger manual event recording.
4. In the BlackVue App or Viewer, use the file type filters to quickly locate manual event clips.

Ultrawide infrared interior camera

The infrared interior camera secures the inside of your vehicle at all times. The inconspicuous infrared LEDs activate automatically based on ambient light levels, capturing clear detail even in complete darkness — ideal for taxi and rideshare drivers. The 180° viewing angle covers both driver-side and passenger-side windows simultaneously in most vehicles.

Additional settings available via the BlackVue App or Viewer:

• 180° image rotation — corrects image orientation if the camera is mounted inverted.
• Security LED on/off — disable the LED for stealth operation in parking mode.
