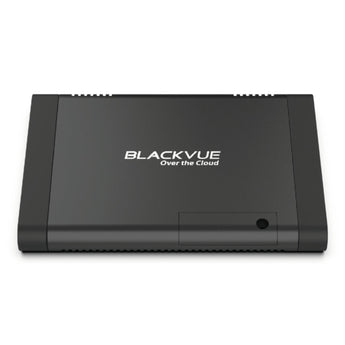

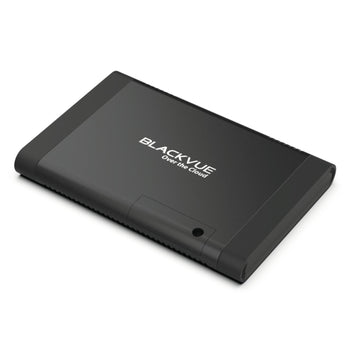

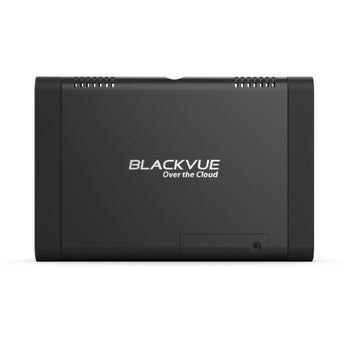

BlackVue CM100LTE UK Edition 4G LTE Cloud Connectivity USB Module for X Series
Couldn't Load Pickup availability
The BlackVue CM100LTE UK Edition is a USB plug-in 4G LTE module for compatible BlackVue DR900X, DR750X and X Plus Series dash cams. It connects your dash cam to BlackVue Cloud via 4G LTE, takes a Nano SIM, and is supplied with a Vodafone SIM card.
Key specifications
- Connectivity: 4G LTE Cat. 4, up to 150Mbps download / 50Mbps upload (LTE-FDD)
- Module (GL version): Quectel EC25-E, bands B1/B3/B5/B7/B8/B20
- SIM: Nano SIM; Vodafone SIM card supplied
- Connection: micro USB Type-B with 3.0m harness cable, powered by the dash cam
- Size and weight: 90 x 60 x 10mm, 74g
- Operating temperature: -35°C to +75°C
- Compatible: DR750X and DR900X Series, X Plus Series (not DR590X)
External 4G LTE module
The CM100LTE plugs into the USB port of your compatible BlackVue X or X Plus Series dash cam. The dash cam powers the module directly, so there is no separate power source to manage. Insert a valid Nano SIM and your BlackVue automatically connects to the Cloud when the module is plugged in.
Note: ensure the CM100LTE is compatible with your mobile carrier's network before purchasing. Not compatible with DR590X Series.
LTE connectivity module
Once connected, the CM100LTE gives your DR900X, DR900X Plus, DR750X or DR750X Plus dash cam 4G LTE access to BlackVue Cloud. This lets you receive push notifications to your phone when your parked car is hit, and remotely view your dash cam's live feed in real time. Because the module is powered by the dash cam, there is no risk of it running flat like a self-powered router.
The CM100LTE also enables Mobile Hotspot Function on compatible BlackVue X Plus Series models. If you want to keep your dash cam running for extended periods while parked, the BlackVue B-130A Power Magic Ultra Battery can support extended parking mode for up to 30 hours.
Mobile Hotspot Function for BlackVue X Plus models
With Mobile Hotspot Function, a compatible BlackVue X Plus Series dash cam can act as a mobile internet router for up to five devices concurrently. Connect laptops, tablets, game consoles or phones via Wi-Fi using the dash cam's Wi-Fi password. Requires an active data plan.
Note: to protect the reliability of BlackVue Cloud features (Live Event Upload, push notifications, Remote Live View), connecting one BlackVue to another BlackVue hotspot is not currently supported.
Pick the right version
The CM100LTE takes Nano SIM cards. This UK Edition uses the GL version (Quectel EC25-E).
- Europe, Africa, Middle East, Russia, most of Asia: GL version
Explore the full range in Add ons & Extras.
Specification
| LTE Module CM100LTE [GL] | Quectel EC25-E CM100LTE [NA] : Quectel EC25-A CM100LTE [JP] : Quectel EC25-J CM100LTE [AU] : Quectel EC25-AU |
|---|---|
| LTE Supported Band EC25-E | B1/B3/B5/B7/B8/B20 EC25-A : B2/B4/B12 EC25-J : B1/B3/B8/B18/B19/B26 EC25-AU : B1/B2/B3/B4/B5/B7/B8/B28 |
| Transmitting Power Class 3 | 23dBm +/-2dBm @ LTE-FDD Bands Class 3 : 24dBm +1/-3dBM @ WCDMA Bands |
| Power Supply USB Harness Cable | 3.0m Typical Supply Voltage : 5.0V / 1A Supply Input Voltage : 3.3V ~ 5.5V / Max. Current : 2A |
| Power Consumption Idle Mode | 20mA / Traffic Mode : 570mA @ Max. Power (23dBm) |
More specs
| |

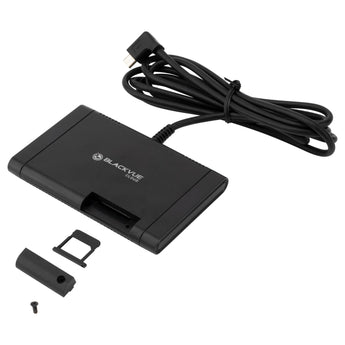

What's Included
- BlackVue CM100LTE
- 4 Cable Clips
- 2x Sticky Pads
- Sim Removal Tool
- User Guide
- Vodafone V-Sim Card
The CM100LTE is supplied with a Vodafone SIM card. Activate it via the Vodafone Smart App. Alternatively use your own choice of network provider, SIM card and data plan.
BlackVue
About the BlackVue BVCM100LTE
From our tech experts at CEN
The CM100LTE UK Edition is a plug-in 4G LTE module that connects a compatible BlackVue to BlackVue Cloud without relying on a phone hotspot or Wi-Fi. It plugs into the camera's USB port on a 3m harness and is powered by the dash cam, takes a Nano SIM, and comes with a Vodafone SIM card. This UK Edition is the GL version, using the Quectel EC25-E module.
Who it suits
Owners of the DR750X, DR900X and X Plus Series who want push notifications when the parked car is hit and Remote Live View from their phone. On X Plus models it also enables a mobile hotspot for up to five devices. It is not compatible with the DR590X Series.
Our tech experts advise
Cloud features only work while the camera has power, so pair it with a hardwire kit or the B-130A battery pack for parking mode. Check the SIM suits your network before fitting. See dash cam installation.
Explore the full BlackVue range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all BlackVue
