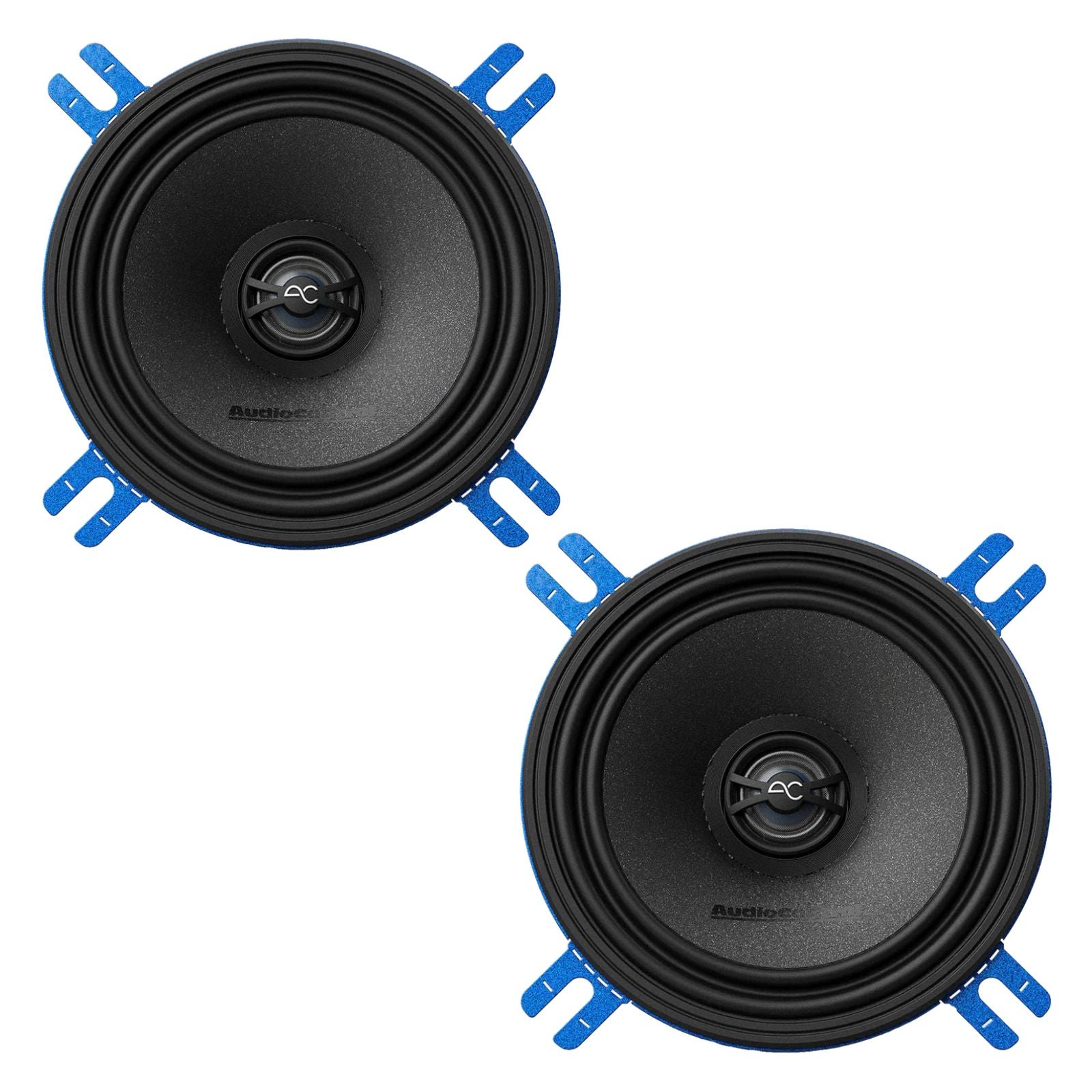

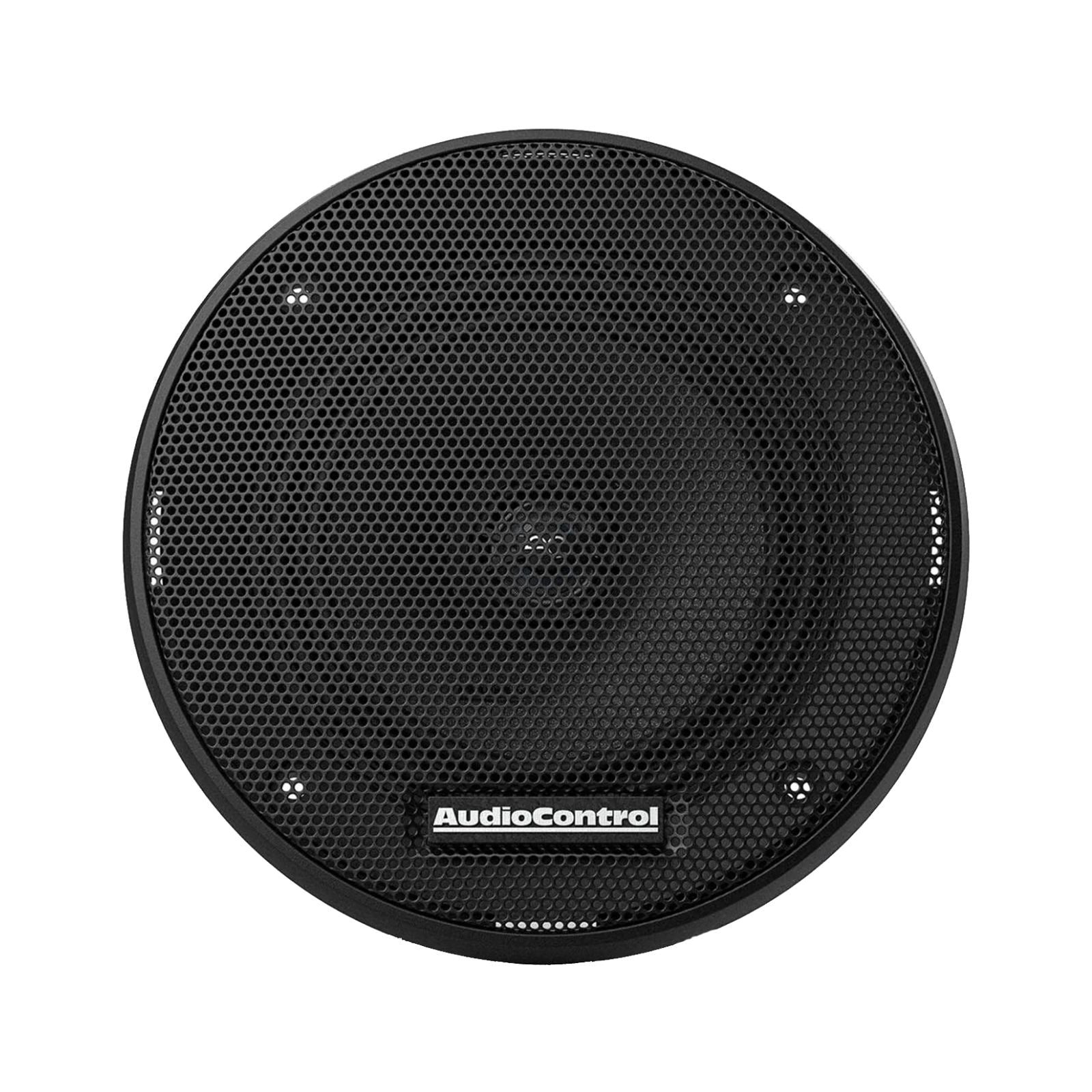

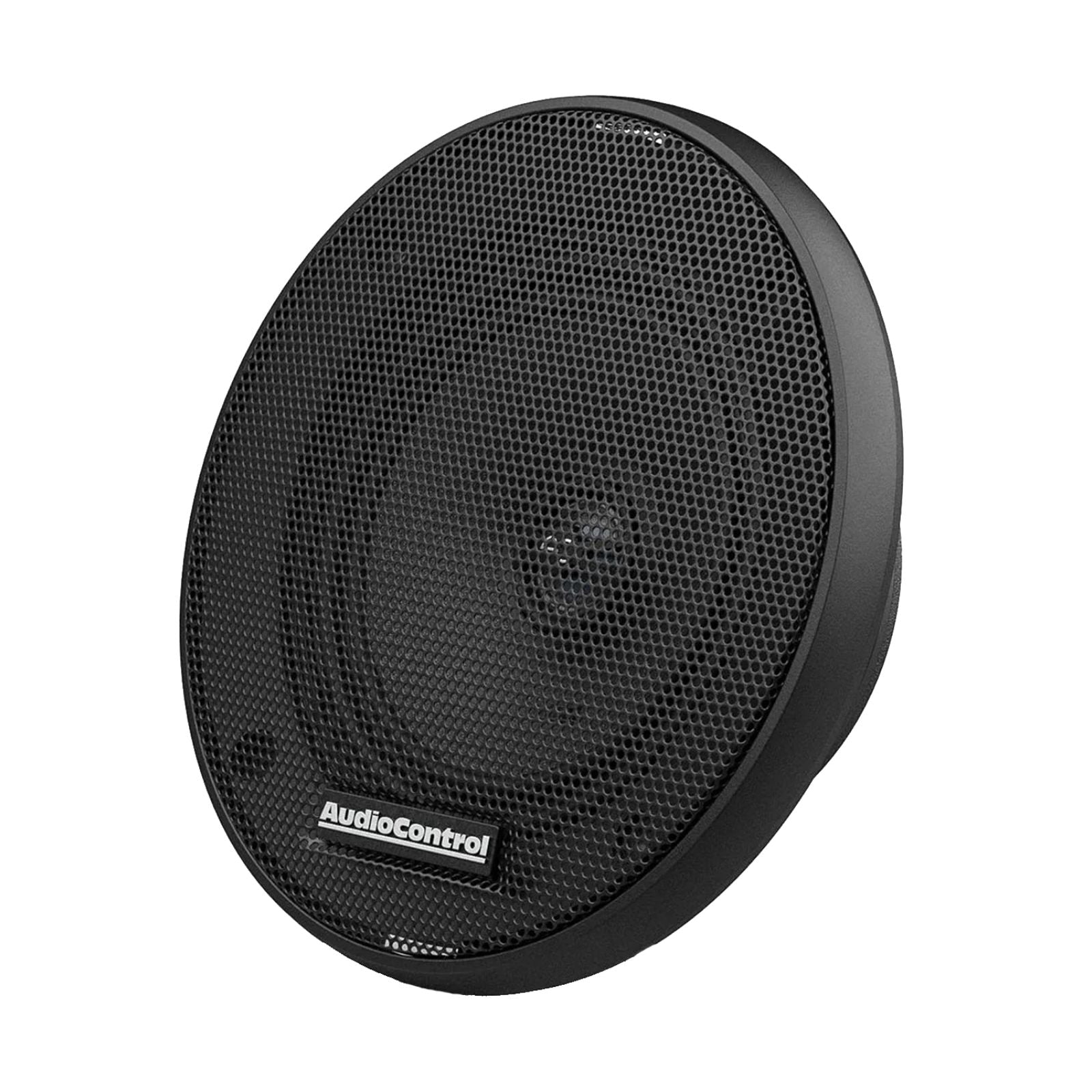

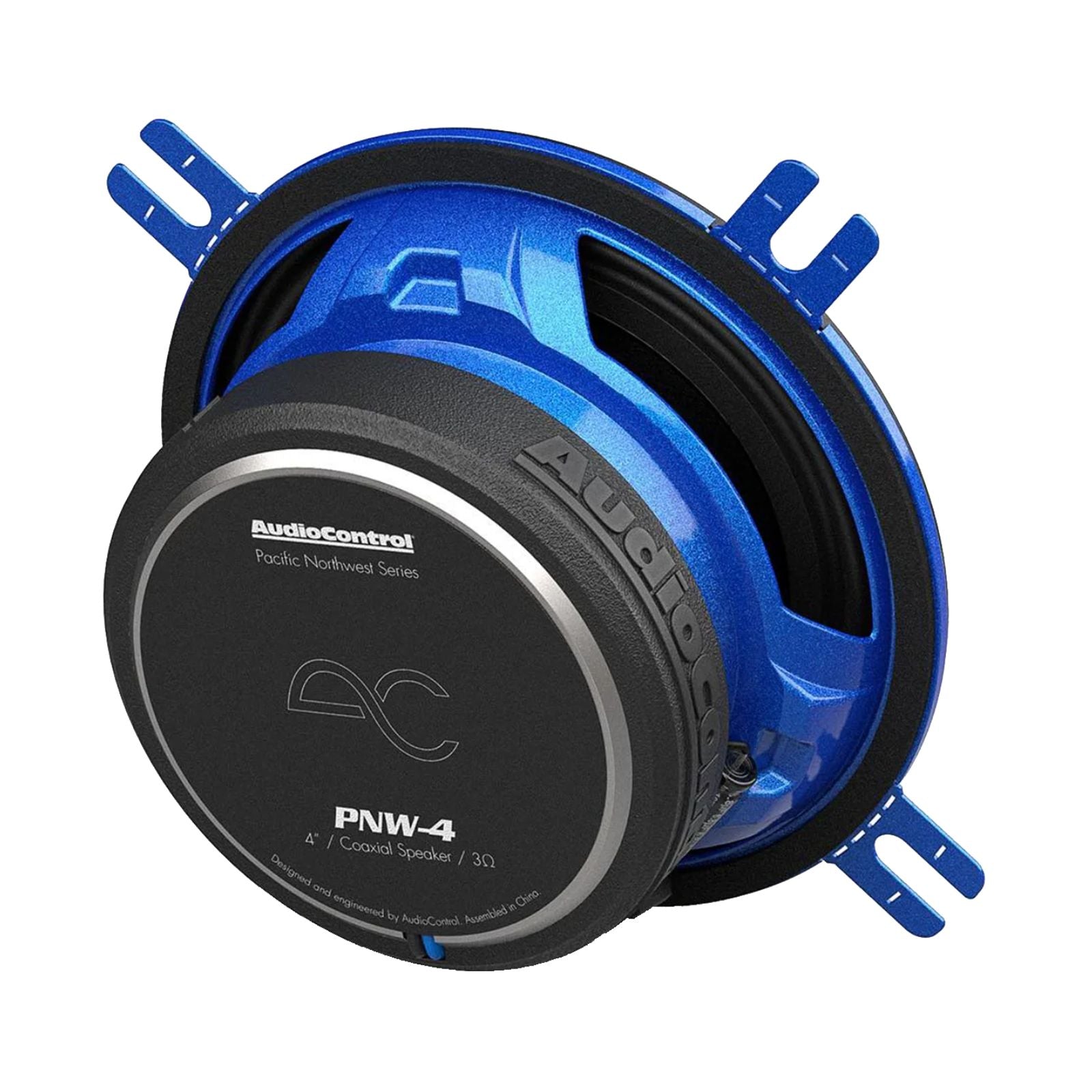

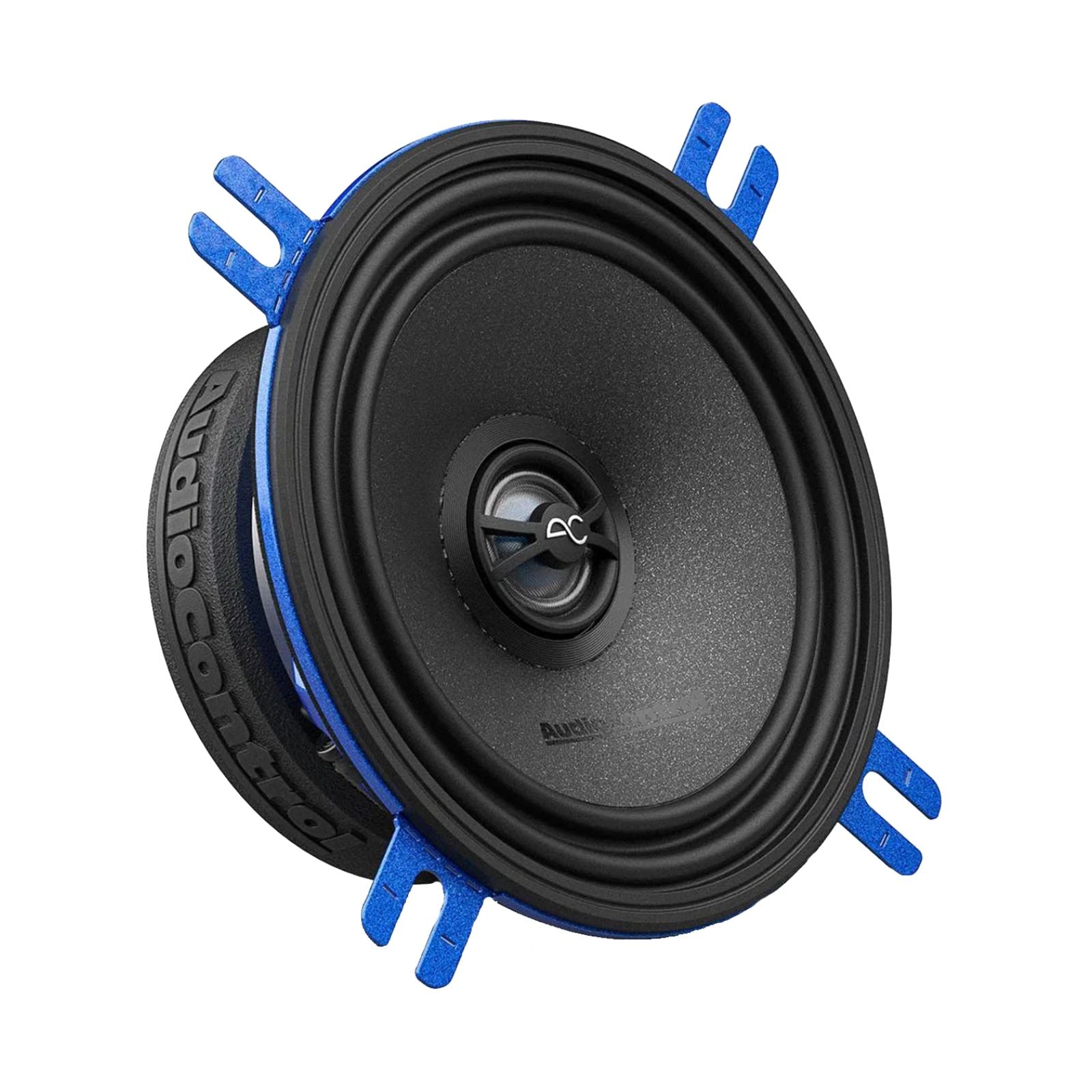

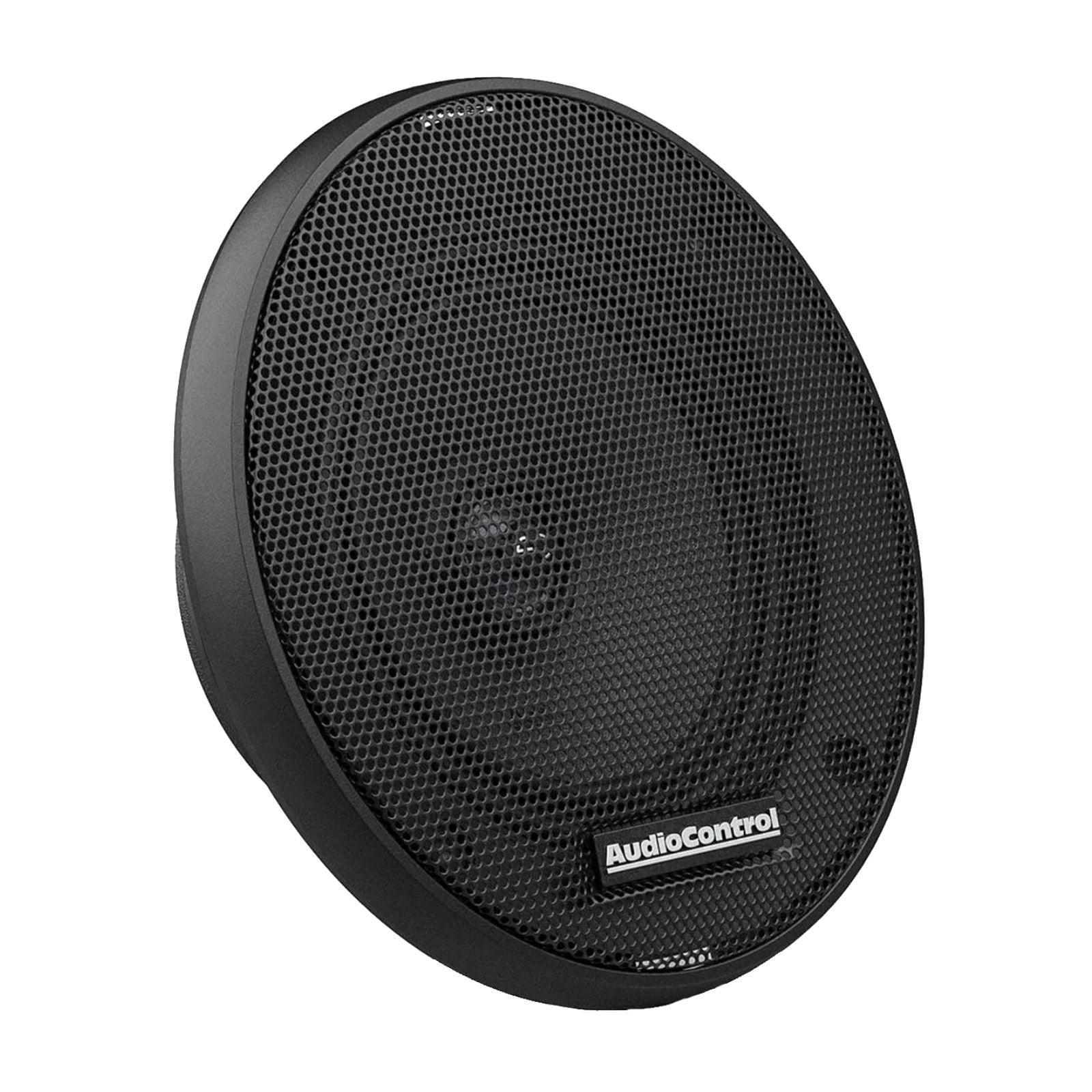

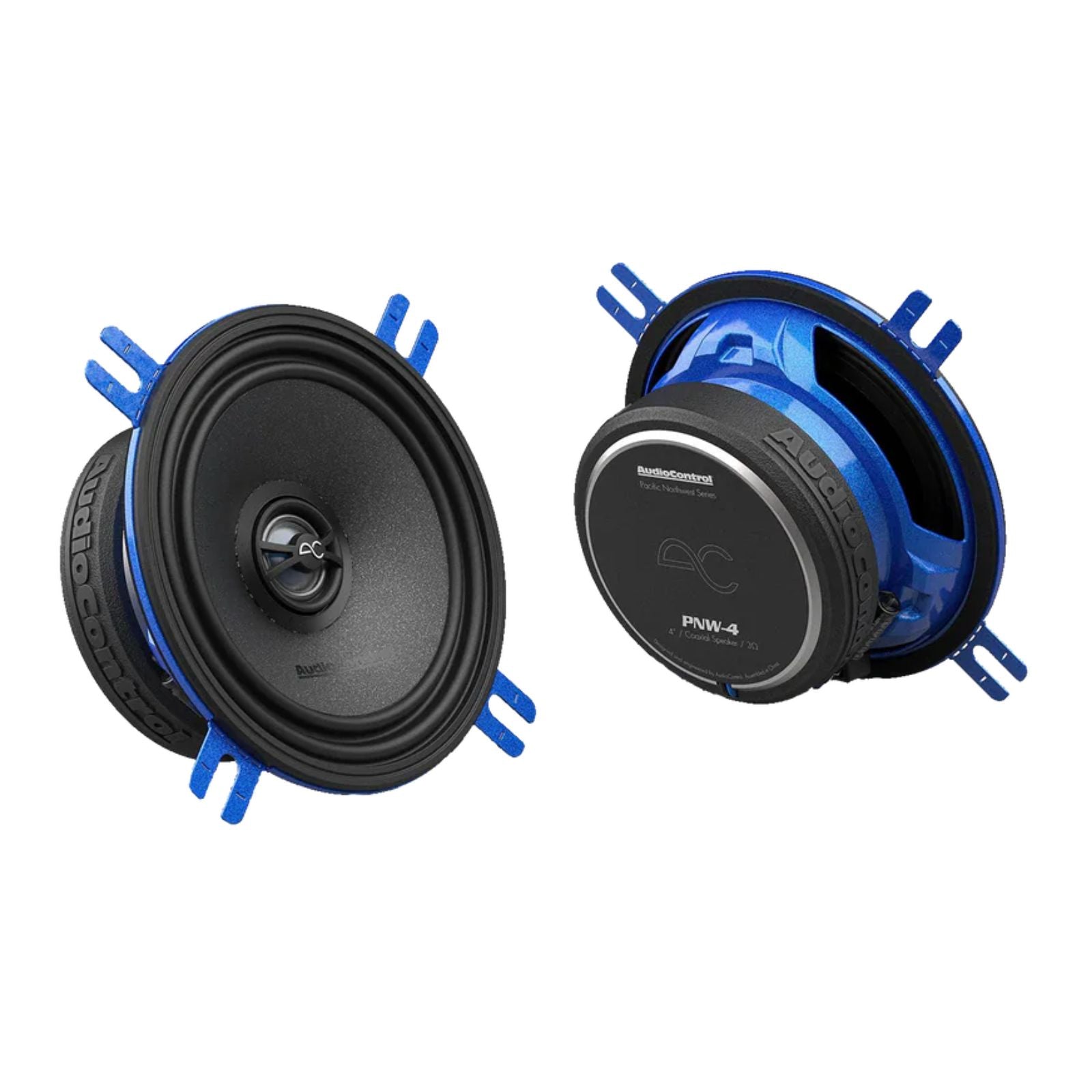

The AudioControl PNW-4 is a pair of 4-inch 2-way coaxial speakers rated at 50W RMS, from AudioControl's PNW Series. They feature a rear-dampened hybrid silk dome tweeter, rigid poly mica-coated cone and edge-enhanced steel frame, designed as a high-fidelity drop-in replacement for factory 4-inch speakers.
Key specifications
- Size: 4-inch 2-way coaxial
- Power: 50W RMS / 75W max
- Frequency response: 75Hz–20kHz
- Crossover: Butterworth high-pass at 5900Hz, -6dB/octave
- Cut-out: 91.5mm
- Mounting depth: 42.2mm
- Midrange voice coil: 25mm
- Overall diameter (without grille): 133mm
- Supplied as: 2 x PNW-4 speakers
PNW Series 4" High-Fidelity Coaxial Speakers
AudioControl has over 45 years of experience engineering audio components. The PNW Series is built around an edge-enhanced steel frame for structural strength, a black anodized voice coil former for heat dissipation, and a linear double-roll surround for precise cone movement. The rigid poly mica-coated cone optimises sound reproduction, while the tweeter's concentric point source design aligns both drivers for better imaging and clarity.
Each set ships with high-quality mounting hardware for a straightforward installation. For best results, pair the PNW-4 with an AudioControl amplifier. If you're adding amplification to a factory head unit, the AudioControl LC2i line out converter is a practical starting point for getting a clean signal to your amp.
Features
- Edge-enhanced steel frame for added structural strength
- Black anodized voice coil former for superior heat dissipation
- Linear double-roll surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Rigid poly mica-coated cone for optimised sound reproduction
- Rear-dampened hybrid silk dome tweeter for extended frequency response
- Concentric point source design for a seamless transition from midrange to tweeter
- Sonic diffuser and radiant collar for better off-axis frequency response
- High-quality mounting hardware included
Explore the full range in AudioControl Accessories.
Specification
| Crossover Type | Butterworth |
|---|---|
| Power | 50W RMS / 75W Max |
| DC Resistance (Re) | 2.6 ohms |
| Filter Type | HP |
| Frequency Response | 75-20k Hz |
| XO Frequency | 5900 Hz |
| Slope (Octave) | -6 dB |
| Midrange Voice Coil Diameter | 25 mm |
| Overall Diameter (w/o Grille) | 5.23 in/ 133 mm |
| Cut Out Diameter | 3.60 in/ 91.5 mm |
| Mounting Depth | 1.66 in/ 42.2 mm |
| Height (w/o Grille) | 0.16 in / 4.1 mm |
| Height (w/ Grille) | 0.64 in / 16.5 mm |
| Motor Diameter (w/ Cover) | 2.96 in / 75.4 mm |
| Grille Overall Diameter | 5.40 in / 137 mm |
What's Included
- 2 x PNW-4 Speakers
- Manual
- Warranty
AudioControl
About the AudioControl PNW-4
From our tech experts at CEN
AudioControl 4 inch coaxial speakers, rated at 50w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without complication.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from AudioControl Accessories
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What size hole does the PNW-4 need?
A: The cut-out is 91.5mm and the mounting depth is 42.2mm. Check these against your vehicle, or contact CEN for a fitment check.
Q: How much power can the PNW-4 handle?
A: They are rated at 50W RMS and 75W max per speaker, with a frequency response of 75Hz-20kHz.
Q: Does the PNW-4 have a built-in tweeter?
A: Yes. It is a 2-way coaxial with a rear-dampened hybrid silk dome tweeter mounted concentrically, fed through a Butterworth high-pass crossover at 5900Hz.
