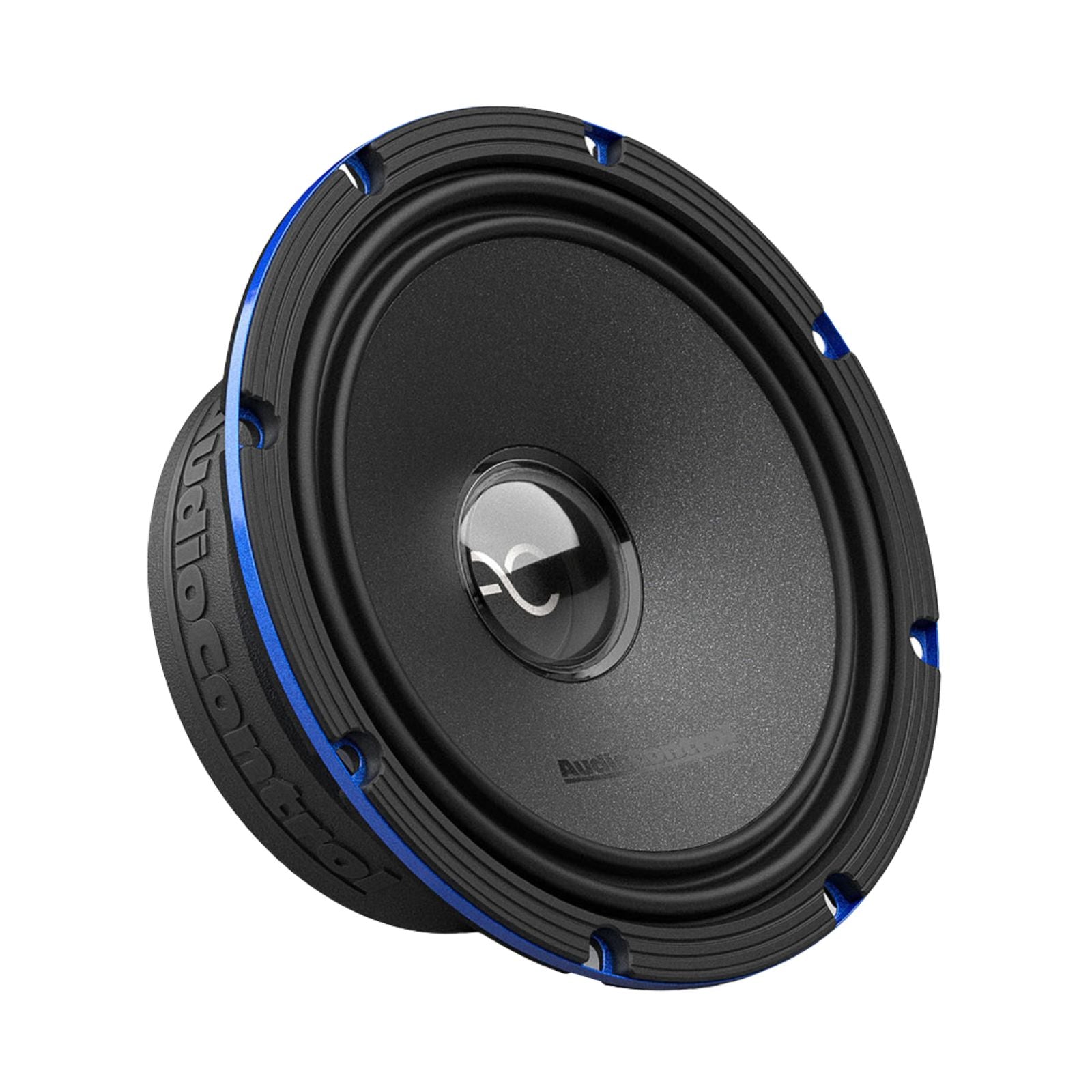

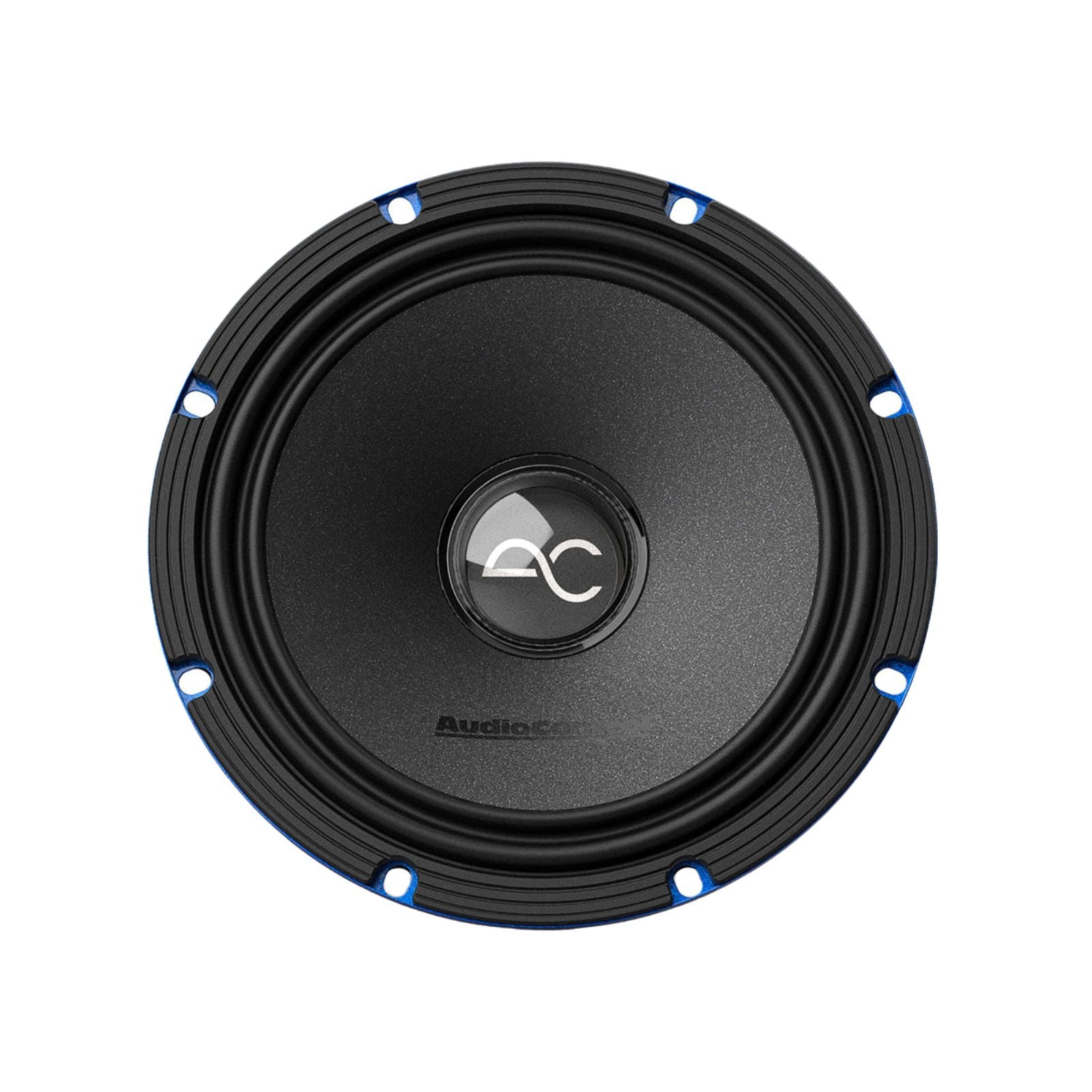

The AudioControl PNW-65CS2 is a 6.5 inch 2-way component speaker set rated at 100W RMS / 125W max, featuring separate 1-inch hybrid silk dome tweeters and 2nd order Linkwitz-Riley crossovers. It is part of AudioControl's PNW Series.
This listing is the 6.5 inch version. The PNW component speaker range is also available as the PNW-69CS2 6x9 inch component speakers.
Key specifications
- Size: 6.5 inch woofer + 1 inch tweeter
- Power: 100W RMS / 125W max
- Frequency response: 60Hz–20kHz
- Crossover: 2nd order Linkwitz-Riley, 3.5kHz HP/LP, -12dB/octave
- Voice coils: 25mm tweeter, 35mm woofer
- Woofer cut-out: 142mm; mounting depth: 60mm
- Tweeter cut-out: 47mm; mounting depth: 16mm
PNW-65CS2: PNW Series 6.5" High-Fidelity Component Speakers

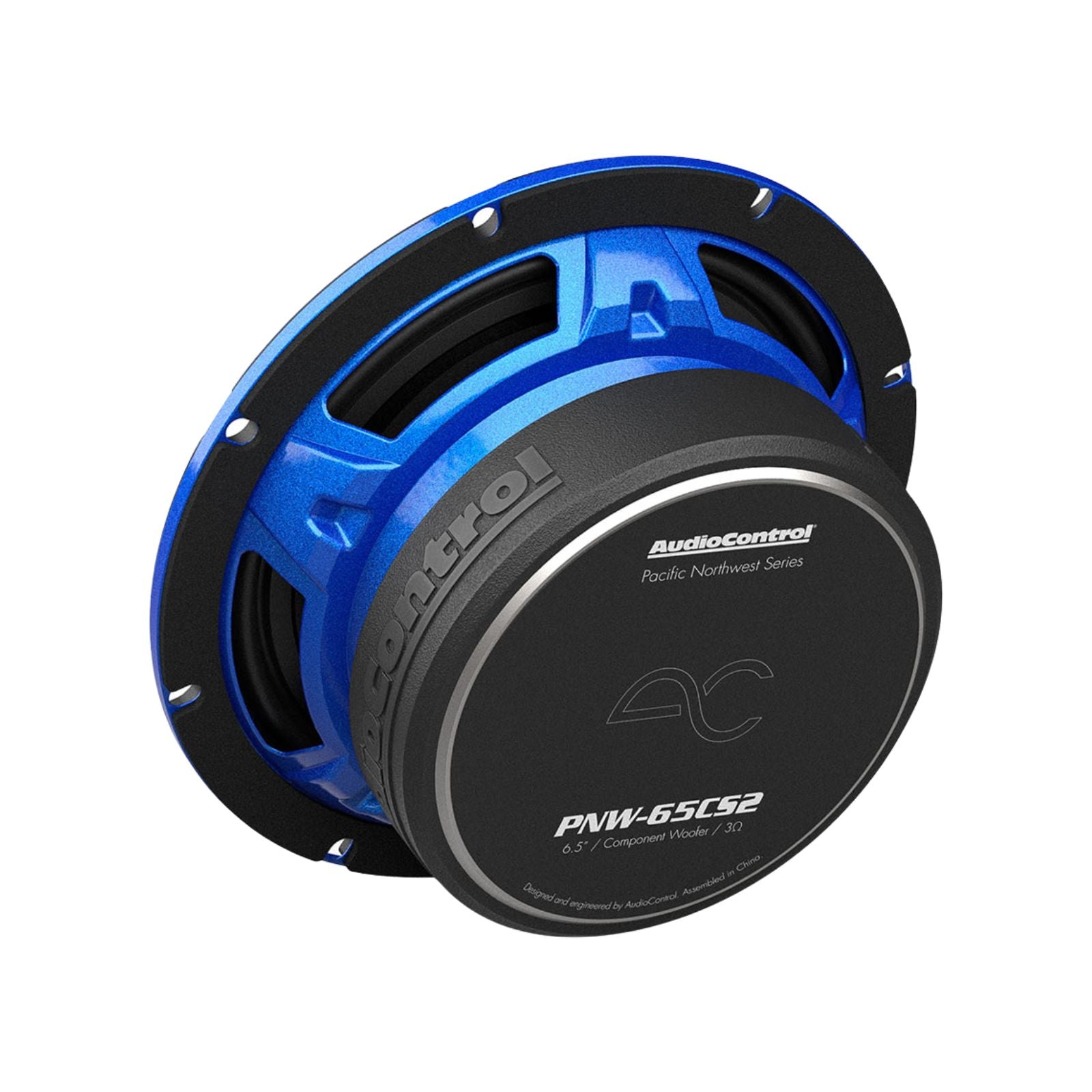

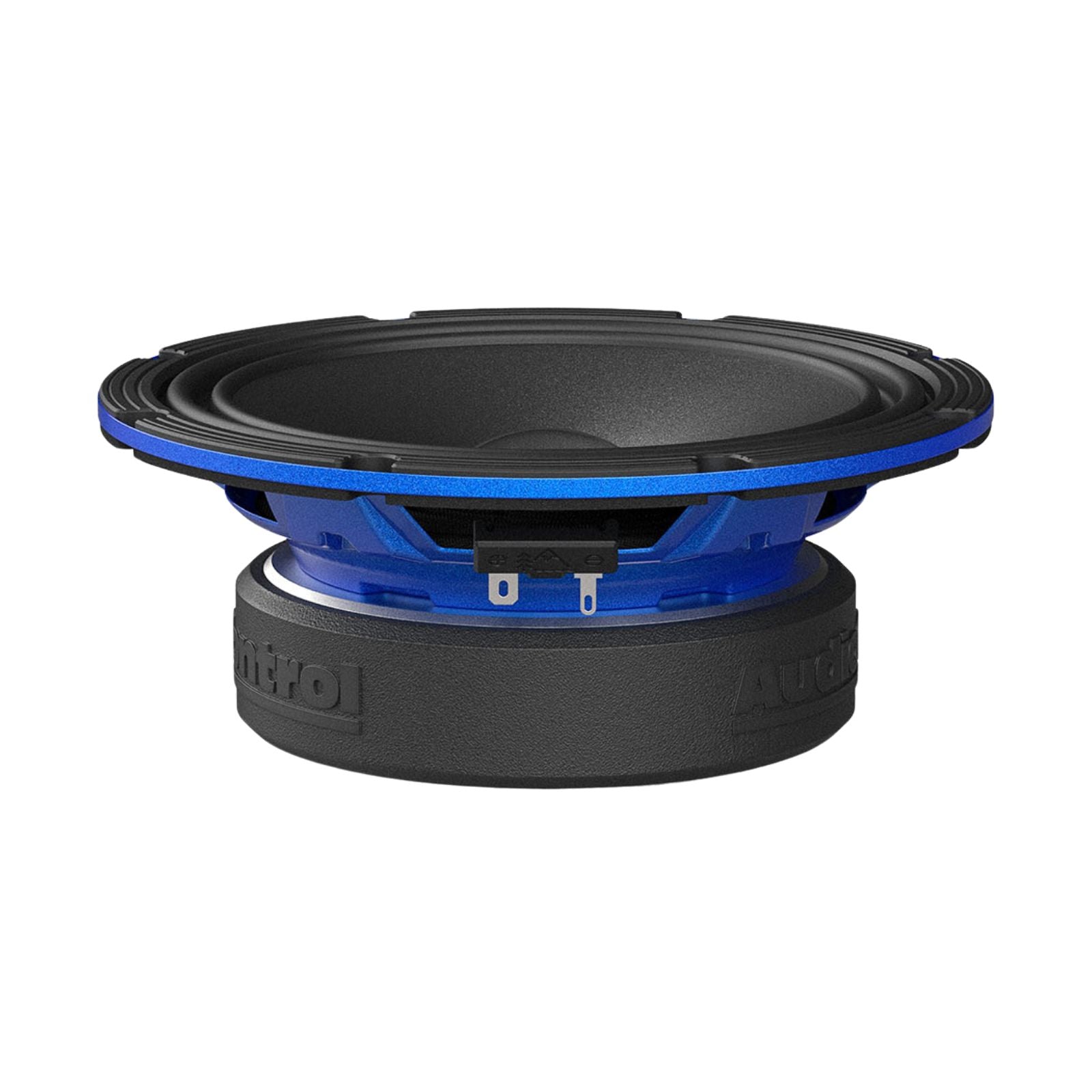

AudioControl has over 45 years of experience engineering audio components. The PNW Series is designed to pair with AudioControl's amplifier range and delivers strong detail and clarity in a vehicle environment. The PNW line features an edge-enhanced steel frame for structural strength, a black anodized voice coil former for heat dissipation, and a linear double-roll surround for precise cone movement. The rigid poly mica-coated cone optimises sound reproduction.
Each set includes high-quality mounting hardware for straightforward installation. To expand to a 3-way front stage, add the PNW-275 2.75 inch midrange speakers and the PNW-XN3 3-way passive crossover network.
Features
- Edge-enhanced steel frame for added structural strength
- Black anodized voice coil former for superior heat dissipation
- Linear double-roll surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Rigid poly mica-coated cone for optimised sound reproduction

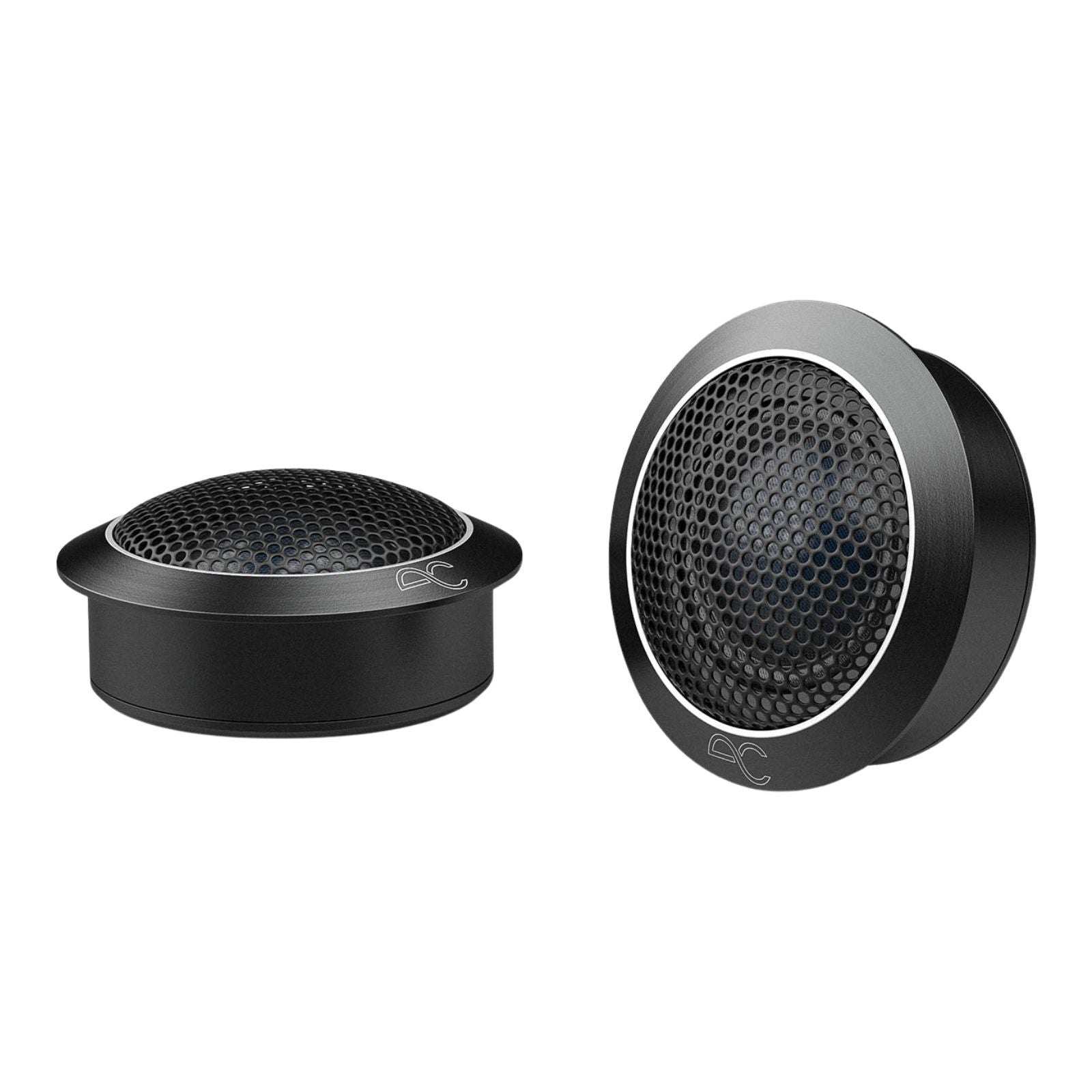

- Rear dampened hybrid silk dome tweeter for extended frequency response
- High-quality mounting hardware included
Explore the full range in AudioControl.
Specification
| Crossover Type | 2nd order Linkwitz-Riley |
|---|---|
| Power | 100W RMS / 125W Max |
| DC Resistance (Re) | 2.3 ohms |
| Filter Type | HP / LP |
| Frequency Response | 60-20k Hz |
| XO Frequency | 3.5kHz HP / LP |
| Slope (Octave) | -12 dB |
| Tweeter Voice Coil Diameter | 25 mm |
| Midrange Voice Coil Diameter | 35 mm |
| Cut Out Diameter | 5.59 in / 142 mm |
| Mounting Depth | 2.36 in / 60 mm |
| Mounting Height (w/o Grille) | 0.20 in / 5.2 mm |
| Mounting Height (w/ Grille) | 0.86 in / 22 mm |
| Motor Diameter (w/ Cover) | 4.6 in / 117 mm |
| Grille Overall Diameter | 7.05 in / 179 mm |
| Overall Diameter | 2.13 in / 54 mm |
| Cut Out Diameter | 1.85 in / 47 mm |
| Mounting Depth | 0.63 in / 16 mm |
More specs
| |

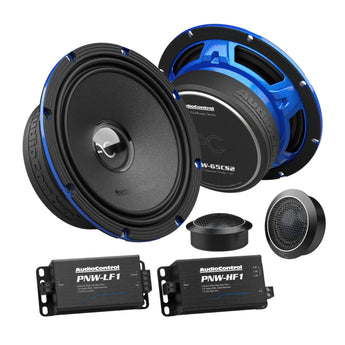

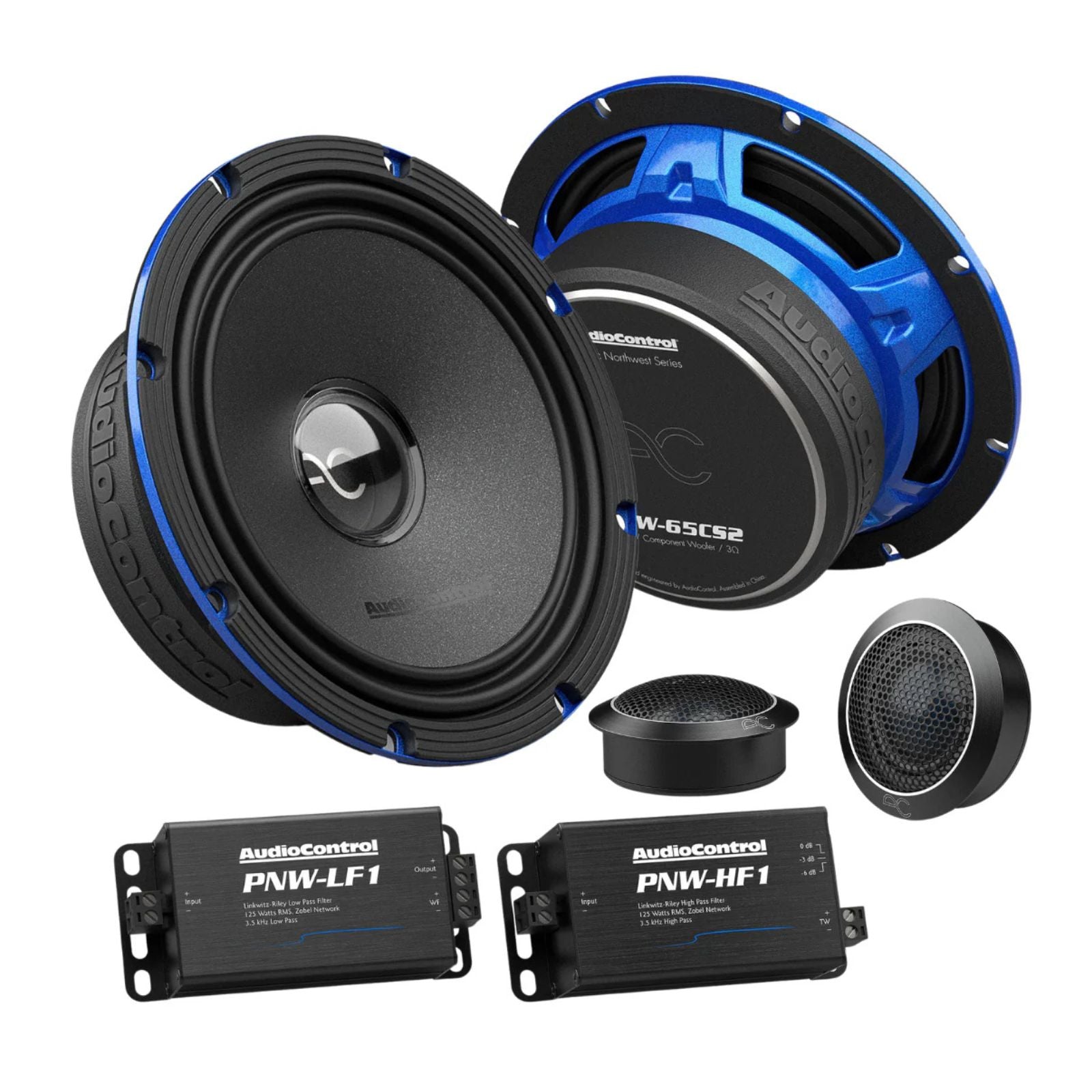

What's Included
- 2 x PNW-65CS2 6.5 inch component woofers
- 2 x 1" tweeters

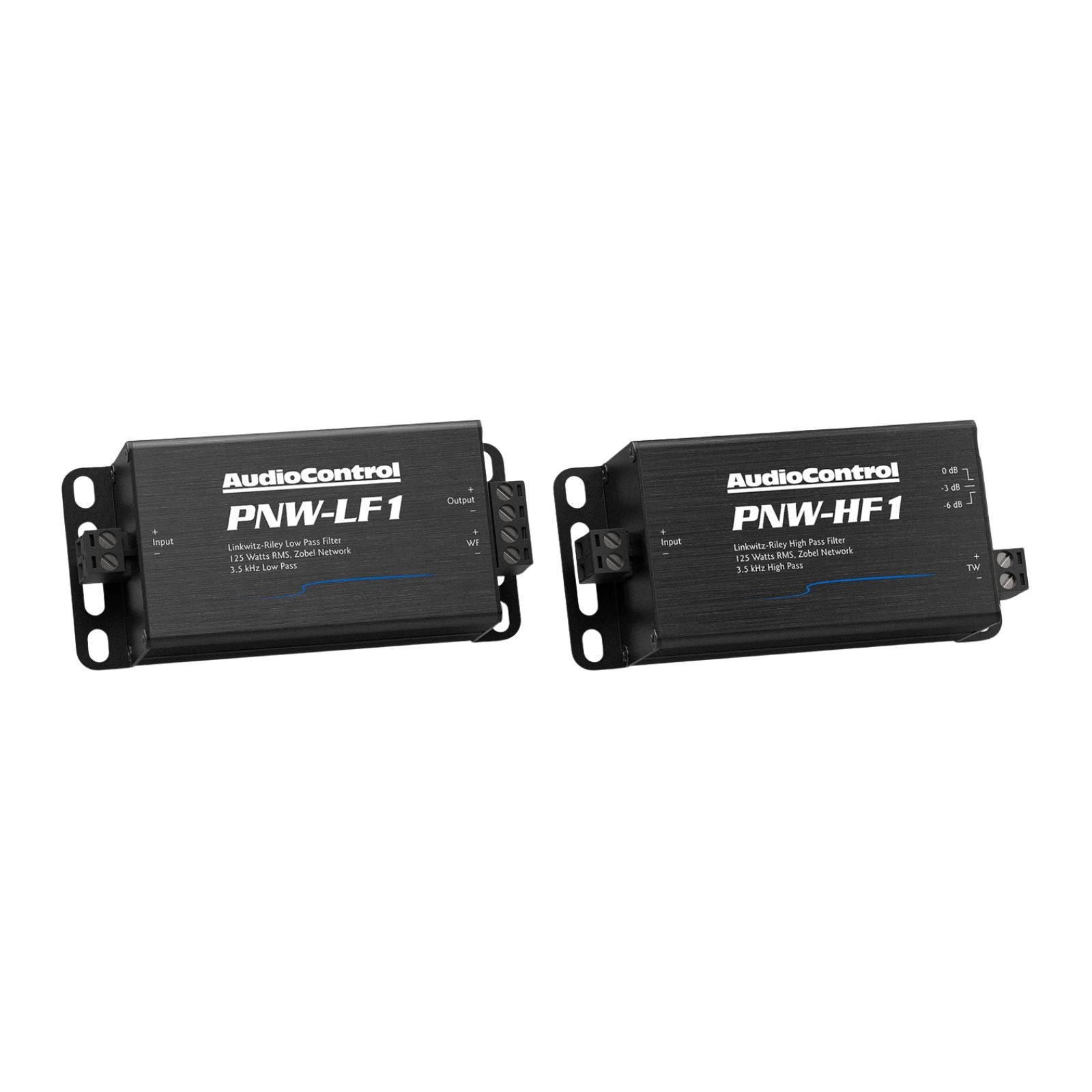

- 2 x HP/LP crossover filters
- Mounting hardware
- Manual
- Warranty
AudioControl
About the AudioControl PNW-65CS2
From our tech experts at CEN
AudioControl 6.5 inch component speakers, with separate tweeters for mounting where you will hear them, rated at 100w RMS.
Who it suits
Drivers building a proper front stage and happy for tweeters to be mounted separately, which usually means a professional fit.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What is in the box with the PNW-65CS2?
A: Two 6.5 inch woofers, two 1-inch tweeters, two high-pass/low-pass crossover filters, mounting hardware, the manual and warranty.
Q: What size holes does the PNW-65CS2 need?
A: The woofer needs a 142mm cut-out with 60mm mounting depth. Each tweeter needs a 47mm cut-out and 16mm mounting depth.
Q: Can I make the PNW-65CS2 a 3-way system?
A: Yes. Add a pair of PNW-275 2.75-inch midrange speakers and one PNW-XN3 3-way passive crossover network, which is designed for the PNW-65CS2 with the PNW-275.
