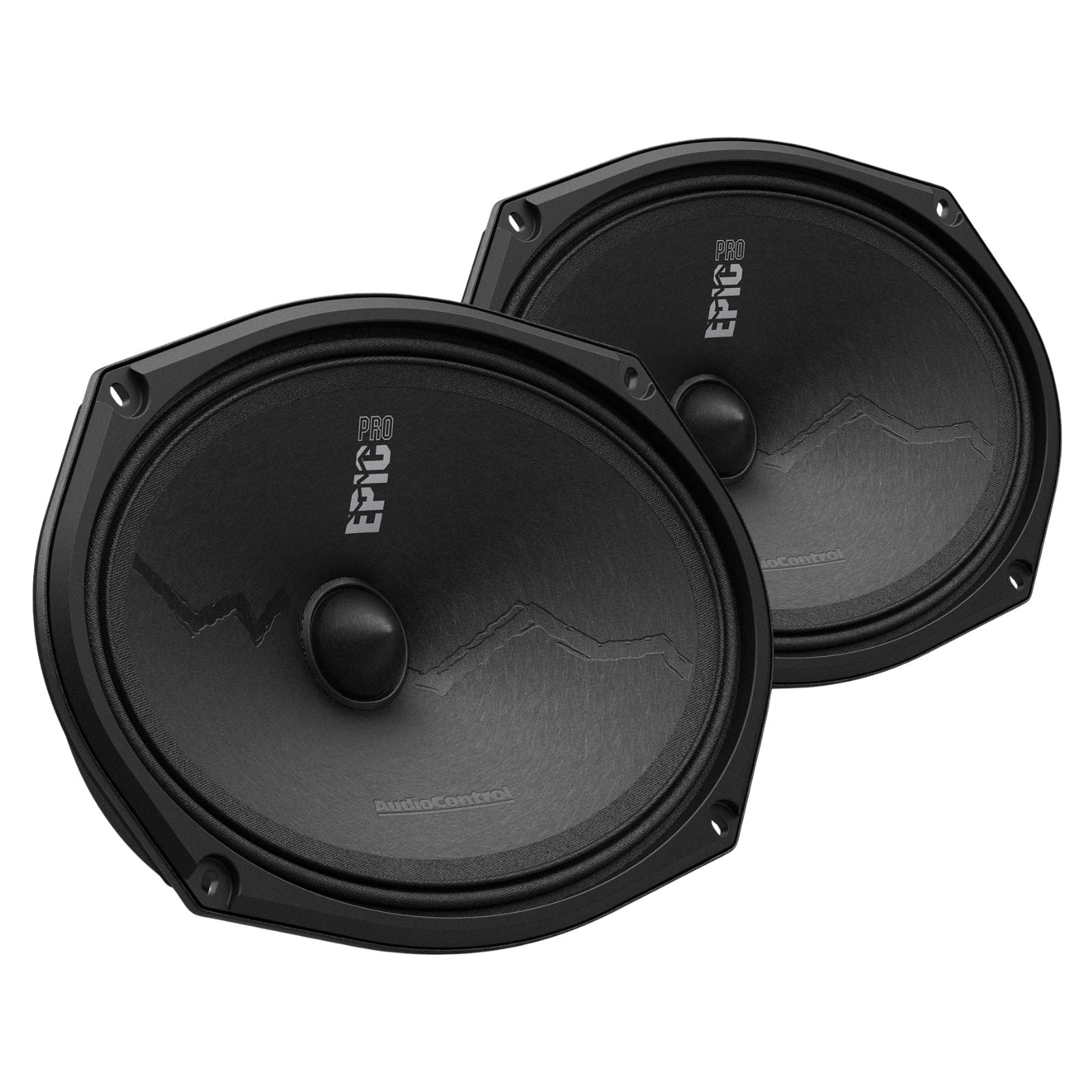

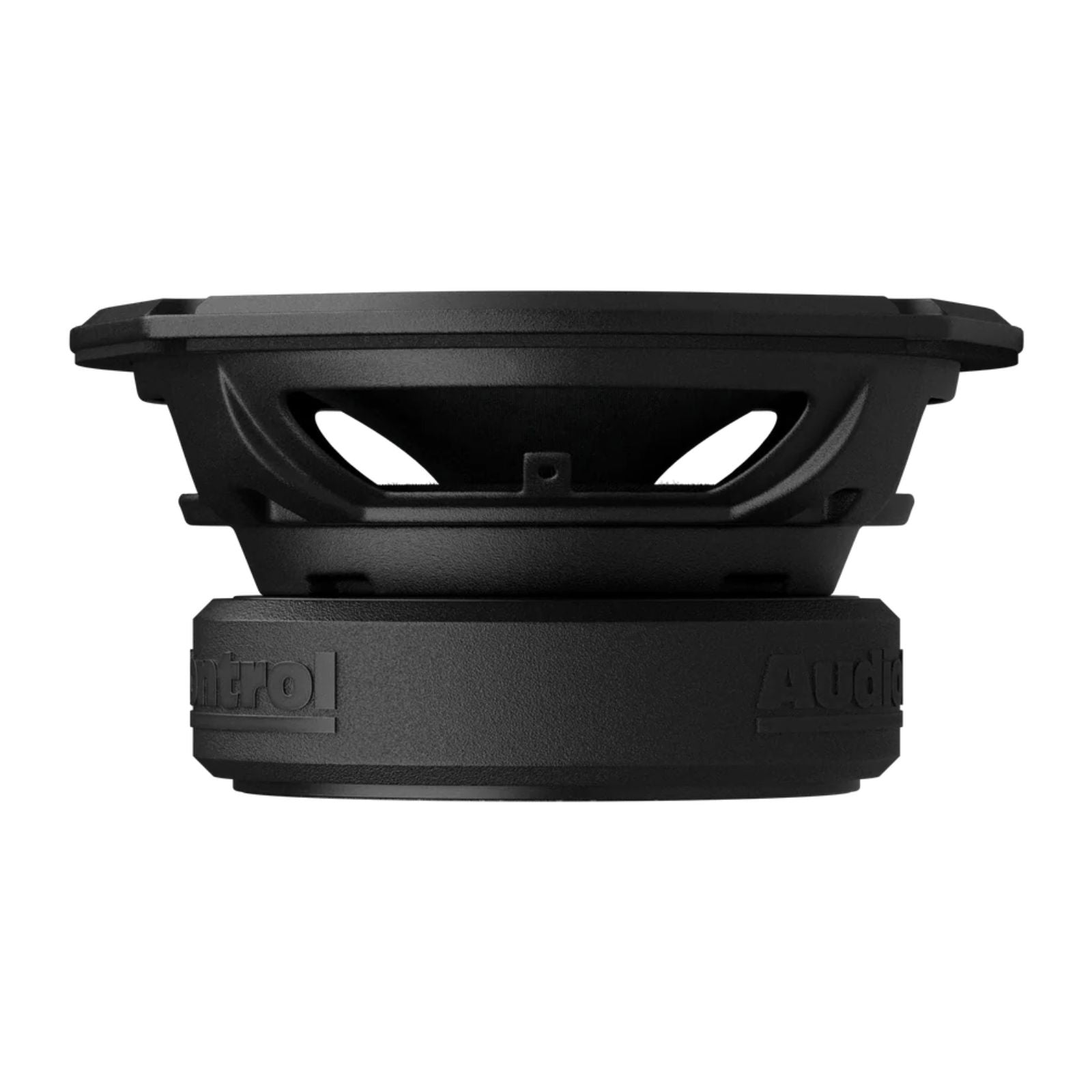

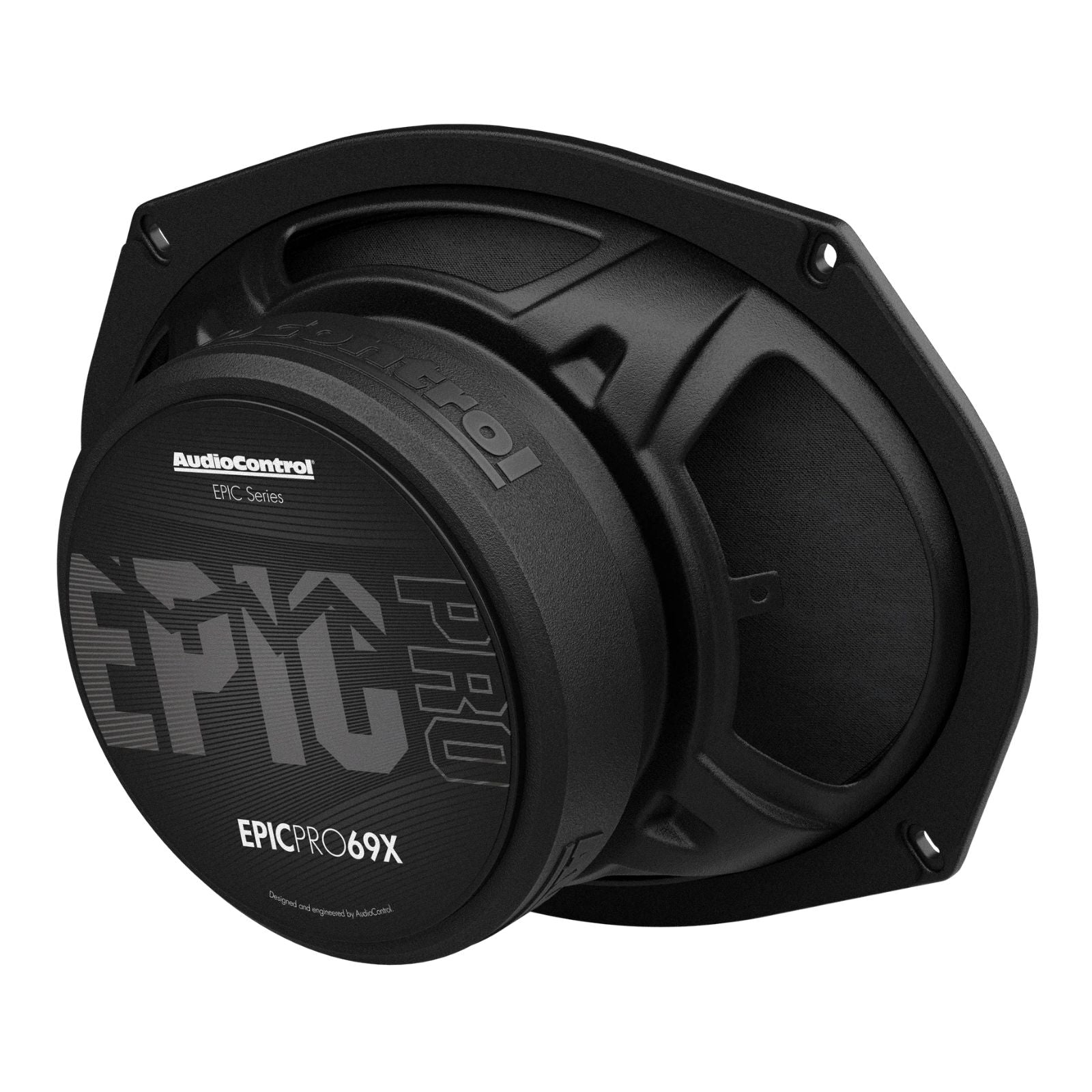

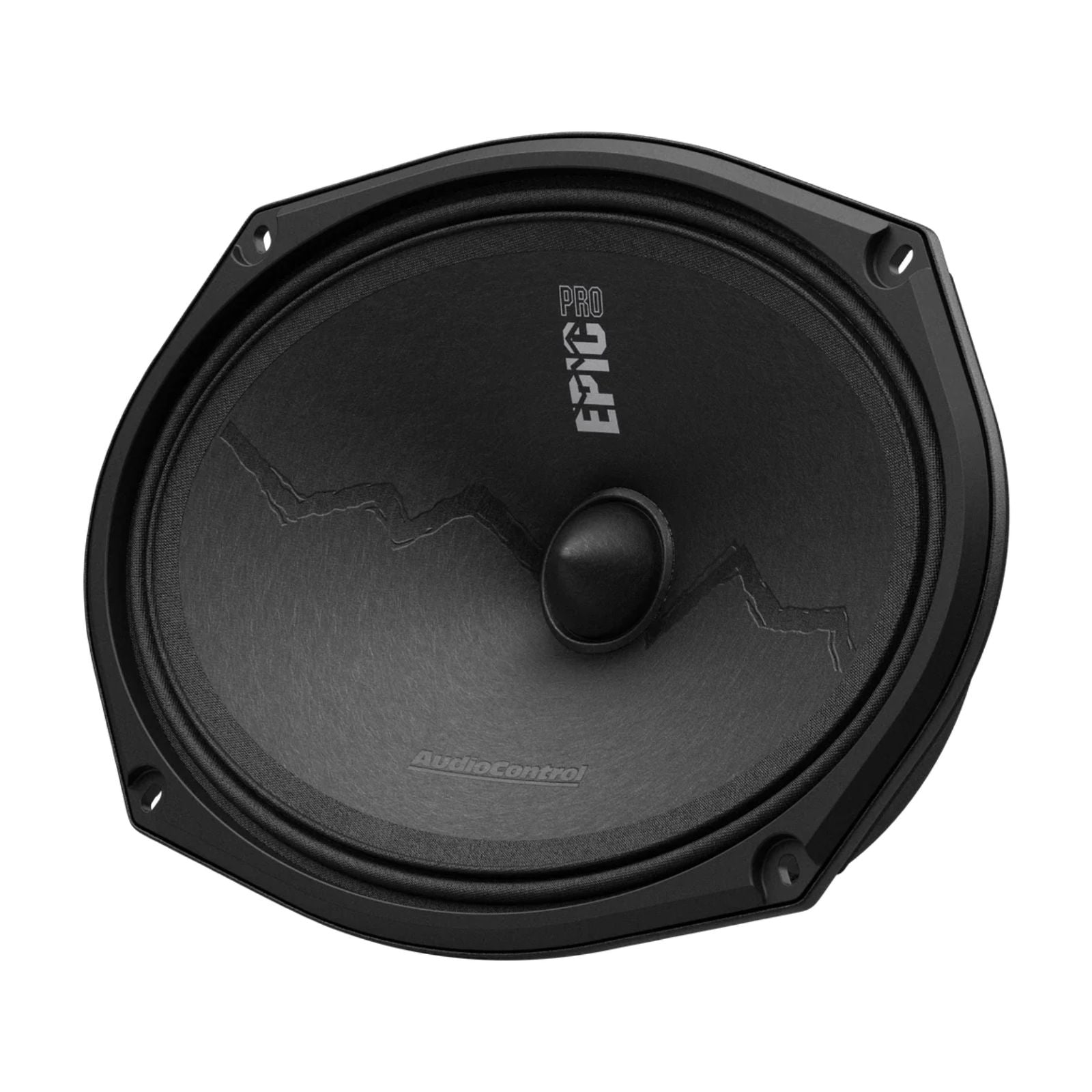

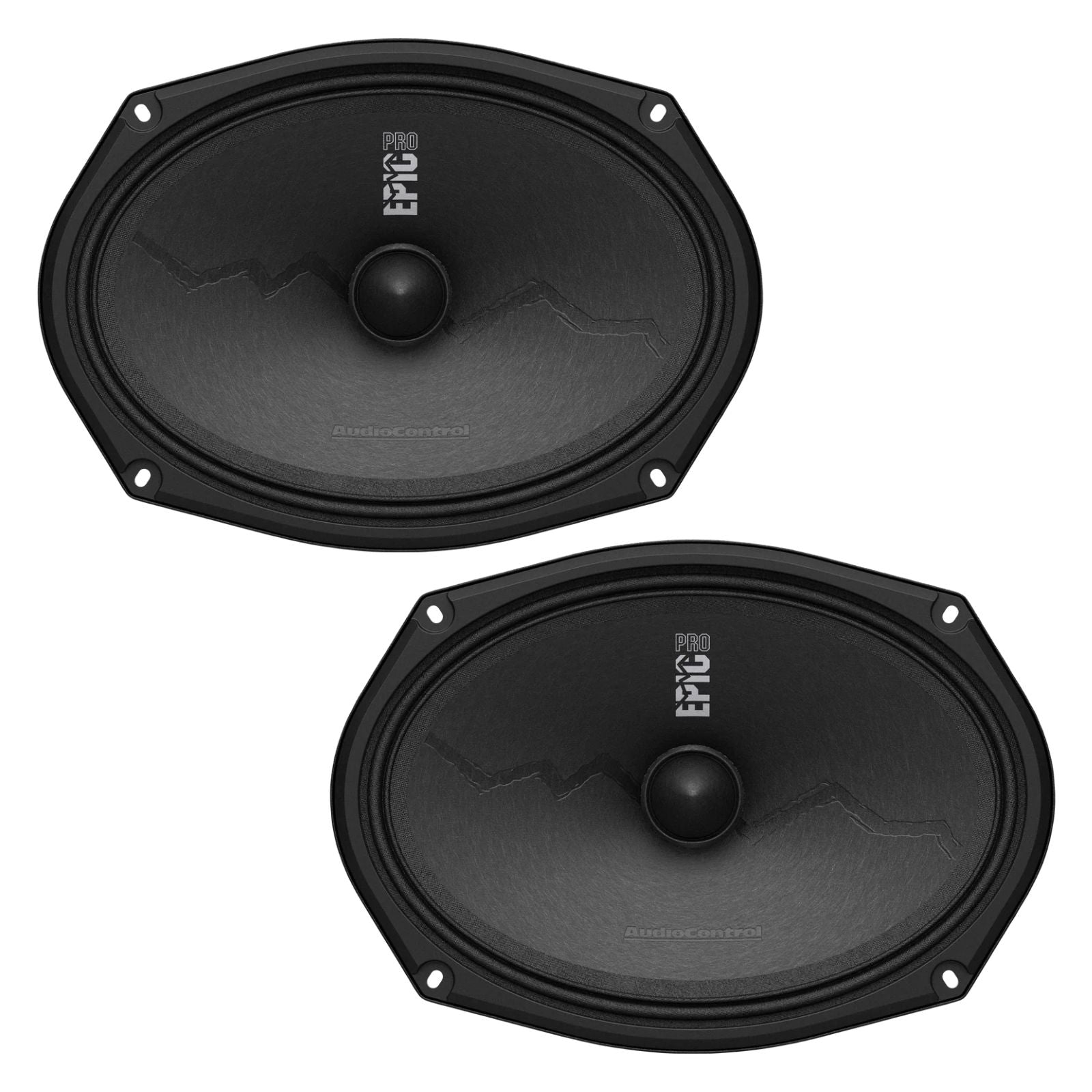

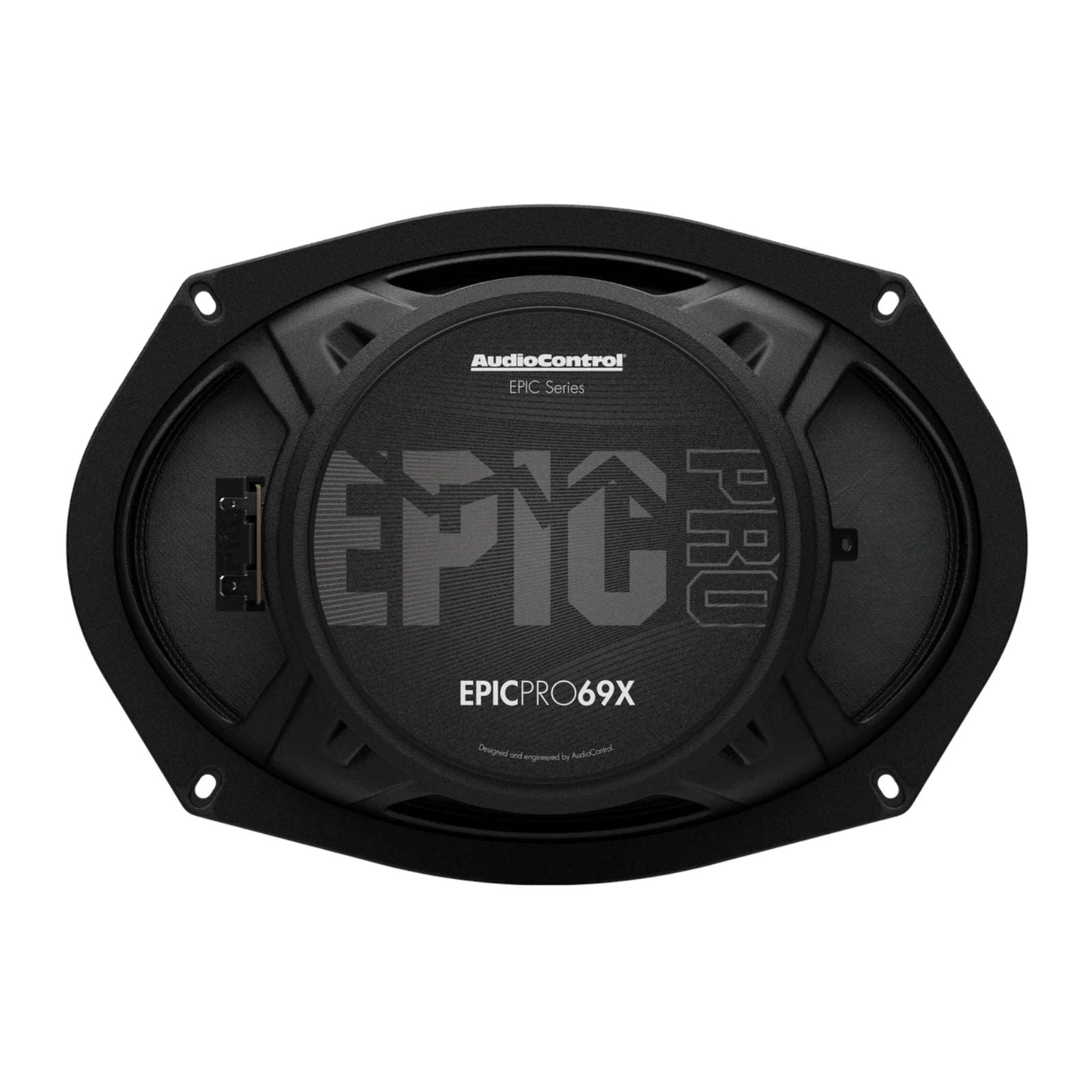

The AudioControl EPICPRO69X is a pair of 6x9 inch midrange speakers rated at 200W RMS (300W max), part of the AudioControl EPIC Pro Series.
This listing is for the EPICPRO69X 6x9 inch midrange drivers. They cover 120 Hz to 10,000 Hz; for a 6x9 with a built-in tweeter, see the EPICPRO69CX coaxial version.
Key specifications
- Size: 6x9 in midrange
- Power handling: 200W RMS / 300W max
- Impedance: 4 ohms
- Frequency response: 120 Hz to 10,000 Hz
- Sensitivity: 94.2 dB @ 1W/1m, 97.2 dB @ 2.83V/1m
- Voice coil: 1.2 in / 30.5 mm
- Cut-out: 5.75 x 8.35 in
- Mounting depth: 2.96 in
- Supplied as: pair
About the EPIC Pro range
The EPIC Pro speaker line is built for high-output systems, whether you are showing off at a car meet or keeping things understated.
EPIC Pro speakers are engineered to project sound far and wide with accurate reproduction across live recordings and studio tracks, combining high output with serious efficiency.
Rather than choosing between a dust cap or a phase plug, AudioControl combined both into a single phase cap. This widens bandwidth, increases efficiency and smooths the transition between mid and high frequencies.
Precision-tuned components, lightweight materials and California-based design and engineering mean these speakers get loud without wasting amplifier power. There is an EPIC Pro speaker for every kind of build.
Features
- High efficiency and low distortion: concert-level sound at extreme volumes.
- High output and far projection: big sound that fills the vehicle and carries powerfully.
- High SPL capability: built to handle serious power with strong dynamic impact.
- Phase cap design: boosts efficiency and widens bandwidth for more sound from less power.
- Lightweight components and precision tolerances: engineered for efficiency, accuracy and impact.
- AudioControl engineered: designed from the ground up by AudioControl's own engineers.
- Voiced for EPIC amplifiers: specifically tuned to integrate with AudioControl EPIC Series amplifiers.
Explore the full range in AudioControl.
Specification
| Power | 200W RMS / 300W Max |
|---|---|
| Speaker Size | 6x9 in |
| Impedance | 4 ohms |
| Voice Coil | 1.2 in / 30.5 mm |
| System Freq Response | 120 – 10,000 Hz |
| Sensitivity | 94.2 dB @ 1W/1 m | 97.2 dB @ 2.83V /1m |
| Magnet | Weight 30 oz / 850 g |
| Magnet | Dimensions 4.72 x 1.77 x 0.79 in / 120 x 45 x 20 mm |
| Overall Diameter | 6.55 in x 9.25 in |
| Cut Out Diameter | 5.75 in x 8.35 in |
| Mounting Depth | 2.96 in |
| Total Depth | 3.71 in |
What's Included
- 2 x EPICPRO69X Speakers
- Manual
AudioControl
About the AudioControl EPICPRO69X
From our tech experts at CEN
AudioControl 6x9 inch midrange drivers, rated at 200w RMS, built for efficiency and output.
Who it suits
Drivers building a multi-way front stage where each driver covers a defined band.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Do the EPICPRO69X speakers have a tweeter?
A: No. The EPICPRO69X is a midrange speaker covering 120 Hz to 10,000 Hz. For a 6x9 with a built-in bullet tweeter, the EPICPRO69CX coaxial version is available.
Q: What is the mounting depth of the EPICPRO69X?
A: The mounting depth is 2.96 in and the total depth is 3.71 in. The cut-out is 5.75 x 8.35 in.
Q: What is in the box with the EPICPRO69X?
A: Two EPICPRO69X speakers and a manual.
