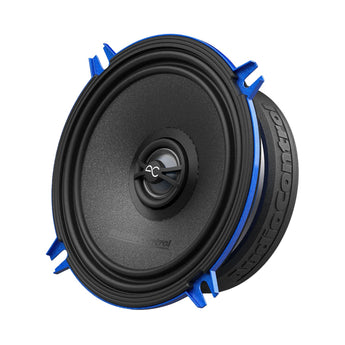

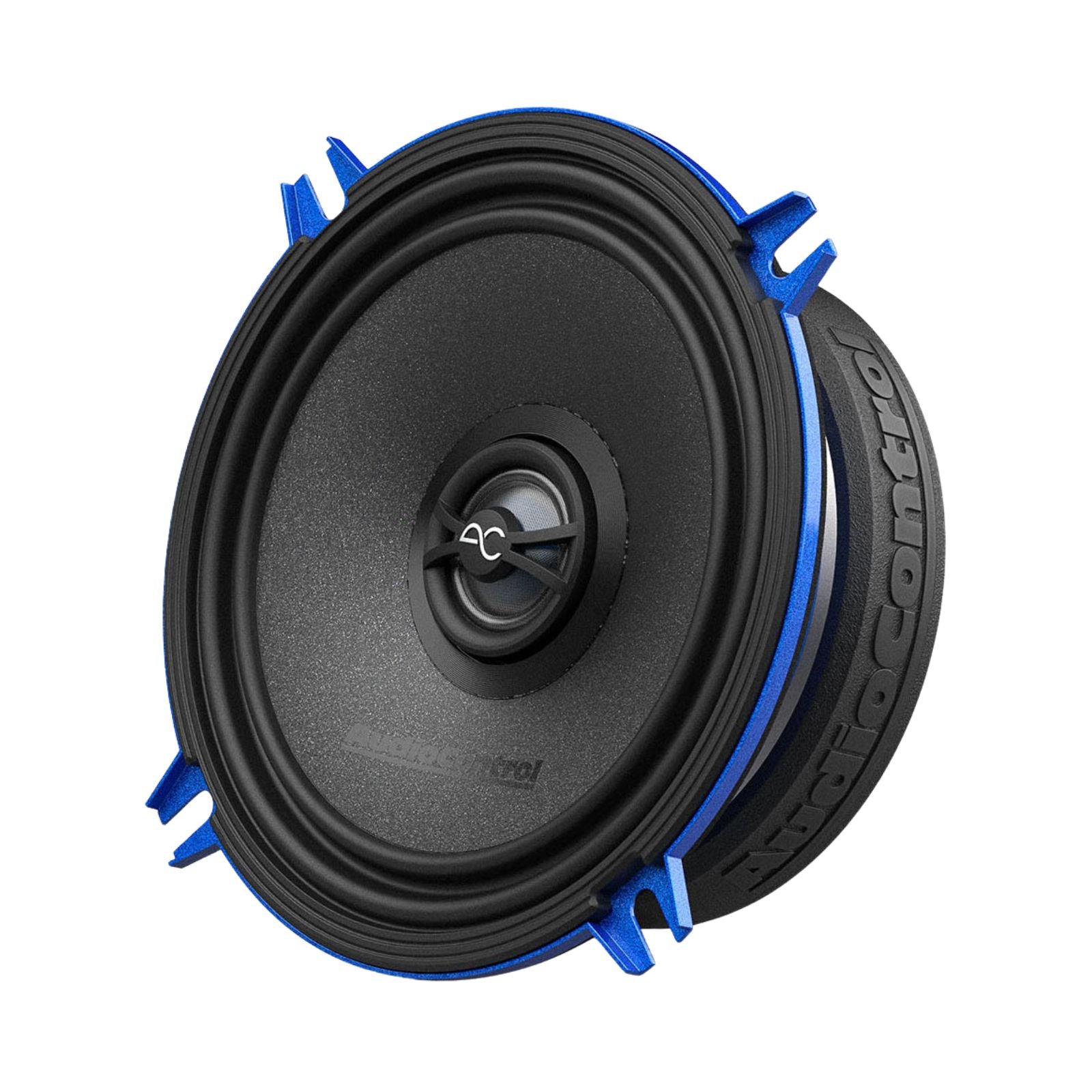

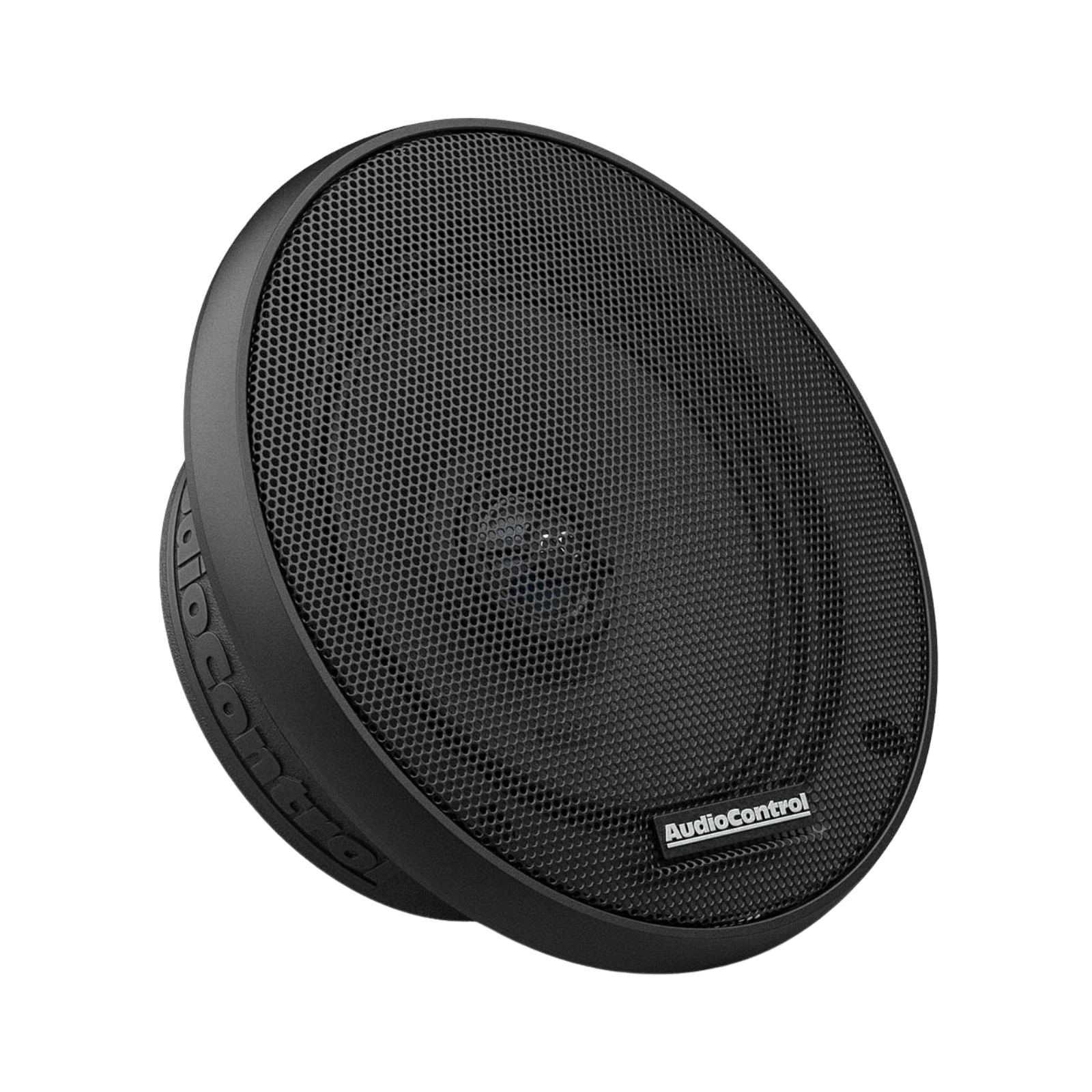

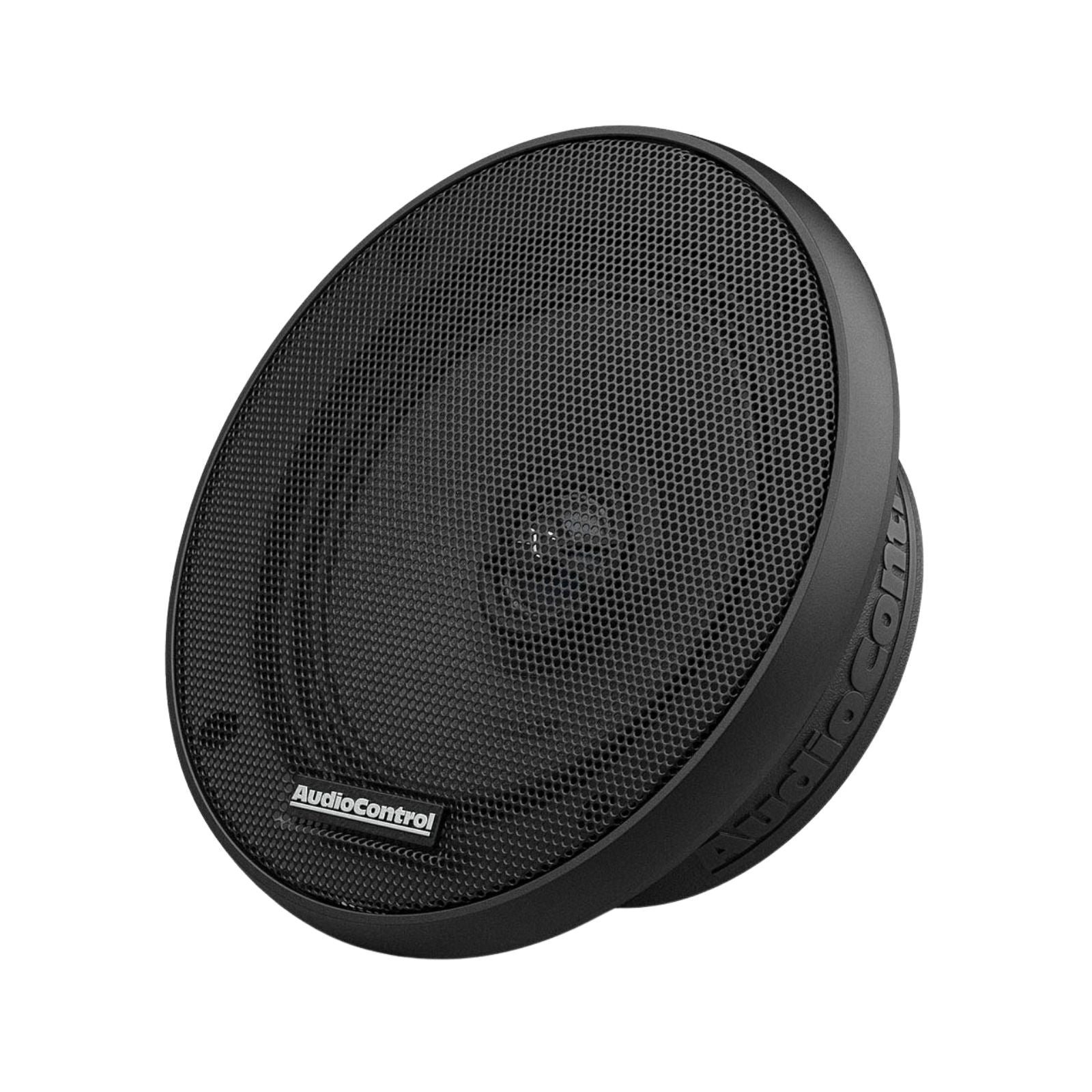

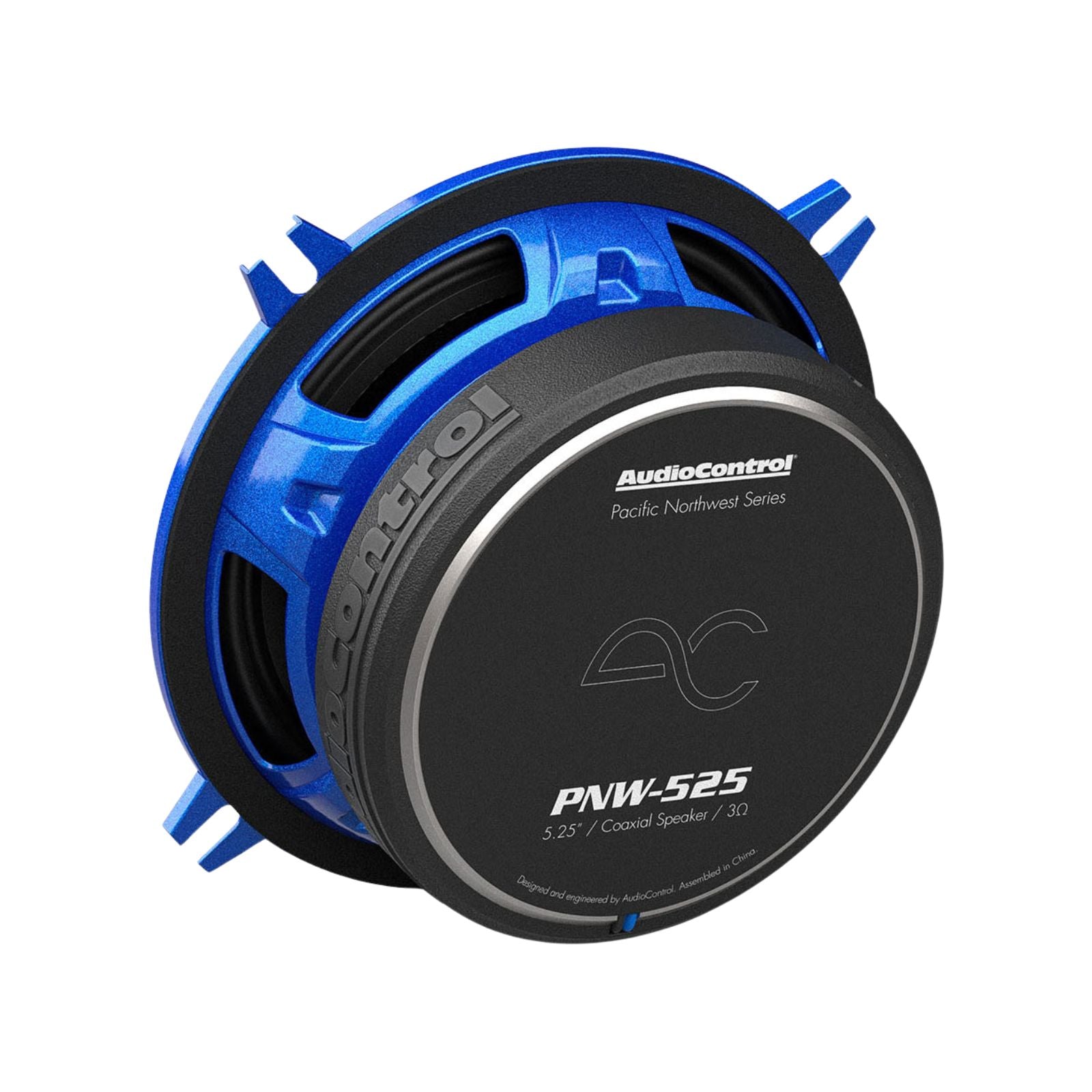

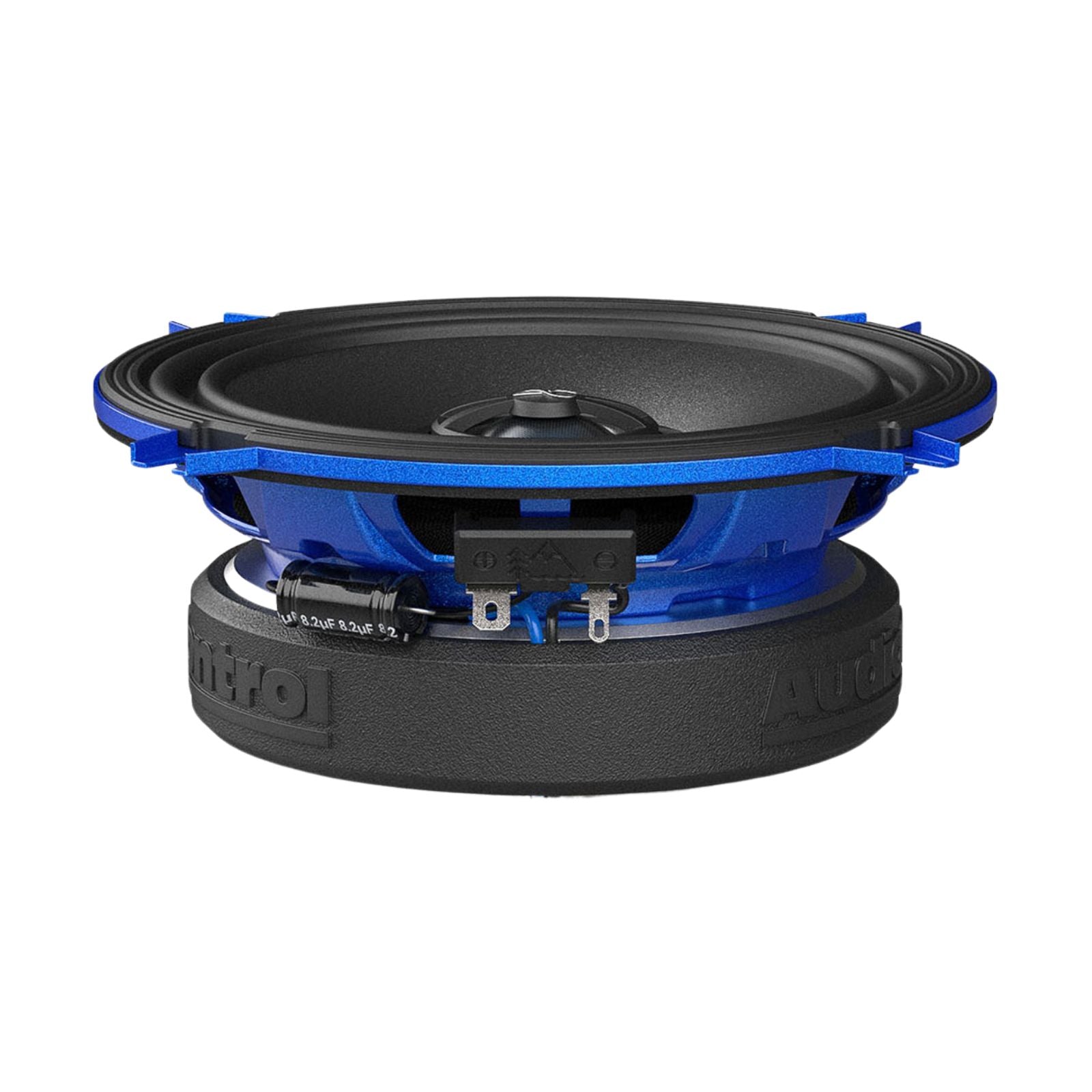

The AudioControl PNW-525 is a pair of 5.25 inch 2-way coaxial speakers rated at 50W RMS / 75W max, part of AudioControl's PNW Series. They feature a rear-dampened hybrid silk dome tweeter, rigid poly mica-coated cone and edge-enhanced steel frame, designed as a high-fidelity drop-in replacement for factory 5.25 inch speakers.
Key specifications
- Size: 5.25 inch 2-way coaxial
- Power: 50W RMS / 75W max
- Frequency response: 75Hz–20kHz
- Crossover: Butterworth high-pass at 5250Hz, -6dB/octave
- Cut-out: 91.5mm
- Mounting depth: 42.2mm
- Voice coils: 20mm tweeter, 35mm midrange
- Overall diameter (without grille): 133mm

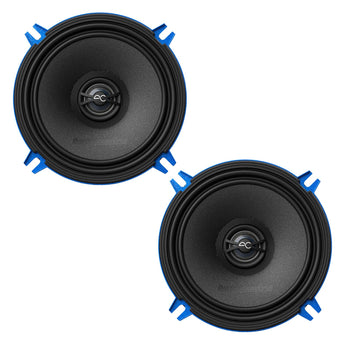

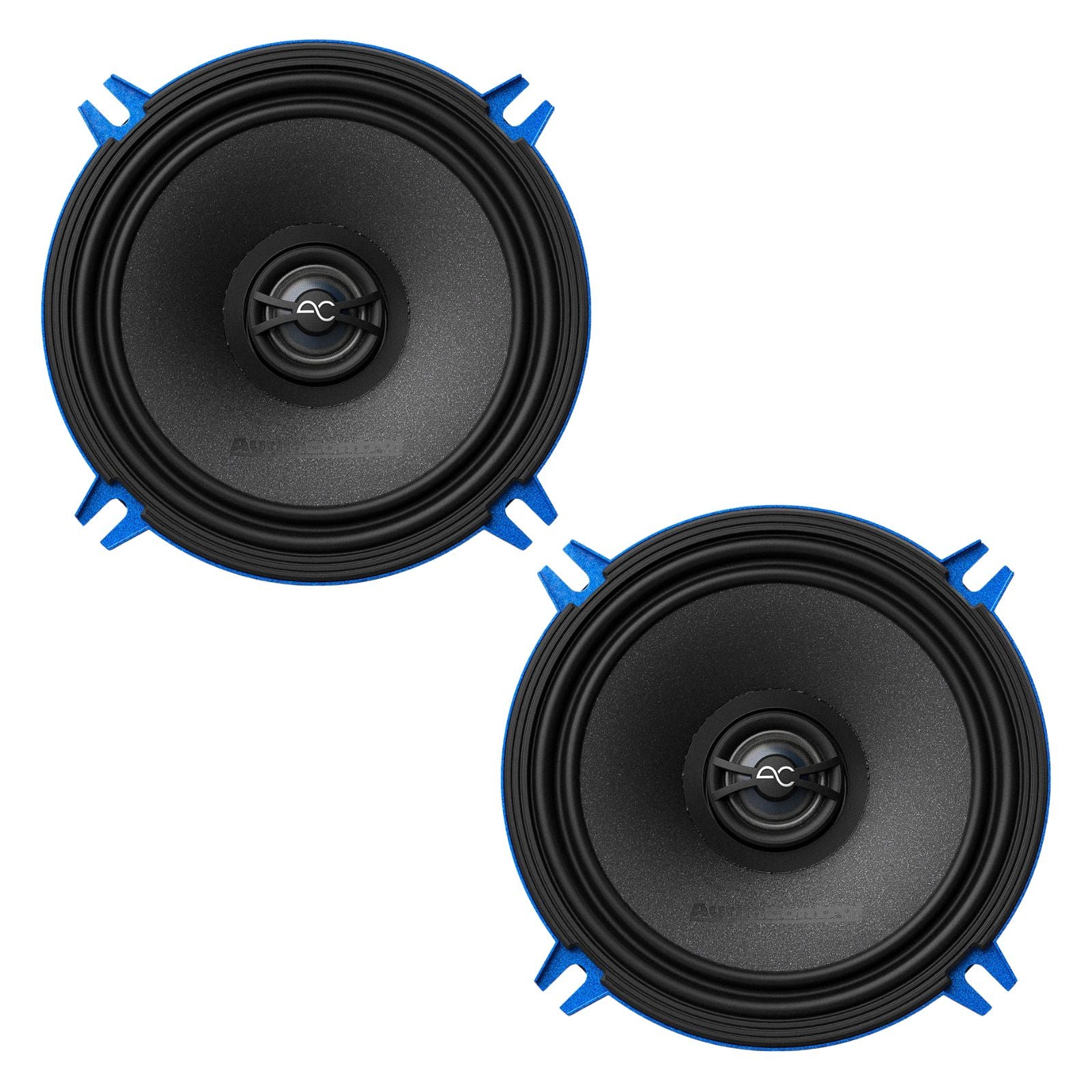

- Supplied as: 2 x PNW-525 speakers
PNW Series 5.25" High-Fidelity Coaxial Speakers
AudioControl has over 45 years of experience engineering audio components. The PNW Series speakers are built around an edge-enhanced steel frame for structural rigidity, a black anodized voice coil former for heat dissipation, and a linear double-roll surround for precise cone movement. The rigid poly mica-coated cone optimises sound reproduction across the frequency range. A concentric point source tweeter design aligns the output of both drivers for improved staging and clarity.
Each set includes high-quality mounting hardware for a straightforward installation. For a complete system upgrade, the PNW-525 pairs well with AudioControl's amplifiers and line output converters such as the AudioControl LC2i or the AudioControl LC6i, allowing integration with factory head units.
Features
- Edge-enhanced steel frame for added structural strength
- Black anodized voice coil former for superior heat dissipation
- Linear double-roll surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Rigid poly mica-coated cone for optimised sound reproduction
- Rear dampened hybrid silk dome tweeter for extended frequency response
- Concentric point source design for a seamless transition from midrange to tweeter
- Sonic diffuser and radiant collar for better off-axis frequency response
- High-quality mounting hardware included
Explore the full range in AudioControl.
Specification
| Crossover Type | Butterworth |
|---|---|
| Power | 50W RMS / 75W Max |
| DC Resistance (Re) | 2.6 ohms |
| Filter Type | HP |
| Frequency Response | 75-20k Hz |
| XO Frequency | 5250 Hz |
| Slope (Octave) | -6 dB |
| Tweeter Voice Coil Diameter | 20 mm |
| Midrange Voice Coil Diameter | 35 mm |
| Overall Diameter (w/o Grille) | 5.23 in/ 133 mm |
| Cut Out Diameter | 3.60 in/ 91.5 mm |
| Mounting Depth | 1.66 in/ 42.2 mm |
| Height (w/o Grille) | 0.16 in / 4.1 mm |
| Height (w/ Grille) | 0.64 in / 16.5 mm |
| Motor Diameter (w/ Cover) | 2.96 in / 75.4 mm |
| Grille Overall Diameter | 5.40 in / 137 mm |
What's Included
- 2 x PNW-525 Speakers
- Manual
- Warranty
AudioControl
About the AudioControl PNW-525
From our tech experts at CEN
AudioControl 5.25 inch coaxial speakers, rated at 50w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without complication.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What size hole does the PNW-525 need?
A: The cut-out is 91.5mm and the mounting depth is 42.2mm. Check these against your vehicle, or contact CEN for a fitment check.
Q: How much power can the PNW-525 handle?
A: They are rated at 50W RMS and 75W max per speaker, with a frequency response of 75Hz-20kHz.
Q: Does the PNW-525 have a built-in tweeter?
A: Yes. It is a 2-way coaxial with a rear-dampened hybrid silk dome tweeter mounted concentrically, fed through a Butterworth high-pass crossover at 5250Hz.
