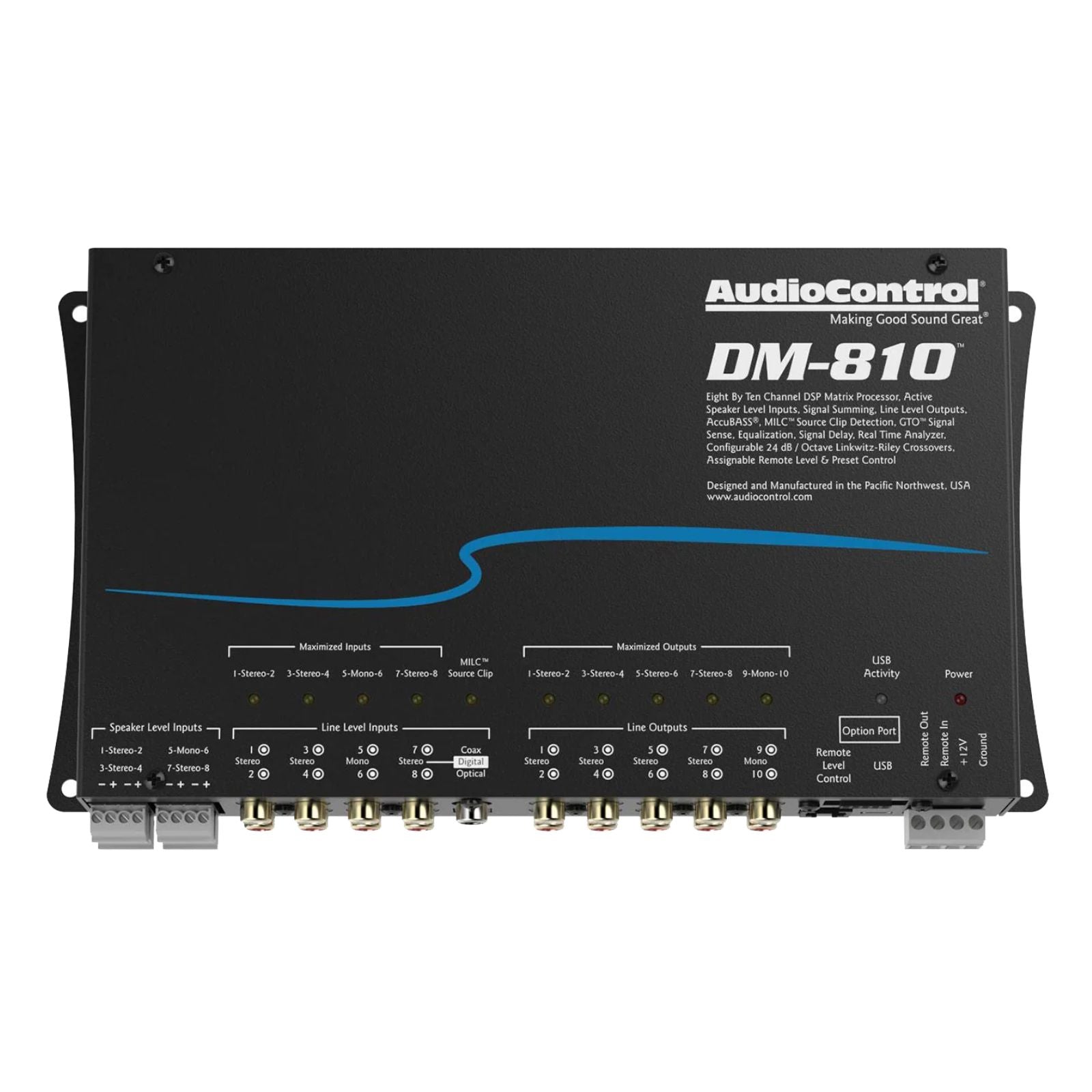

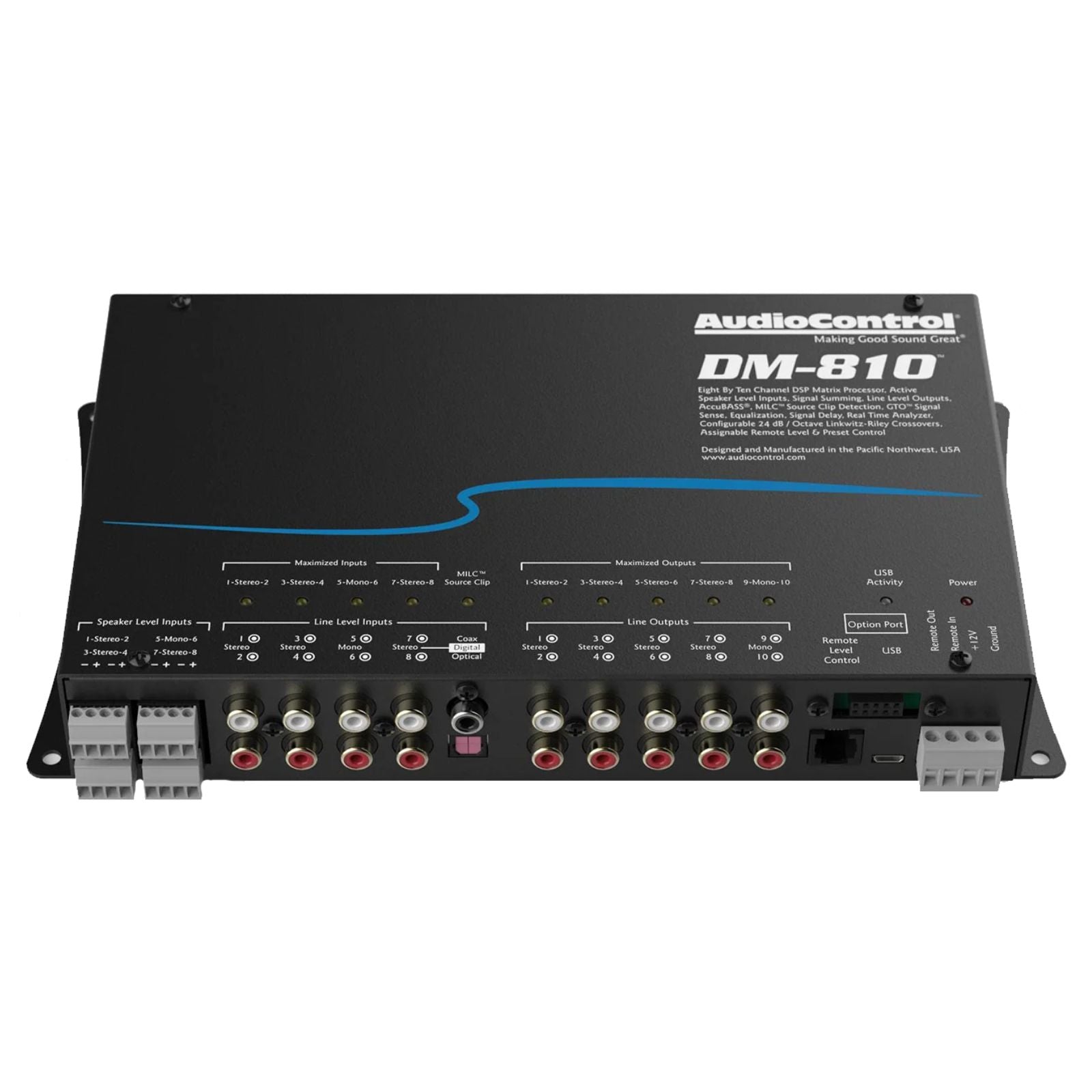

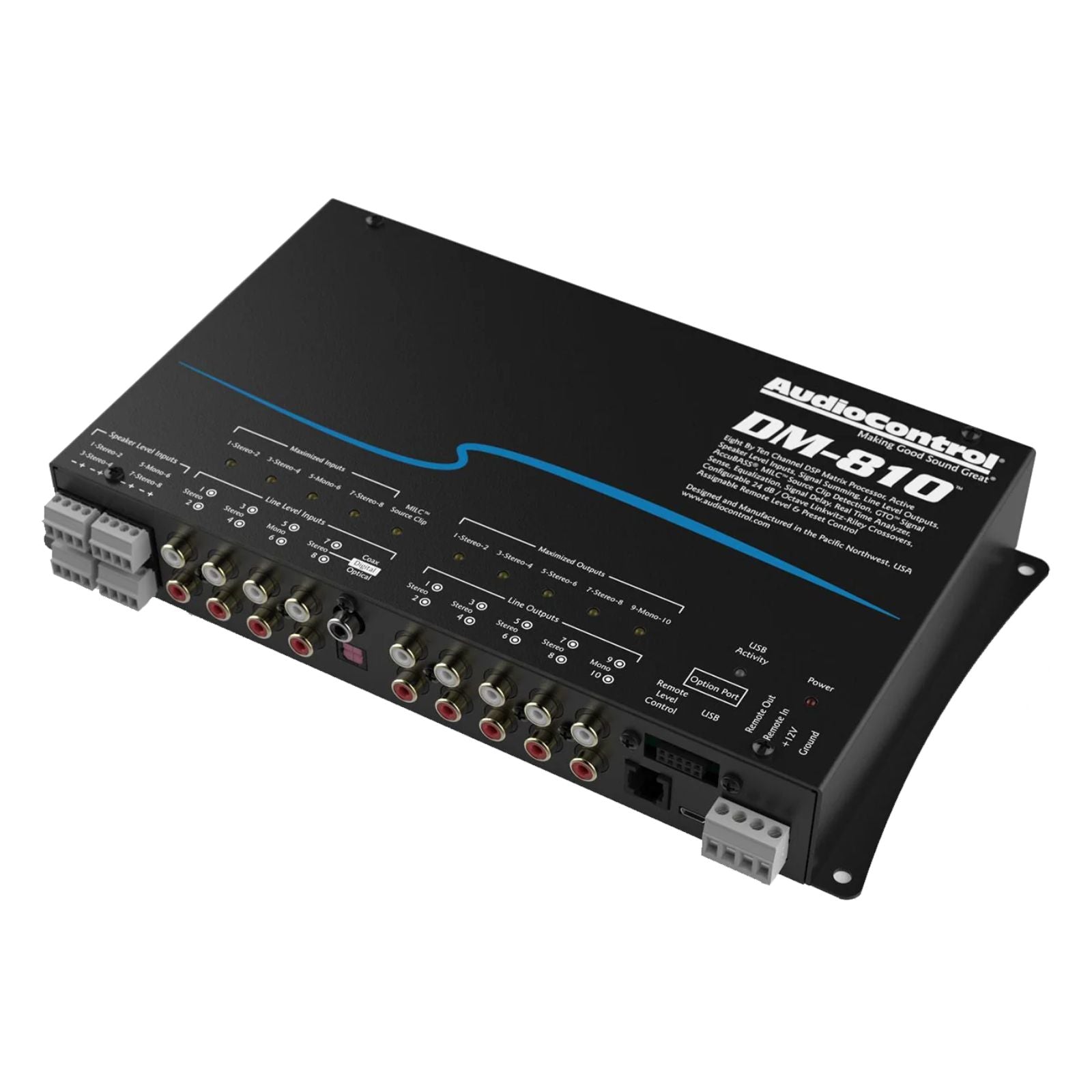

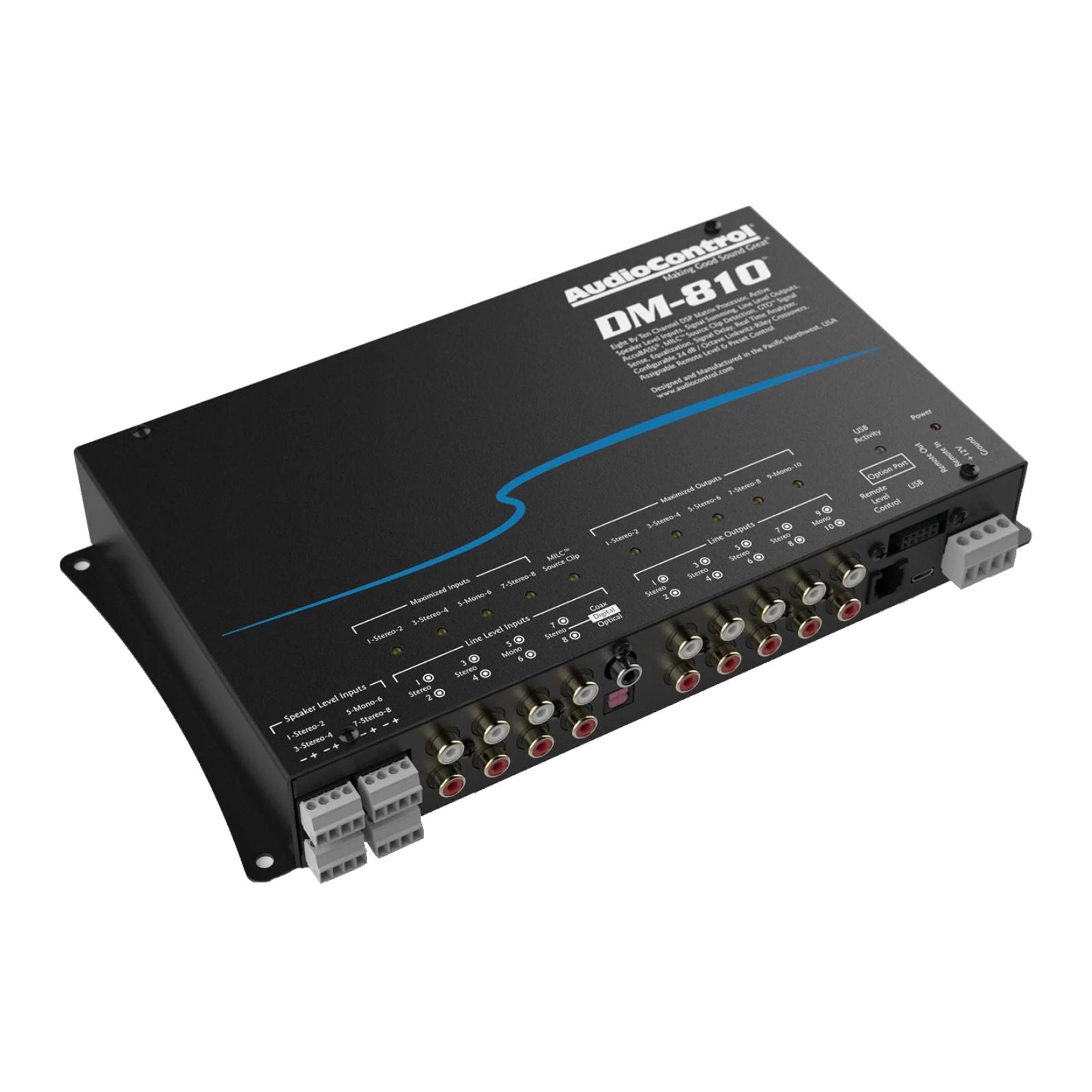

The AudioControl DM-810 is an 8-input, 10-output DSP matrix processor for car audio, with speaker-level, line-level and digital (Toslink and coax) inputs, 30-band EQ and time alignment for tuning factory or aftermarket systems.
Key specifications
- Inputs: 8 preamp channels, 1 x Toslink and coax digital input
- Outputs: 10 preamp channels, 10 Vrms max output
- Input impedance: 20 kohm preamp / 7 kohm speaker-level
- DSP: 30-band EQ, signal delay, signal summing, input and output RTA
- Crossovers: 12 and 24 dB/octave Linkwitz-Riley, variable frequency
- Frequency response: 20 Hz to 24 kHz, THD 0.01%
- Current draw: 1 A (recommended fuse 3 A)
- Dimensions: 10.5" W x 5.7" D x 1.6" H, 1.2 kg (2.6 lbs)
DM-810 Premium 8 Input 10 Output DSP Matrix Processor
The DM-810 lets you optimise any car audio system — factory or aftermarket — with full control over signal routing, EQ and time alignment.
The processor accepts active speaker-level, line-level and digital audio inputs, providing up to 10 channels of output. AudioControl's free DM Smart DSP app (Mac/PC) gives access to signal summing, 30-band EQ, time alignment, input delay and phase correction, plus AudioControl proprietary features including AccuBASS, GTO Signal Sense and MILC, with integrated input and output RTAs.
The built-in Option Port allows hi-res streaming directly into the DSP and supports future proprietary connections for additional inputs, controllers and interface solutions.
Features
- Input and output RTA for precise tuning
- GTO Signal Sensing
- MILC clip detection
- AccuBASS
- Signal summing
- Signal delay
- 12 and 24 dB/octave Linkwitz-Riley crossovers
- 30-band equaliser
- Optional ACR-3 remote for preset recall and level control
- Optional AC-BT24 Bluetooth streamer/programmer
- DM Smart DSP app available as a free download for Mac/PC
Explore the full range in AudioControl.
Specification
| Preamp Input Channels | 8 |
|---|---|
| Digital Inputs | 1 x Toslink and Coax |
| Input Impedance Preamp / Speaker-level | 20 kΩ / 7 kΩ |
| Preamp Outputs Channels | 10 |
| Maximum Output Level | 10 Vrms |
| Output Impedance | 150 Ω |
| Total Harmonic Distortion | 0.01% |
| Frequency Response | 20 Hz to 24 kHz |
| Crossover Frequency | variable |
| Crossover Type | 12 and 24 dB/octave Linkwitz-Riley |
| Power Supply | High Headroom PWM Switching |
| Current Draw | 1A |
| Recommended Fuse Rating | 3A |
| Dimensions | 10.5”W x 5.7”D x 1.6”H |
| Weight | 2.6lbs (1.2kg) |
More specs
| |
What's Included
- DM-810
- Power and Speaker Connectors
- Manual
- Warranty
AudioControl
About the AudioControl DM-810
From our tech experts at CEN
A matrix digital signal processor, 10 channel, with the equalisation, crossovers and time alignment to tune a system to the vehicle rather than leave it fighting the cabin.
Who it suits
Complex builds and anyone keeping a factory head unit as the source. A matrix processor lets input channels be routed and summed flexibly, which is what factory systems with multiple amplified outputs usually require.
Our tech experts advise
The hardware does nothing until it is tuned: measurements in the car, delays set for the driving position, crossovers chosen for your drivers. That is the work, and we do it in the vehicle. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: How many channels does the DM-810 have?
A: The DM-810 has 8 input channels and 10 output channels, plus a digital input with Toslink and coax connections.
Q: Is there a remote for the DM-810?
A: Yes. The optional ACR-3 remote adds preset recall and level control. The optional AC-BT24 adds Bluetooth streaming and programming.
Q: What's in the box with the DM-810?
A: The DM-810, power and speaker connectors, manual and warranty.
