AudioControl PNW Series PNW-1 1 Inch Tweeters 100w

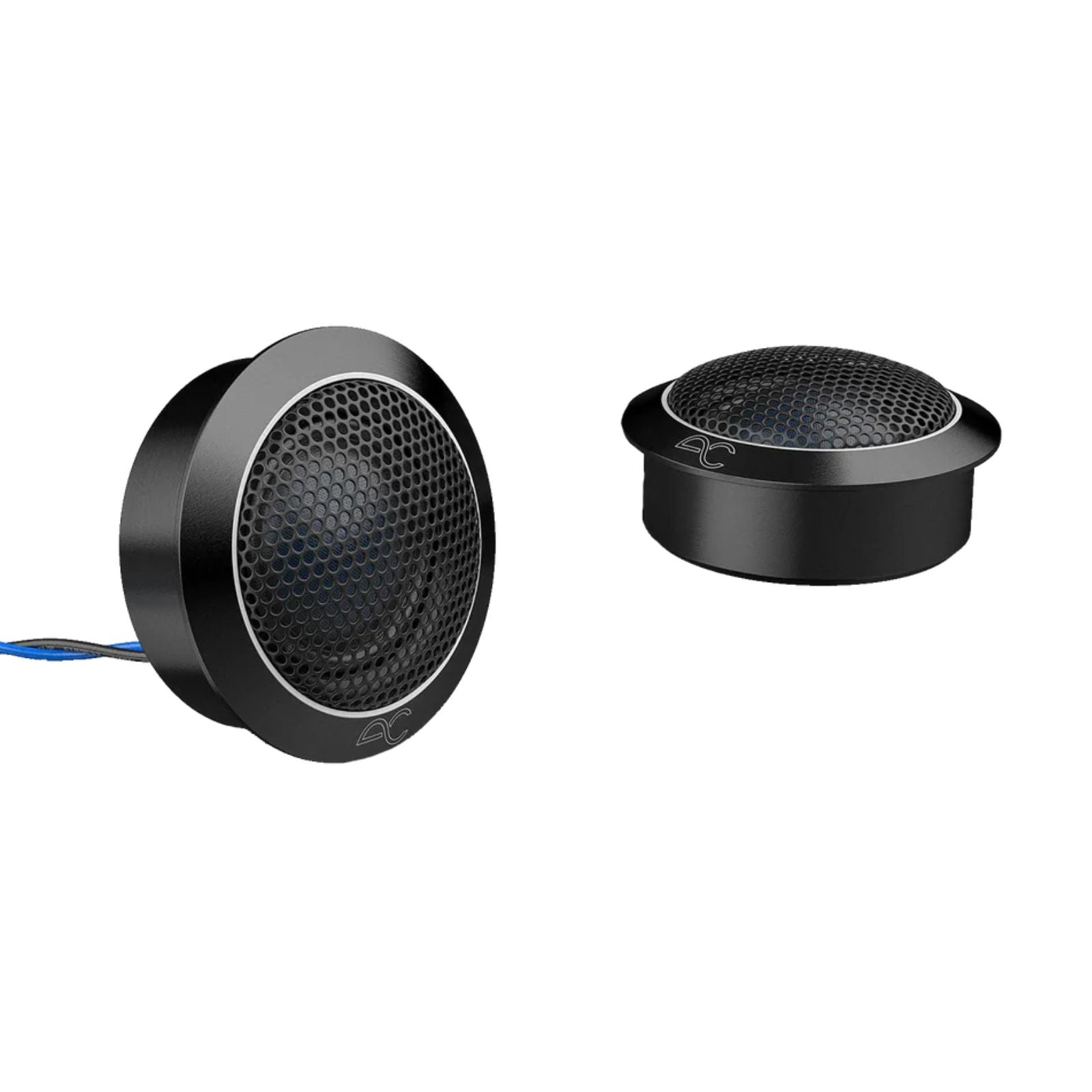

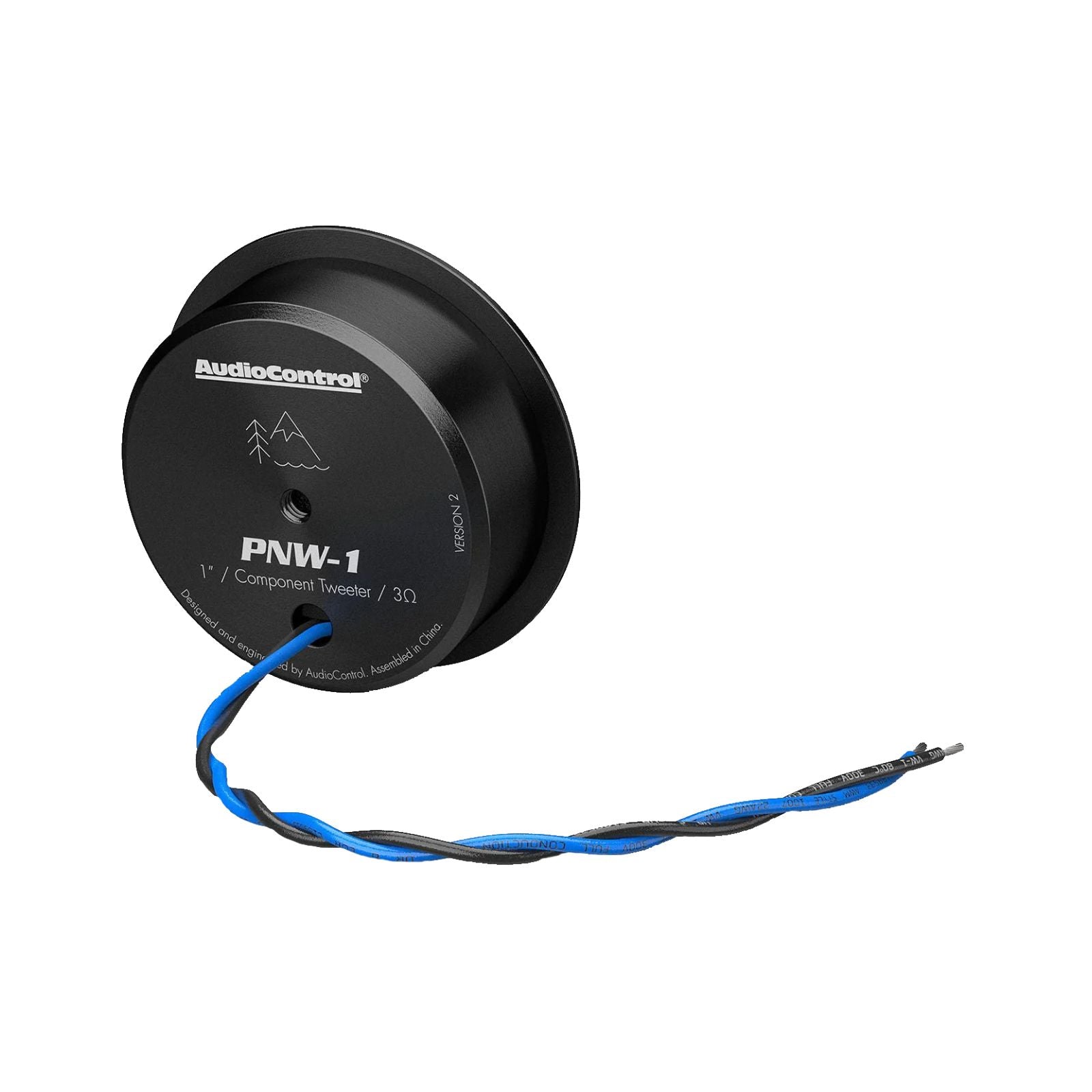

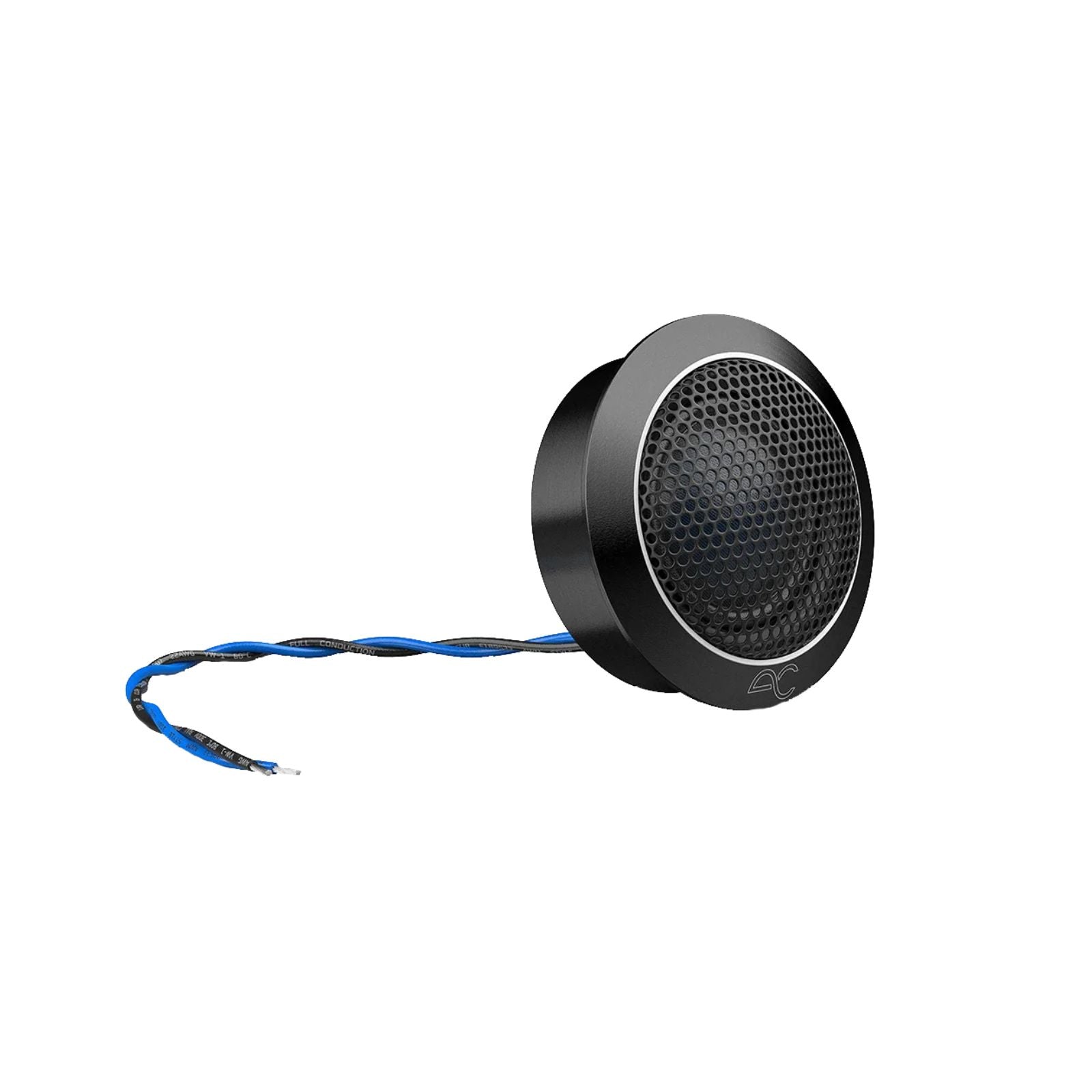

The AudioControl PNW-1 is a pair of 1-inch hybrid silk dome tweeters from the AudioControl PNW Series, rated at 100W RMS, housed in precision machined aluminium and supplied with in-line high-pass filters.

For a full 3-way front stage, the PNW-1 works with the AudioControl PNW-XN3 3-way passive crossover network, which provides a 4kHz high-pass tweeter output.

Key specifications

• Size: 1 inch (25mm voice coil)
• Power: 100W RMS / 125W max
• Nominal impedance: 3 ohms
• Frequency response: 1kHz–20kHz
• In-line crossover: 1st order Butterworth, 3.5kHz high-pass, -6dB/octave
• Cut-out diameter: 47mm; mounting depth: 16mm
• Overall diameter (with grille): 54mm

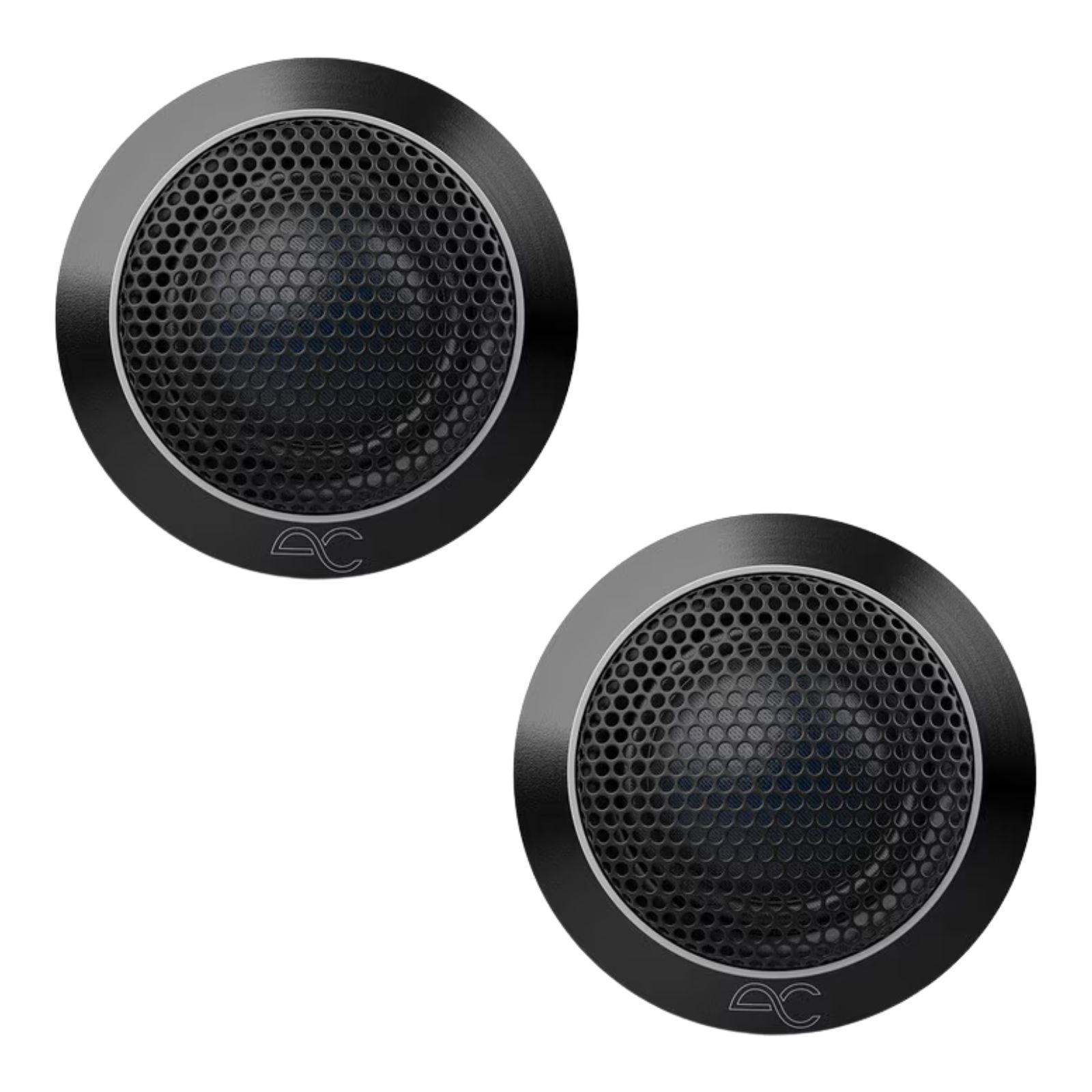

• Supplied as: 2 x PNW-1 tweeters

PNW-1: PNW Series High-Fidelity Tweeters

The PNW-1 features a hybrid silk dome diaphragm and precision machined aluminium housing for accurate sound reproduction with minimal distortion. The detachable housing and included mounting accessories simplify installation across a range of applications. The in-line high-pass filters ensure only the intended frequencies reach the tweeter.

Pair the PNW-1 with any speaker from the AudioControl PNW line-up for a cohesive front stage. On PNW coaxial models, the tweeter's point source design aligns the output of both drivers for improved speaker alignment and sound quality. For a complete system, the PNW Series pairs with AudioControl Spike or Space Series subwoofers.

Features

• Diaphragm: High-fidelity silk dome for accurate sound reproduction.
• Housing: Precision machined aluminium for durability.
• Sonic damping: Embedded sonic damping pad for improved audio performance.
• Magnet: Neodymium magnet for enhanced efficiency and compact design.

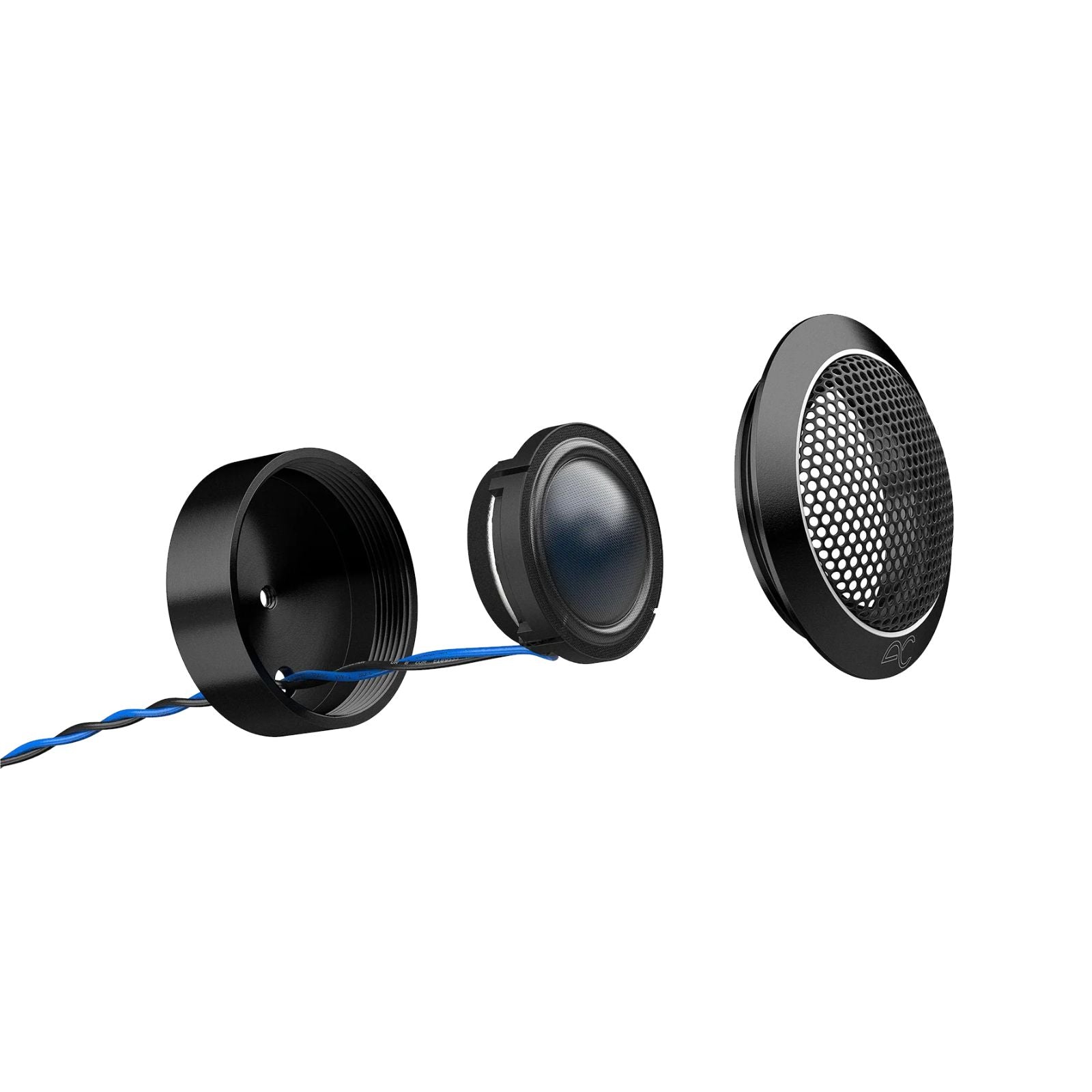

• Assembly: Detachable assembly for OE (Original Equipment) applications.
• Frequency response: Rear dampened hybrid silk dome tweeter for extended frequency response.
• Mounting: Multiple mounting accessories included.
• Filters: Included in-line high-pass filters to minimise distortion.
