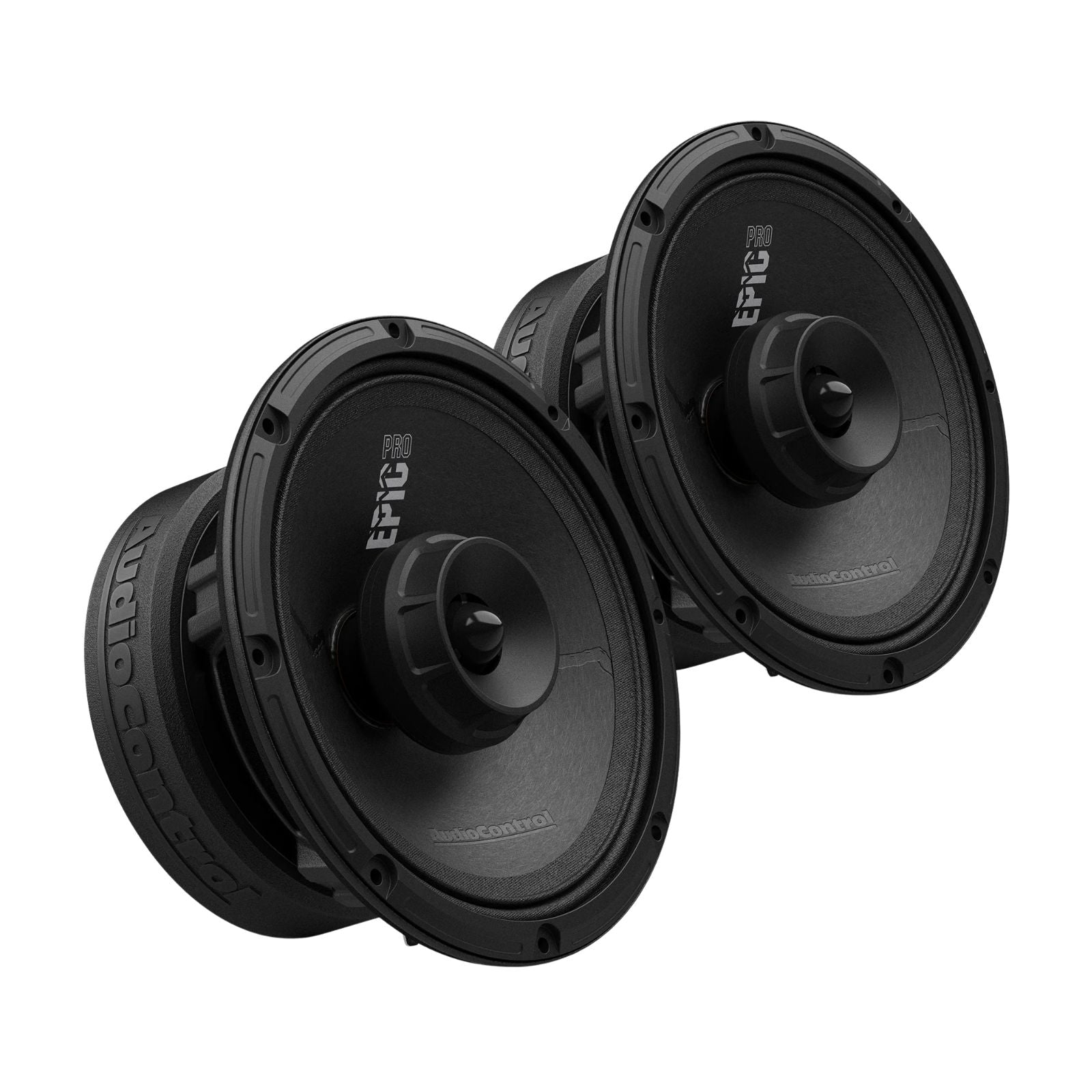

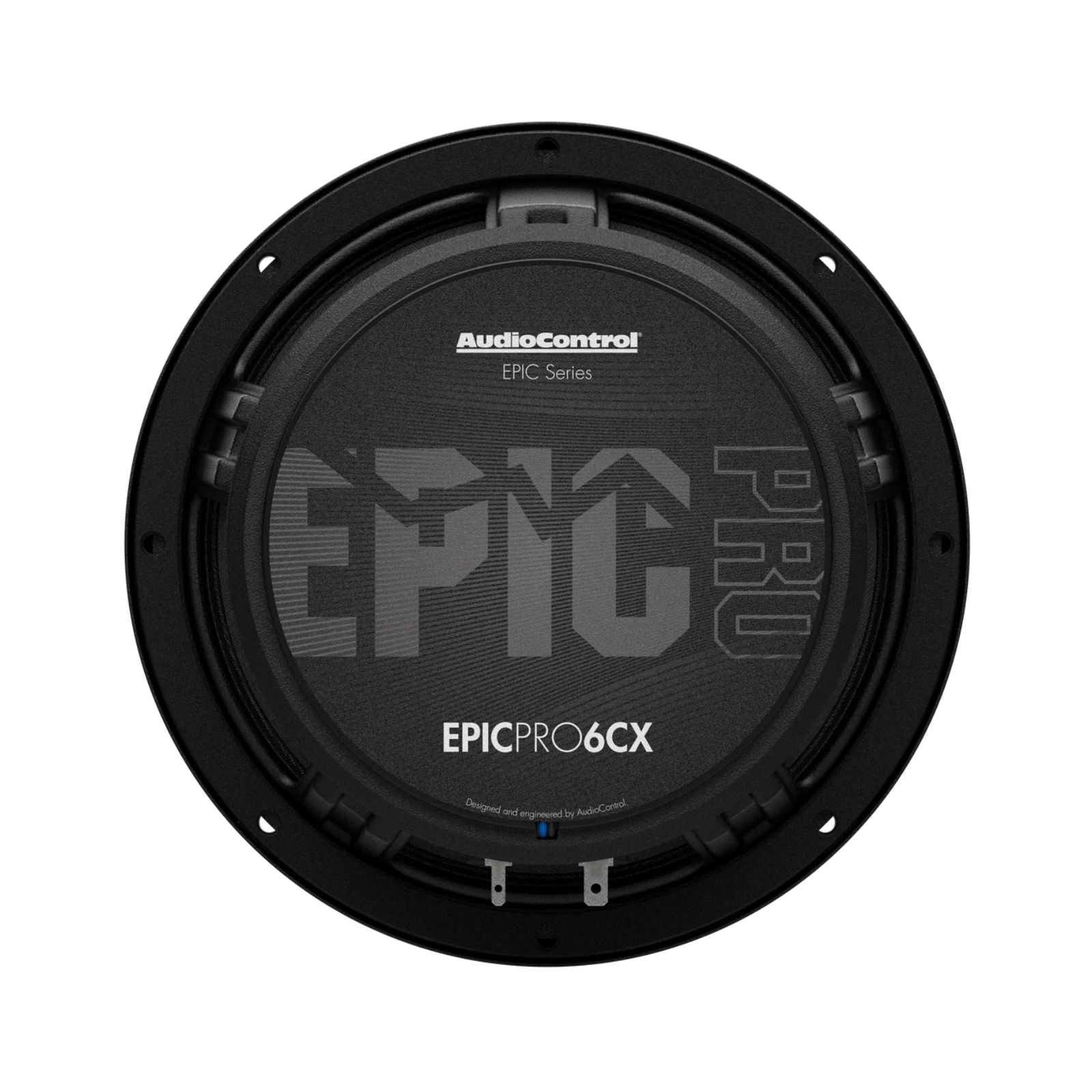

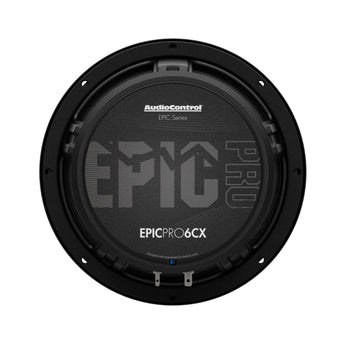

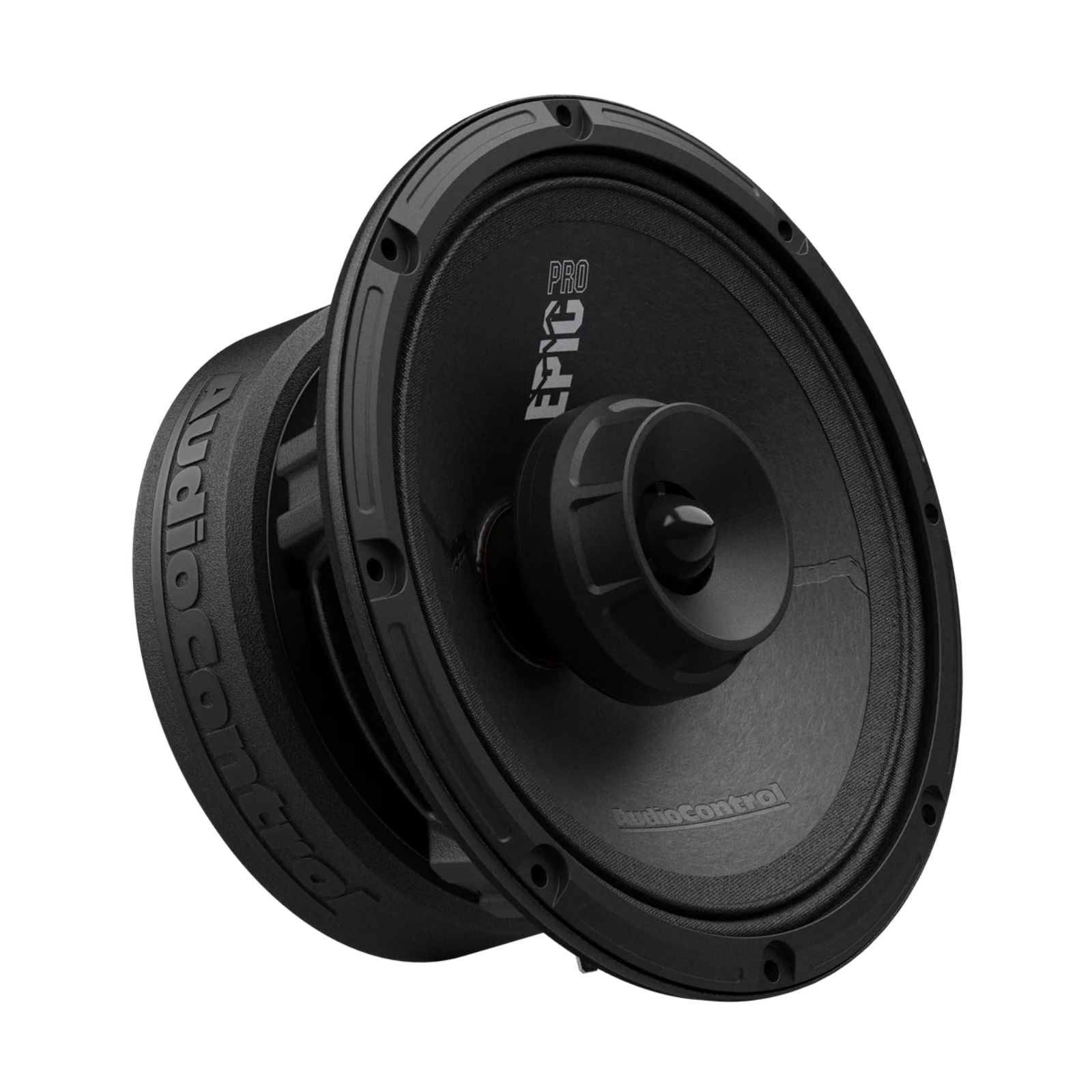

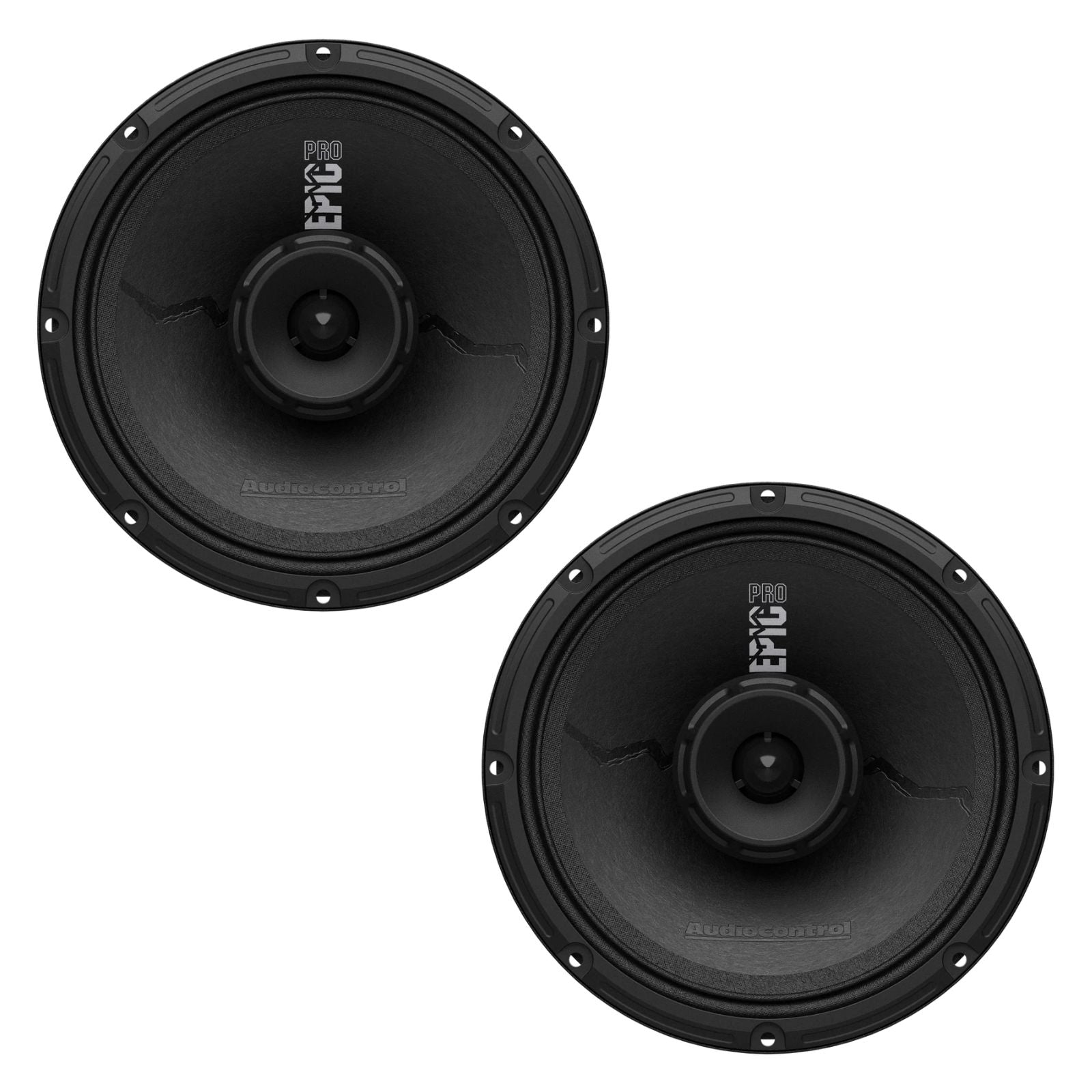

The AudioControl EPICPRO6CX is a pair of 6.5 inch EPIC PROAXIAL coaxial car speakers rated at 200W RMS (300W max), combining a midrange driver and titanium bullet tweeter for loud, full-range sound from a single unit.
This listing is for the EPICPRO6CX. For a 6.5 inch midrange without a tweeter, see the EPICPRO6X.
Key specifications
- Size: 6.5 in / 165 mm coaxial
- Power handling: 200W RMS / 300W max
- Impedance: 4 ohms
- Frequency response: 120 Hz to 20,000 Hz
- Sensitivity: 98.3 dB @ 2.83V / 1m
- Voice coil (tweeter / mid): 0.78 in / 1.2 in
- Cut-out diameter: 147 mm
- Mounting depth: 75.3 mm
- Supplied as: pair with grilles
About the EPIC PROAXIAL range
The EPIC PROAXIAL series is designed to be street loud and studio clear — a deliberate departure from conventional car audio.
Engineering focus is on efficiency and SPL, using lightweight composite cones and dual-roll cloth surrounds rather than standard car audio components. The result is high output without sacrificing clarity or accuracy under pressure.
This coaxial model integrates a high-efficiency midrange driver and compact bullet tweeter into a single point source, removing the need for separate mid and high-frequency drivers and simplifying installation without compromising performance.
Features
- Proaxial coaxial design: midrange driver and bullet tweeter deliver a loud, full-range response from one unit.
- Lightweight voice coil: high SPL output with low distortion.
- Precision-designed tweeter horn: smooth high-frequency response for immersive audio.
- Titanium tweeter diaphragm: high-volume, accurate sound.
- Double-roll cloth surround: accurate sound reproduction and consistent long-term performance.

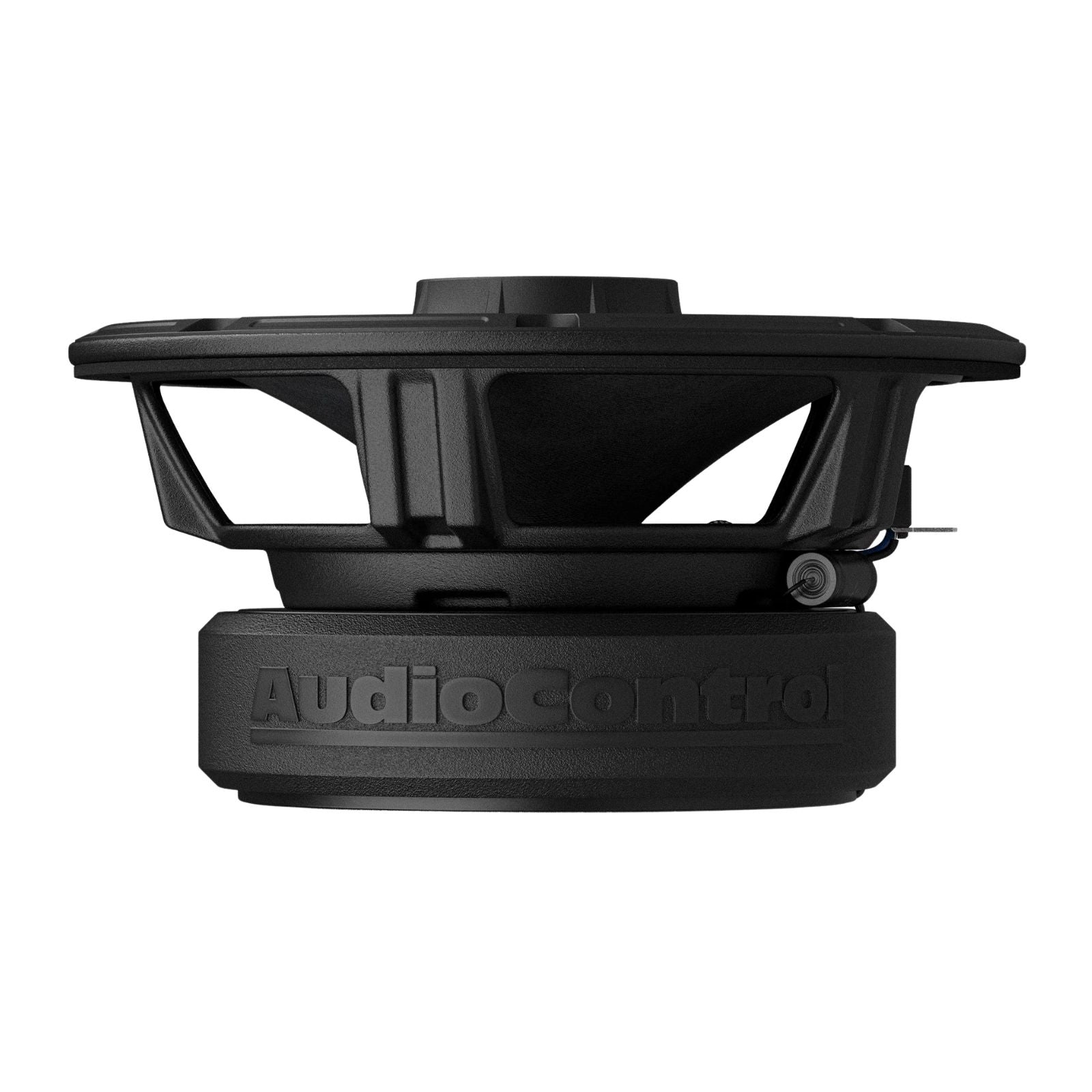

- High-tensile stamped-steel basket: improved damping for precise cone movement and clean, low-distortion sound.
- Stiff paper cone: warm, smooth sound with enhanced damping.
- Copper shorting ring: widens bandwidth and reduces distortion for a seamless woofer-to-tweeter transition.
- AudioControl engineered: designed from the ground up by AudioControl engineers as a complete, performance-driven system.
- Voiced for EPIC amplifiers: specifically tuned to integrate with AudioControl EPIC Series amplifiers.
Explore the full range in AudioControl.
Specification
| Power | 200W RMS / 300W Max |
|---|---|
| Speaker Size | 6.5 in / 165 mm |
| Impedance | 4 ohms |
| Voice Coil | (Tw / Mid) 0.78 in / 1.2 in |
| System Freq Response | 120 – 20,000 Hz |
| SPL (Efficiency 2.83V/1M) | 98.3 dB |
| Magnet | Weight 30 oz / 850 g |
| Magnet | Dimensions 4.72 x 1.77 x 0.79 in / 120 x 45 x 20 mm |
| Overall Diameter + Grille (A) | 6.81 in / 173 mm |
| Overall Diameter w/o Grille (B) | 6.7 in / 170 mm |
| Cut Out Diameter (C) | 5.78 in / 147 mm |
| Mounting Depth | (D) 2.96 in / 75.3 mm |
| Total Depth (E) | 3.71 in / 94.4 mm |
What's Included

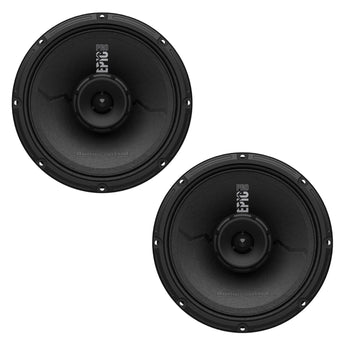

- 2 x EPICPRO6CX Speakers
- Mounting Hardware

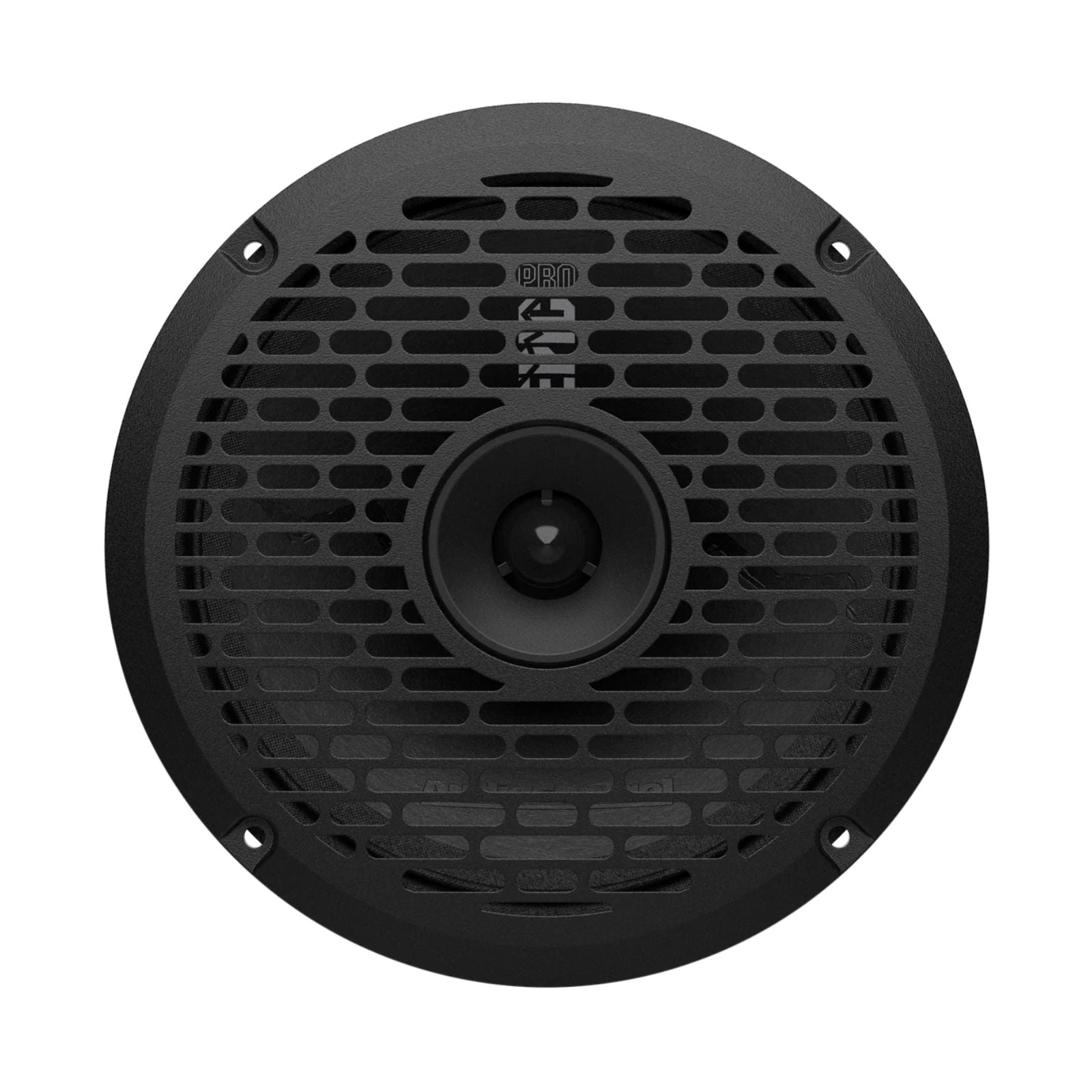

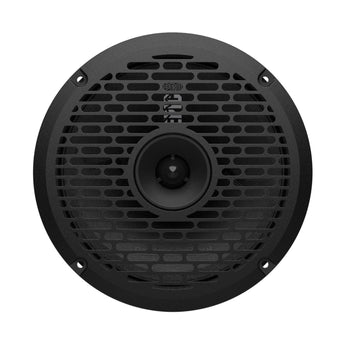

- Speaker Grilles
- Manual
AudioControl
About the AudioControl EPICPRO6CX
From our tech experts at CEN
AudioControl 6.5 inch coaxial speakers, rated at 200w RMS, built for efficiency and output.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without complication.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What size hole does the EPICPRO6CX need?
A: The cut-out diameter is 147 mm (5.78 in), with a mounting depth of 75.3 mm and a total depth of 94.4 mm.
Q: Do the EPICPRO6CX speakers have a built-in tweeter?
A: Yes. They are coaxial speakers with a titanium-diaphragm bullet tweeter in front of the midrange driver, covering 120 Hz to 20,000 Hz.
Q: What is in the box with the EPICPRO6CX?
A: Two EPICPRO6CX speakers, mounting hardware, speaker grilles and a manual.
