AudioControl EPICPRO69CX 6x9 Inch Coaxial Speakers 200w
Couldn't Load Pickup availability

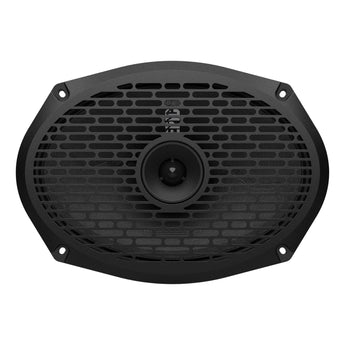

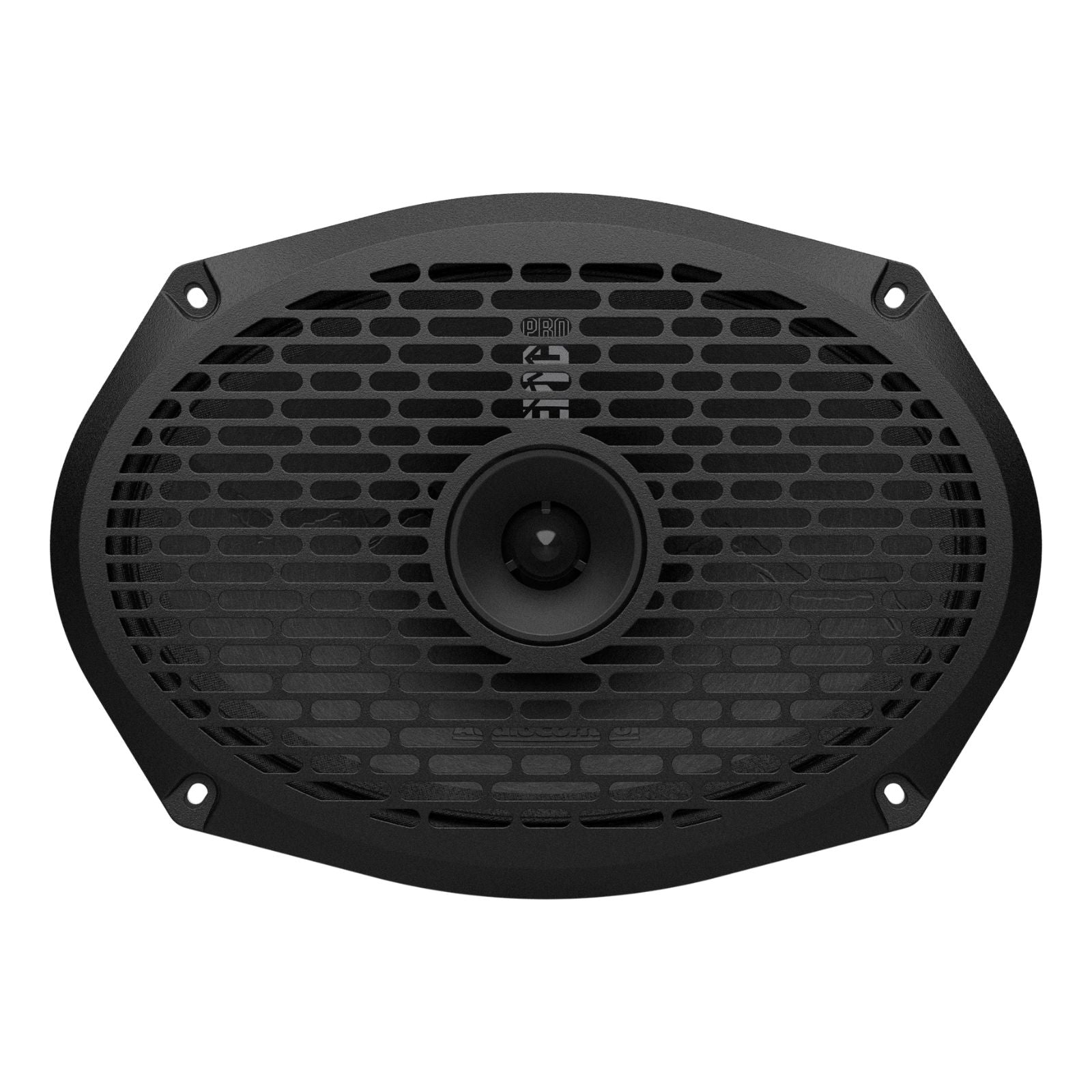

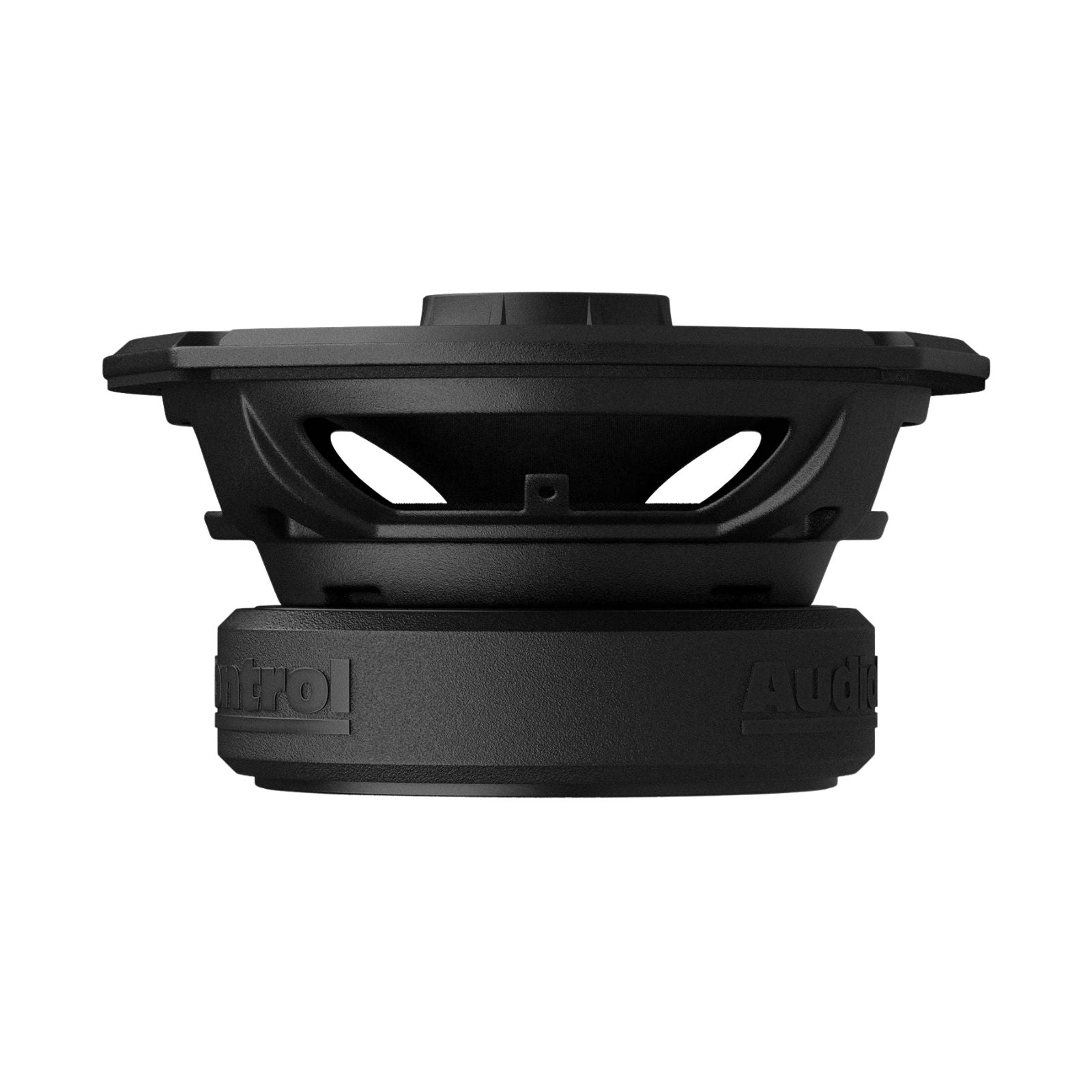

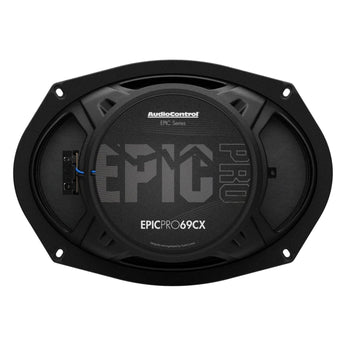

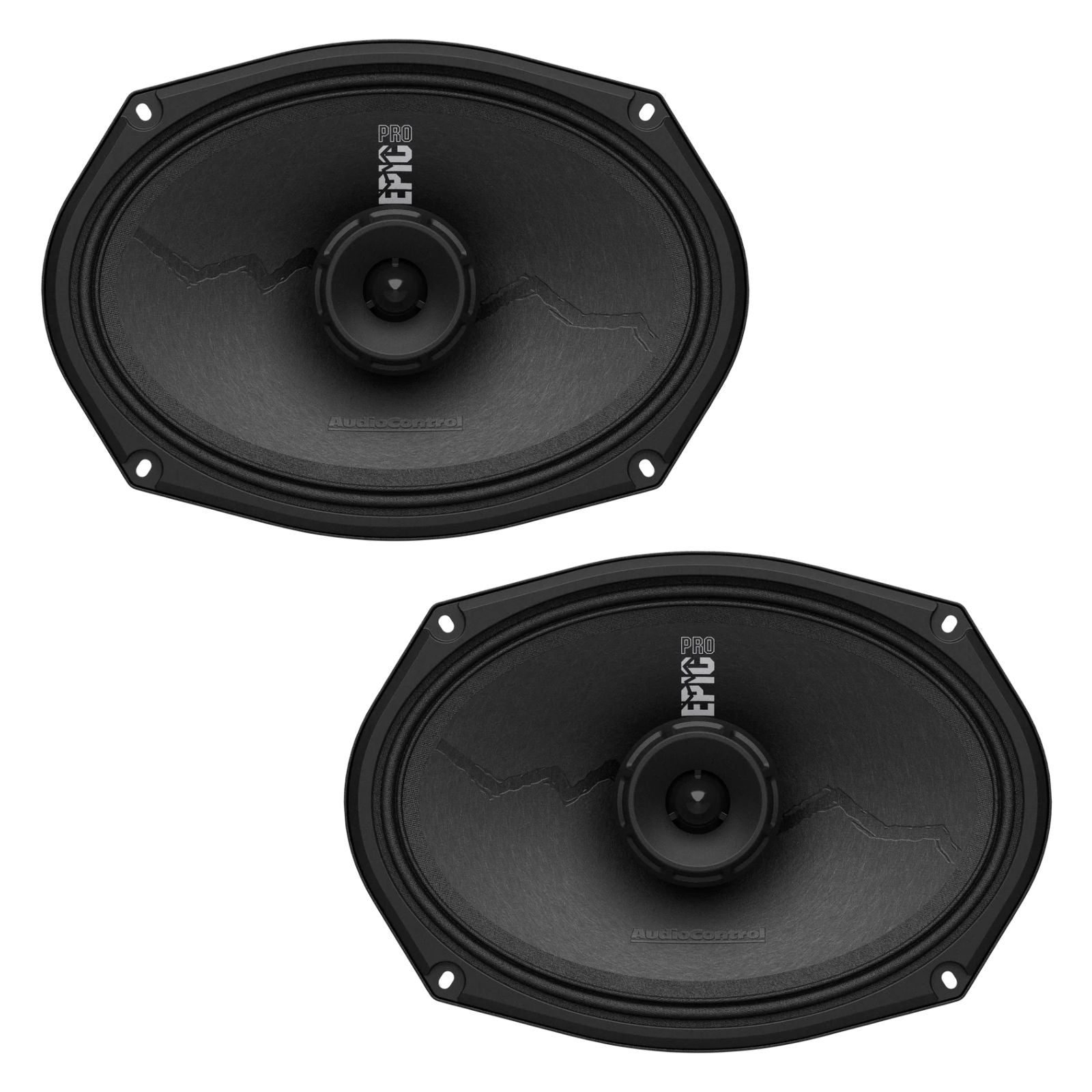

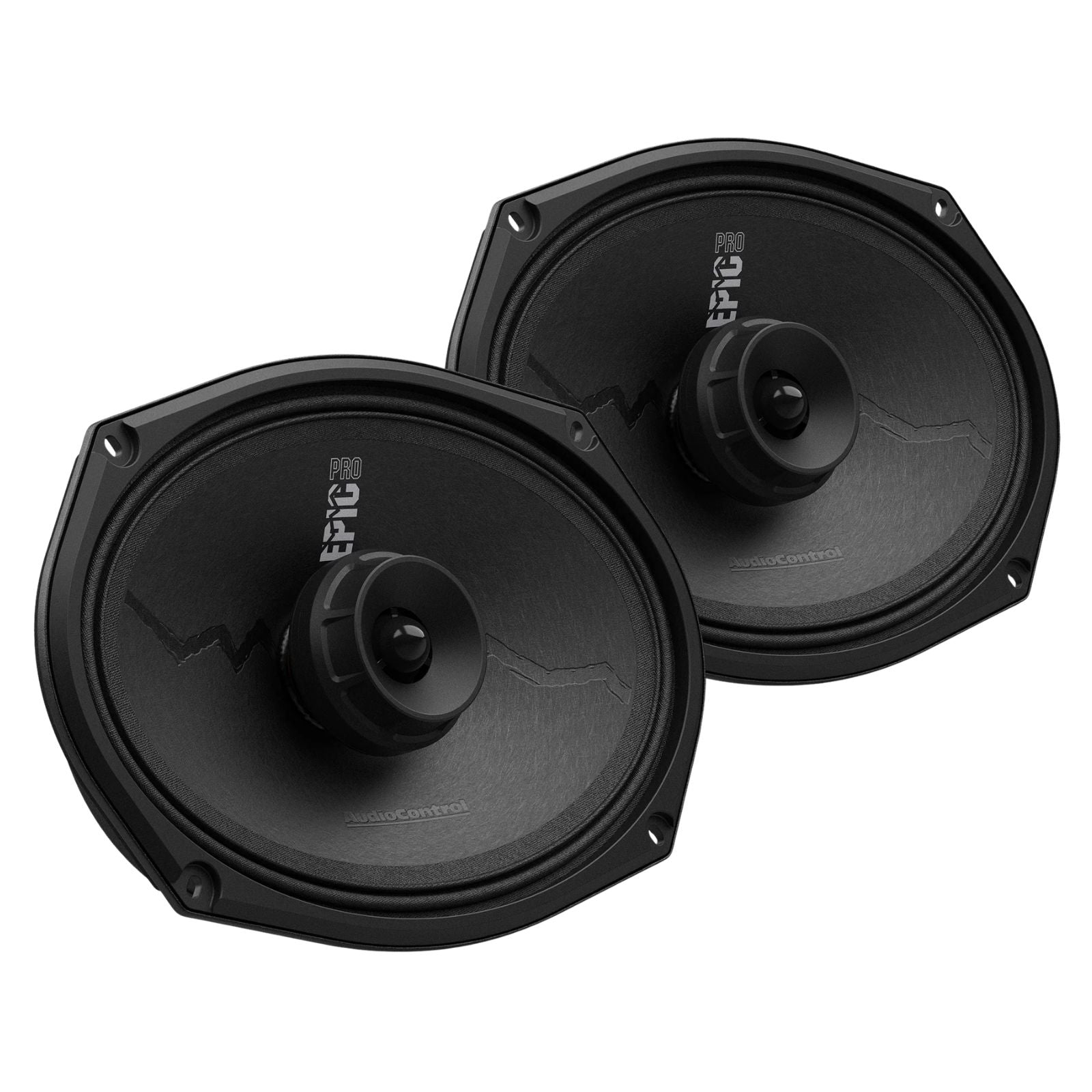

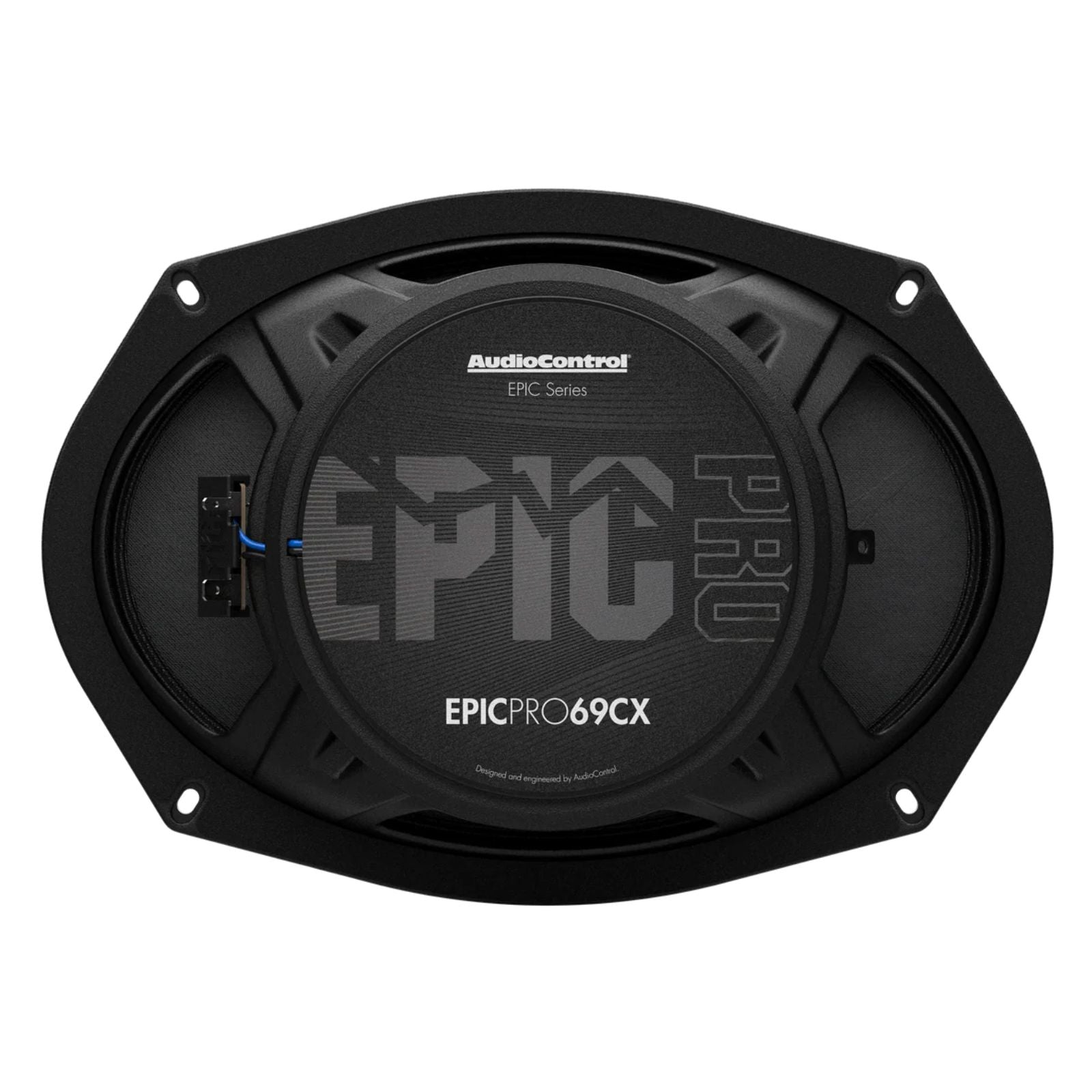

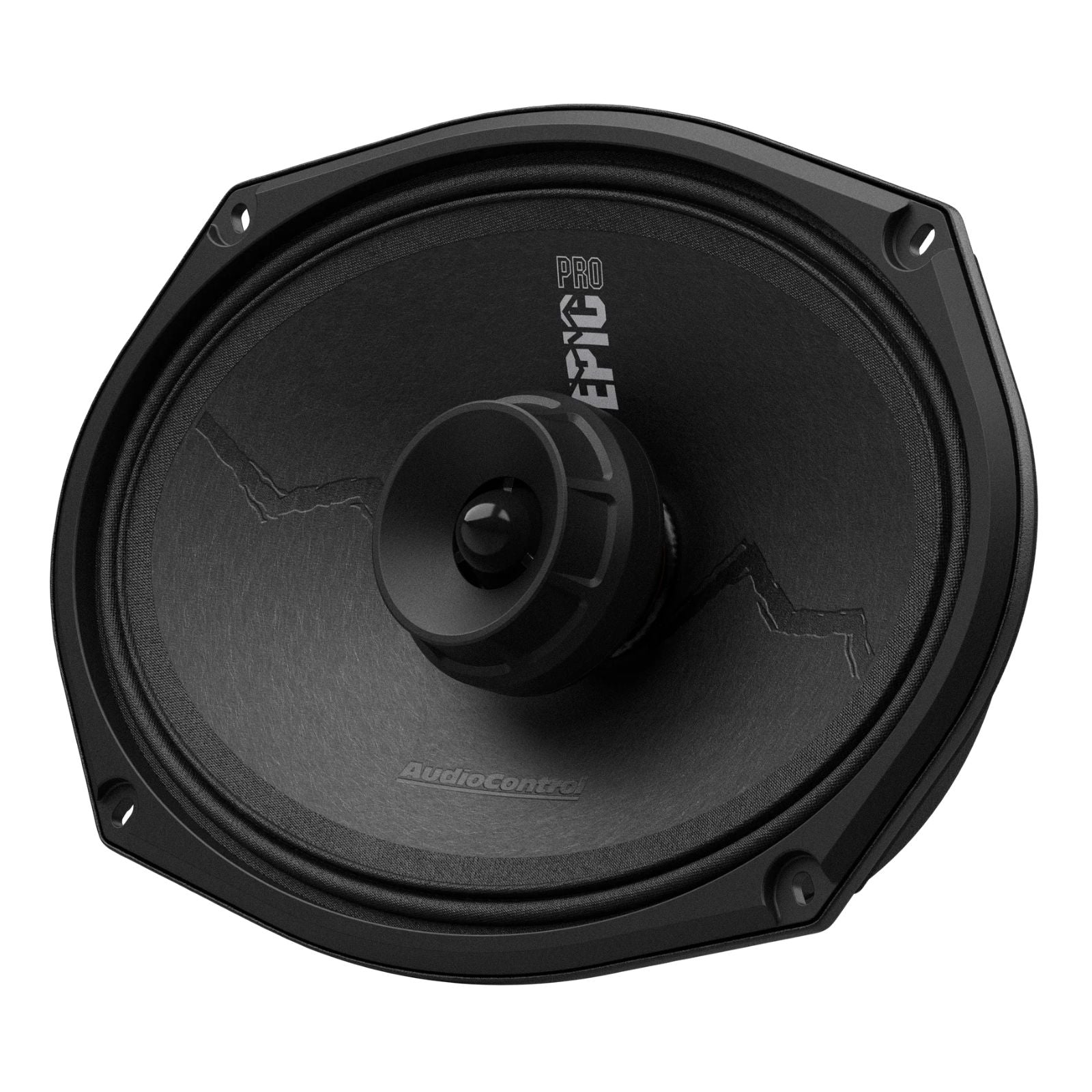

The AudioControl EPICPRO69CX is a pair of 6x9 inch EPIC PROAXIAL coaxial car speakers rated at 200W RMS (300W max), combining a midrange driver and titanium bullet tweeter for loud, full-range sound from a single unit.
This listing is for the EPICPRO69CX. If you are adding separate tweeters instead, see the EPICPRO69X 6x9 inch midrange speakers.
Key specifications
- Size: 6x9 in coaxial
- Power handling: 200W RMS / 300W max
- Impedance: 4 ohms
- Frequency response: 100 Hz to 20,000 Hz
- Sensitivity: 97.6 dB @ 2.83V / 1m
- Voice coil (tweeter / mid): 0.78 in / 1.2 in
- Cut-out: 5.75 x 8.35 in
- Mounting depth: 2.94 in
- Supplied as: pair with grilles and mounting hardware
About the EPIC PROAXIAL range
The EPIC PROAXIAL series is built to be street loud and studio clear — a significant step away from conventional car audio.
The engineering focus is on efficiency and SPL, using components such as lightweight composite cones and dual-roll cloth surrounds. The result is speakers that get loud without sacrificing accuracy or clarity under pressure.
This coaxial model combines a high-efficiency midrange driver with a compact bullet tweeter for a loud, full-range response from a single point source. Having both in one unit removes the need for separate mid and high-frequency drivers, simplifying installation without compromising performance.
Features
- Proaxial coaxial design: midrange driver and bullet tweeter deliver a loud, full-range response from a single unit.
- Lightweight voice coil: high SPL output with low distortion.
- Precision-designed tweeter horn: smooth high-frequency response for immersive audio.
- Titanium tweeter diaphragm: high-volume, accurate sound.
- Double-roll cloth surround: accurate sound reproduction and consistent long-term performance.
- High-tensile stamped-steel basket: improved damping for precise cone movement and clean, low-distortion sound.
- Stiff paper cone: warm, smooth sound with enhanced damping.
- Copper shorting ring: widens bandwidth and reduces distortion for a seamless woofer-to-tweeter transition.
- AudioControl engineered: designed from the ground up by AudioControl engineers as a complete, performance-driven system.
- Voiced for EPIC amplifiers: specifically tuned to integrate with AudioControl EPIC Series amplifiers.
Explore the full range in AudioControl.
Specification
| Power | 200W RMS / 300W Max |
|---|---|
| Speaker Size | 6x9 in |
| Impedance | 4 ohms |
| Voice Coil | (Tw / Mid) 0.78 in / 1.2 in |
| System Freq Response | 100 – 20,000 Hz |
| SPL (Efficiency 2.83V/1M) | 97.6 dB |
| Magnet | Weight 30 oz / 850 g |
| Magnet | Dimensions 4.72 x 1.77 x 0.79 in / 120 x 45 x 20 mm |
| Overall Diameter + Grille (A) | 6.7 in x 9.39 in |
| Overall Diameter w/o Grille (B) | 6.55 in x 9.25 in |
| Cut Out Diameter (C) | 5.75 in x 8.35 in |
| Mounting Depth | (D) 2.94 in |
| Total Depth (E) | 3.73 in |
What's Included
- 2 x EPICPRO69CX Speakers
- Mounting Hardware
- Speaker Grilles
- Manual
AudioControl
About the AudioControl EPICPRO69CX
From our tech experts at CEN
AudioControl 6x9 inch coaxial speakers, rated at 200w RMS, built for efficiency and output.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without complication.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What is the mounting depth of the EPICPRO69CX?
A: The mounting depth is 2.94 in and the total depth is 3.73 in. The cut-out is 5.75 x 8.35 in.
Q: Do the EPICPRO69CX speakers have a built-in tweeter?
A: Yes. They are coaxial speakers with a titanium-diaphragm bullet tweeter mounted in front of the midrange driver, giving full-range sound from 100 Hz to 20,000 Hz.
Q: What is in the box with the EPICPRO69CX?
A: Two EPICPRO69CX speakers, mounting hardware, speaker grilles and a manual.
