Alpine HDZ-653 Status Speakers Hi-Res 6.5 Inch 16.5cm 3 Way Component 100w RMS

The Alpine HDZ-653 is a Hi-Res Audio certified 6.5 inch (16.5 cm) 3-way component speaker set from the Alpine Status range, rated at 100W RMS, with 170 mm woofers, 96 mm mid-range drivers and 70 mm ring-radiator tweeters. Frequency response extends to 40 kHz.

This listing is the HDZ-653 3-way component set. The Alpine Status 6.5 inch range is also available as the 2-way coaxial Alpine HDZ-65 and the 2-way component Alpine HDZ-65C.

Key specifications

• Type: 3-way component, Hi-Res Audio certified, crossovers included
• Power handling: 100W RMS, 300W peak
• Frequency response: 55 Hz to 40 kHz
• Impedance: 4 ohms
• Sensitivity: 88 dB (2.83V at 1 m)
• Drivers: 170 mm woofer, 96 mm mid-range, 70 mm ring-radiator tweeter (25 mm voice coil)
• Mounting depth: woofer 67 mm, mid-range 39 mm
• Cut-out diameter: woofer 142 mm, mid-range 79 mm

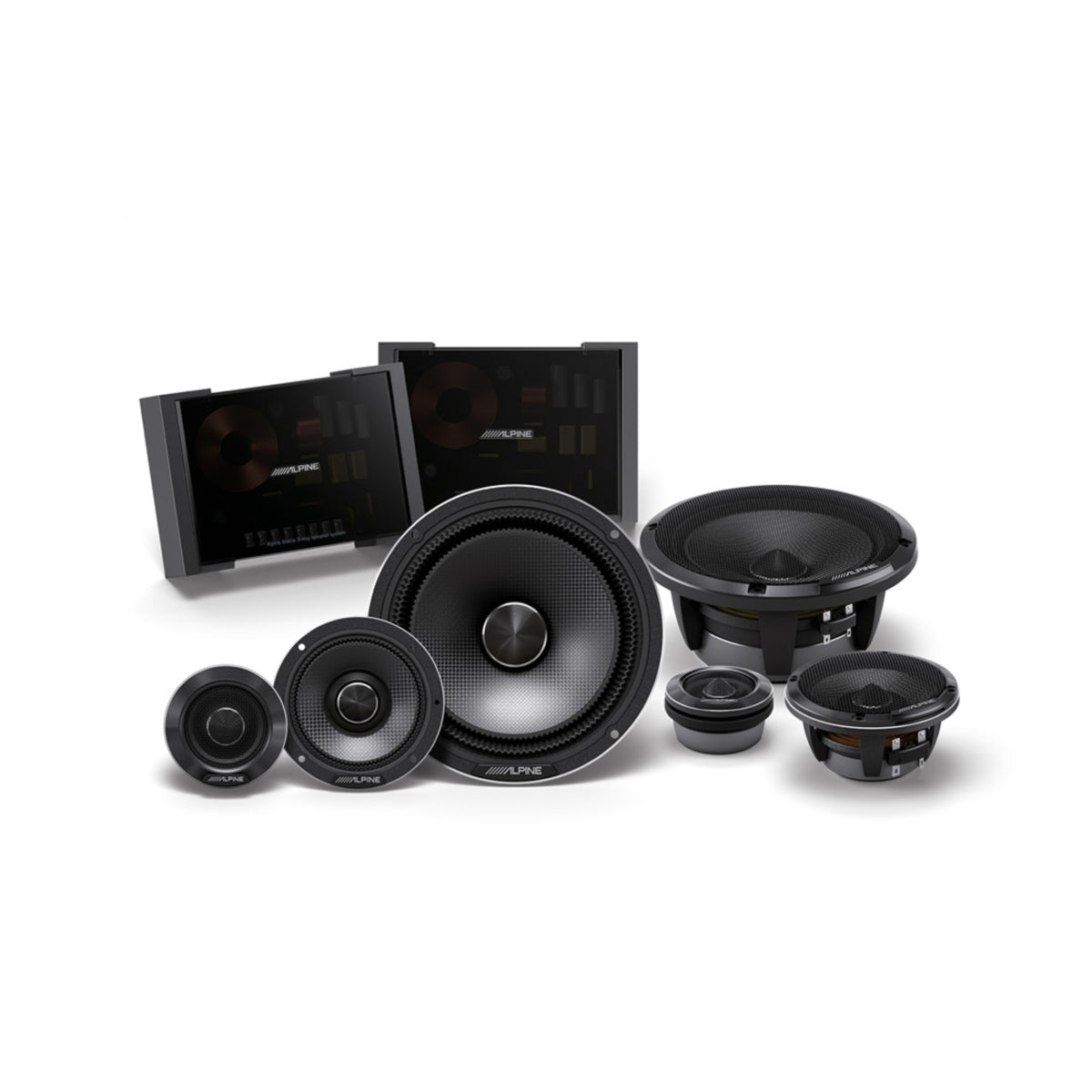

Alpine Status Hi-Res 6.5 inch (16.5 cm) 3-way component speaker set

HDZ-653 sound performance

Alpine developed the Status range using the same engineering and design concepts as the third-generation Ultra High-Resolution AlpineF#1Status system, bringing high-resolution sound to a more accessible price point. All Status components can also be purchased and used in a stand-alone configuration.

• Hi-Res Audio certified 3-way speaker system
• AlpineF#1Status speaker trickle-down technology
• Maximum peak power: 300W
• Maximum RMS power: 100W
• Woofer diameter: 170 mm (177 mm with grille)

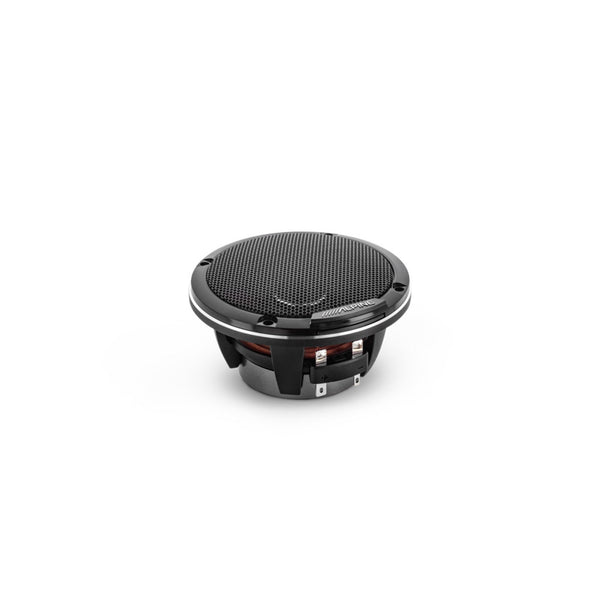

• Mid-range diameter: 96 mm
• Tweeter diameter: 70 mm (25 mm voice coil)
• Aluminium die-cast baskets
• Ring-radiator tweeters
• Backed carbon fibre cones
• Double-gathered edge

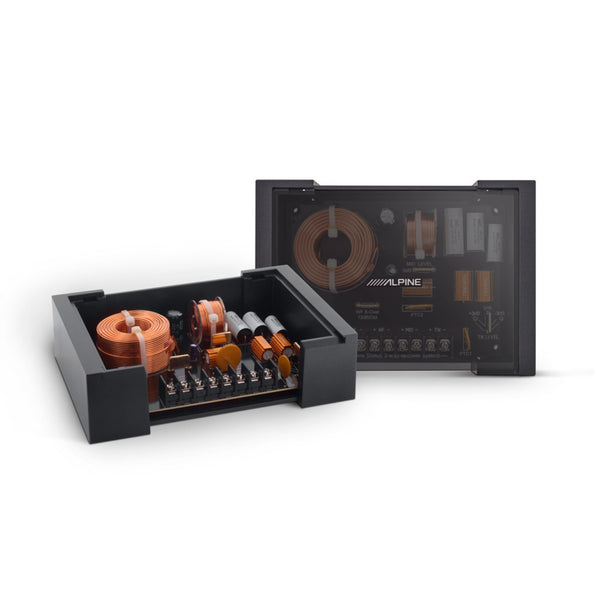

• High-end crossover networks
• Speaker grilles included
• Integrated wave guide on all speakers

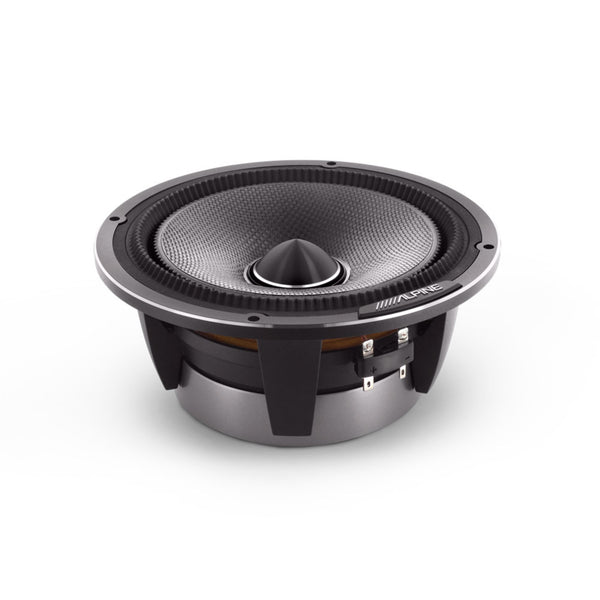

The HDZ-653 covers 55 Hz to 40 kHz and includes a 170 mm door woofer, 96 mm mid-range, 70 mm ring-radiator tweeter with 25 mm voice coil, and high-end crossovers. All cones use the same carbon composite material for a unified timbre identity, with construction and motor assembly closely mirroring the AlpineF#1Status speakers.

Audiophile 3-way speaker system

Drawing on AlpineF#1Status trickle-down technology, the HDZ-653 delivers Hi-Res Audio certified performance up to 40 kHz. High-end crossover networks are included in the set.

Carbon fibre cones

All drivers in this set — as well as the HDZ-110 Alpine Status subwoofer — use backed carbon composite cones for a unified timbre identity and excellent harmonics. Carbon is lightweight and stiff, giving high dynamics and low distortion. The same backed carbon composite technology is used in race-car monocoques for its strength-to-weight ratio.

Double-gathered edge

Trickling down from the AlpineF#1Status speakers, the double-gathered edge allows maximum cone excursion with strong cone control and stability, reducing distortion caused by cone wobble at higher volumes.

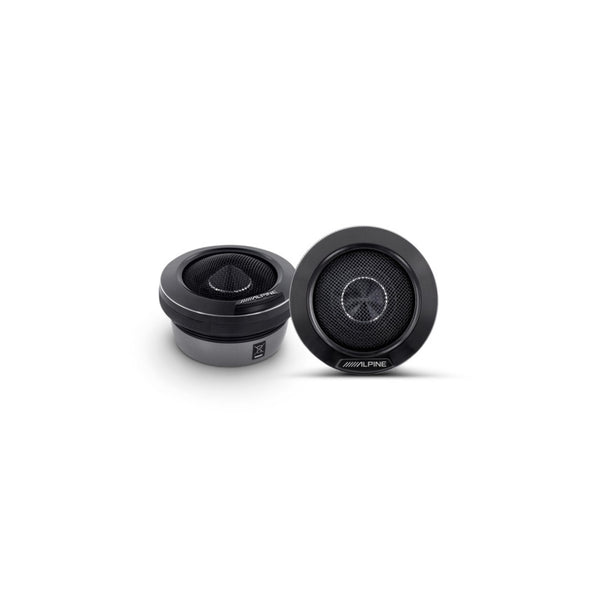

High-end ring-radiator tweeter

The 70 mm Hi-Res Audio ring-radiator tweeters reach 40 kHz and feature a 25 mm carbon fibre diaphragm tuned to harmonise with the mid-range and woofer. Each tweeter includes an integrated wave guide, a tuned back chamber and a neodymium magnet.
