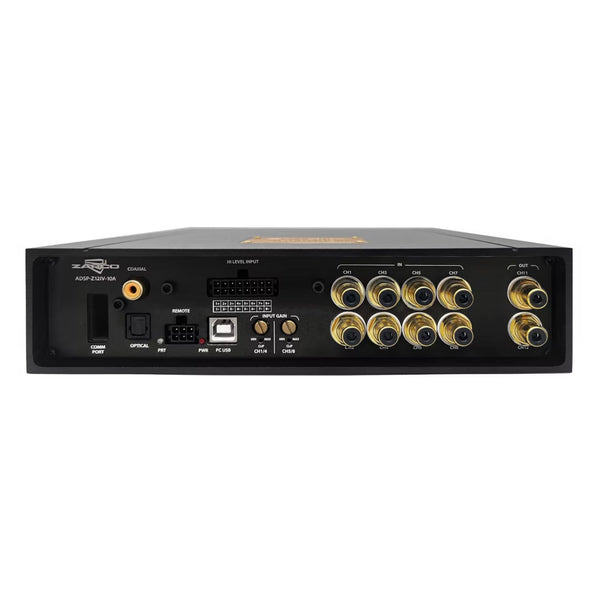

Zapco ADSP-Z12 IV-10A 12 Channel DSP 10 Channel Amplifier

Name: Zapco ADSP-Z12 IV-10A 12 Channel DSP 10 Channel Amplifier
Brand: Zapco
SKU: 93541
Price: 1299.00 GBP
Availability: InStock

£1,299.00

Low stock

SKU: 93541MPN: ADSP-Z12 IV-10A

Product variants

Part of the range · 5 productsPart of the Zapco DSP range · 5 products See the range →

The Zapco ADSP-Z12 IV-10A is a combined 12-channel Cirrus Logic DSP and 10-channel Class D amplifier, delivering 10 x 80W at 4 ohms, with optical and coaxial digital inputs and a dash remote included. It is part of Zapco's DSP-IV series.

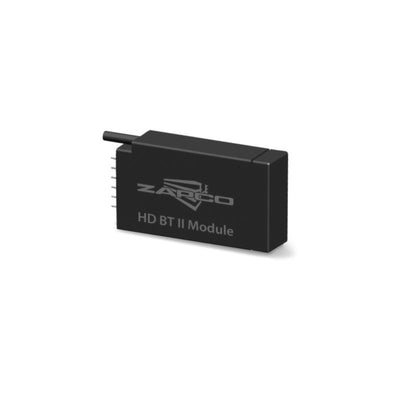

HD Bluetooth streaming is available with the optional Zapco HD-BT II-D module. For 16 DSP channels and 12 amplified channels, see the ADSP-Z16 IV-12A.

Key specifications

DSP: Cirrus Logic CS47048, 12 channels
Amplifier: 10 channels, Class D
Power at 4 ohms: 10 x 80W
Power at 2 ohms: 10 x 120W
Bridged power: 5 x 240W at 4 ohms
Digital inputs: optical and coaxial, 24-bit/192kHz
High-level input: 2–20V
Time alignment: 0–15ms in 0.02ms steps
Dimensions: 213 x 291 x 50mm

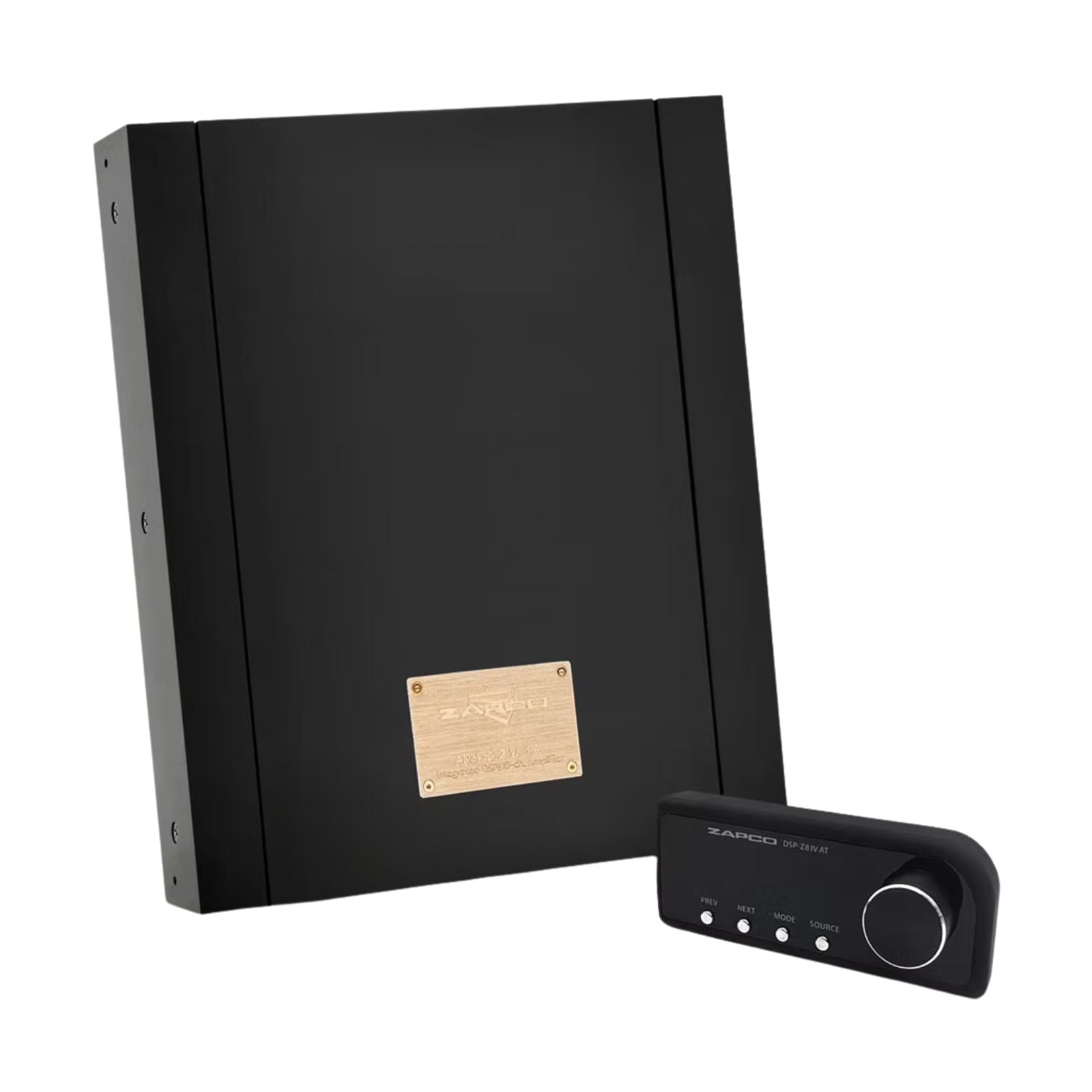

ADSP-Z12 IV-10A integrated 12-channel DSP and 10-channel Class D amplifier

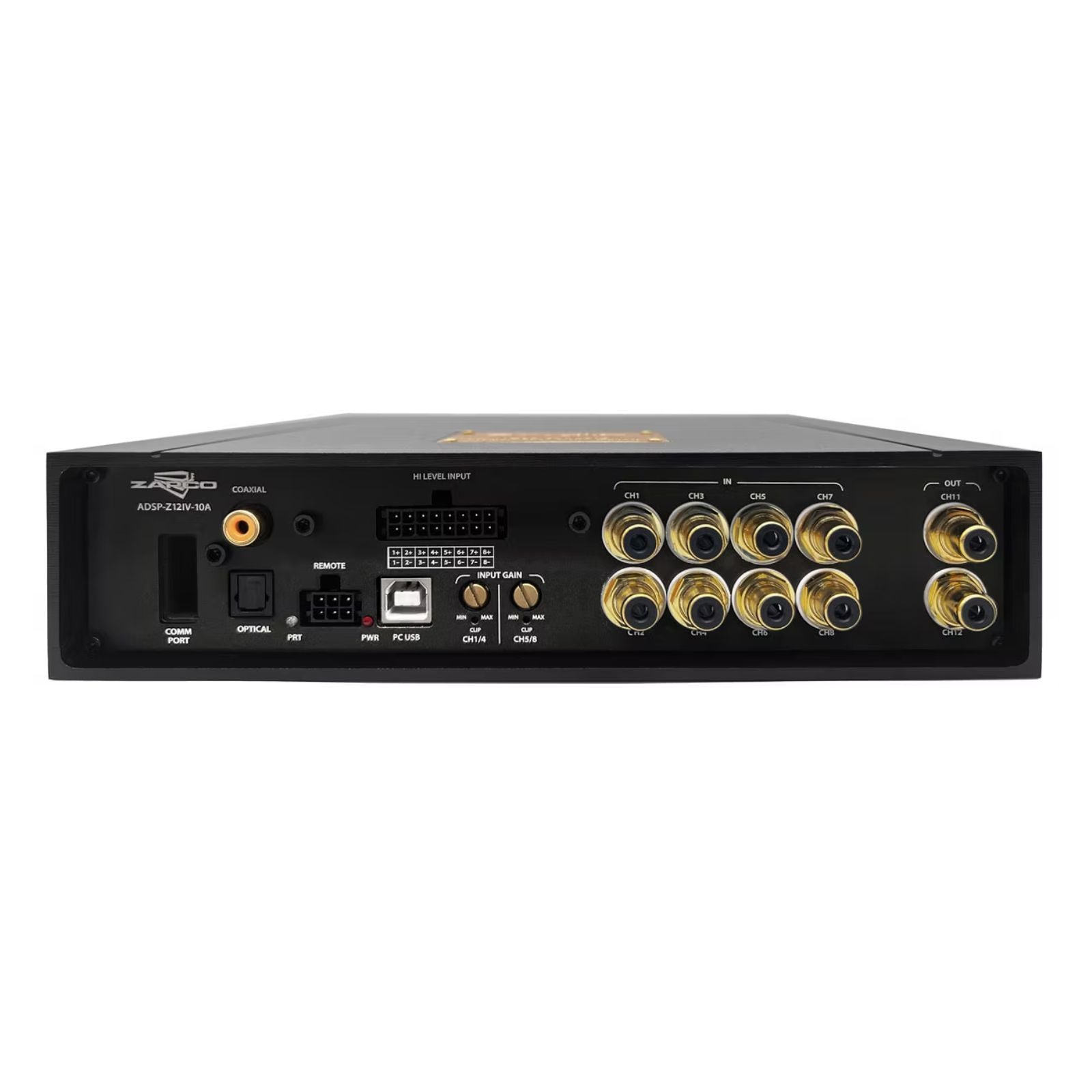

The DSP-IV series gives you high-quality source material to work with. Coaxial and optical inputs accept a digital signal directly from your head unit or a portable HD player. There is also a port for HD Bluetooth streaming via the optional HD-BT II-D module, and an interactive digital port that accepts the included Dash Remote — letting you switch input source, cycle through DSP presets, control master volume, and adjust bass amp output.

Within the DSP-IV range, the ADSP-Z8 IV-6AT offers 6 amplified channels, the ADSP-Z12 IV-10A (12-channel DSP) offers 10 amplified channels, and the ADSP-Z16 IV-12A (16-channel DSP) offers 12 amplified channels. The GUI's Advanced menu includes a Mixing Set function. Note: AutoTune (with optional tuning microphone) is not available on the 12-channel or 16-channel models.

Full specifications

DSP Processor: Cirrus Logic CS47048
Power: 150 MHz / 32-bit / 192kHz
DSP Channels: 12
ADC: Cirrus Logic CS47048, 32-bit/192kHz
ADC Dynamic Range/THD: 108dB / -98dB
DAC: Cirrus Logic CS47048, 32-bit/192kHz
DAC Dynamic Range/THD: 140dB / -120dB
Low-level (pre) sensitivity: 1–5 VRMS
High-level (speaker input) sensitivity: 2–20V
Optical digital input: 24-bit/192kHz
Coaxial digital input: 24-bit/192kHz
Frequency response (-3dB): 10Hz–22.5kHz
S/N input: 110dBA (D) / 106dBA (A)
S/N ratio amp + DSP at max. power: 95dBA
THD+N input: 0.002% (D) / 0.005% (A)
THD+N amplifier + DSP analogue input: 0.07%
Crosstalk at 1kHz (DSP only): 90dB
Crosstalk amplifier + DSP: 45dB
Amp power at 4 ohms: 10 x 80W
Amp power at 2 ohms: 10 x 120W
Amp power at 4 ohms bridged: 5 x 240W
F/R EQ: channels 1–6, graphic & parametric, 31 poles
Effect EQ: channels 7–8, graphic & parametric, 11 poles
Mute/Solo: yes, per channel
Time alignment range/steps: 0–15ms / 0.02ms
Max delay: 515cm / 0.68cm steps
Polarity: 0/180°
Remote control: included
HD Bluetooth streaming: available with optional HD-BT II-D module
PC/display connection: USB / 6-pin Mini DIN
Dimensions: 213(W) x 291(L) x 50(H) mm

Explore the full range in Zapco DSP.

Specification

DSP Processor	Cirrus Logic CS47048
Power	150 MHz/32 bit/192 KHz
ADC	Cirrus Logic CS47048 32 bit/192 KHz
ADC Dynamic Range/THD	108 dB/-98 dB
DAC	Cirrus Logic CS47048 32 bit/192 KHz
DAC Dynamic Range/THD	140 dB/-120 dB
Low level (Pre)/Sensitivity	1-5 VRMS
High Level (Spk In)/Sens.	2-20 V
Optical Digital IN	24 bit-192 KHz
Coaxial Digital IN	24 bit-192 KHz
Frequency Response	(-3dB) 10 Hz - 22.5 KHz
S/N Input	110 dBA (D) - 106 dBA (A)
S/N Ratio Amp + DSP at max. power	95 dBA
THD+N Input	0,002% (D) - 0,005% (A)
THD+N Amplif. + DSP Analog Input	0,07 %
Crosstalk at 1 Khz only DSP	90 dB
Crosstalk Amplifier + DSP	45 dB
Amp Power @ 4Ω	10 x 80 watts
Amp Power @ 2Ω	10 x 120 watts
Amp Power @ 4Ω Bridged	5 x 240 watts
F/R EQ	1-6 ch Gr. & Par./31 poles
Effect EQ	7-8 ch Gr. & Par./11 poles
Mute/Solo	Yes, each channel
Time Align. (Range/Steps)	0/15 ms / 0.02 ms
Max Delay (Cm/Steps)	515 cm / 0.68 cm
Polarity	0/180°
PC/Display Connection	USB/6-pin Mini DIN
Dimensions	(mm) 213(W) x 291(L) x 50(H)
More specs 12-Channels Remote Control included HD-BT Streaming (with optional HD-BT II-D)

What's Included

Zapco ADSP-Z12 IV-10A

Download User Manual(PDF)

Product information

Zapco

About the Zapco ADSP-Z12 IV-10A

From our tech experts at CEN

An integrated processor and amplifier, 12 channels of DSP with 12 amplified channels, putting tuning and power in one chassis.

Who it suits

Serious builds where space is limited but the system still needs full processing. Zapco has been making competition-grade electronics for decades, and these are aimed squarely at people who tune properly.

Our tech experts advise

The processing is worth only what the tuning puts into it: measurements in the car, delays for the driving position, crossovers chosen for your drivers. That is the work, and we do it in the vehicle. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Zapco range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Zapco

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Zapco ADSP-Z16 IV-12A Integrated 16 Channel DSP 12 Channel Class D Amplifier £1,299.00

In stock

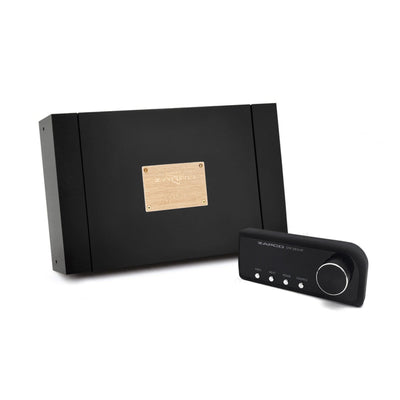

Zapco DSP-Z8 IV AT 8 Channel DSP Cirrus Logic Processor and Remote Control £519.00

In stock

Zapco ASP-Q2 7 Band Parametric Equalisation EQ/Crossover £349.00

In stock

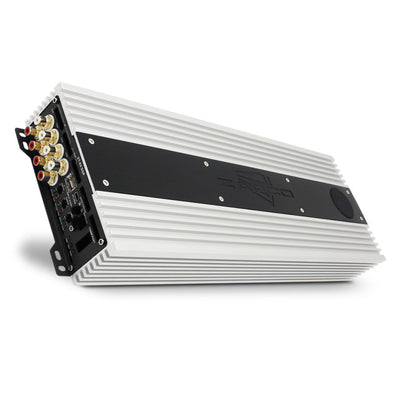

Zapco ST-6X DSP III Amp 6 Channel Class AB Amplifier with 8 Channel DSP 6x100w £699.00

In stock

Zapco ST-750D Amp Mono 1-Channel Class D Compact Subwoofer Amplifier 400w RMS £279.00

Low stock

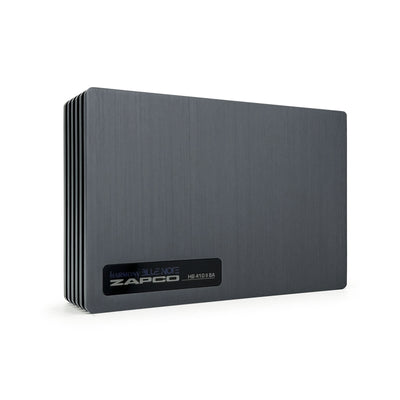

Zapco HB 410 II 8A DSP Amp 10 Channel DSP 8 Channel Class A/B Power Amplifier - CEN

Zapco HB 410 II 8A DSP Amp 10 Channel DSP 8 Channel Class A/B Power Amplifier £349.00

In stock

Zapco ST-64D SQ MINI Amp 4 Channel Class D Bridgeable Mini Car Amplifier £259.00

In stock

Zapco ST-4B Amp 4 Channel Class AB Full Range Bridgeable Amplifier 4x 65w RMS - CEN

Zapco ST-4B Amp 4 Channel Class AB Full Range Bridgeable Amplifier 4x 65w RMS £119.00

In stock

Zapco ST-501D SQ MINI Sub Amp 1 Channel Class D Mono Subwoofer Amplifier £259.00

In stock

Zapco HB 154D II Amp 4 Channel Class D Bridgeable Amplifier 4x150w RMS - CEN

Zapco HB 154D II Amp 4 Channel Class D Bridgeable Amplifier 4x150w RMS £249.00

In stock

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Frequently Asked Questions

Q: How many channels does the ADSP-Z12 IV-10A have?

A: It has a 12-channel DSP and 10 amplified channels, rated at 10 x 80 watts at 4 ohms, 10 x 120 watts at 2 ohms or 5 x 240 watts bridged at 4 ohms.

Q: Does the ADSP-Z12 IV-10A have Bluetooth?

A: HD Bluetooth streaming is available by adding the optional Zapco HD-BT II-D module to its HD-BT port. It also has optical and coaxial digital inputs.

Q: Does the ADSP-Z12 IV-10A support AutoTune?

A: No. The DSP-IV software adds an Advanced menu with a Mixing Set and AutoTune function, but AutoTune is not available on the 12-channel and 16-channel models. A dash remote is included for source, preset, master volume and bass level control.
