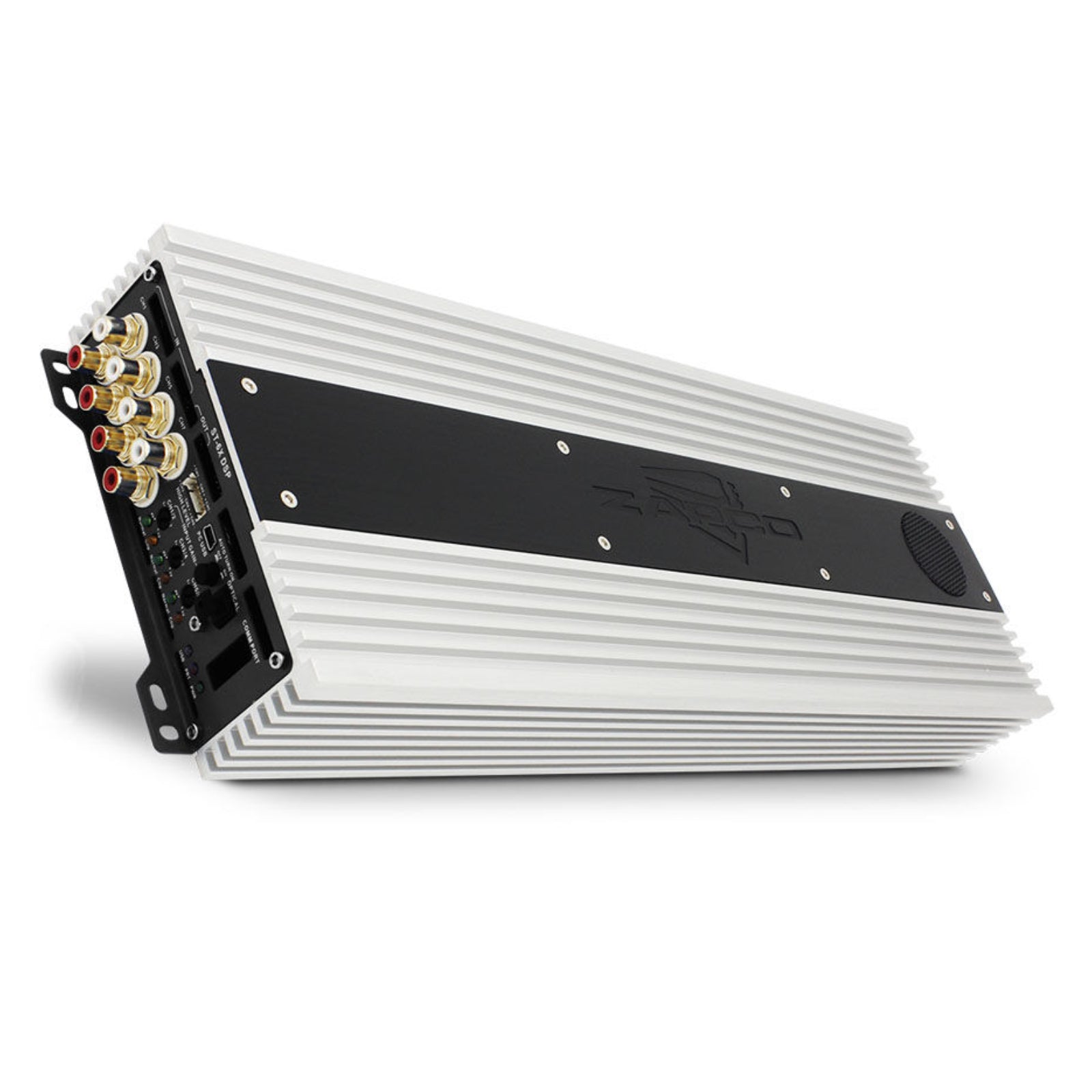

Zapco ST-6X DSP III Amp 6 Channel Class AB Amplifier with 8 Channel DSP 6x100w
Couldn't Load Pickup availability
The Zapco ST-6X DSP III is a 6-channel Class A/B amplifier with an on-board 8-channel DSP, rated at 6 x 100W at 4 ohms. It is part of Zapco's ST III amplifier range and is designed for sound quality builds requiring amplification and full digital signal processing in a single unit.
Key specifications
- Model: ST-6X DSP III
- Channels: 6, full range, Class A/B
- DSP: on-board 8-channel
- Power @ 4 ohms: 6 x 100W
- Power @ 2 ohms: 6 x 130W
- Bridged @ 4 ohms: 3 x 250W

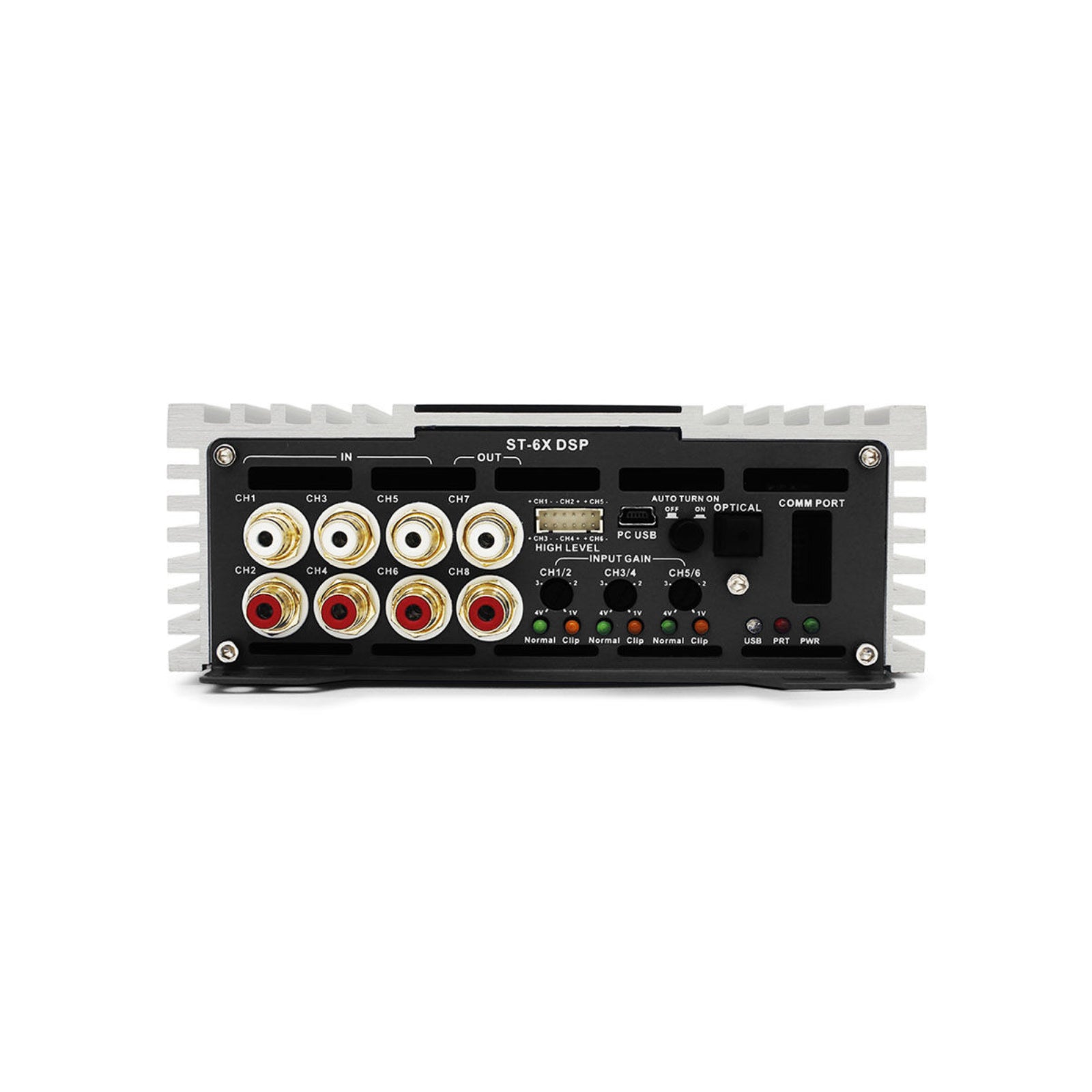

- Inputs: analogue and optical digital
- Frequency response: 15Hz - 30kHz ±1dB
- Dimensions: 160 x 57 x 475 mm (W x H x L, overall)
The ST-6X DSP III combines a six-channel Class A/B amplifier with an eight-channel DSP, giving precise control over your car audio system from a single unit. If you need fewer channels, Zapco's ST III range also includes the ST-104D SQ III 4-channel Class D compact amplifier.
ST-6X DSP III
6-Ch. Class AB Amplifier with DSP
6-channel, full range, Class A/B, on-board, full-function 8-channel digital signal processing.
- High-pass and low-pass filters, phase control, signal delay, and 15 channels of parametric equalisation on each channel
- Optical digital input
- BT Streaming: Bluetooth port for external APTX HD module (optional)
- Analogue input gain controls
Explore the full range in Zapco Amplifiers.
Specification
| Power @ 4Ω | 6 x 100 watts |
|---|---|
| Power @ 2Ω | 6 x 130 watts |
| Power Bridged @ 4Ω | 3 x 250 watts |
| Frequency Response | 15Hz to 30KHz ±1dB |
| Dimensions | in mm 160(W) x 57(H) x 450(L) Overall: 160(W) x 57(H) x 475(L) |
More specs
| |
What's Included
- Zapco ST-6X DSP III
Zapco
About the Zapco ST-6X DSP III
From our tech experts at CEN
A 6-channel amplifier from Zapco, Class AB, with DSP built in, rated at 100w RMS.
Who it suits
Drivers building a front stage that needs each channel doing a defined job. Zapco amplifiers are bought by people who care what the power figure actually means rather than what it says on the box.
Our tech experts advise
The on-board processing needs tuning in the vehicle to be worth anything. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Zapco range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Zapco
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Zapco Amplifiers
More options from the same range, in stock and ready to go
Zapco ST-1500XM III Amp Mono 1 Channel Class D Subwoofer Amplifier with Remote
£479.00
View product
Zapco HD-BT II-D Bluetooth Module for HDSP-V, ADSP-IV & ST-X DSP III
£89.00
Zapco ST-204D SQ III 4 Channel Class D Amplifier 4x200w RMS
£299.99
Zapco ST-501D SQ MINI Sub Amp 1 Channel Class D Mono Subwoofer Amplifier
£259.00
Zapco ST-105D Amp 5-Channel Class D Compact Full Range Bridgeable Amplifier
£399.99
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: Does the Zapco ST-6X DSP III have a built-in DSP?
A: Yes. It has an on-board, full function 8-channel digital signal processor with high-pass and low-pass filters, phase control, signal delay and parametric equalisation.
Q: Does the ST-6X DSP III have Bluetooth?
A: It has a Bluetooth port for an external aptX HD module, which is optional and not built in.
Q: Does the ST-6X DSP III have a digital input?
A: Yes. It has an optical digital input as well as analogue inputs with gain controls.
