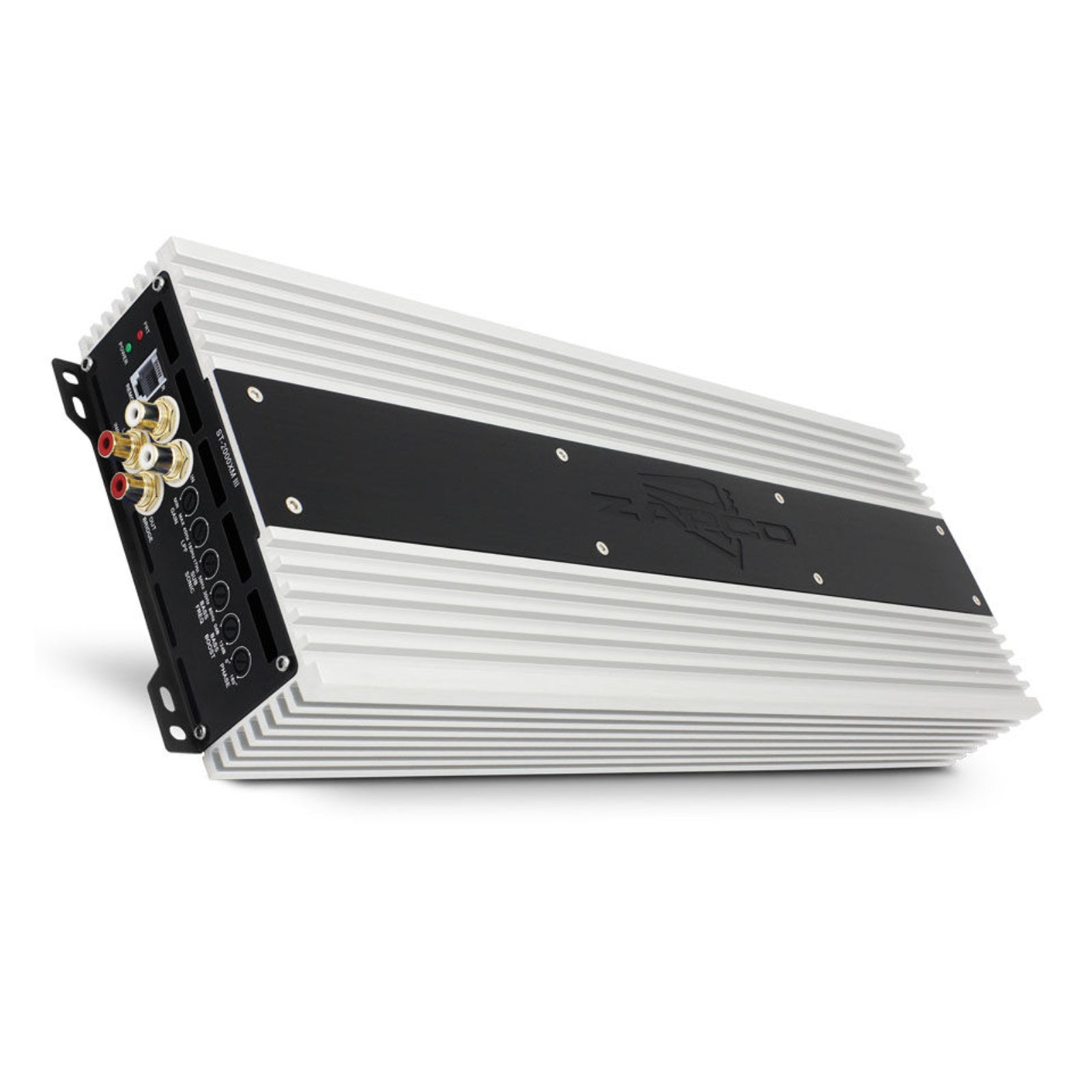

Zapco ST-2000XM III Amp Mono 1 Channel Class D Subwoofer Amplifier with Remote
Couldn't Load Pickup availability
The Zapco ST-2000XM III is a mono, single-channel Class D subwoofer amplifier delivering 2000W at 1 ohm, 1450W at 2 ohms and 1000W at 4 ohms. It is part of Zapco's ST-X III mono amplifier range and comes with a dash-mount remote gain control.
The included remote is the Zapco ST-BR remote level control, supplied as standard with Zapco's ST-X mono amplifiers. Lower-powered alternatives in the same family are the ST-1000XM III and ST-1500XM III.
Key specifications
- Model: ST-2000XM III
- Channels: 1 (mono), Class D
- Power @ 1 ohm: 1 x 2000W
- Power @ 2 ohms: 1 x 1450W
- Power @ 4 ohms: 1 x 1000W
- Frequency response: 10Hz – 200Hz ±1dB
- Signal to noise ratio: >85dB
- Efficiency: >85%
- Dimensions: 160 x 58 x 475 mm (W x H x L, overall)
ST-2000XM III
Mono Class D Amplifier
A single-channel Class D bass amplifier built on a new aluminium chassis, giving precise control over subwoofer output.

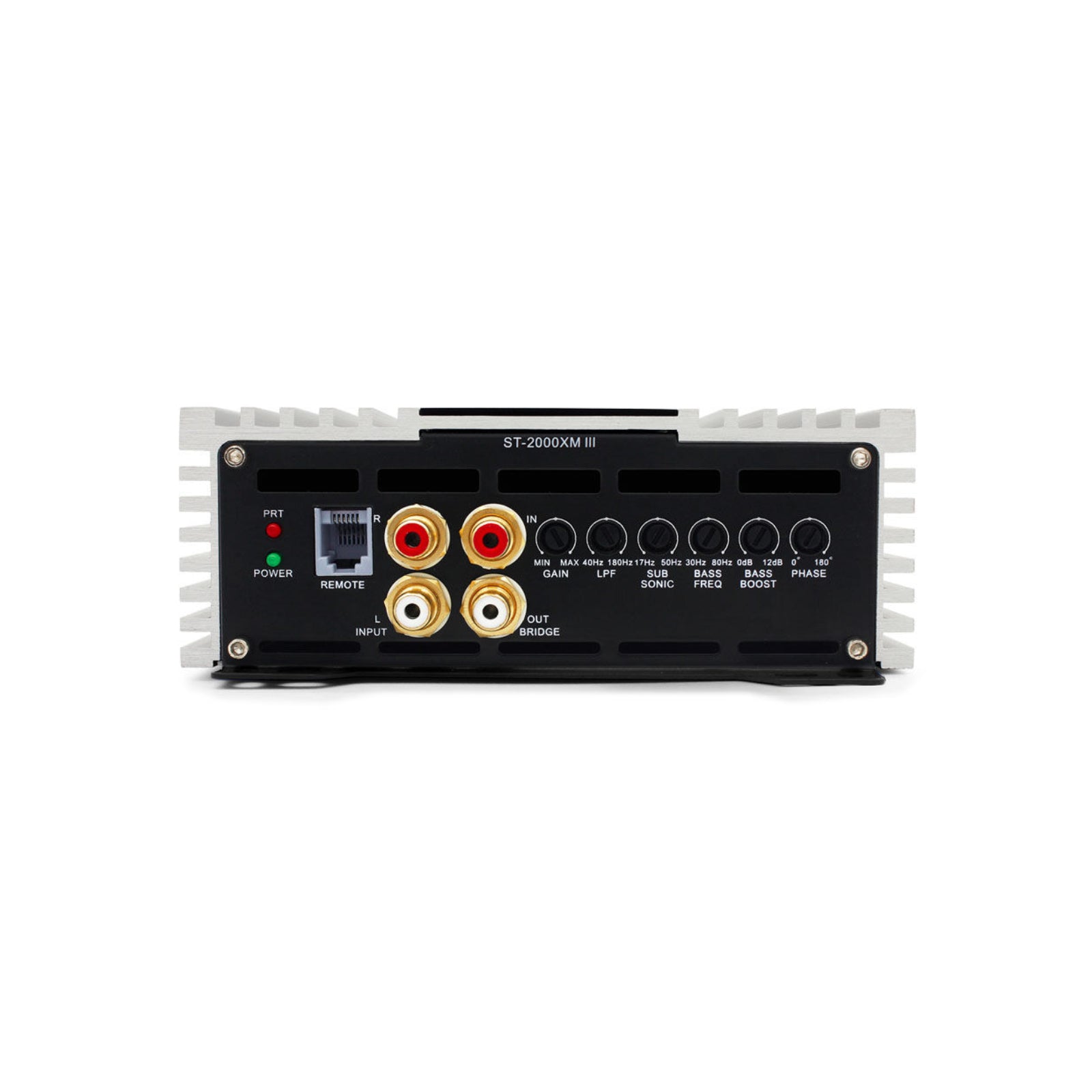

- Variable input gain control
- Variable electronic crossover
- Variable subsonic filter
- Variable bass boost control
- Variable centre frequency for bass boost
- Variable phase control
- Strappable to run a pair of amplifiers on a single voice coil
- Dash-mount remote gain control included
Explore the full range in Zapco Amplifiers.
Specification
| Power @ 1Ω | 1 x 2000 watts |
|---|---|
| Power @ 2Ω | 1 x 1450 watts |
| Power @ 4Ω | 1 x 1000 watts |
| Frequency Response | 10Hz to 200Hz ±1dB |
| Net Dimensions (mm) | 160(W) x 58(H) x 450(L) |
| Overall Dimensions (mm) | 160(W) x 58(H) x 475(L) |
More specs
| |
What's Included
- Zapco ST-2000XM III
- Zapco ST-BR remote level control
Zapco
About the Zapco ST-2000XM III
From our tech experts at CEN
The Zapco ST-2000XM III is a mono Class D subwoofer amplifier rated at 2000W at 1 ohm, 1450W at 2 ohms and 1000W at 4 ohms. Part of the ST-X III range, it features variable gain, subsonic filter, bass boost, electronic crossover and phase controls. The Zapco ST-BR dash-mount remote level control is included in the box.
Who it suits
This amp suits enthusiast and competition builds that need high subwoofer output with precise onboard tuning. The strappable design allows two units to drive a single voice coil where more headroom is required. Those needing less power may prefer the Zapco HB 501D II at 300W.
Our tech experts advise
Overall dimensions are 160 x 58 x 475 mm, so plan boot space carefully and leave clearance around the unit for airflow. Confirm your subwoofer's impedance and power handling before deciding on a wiring configuration. Installation is priced per vehicle; visit our car audio installation page to find out more.
Explore the full Zapco range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Zapco
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Zapco Amplifiers
More options from the same range, in stock and ready to go
Zapco ST-6X DSP III Amp 6 Channel Class AB Amplifier with 8 Channel DSP 6x100w
£699.00
View product
Zapco HB CB20F 20 Farad Capacitor Bank with LCD Voltage Display
£239.00
Zapco HB 48 II 4A DSP Amp 8 Channel DSP 4 Channel Class A/B Power Amplifier
£249.00
Zapco ST-4B Amp 4 Channel Class AB Full Range Bridgeable Amplifier 4x 65w RMS
£119.00
Zapco REF 150.6 6 Channel Class AB Amplifier 6x150w RMS
£1,299.99
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the Zapco ST-2000XM III produce?
A: The ST-2000XM III is rated at 1 x 2000 watts at 1 ohm, 1 x 1450 watts at 2 ohms and 1 x 1000 watts at 4 ohms.
Q: Does the ST-2000XM III come with a bass remote?
A: Yes. It has a dash mount remote gain control. Zapco includes the ST-BR remote level control with its ST-X mono amplifiers.
Q: Can two ST-2000XM III amplifiers be linked?
A: Yes. The ST-2000XM III is strappable, so a pair of amps can be used on a single voice coil.
