Zapco ST-105D Amp 5-Channel Class D Compact Full Range Bridgeable Amplifier
Couldn't Load Pickup availability

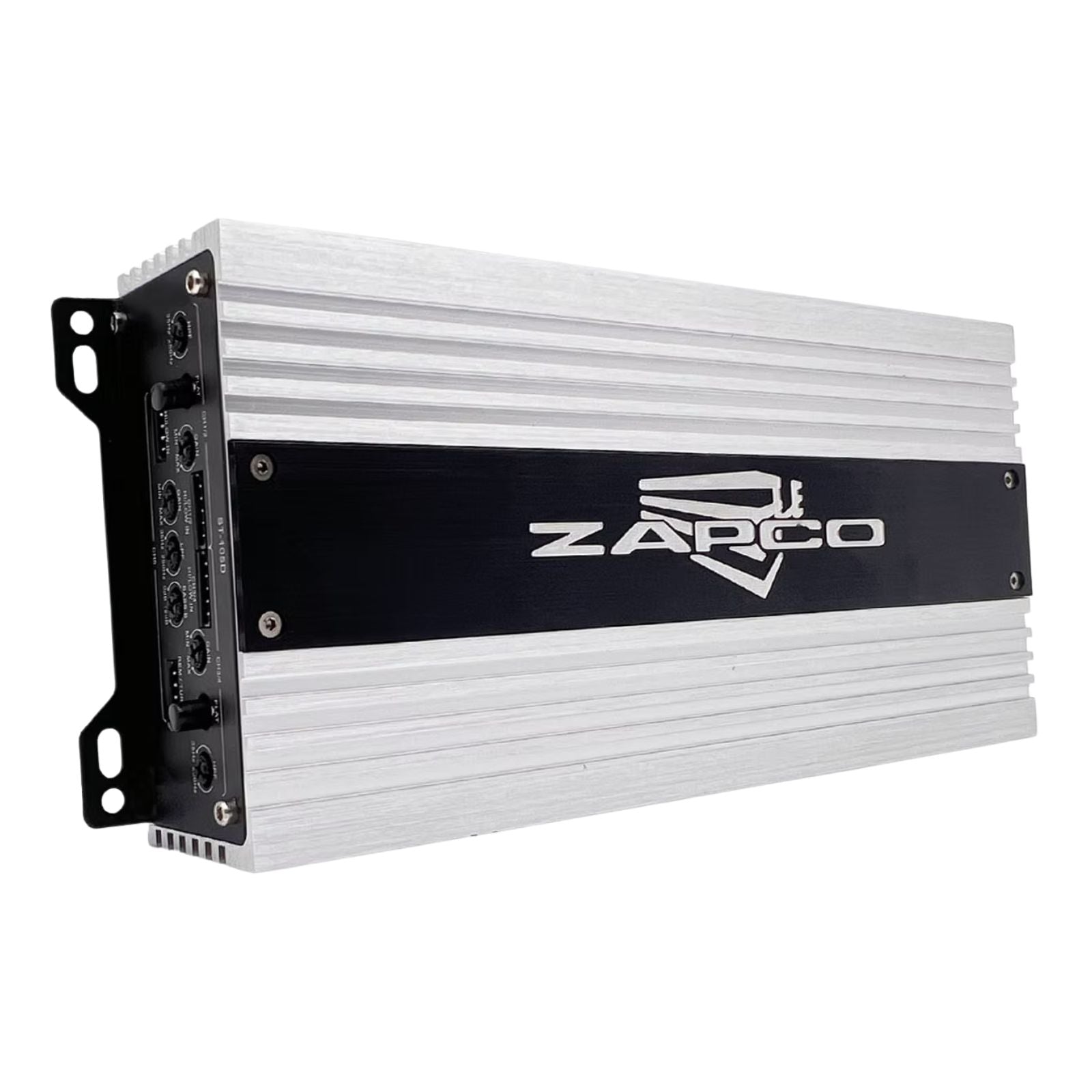

The Zapco ST-105D is a 5-channel Class D compact full range bridgeable amplifier rated at 4 x 80W + 1 x 200W RMS at 4 ohms, from Zapco's ST-D Compact Series. It powers a full front/rear speaker setup plus a subwoofer from a single, slim chassis.
Key specifications
- Model: ST-105D
- Channels: 5, full range, Class D
- Power @ 4 ohms: 4 x 80W + 1 x 200W RMS
- Power @ 2 ohms: 4 x 130W + 1 x 300W RMS
- Bridged @ 4 ohms: 2 x 250W + 1 x 300W RMS
- Inputs: low level and speaker level
- Frequency response: 20Hz – 20kHz ±1dB
- Dimensions: 124 x 50 x 303 mm (W x H x L, overall)
ST-105D — 5-Channel Class D Compact Amplifier
The ST-D Compact Series reduces the chassis dimensions of Zapco's earlier ST-III amps — down to 124 mm wide and 50 mm tall — without compromising performance or control. If you need a 4-channel version in the same compact Class D format, the Zapco ST-104D SQ III is also available.

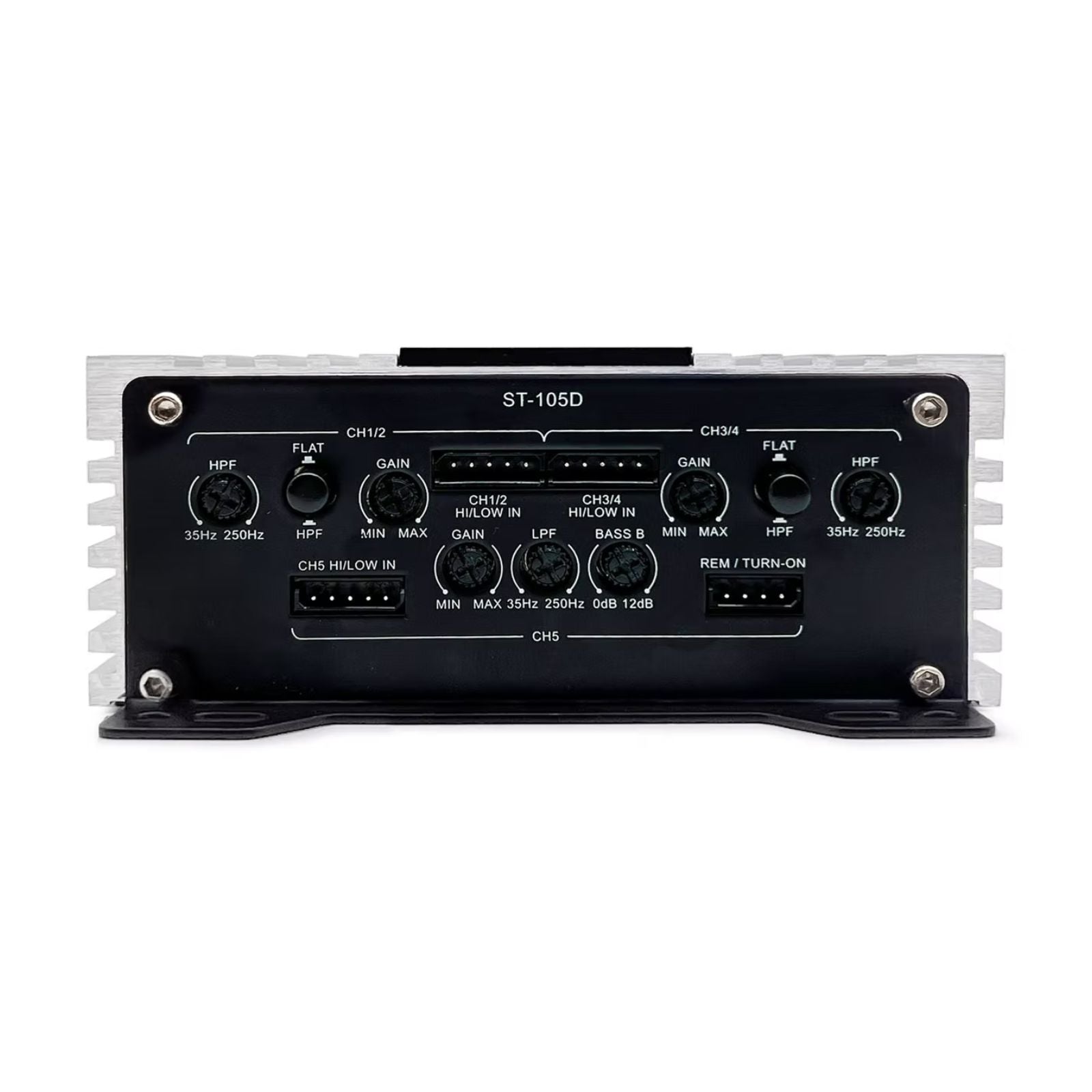

Despite the small footprint, the ST-105D includes RCA and speaker level inputs, variable input gain, a variable electronic crossover, and a variable bass boost — giving you full control over your system tuning.
Features
- 5-channel, full range, Class D
- Low and speaker level inputs
- Variable input gain control
- Variable electronic crossover
- Variable bass boost control
Explore the full range in 5 Channel Amplifiers.
Specification
| Power @ 4Ω | 4 x 80 + 1 x 200 watts RMS |
|---|---|
| Power @ 2Ω | 4 x 130 + 1 x 300 watts RMS |
| Power Bridged @ 4Ω | 2 x 250 + 1 x 300 W RMS |
| Frequency Response | 20Hz to 20KHz ±1dB |
| Net Dimensions (mm) | 124(W) x 50(H) x 262(L) |
| Overall Dimensions (mm) | 124(W) x 50(H) x 303(L) |
More specs
| |
What's Included
- Zapco ST-105D
Zapco
About the Zapco ST-105D
From our tech experts at CEN
A 5-channel amplifier from Zapco, Class D.
Who it suits
Drivers building a front stage that needs each channel doing a defined job. Zapco amplifiers are bought by people who care what the power figure actually means rather than what it says on the box.
Our tech experts advise
Matching the amplifier to the speakers matters more than headline watts, and gains want setting with a meter. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Zapco range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Zapco
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Zapco Amplifiers
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the Zapco ST-105D produce?
A: At 4 ohms it delivers 4 x 80 watts plus 1 x 200 watts RMS. At 2 ohms it delivers 4 x 130 watts plus 1 x 300 watts RMS.
Q: Can the ST-105D run speakers and a subwoofer?
A: Yes. It has four full range channels plus a fifth channel, so one amplifier can run four speakers and a subwoofer.
Q: Does the ST-105D accept speaker level inputs?
A: Yes. It has both low level (RCA) and speaker level inputs.
