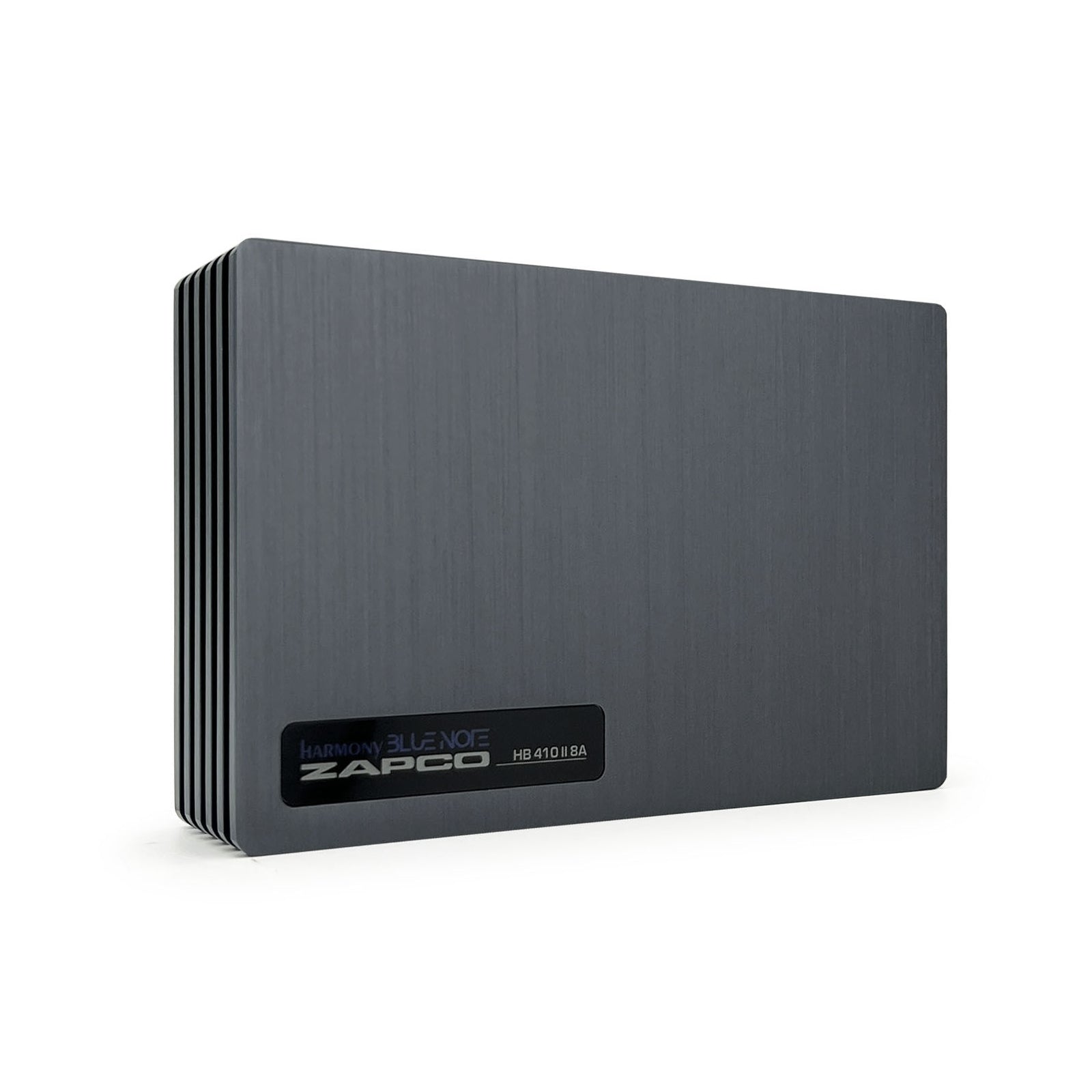

Zapco HB 410 II 8A DSP Amp 10 Channel DSP 8 Channel Class A/B Power Amplifier

Name: Zapco HB 410 II 8A DSP Amp 10 Channel DSP 8 Channel Class A/B Power Amplifier
Brand: Zapco
SKU: 92376
Price: 349.00 GBP
Availability: InStock

£349.00

In stock

SKU: 92376MPN: HB 410 II 8A

Product variants

Part of the range · 34 productsPart of the Zapco Amplifiers range · 34 products See the range →

The Zapco HB 410 II 8A is a 10-channel DSP amplifier from the Zapco Harmony HB II series, combining a 31-band EQ processor with an integrated 8-channel Class A/B power amplifier rated at 8 x 70W (max), plus Bluetooth 5.1 streaming and USB music playback.

Volume, presets, source and track selection can be controlled from the dash with the optional Zapco HB DSP II-R remote.

Key specifications

DSP: 10 channels, 31-band EQ
Amplifier: 8 channels, Class A/B, 8 x 70W (max)
Inputs: 4-channel high level plus 2-channel RCA
Outputs: 10-channel RCA
Bluetooth: 5.1 streaming
Music player: via USB OTG input
Dimensions: 190 (L) x 126 (W) x 45.5 (H) mm

HB 410 II 8A integrated 10-channel DSP and 8-channel Class A/B amplifier

The HB 410 II 8A is a plug-and-play unit combining a 10-channel DSP with 31-band EQ and an integrated 8-channel Class A/B amplifier. Inputs include 4-channel high-level and 2-channel RCA, with 10-channel RCA outputs. Bluetooth 5.1 handles wireless music streaming, and the Music Player function is activated via the OTG USB input.

10-Ch. DSP (31-bands EQ)
4-Ch. High Level Inputs

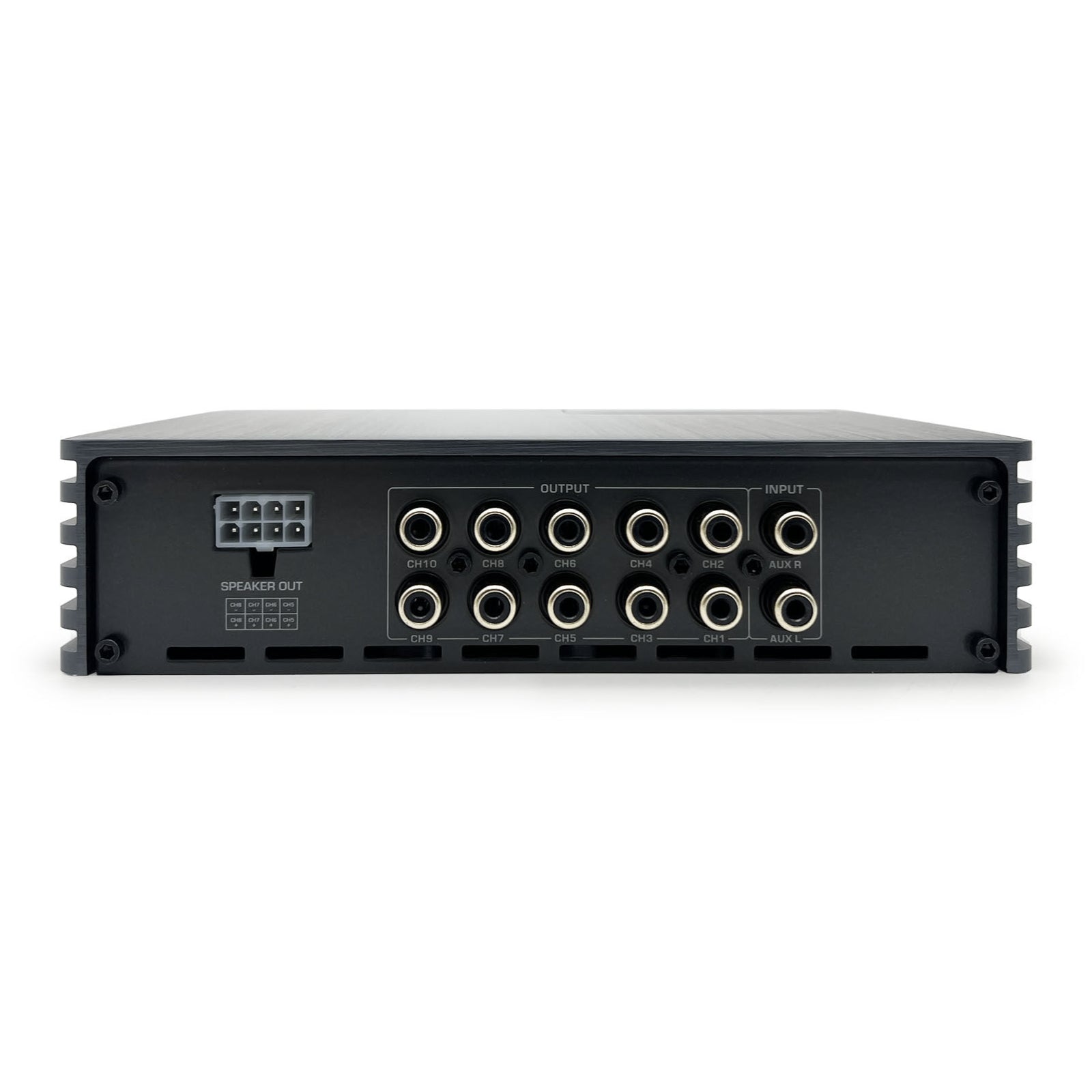

2-Ch. RCA Inputs + 10-Ch. RCA Outputs
Plug & Play ready
BT 5.1 streaming
OTG Input
Music Player (MP2.3.4, WMA, APE, FLAC, AAC, M4A, WAV, AIF, AIFC)
PC and Mobile DSP tools
Mobile Music Player App
Amplifier Power: 8 x 70 Watt (Max)
Dim. in mm: 190 (L) x 126 (W) x 45.5 (H)

With the optional HB DSP II-R remote you can control main and subwoofer volume, select presets and input source, and skip tracks with the Music Player — all directly from the dashboard.

Explore the full range in Zapco Amplifiers.

Specification

DSP Channels	10
High Level Inputs	4-Channels
RCA Inputs	2-Channels
RCA Outputs	10-Channels
RMS Power (4Ω)	8 x 23W
RMS Power (2Ω)	8 x 35W
MAX Power	8 x 70W
Amplifier Class	AB
BT Streaming	Yes (ext. module)
Music Player	Yes (App)
DSP Tools	PC and APP
DSP Equalizer	31-Bands
Input Choice	Aux, BT, Hi-Lev, Player, OTG
I/O Mixing Matrix	Yes
Crossover Type	Butterw., Bessel, Linkwitz-Riley
Crossover Slope	6 ~ 48 dB/Oct.
Freq. Response	20Hz - 20KHz
S/N Ratio	> 100dB
THD	< 0.05%
Supply Voltage	12V -14.4V
Input Impedance	20 KOhm (Low) 22 Ohm (High)
Signal I/O Range	RCA Input 6Vpp, RCA Output 3Vpp, High-Lev. 12Vpp
Power Supply Cons.	DC 9V-16V < 0.1W
Unit Dimensions (mm)	190(L) x 126(W) x 45.5(H)
Remote Dimensions (mm)	90(L) x 45(H)

What's Included

Zapco HB 410 II 8A

Product information

Zapco

About the Zapco HB 410 II 8A

From our tech experts at CEN

The Zapco HB 410 II 8A is a 10-channel DSP amplifier from the Harmony HB II series, integrating a 31-band EQ processor with an 8-channel Class A/B amplifier rated at 8 x 70W (max). It accepts 4-channel high-level and 2-channel RCA inputs and delivers 10-channel RCA outputs. Bluetooth 5.1 streaming and USB music playback are built in; the unit measures 190 x 126 x 45.5 mm.

Who it suits

This suits anyone building a multi-speaker car audio system who wants integrated DSP and amplification in a single compact unit. Those looking for a higher-powered option within the same series may consider the Zapco HB 810 II 8AD.

Our tech experts advise

The DSP is configured via PC or mobile app; the OTG USB input supports formats including FLAC, AAC and WAV. For dash-level control of volume, presets and track selection, add the optional Zapco HB DSP II-R remote. Installation cost varies by vehicle, so contact us via our Nottingham car audio fitting page for a quote.

Explore the full Zapco range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Zapco
