Zapco HB 810 II 8AD DSP Amp 10 Channel DSP 8 Channel Class A/B & D Amplifier
Couldn't Load Pickup availability

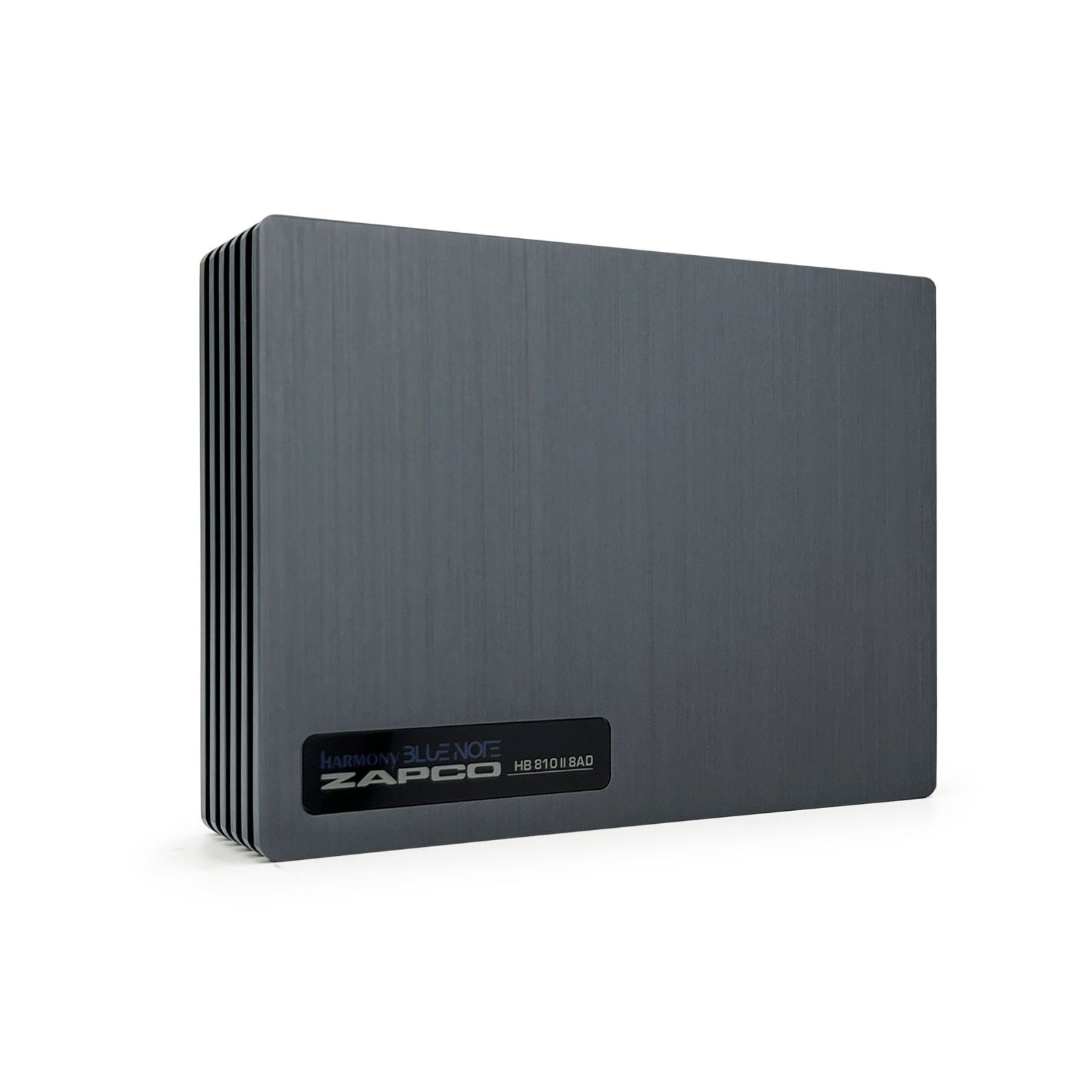

The Zapco HB 810 II 8AD is a 10-channel DSP amplifier from the Zapco Harmony HB II series, combining a 31-band EQ processor with an integrated 8-channel amplifier — four channels Class A/B and four channels Class D — in a single 190 x 166 x 45.5mm unit.
Main and subwoofer volume, presets, source and tracks can be controlled from the dash with the optional Zapco HB DSP II-R remote.
Key specifications
- DSP: 10 channels, 31-band EQ
- Class AB power: 4 x 35W at 4 ohms, 4 x 50W at 2 ohms (4 x 100W max)
- Class D power: 4 x 100W at 4 ohms, 4 x 150W at 2 ohms
- Class D bridged: 2 x 300W at 4 ohms

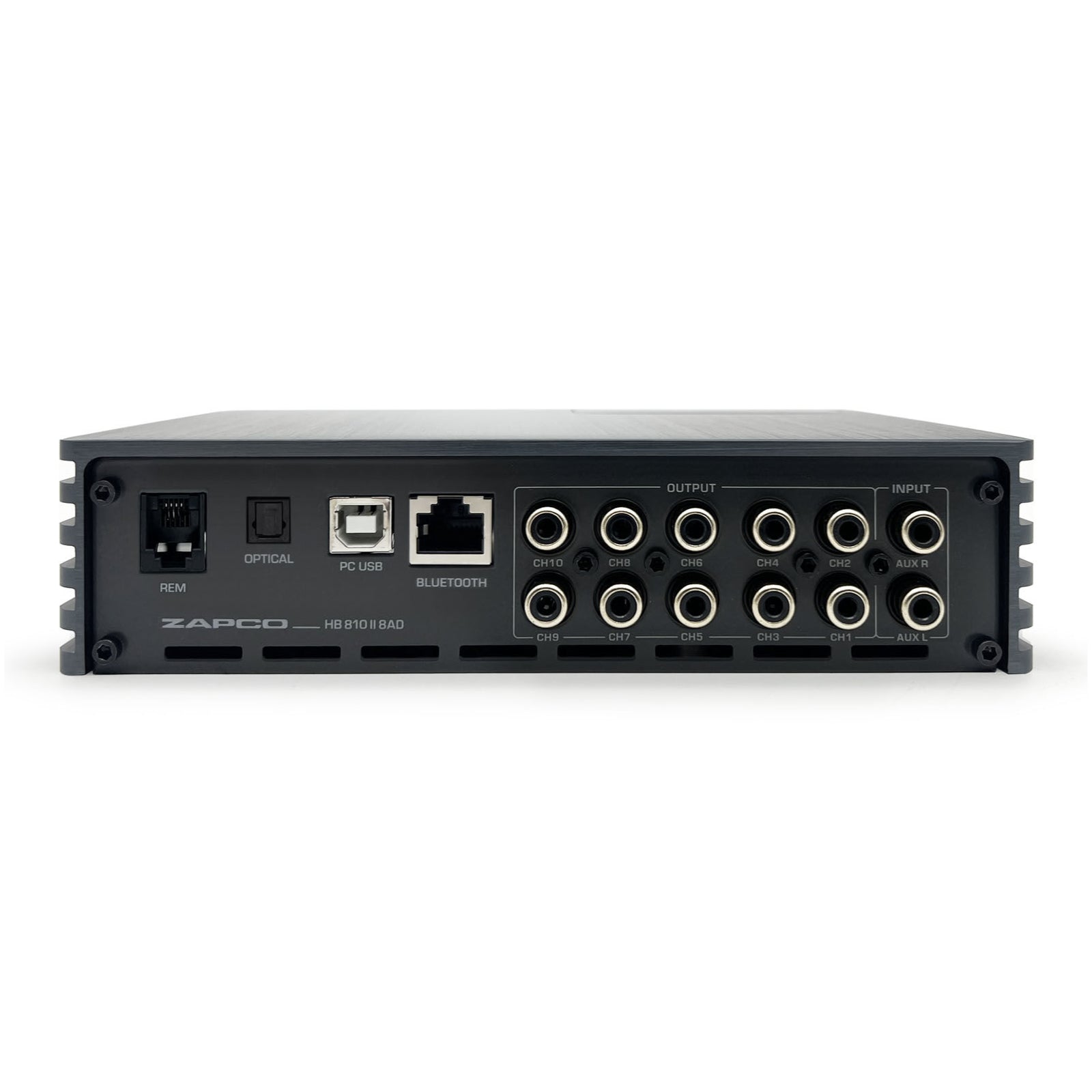

- Inputs: 8-channel high level plus 2-channel RCA
- Outputs: 10-channel RCA
- Bluetooth: 5.1 streaming
- Dimensions: 190 x 166 x 45.5mm
HB 810 II 8AD integrated 10-channel DSP and 8-channel Class AB + D amplifier
The HB 810 II 8AD is a 10-Ch. DSP with 31-band EQ and all the control features you need. The integrated 8-Ch. Class-AB + D amp delivers up to 4 x 35W (AB) + 4 x 100W (D) at 4Ω and 4 x 50W (AB) + 4 x 150W (D) at 2Ω.
- 10-Ch. DSP (31-band EQ)

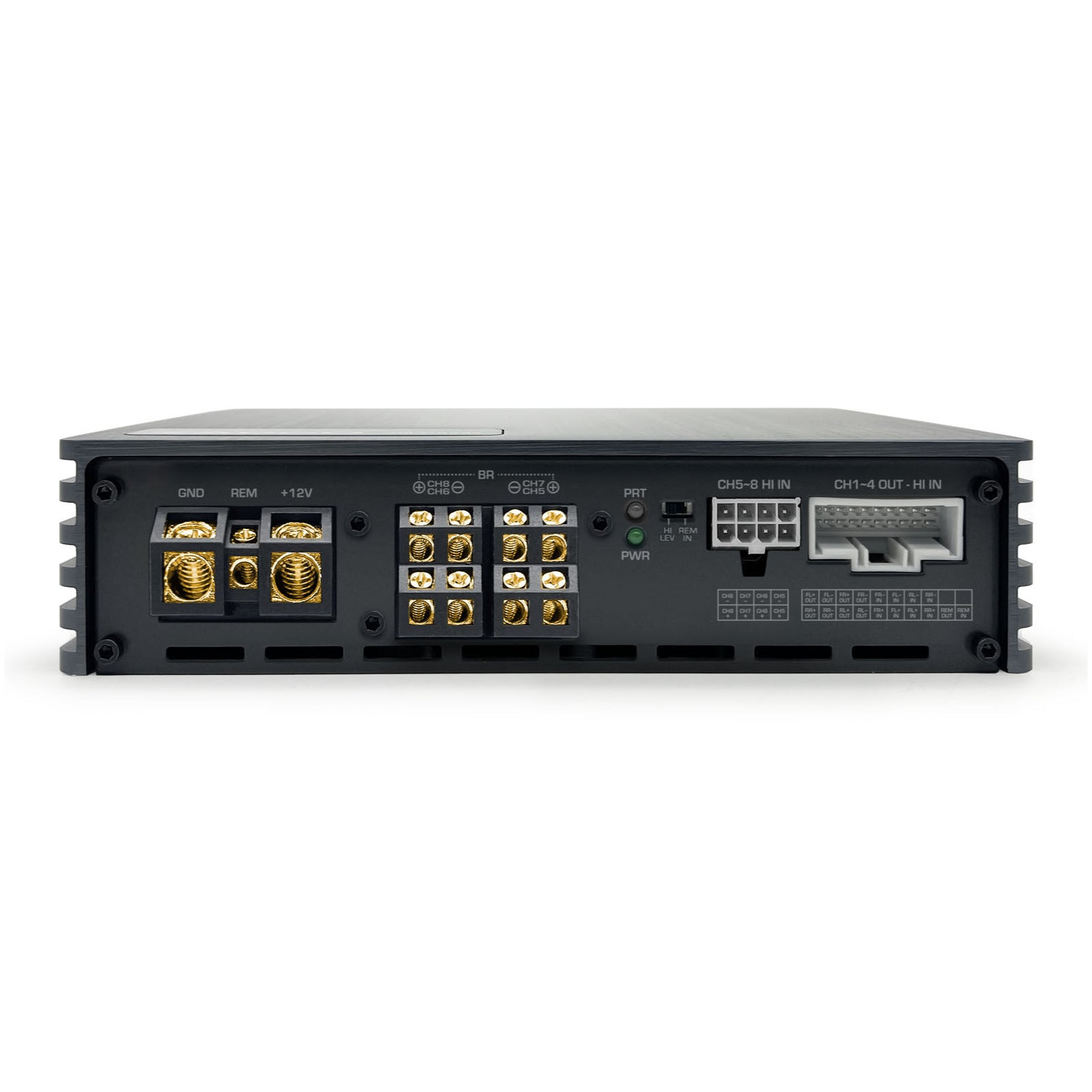

- 8-Ch. high-level inputs
- 2-Ch. RCA inputs + 10-Ch. RCA outputs
- Plug & Play ready
- BT 5.1 streaming
- OTG input
- Music Player (MP2.3.4, WMA, APE, FLAC, AAC, M4A, WAV, AIF, AIFC)
- PC and mobile DSP tools
- Mobile Music Player app
- Class AB amplifier power: 4 x 100W max
- Class D amplifier power: 4 x 150W at 2 ohms
- Class D amplifier power (bridged): 2 x 300W at 4 ohms
- Dimensions: 190 (L) x 166 (W) x 45.5 (H) mm
The built-in Bluetooth module and dedicated smartphone app let you control and configure your system wirelessly, as well as browse and play music directly from your phone. The HB DSP II-R remote adds dash-mounted control of main and sub volume, preset selection, input source switching, and Music Player track navigation.
Explore the full range in Zapco Amplifiers.
Specification
| DSP Channels | 10 |
|---|---|
| High Level Inputs | 8-Channels |
| RCA Inputs | 2-Channels |
| RCA Outputs | 10-Channels |
| RMS Power (4Ω) | 4 x 35W (AB) + 4 x 100 (D) |
| RMS Power (2Ω) | 4 x 50W (AB) + 4 x 150 (D) |
| MAX Power | 4 x 100W (AB) + 4 x 300 (D) |
| RMS Power (4Ω, Br.) | 2 x 300 (D) |
| Amplifier Class | AB + D |
| BT Streaming | Yes (ext. module) |
| Music Player | Yes (App) |
| DSP Tools | PC and APP |
| DSP Equalizer | 31-Bands |
| Input Choice | Aux, BT, Hi-Lev, Player, OTG, Optical |
| I/O Mixing Matrix | Yes |
| Crossover Type | Butterw., Bessel, Linkwitz-Riley |
| Crossover Slope | 6 ~ 48 dB/Oct. |
| Freq. Response | 20Hz - 20KHz |
| S/N Ratio | > 100dB |
| THD | < 0.05% |
| Supply Voltage | 12V -14.4V |
| Input Impedance | 20 KOhm (Low), 22 Ohm (High) |
| Signal I/O Range | RCA Input 6Vpp, RCA Output 3Vpp (Ch. 1/8), RCA Output 9Vpp (Ch. 9/10), High-Lev. 12Vpp (Ch. 1/4), High-Lev. 26Vpp (Ch. 5/8) |
| Power Supply Cons. | DC 9V-16V < 0.1W |
| Unit Dimensions (mm) | 190(L) x 166(W) x 45.5(H) |
| Remote Dimensions (mm) | 90(L) x 45(H) |
What's Included
- Zapco HB 810 II 8AD
Zapco
About the Zapco HB 810 II 8AD
From our tech experts at CEN
The Zapco HB 810 II 8AD is a 10-channel DSP amplifier from the Harmony HB II series, combining a 31-band EQ with an integrated 8-channel amplifier — four Class A/B and four Class D channels — in a 190 x 166 x 45.5mm unit. It accepts 8-channel high-level and 2-channel RCA inputs, outputs 10-channel RCA, and includes Bluetooth 5.1.
Who it suits
This suits enthusiasts building a multi-way car audio system who need DSP tuning and multi-channel amplification in a single unit. The Class D channels bridge to 2 x 300W at 4 ohms, making them well suited to subwoofer duty. Those preferring an all Class A/B solution should consider the Zapco HB 410 II 8A.
Our tech experts advise
At 190 x 166 x 45.5mm, check your available boot or under-seat space before ordering. The 8-channel high-level input connects directly to OEM speaker outputs without a line output converter. The optional HB DSP II-R remote adds dash-mounted volume and preset control. Fitting cost varies by vehicle — visit our Nottingham installation page for details.
Explore the full Zapco range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Zapco
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Zapco Amplifiers
More options from the same range, in stock and ready to go
Zapco HB 48 II 4A DSP Amp 8 Channel DSP 4 Channel Class A/B Power Amplifier
£249.00
View product
Zapco ST-4B Amp 4 Channel Class AB Full Range Bridgeable Amplifier 4x 65w RMS
£119.00
Zapco REF 150.6 6 Channel Class AB Amplifier 6x150w RMS
£1,299.99
Zapco Z-150.4 II Amp 4 Channel Class AB Bridgeable Amplifier 2x 550w RMS
£829.00
Zapco ST-1000XM III Amp Mono 1 Channel Class D Subwoofer Amplifier with Remote
£349.00
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the Zapco HB 810 II 8AD have?
A: Its integrated amplifier delivers up to 4 x 35 watts (Class AB) plus 4 x 100 watts (Class D) at 4 ohms, or 4 x 50 watts (Class AB) plus 4 x 150 watts (Class D) at 2 ohms. The Class D channels can be bridged to 2 x 300 watts at 4 ohms.
Q: Can the HB 810 II 8AD connect to a factory head unit?
A: Yes. It is plug and play ready with 8 channels of high-level inputs, plus 2-channel RCA inputs and 10 RCA outputs.
Q: Can I set up the HB 810 II 8AD from my phone?
A: Yes. With Bluetooth and the dedicated app you can control and set up the system from your smartphone, and PC DSP tools are also available.
