Zapco DSP-Z8 IV AT 8 Channel DSP Cirrus Logic Processor and Remote Control

DSP-Z8 IV AT

8-Ch. DSP with AutoTune

New features, new control... even improved sound quality.

• DSP Processor: Cirrus Logic CS47048

• Power: 150 MHz/32 bit/192 KHz

• 8-Channels IN, 8-Channels OUT

• ADC: Cirrus Logic CS47048 32 bit/192 KHz

• ADC Dynamic Range/THD: 108 dB/-98 dB

• DAC: Cirrus Logic CS8422 24 bit/192 KHz

• DAC Dynamic Range/THD: 140 dB/-120 dB

• Low level (Pre)/Sensitivity: 1-5 VRMS
• High Level (Spk In)/Sens.: 2-20 V

• Digital Inputs: 24 bit-192 KHz

• Frequency Response (-3dB): 10 Hz - 22.5 KHz

• S/N Input: 110 dBA (D) - 106 dBA (A)

• THD Input: 0,002% (D) - 0,005% (A)

• Crosstalk at 1 Khz only DSP: 90 dB

• F/R EQ: 1-6 ch Gr. & Par./31 poles

• Effect EQ: 7-8 ch Gr. & Par./11 poles

• Mute/Solo: Yes, each channel

• Time Align. (Range/Steps): 0/15 ms / 0.02 ms

• Max Delay (Cm/Steps): 515 cm / 0.68 cm
• Polarity: 0/180°

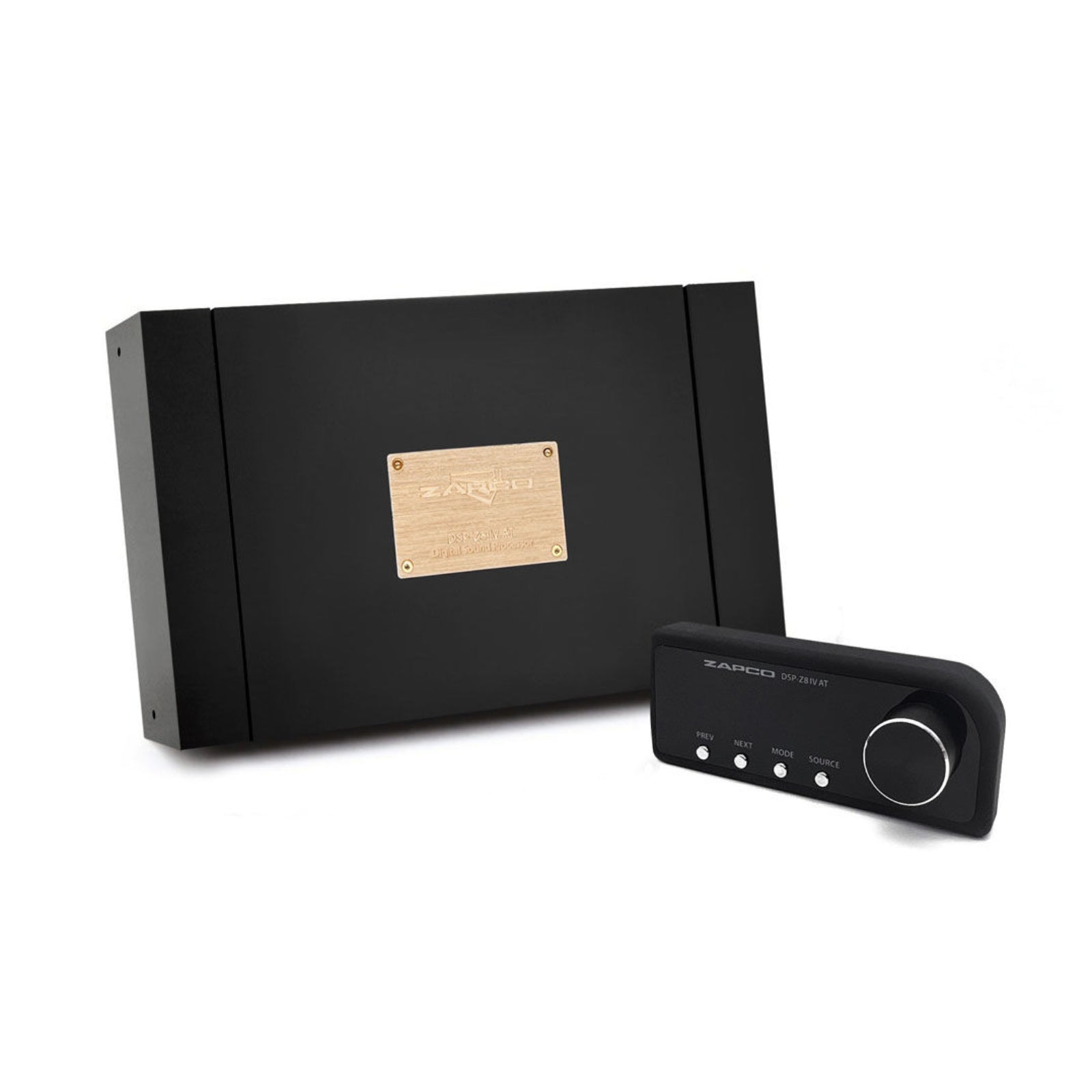

• Remote Control included

• HD-BT Streaming (with optional HD-BT II-D)

• Dimensions (mm): 213(W) x 113(L) x 50(H)
