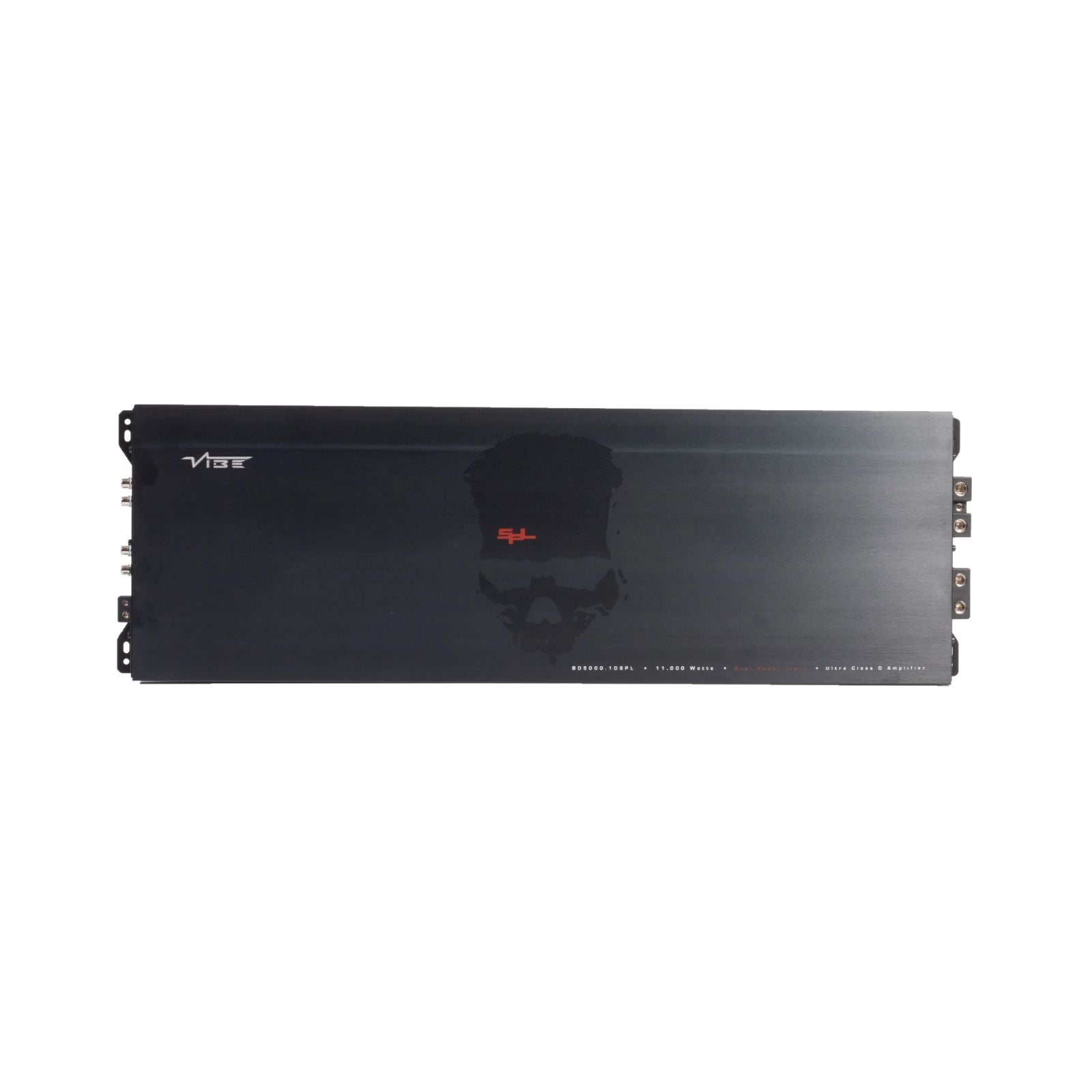

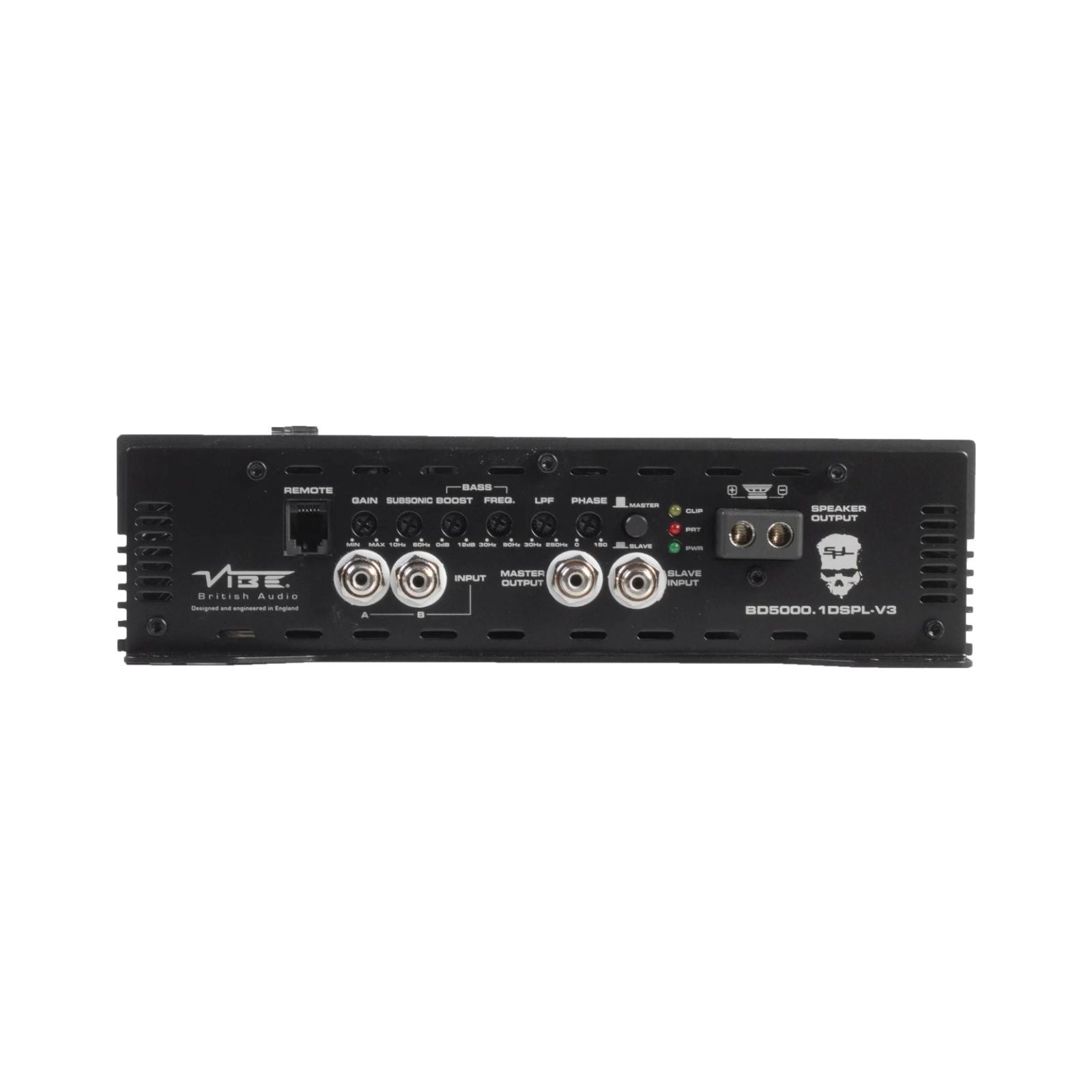

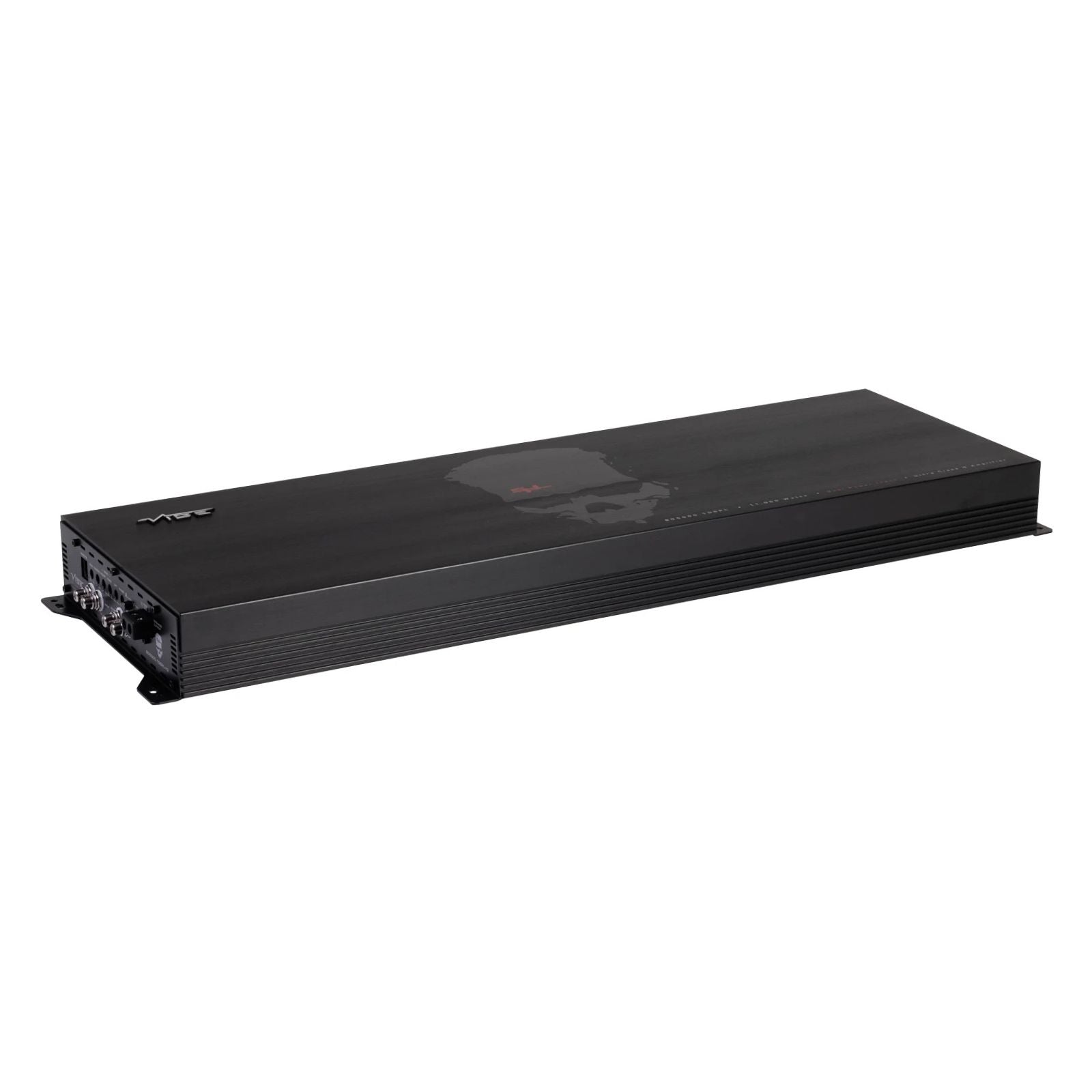

Vibe Black Death BD5000.1DSPL-V3 Class D 1 Channel Mono Competition Amplifier
Couldn't Load Pickup availability
The Vibe Black Death BD5000.1DSPL-V3 is an Ultra Class D competition monoblock car amplifier from Vibe's Black Death range, delivering 5500W RMS at 1 ohm, 2900W RMS at 2 ohms and 1580W RMS at 4 ohms, with a maximum power of 11,800W.
Key specifications
- Model: BD5000.1DSPL-V3
- Type: Ultra Class D competition monoblock
- RMS power: 5500W at 1 ohm / 2900W at 2 ohms / 1580W at 4 ohms
- Maximum power: 11,800W
- Frequency response: 15Hz – 350Hz
- Crossover: low pass and subsonic, 10Hz – 250Hz
- Power inputs: dual 0 gauge
- Efficiency: up to 92%
- Dimensions (H x W x D): 59 x 650 x 250mm
Competition-grade power
The BD5000.1DSPL-V3 sits within Vibe's POWERBOX PRO amplifier range, which covers Class D mono bass amps and Ultra Class D full-range mono amps. Power outputs across the range run from 3kW RMS up to 21kW RMS.
The latest POWERBOX PRO series amplifiers offer full-range signal output, meaning they can be used for mids, highs and subwoofers — making them a versatile amplifier solution.
Best technology
The amp is 18V DC input stable, allowing maximum power output from a non-regulated power supply. It carries full EMI and CE approval and includes a passthrough RCA output.
Best efficiency
Ultra Class D monoblock design delivers efficiency of up to 92%.
Pro features

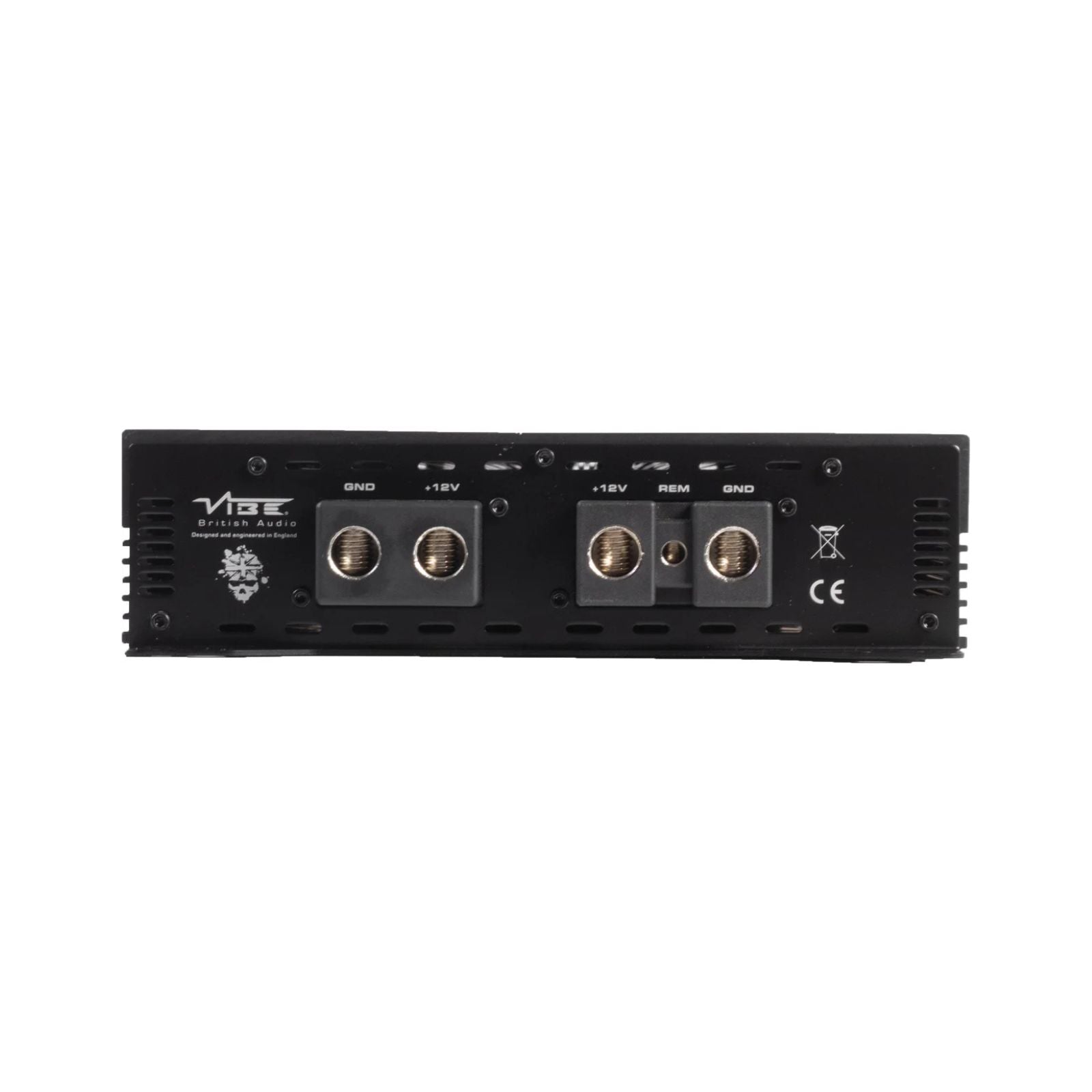

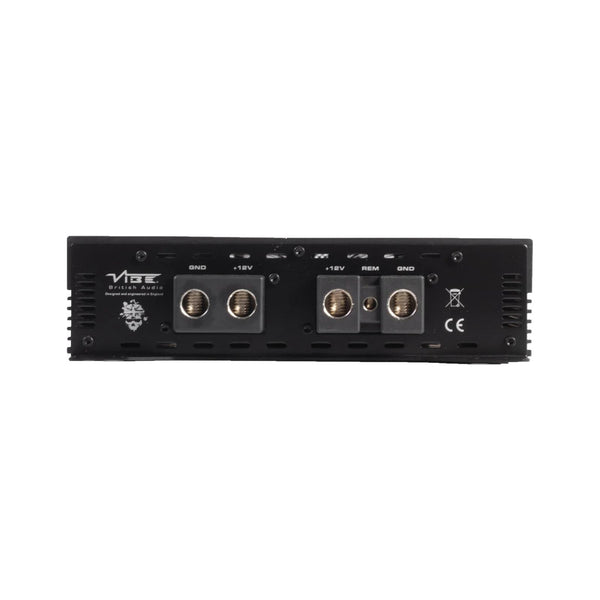

Dual 0 gauge power inputs and an 18V stable non-regulated power supply keep the headroom where it needs to be. An adjustable subsonic filter allows fine-tuning of bass response. Amplifier strapping capability lets you connect two identical units to deliver the full combined power through a single channel — ideal for serious SPL competition builds.
Explore the full range in Vibe Black Death.
Specification
| Configuration | Competition Monoblock |
|---|---|
| Dimensions | (H x W x D) 59mm x 650mm x 250mm |
| RMS @ 4 Ohms | 1580 watts |
| RMS @ 2 Ohms | 2900 watts |
| RMS @ 1 Ohm | 5500 watts |
| Maximum Power | 11,800 watts |
| Frequency Response | 15Hz -350Hz |
| Crossover Type | LP/Subsonic |
| Crossover Range | 10Hz – 250Hz |
| Topology | Ultra Class D |
What's Included
- BD5000.1DSPL-V3
Vibe
About the Vibe BD5000.1DSPL-V3
From our tech experts at CEN
A monoblock subwoofer amplifier from Vibe’s Black Death range, Class D, with DSP on board.
Who it suits
Anyone adding a subwoofer that needs real power behind it. Black Death is Vibe’s competition line, built for output rather than subtlety.
Our tech experts advise
The processing is worth only what the tuning puts into it, and that means measurements in the car rather than a preset. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Vibe range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Vibe
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Vibe Black Death
More options from the same range, in stock and ready to go

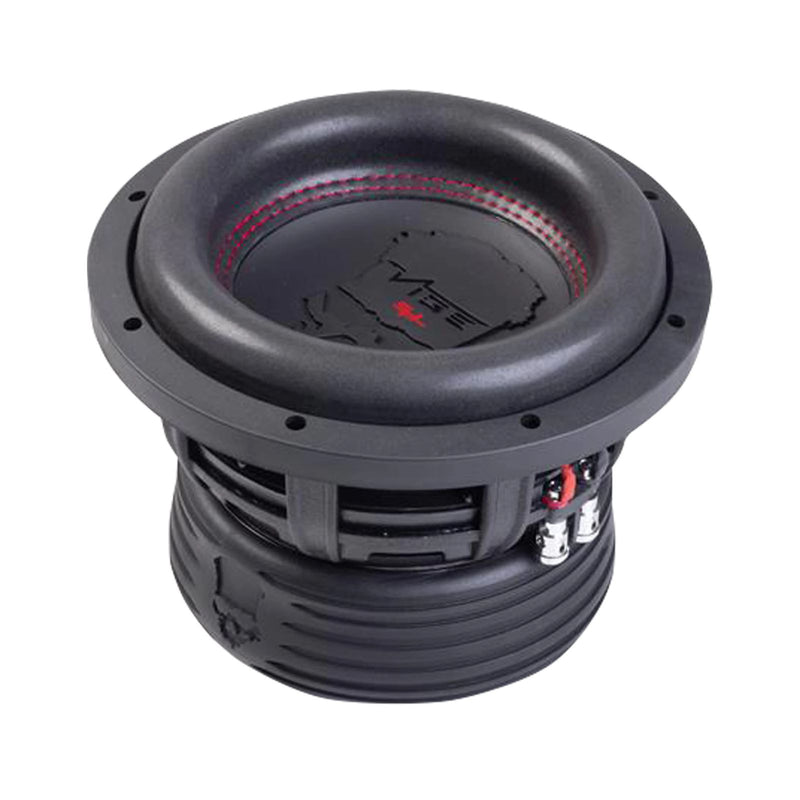

Best SellerVibe Black Death BD8D2-V4 8 Inch Sub SPL Dual 2 Ohm Subwoofer 800w RMS
£139.99
View product

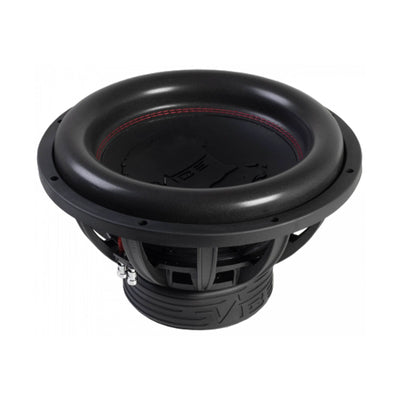

Vibe Black Death BD15D2-V4 15 Inch Sub SPL Dual 2 Ohm Subwoofer 1600w RMS
£299.99
Vibe Black Death BDPRO4T-V0 4.5 Inch Competition Pro Audio Tweeter 120w RMS
£69.99

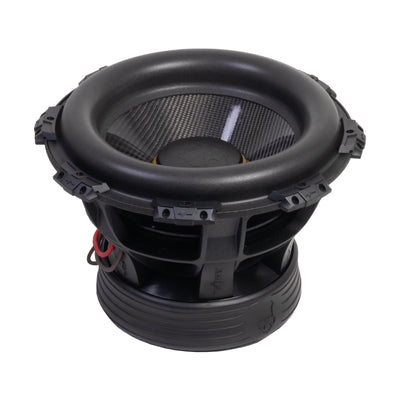

Vibe Subwoofer 18 Inch Black Death SPL Competition Sub 5000w RMS BDC18D1SPL-V4
£999.99
Vibe Black Death BD15D4-V4 15 Inch Sub SPL Dual 4 Ohm Subwoofer 1600w RMS
£299.99
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the BD5000.1DSPL-V3 produce?
A: It delivers 5500W RMS at 1 ohm, 2900W RMS at 2 ohms and 1580W RMS at 4 ohms, with a maximum power of 11,800W.
Q: Can two BD5000.1DSPL-V3 amplifiers be strapped together?
A: Yes. It has amplifier strapping capability, which allows 2 identical amplifiers to be connected to deliver the full power through a single channel.
Q: How big is the BD5000.1DSPL-V3?
A: It measures 59mm high, 650mm wide and 250mm deep.
