Vibe Subwoofer 12 Inch Black Death SPL Deep Bass Sub 1Ohm 3000w RMS BD12D1SPL-V4
Couldn't Load Pickup availability
The Vibe Black Death BD12D1SPL-V4 is a 12-inch competition SPL subwoofer from Vibe's BlackDeath range, rated at 3000W RMS (9000W max) with dual 1 Ohm voice coils for extreme-output car audio systems.
Which Black Death 12" version do I need?
This is the dual 1 Ohm BD12D1SPL-V4, built for competition systems running very low impedance. Its two 1 Ohm coils wire in parallel for 0.5 Ohm or in series for 2 Ohm, ideal for high-current SPL amplifiers. For amplifiers not stable that low, the dual 2 Ohm BD12D2SPL-V4 wires to 1 or 4 Ohm.
Key specifications
- Size: 12" (305mm)
- Power: 3000W RMS / 9000W max
- Impedance: Dual 1Ω
- Sensitivity: 88dB
- Frequency response: 15Hz – 850Hz
- Mounting depth: 229mm (9")
- Mounting diameter: 281mm (11")
- Enclosure volume: 2.5 – 4.5 cu ft
BD12SPL-V4: power and performance
The latest BD subwoofers are engineered for competition use, with redesigned soft parts, basket, cone, and dust-cap throughout.
- Extreme excursion: designed for massive air movement and deep bass.
- New basket and dust-cap for increased rigidity and aggressive aesthetics.
- Triple stacked pole vented motor, 3" high-temp 4-layer, and 4" 8-layer aluminium long wound dual voice coils.
- Quad NOMEX spiders and ultra-wide foam surround for durability and minimal distortion.
- Paper composite cone: lightweight and strong for high efficiency in extreme SPL applications.
- Dual voice coil: flexible wiring for optimal amp matching.
- Torsion basket: angular design supports the massive motor system and moving parts.
- FEMM-designed motor for high force and performance gains.
Explore the full range in Vibe Black Death.
Specification
| Model | BD12D1SPL-V4 |
|---|---|
| Speaker Size | 12” (305mm) |
| RMS/Peak | 3000W/9000W |
| Sensitivity | 88dB |
| Freq. Response | 15Hz – 850Hz |
| Impedance | Dual 1Ω |
| Mounting Depth | 9” (229mm) |
| Mounting Diameter | 11” (281mm) |
| Enclosure Volume | 2.5 – 4.5 cuft³ |
What's Included
- Vibe BD12D1SPL-V4 Subwoofer
Vibe
About the Vibe BD12D1SPL-V4
From our tech experts at CEN
A Vibe Black Death 12 inch subwoofer, 1 ohm, handling 3000w RMS.
Who it suits
SPL builds and anyone chasing maximum output, where the driver, enclosure and electrical system all have to be specified together. Black Death is Vibe’s competition line, built for output rather than subtlety.
Our tech experts advise
Enclosure volume and tuning decide most of what you hear. Output builds also need the electrical side looked at: big amplifiers pull current the standard charging system was never designed for. We build enclosures to suit both driver and vehicle at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Vibe range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Vibe
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Vibe Black Death
More options from the same range, in stock and ready to go

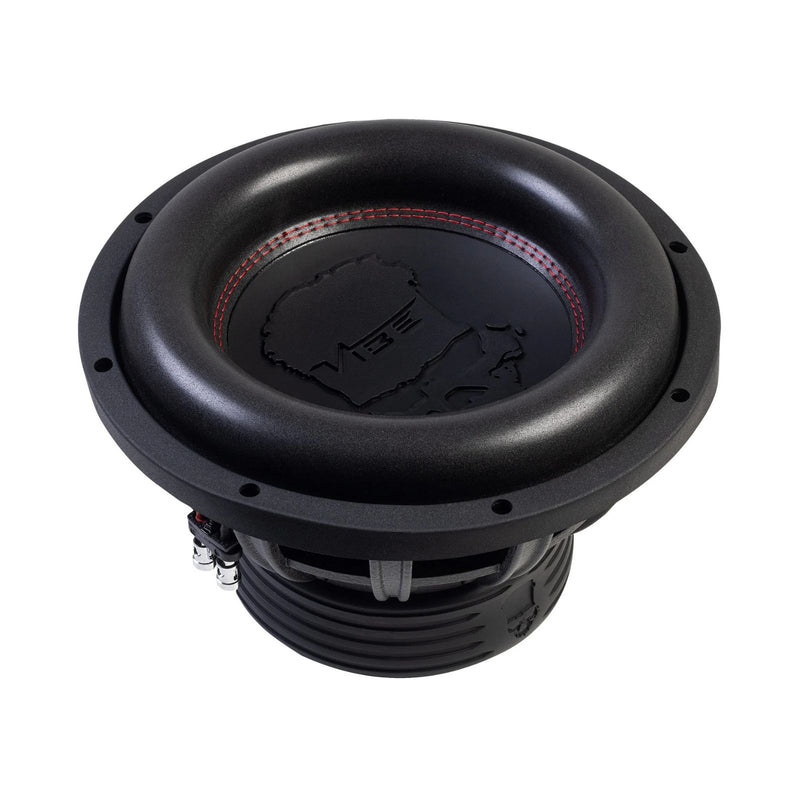

Best SellerVibe Black Death BD12D2-V4 12 Inch Sub SPL Dual 2 Ohm Subwoofer 1500w RMS
£249.99
View product

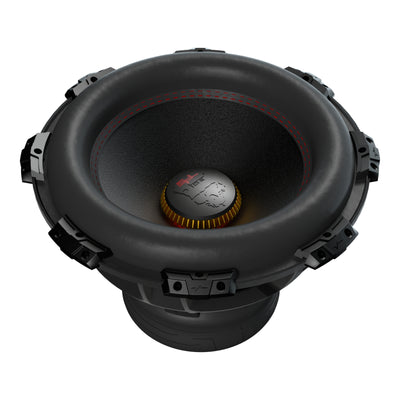

Vibe Subwoofer 15 Inch Black Death SPL Deep Bass Sub 2Ohm 3000w RMS BD15D2SPL-V4
£429.99

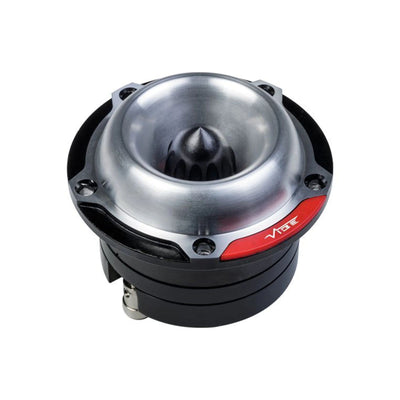

Vibe Black Death BDPRO3T-V7 3 Inch Competition Pro Audio Tweeter 100w RMS
£59.99

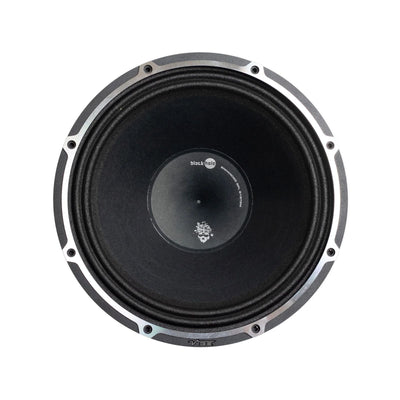

Vibe Black Death BDPRO10M-V9 10 Inch Pro Audio Midrange Car Speaker 275w RMS
£124.99
Vibe Subwoofer 15 Inch Black Death SPL Deep Bass Sub 1Ohm 3000w RMS BD15D1SPL-V4
£429.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: What is the difference between the BD12D1SPL-V4 and BD12D2SPL-V4?
A: Both are 12-inch BlackDeath SPL subwoofers. The BD12D1SPL-V4 has dual 1 Ohm voice coils that wire to 0.5 or 2 Ohm, while the BD12D2SPL-V4 has dual 2 Ohm coils that wire to 1 or 4 Ohm. Choose the version that matches the load your amplifier is stable at.
Q: How much power does the BD12D1SPL-V4 handle?
A: Vibe rates it at 3000W RMS with a 9000W maximum. Use the 3000W RMS figure when choosing an amplifier.
Q: How deep is the BD12D1SPL-V4?
A: It has a mounting depth of 229mm (9 inches) and a mounting diameter of 281mm (11 inches), with a recommended enclosure volume of 2.5 to 4.5 cubic feet.
