Vibe Black Death BD12D4-V4 12 Inch Sub SPL Dual 4 Ohm Subwoofer 1500w RMS
Couldn't Load Pickup availability
The Vibe Black Death BD12D4-V4 is a 12 inch dual 4 ohm subwoofer rated at 1500W RMS (4500W peak), from Vibe's Black Death SPL range. It features a 3 inch OFC voice coil, FEMM motor and cast alloy torsion basket.
Need a different load? The Black Death 12 inch is also available as the BD12D2-V4 dual 2 ohm version, and the BD15D4-V4 15 inch version is also available for more output.
Key specifications
- Model: BD12D4-V4
- Size: 12 inch (323mm)
- Power: 1500W RMS / 4500W peak
- Impedance: dual 4 ohm
- Sensitivity: 84dB
- Frequency response: 25Hz – 850Hz
- Voice coil: 3 inch OFC, 45mm winding
- Magnet weight: 132oz
- Mounting depth: 175mm (6.9 inch)
BD12D4-V4 Black Death 12 Inch Street Bass Subwoofer
The Black Death range is built from the ground up for great-sounding bass with serious output. A cast alloy torsion basket, 3 inch OFC voice coil, PP spider pack and one-piece cone combine to deliver smooth, musical bass alongside high SPL levels. The FEMM motor produces a high gauss field to control the voice coil with precision and accuracy.
Solid build quality – Precision engineering and high-quality parts produce a solidly built, warm-sounding subwoofer.
Signature design – Vibe's aesthetic runs throughout, from the custom-tooled magnet boot to the unique one-piece skull dust-cap.
Competition-level SPL – The conservatively rated 1500W OFC voice coil and engineered soft parts deliver competition-grade SPL performance.
Accurate sound – All components are engineered together for tight, accurate bass reproduction.
Explore the full range in Vibe Black Death.
Specification
| Sensitivity | - 84dB |
|---|---|
| Frequency Response | - 25Hz – 850Hz |
| Impedance | - Dual 4Ω |
| Voice Coil | - 3” with 45mm winding |
| Magnet | Weight - 132Oz |
| Mounting Depth | - 6.9” (175mm) |
More specs
| |
What's Included
- BD12D4-V4
Vibe
About the Vibe BD12D4-V4
From our tech experts at CEN
A Vibe Black Death 12 inch subwoofer, dual voice coil, 4 ohm, handling 1500w RMS.
Who it suits
SPL builds and anyone chasing maximum output, where the driver, enclosure and electrical system all have to be specified together. Black Death is Vibe’s competition line, built for output rather than subtlety.
Our tech experts advise
Enclosure volume and tuning decide most of what you hear, and the dual coils give you options for wiring to your amplifier. Output builds also need the electrical side looked at: big amplifiers pull current the standard charging system was never designed for. We build enclosures to suit both driver and vehicle at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Vibe range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Vibe
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Vibe Black Death
More options from the same range, in stock and ready to go

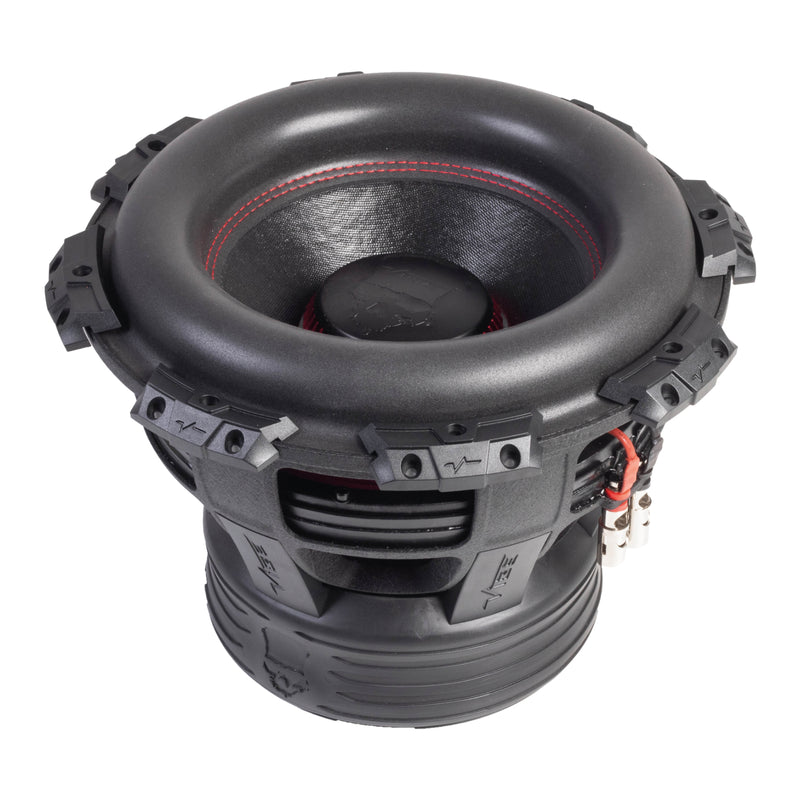

Best SellerVibe Subwoofer 12 Inch Black Death SPL Deep Bass Sub 1Ohm 3000w RMS BD12D1SPL-V4
£379.99
View product
Vibe Black Death BDPRO3T-V7 3 Inch Competition Pro Audio Tweeter 100w RMS
£59.99
Vibe Black Death BDPRO10M-V9 10 Inch Pro Audio Midrange Car Speaker 275w RMS
£124.99
Vibe Subwoofer 15 Inch Black Death SPL Deep Bass Sub 1Ohm 3000w RMS BD15D1SPL-V4
£429.99

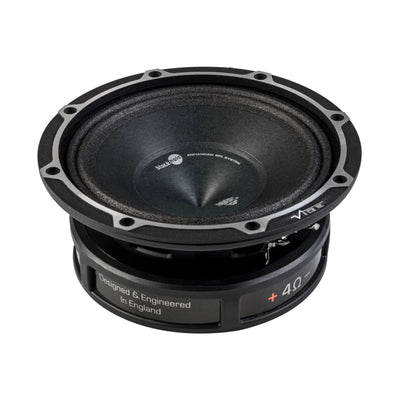

Staff PickVibe Black Death BDPRO6M-V9 6.5 Inch Pro Audio Midrange Car Speaker 175w RMS
£74.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: What amplifier is recommended for the BD12D4-V4?
A: Vibe recommends the POWERBOX1500.1P-V0 amplifier for this subwoofer.
Q: How deep is the BD12D4-V4?
A: It has a mounting depth of 175mm (6.9 inch) and a mounting diameter of 283mm (11.1 inch).
Q: How should I wire a dual 4 ohm subwoofer?
A: The two 4 ohm voice coils can be wired in parallel for a 2 ohm load or in series for an 8 ohm load. Choose the option that matches your amplifier.
