Morel Hybrid Integra 62 6.5 Inch 2 Way Coaxial Speakers

£949.00 Out of stock
Out of Stock
SKU: 93357MPN: HYBRID INTEGRA 62
Part of the range · 14 productsPart of the Morel Hybrid range · 14 products See the range →

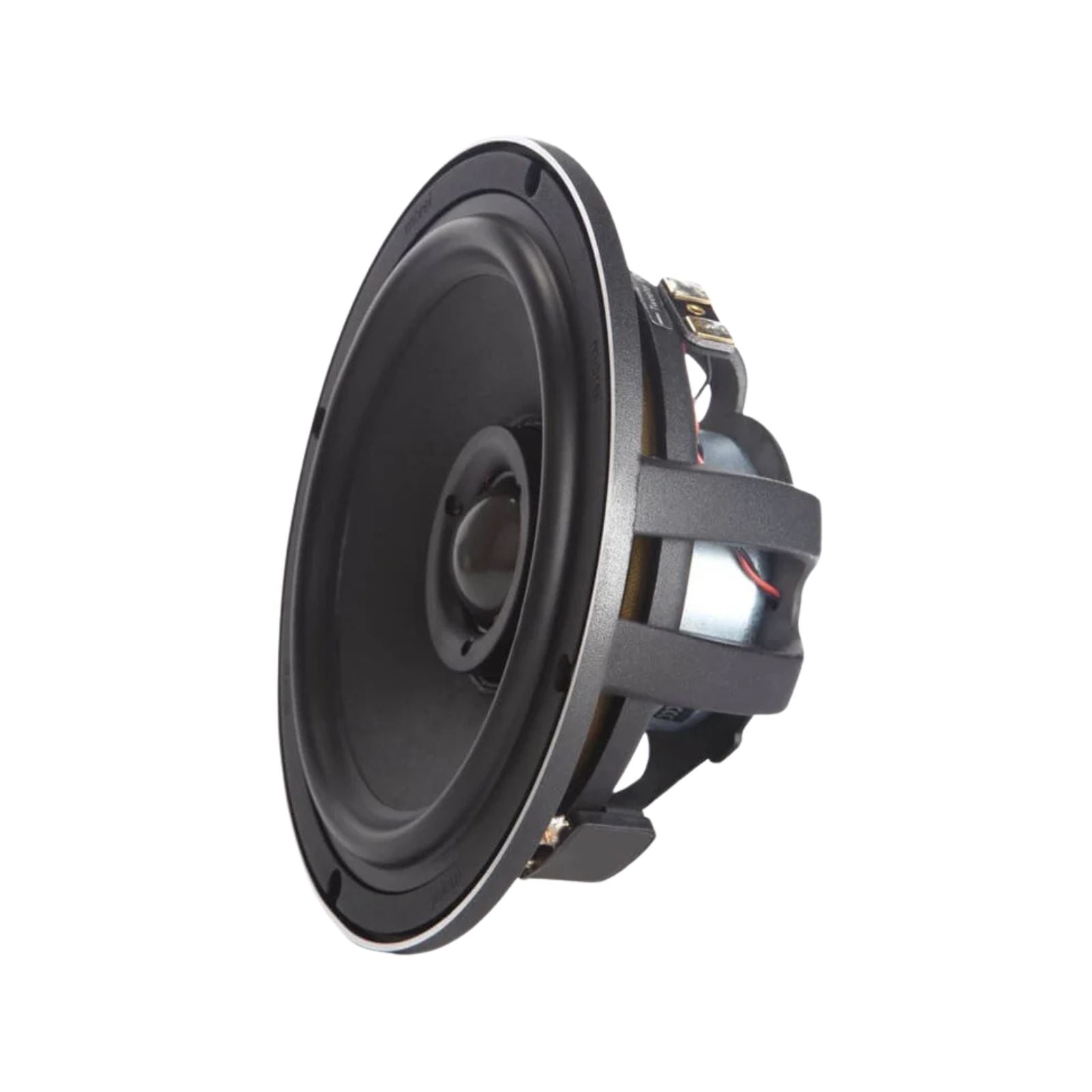

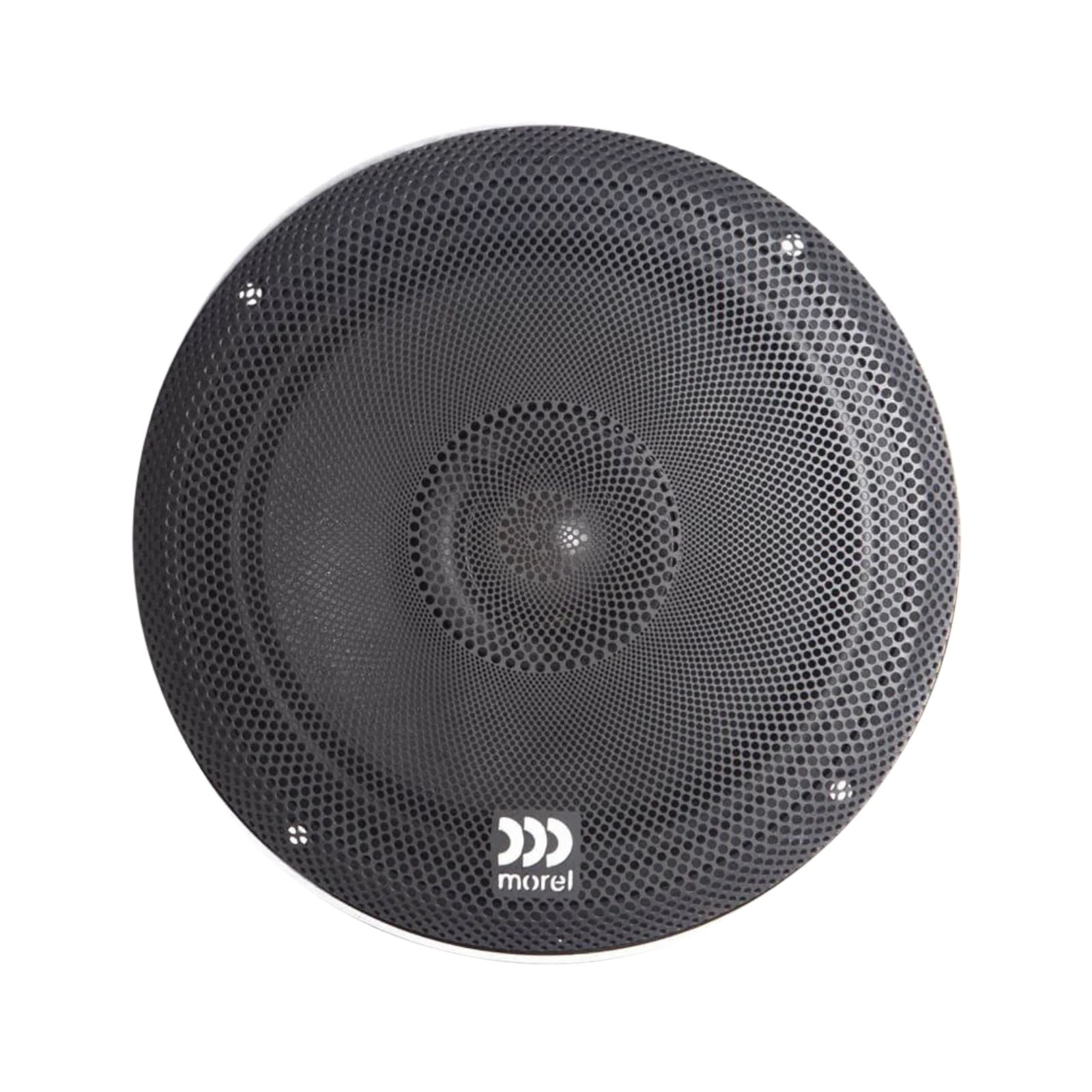

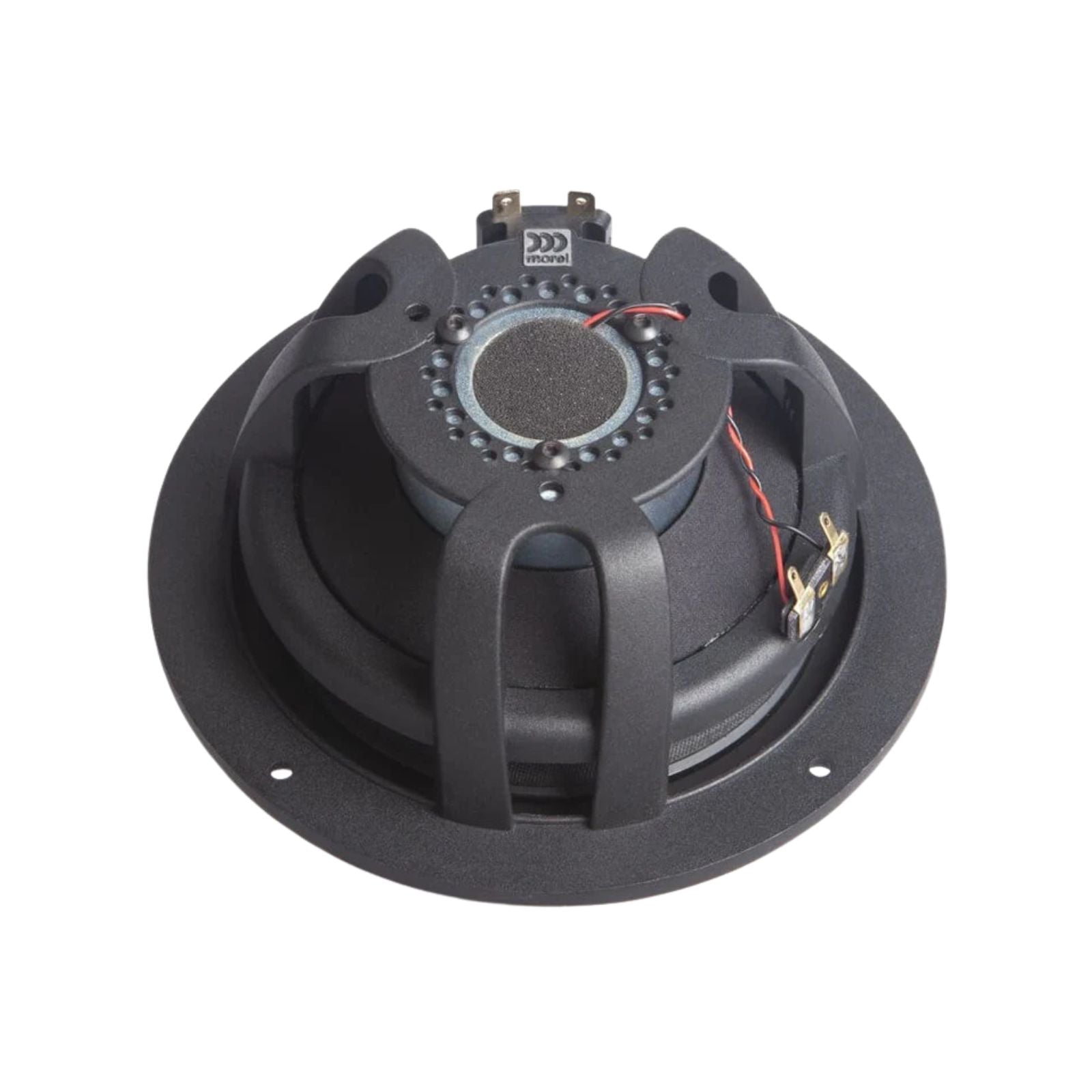

The Morel Hybrid Integra 62 is a 6.5 inch (165mm) 2-way point-source coaxial speaker pair from Morel's fifth-generation Hybrid Integra range, handling 100W RMS with a sensitivity of 91 dB. Sold as a pair.

This listing is the 6.5 inch Hybrid Integra 62. The Hybrid Integra range is also available in 4 inch (Hybrid Integra 42) and 5.25 inch (Hybrid Integra 52).

Key specifications

  • Size: 6.5" (165mm unit diameter)
  • Configuration: 2-way Integra point-source coaxial
  • Impedance: 4 ohms
  • Power handling: 100W RMS, 300W max transient
  • Sensitivity: 91 dB (2.83 V/1m)
  • Voice coil: 54mm (2.1") Hexatech aluminium
  • Magnet: neodymium
  • Supplied as: pair (2 x Hybrid Integra 62)

Morel Hybrid Integra 62

Now in their fifth generation, the Hybrid and Hybrid Integra systems deliver a refined listening experience. Morel has further optimised the balance of resolution, power and efficiency across all music genres.

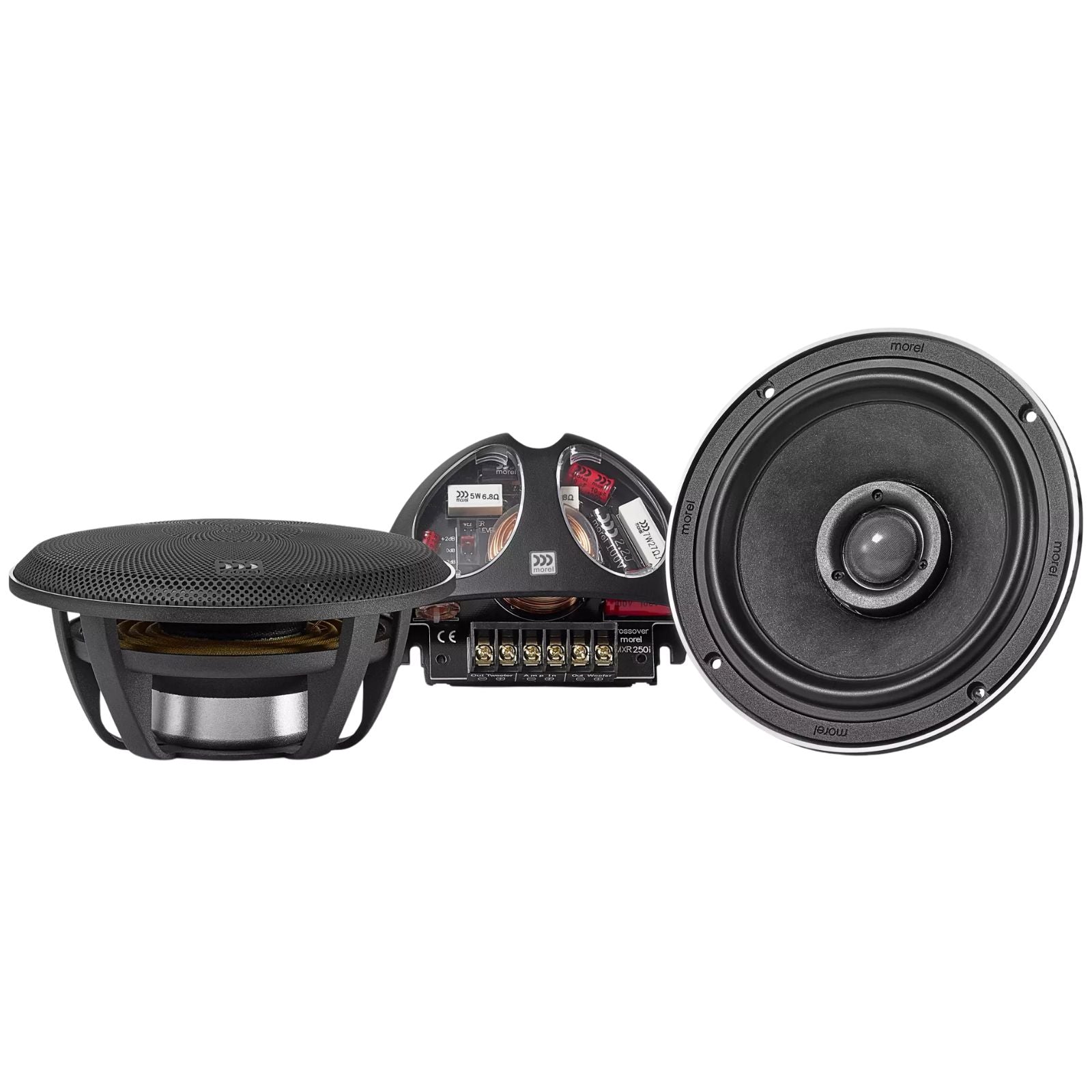

The Hybrid range is available in 2-way component, Integra point-source coaxial, and 3-way configurations. If your car has a separate tweeter location, see the Morel Hybrid 62 component system.

Every Hybrid midrange and woofer features a 54mm (2.1") Hexatech™ aluminium EVC voice coil, a DPC one-piece cone architecture, and hybrid double magnet motors. A handcrafted MT300 soft dome tweeter uses Morel's Acuflex™ technology for a natural, non-fatiguing high-frequency response. The line is finished with brushed aluminium trim.

The Integra point-source topology places the tweeter and woofer on the same axis, eliminating acoustic problems common to conventional coaxial designs. The result is omni-directional time alignment, improved imaging and wider sound dispersion from a single speaker location.

Explore the full range in Morel Hybrid.

Specification
Nominal Impedance (Ohm)4
Power HandlingWrms 100
Max Transient Power Handling Wrms300
Sensitivity(2.83V/1M) dB 91
Frequency Response65 - 3300
Resonant Frequency Fs Hz75
Voice CoilDiameter mm (inch) 54 (2.1)
Voice CoilType/Former Aluminium
Voice CoilWire Hexatech Aluminium
DC Resistance (ohm)3.3
MagnetSystem Neodymium
ConeType Formed Paper
ConeMaterial Composite Cellular Fiber
Unit Diameter mm (inch)165 (6.5)
Net Weight Kg (lb)0.75 (1.65)
What's Included

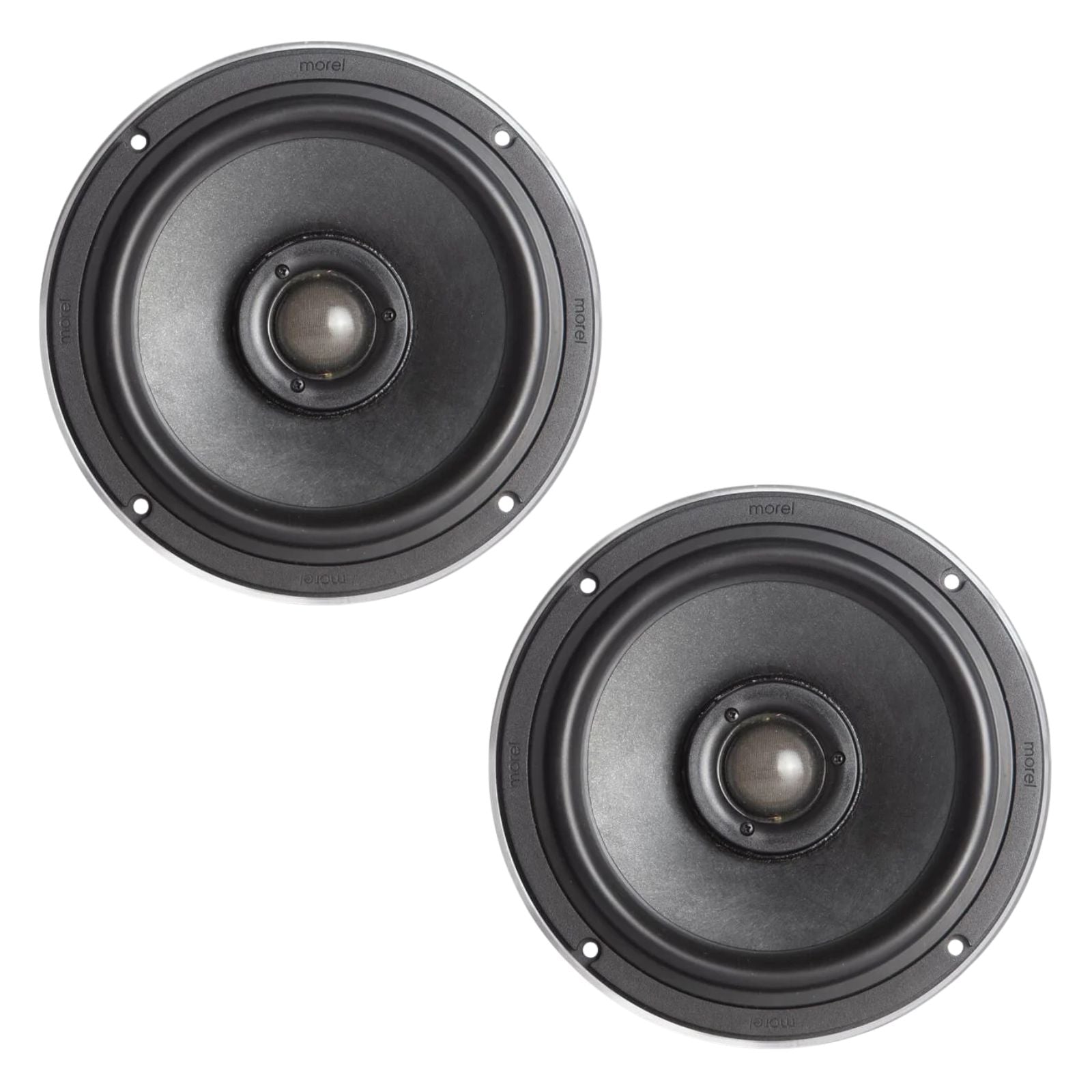

  • 2 x HYBRID INTEGRA 62 Coaxial Speakers
Download Installation Guide(PDF)
Product information

Morel

About the Morel HYBRID INTEGRA 62

From our tech experts at CEN

Morel Hybrid 6.5 inch coaxial speakers, with the tweeter mounted in the centre of the woofer.

Who it suits

Drivers replacing tired factory speakers who want a clear improvement without relocating tweeters.

Our tech experts advise

Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment and tweeter placement change the result as much as the driver does, and speakers at this level deserve an amplifier. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Morel Hybrid 63 3 Way Car Component Speakers MW Woofers MT300 Tweeters 140w RMS - CEN
Morel Hybrid 63 3 Way Car Component Speakers MW Woofers MT300 Tweeters 140w RMS £1,749.00
In stock
Morel Hybrid 62 2 Way Car Component Speakers MW Woofers MT300 Tweeters 140w RMS - CEN
Morel Hybrid 62 2 Way Car Component Speakers MW Woofers MT300 Tweeters 140w RMS £1,149.00
In stock
Morel Maximo Ultra 502 MKII 5.25" 2 Way Coaxial Car Door Speakers 80w RMS Pair - CEN
Morel Maximo Ultra 502 MKII 5.25" 2 Way Coaxial Car Door Speakers 80w RMS Pair £219.00
In stock
Morel Maximo Ultra 602 MKII 6.5 Inch 2 Way Coaxial Car Van Door Speakers 80w RMS - CEN
Save 31% Morel Maximo Ultra 602 MKII 6.5 Inch 2 Way Coaxial Car Van Door Speakers 90w RMS RRP £319.00 £219.00 Save 31%
In stock
Morel Tempo Ultra Integra 402 MKII 4 Inch 2 Way Coaxial Car Speakers 80w RMS - CEN
Morel Tempo Ultra Integra 402 MKII 4 Inch 2 Way Coaxial Car Speakers 60w RMS £239.00
Low stock
Morel Tempo Ultra Integra 602 MKII 6.5 Inch 2 Way Coaxial Car Speakers 120w RMS - CEN
Morel Tempo Ultra Integra 602 MKII 6.5 Inch 2 Way Coaxial Car Speakers 120w RMS £269.00
In stock
Morel Maximo Ultra 692 MKII 6x9 Inch Coaxial Car Parcel Shelf Speakers 110w RMS - CEN
Morel Maximo Ultra 692 MKII 6x9 Inch Coaxial Car Parcel Shelf Speakers 110w RMS £229.00
Low stock
Morel Tempo Ultra Integra 502 MKII 5.25 Inch 2 Way Coaxial Car Speakers 100w RMS - CEN
Morel Tempo Ultra Integra 502 MKII 5.25 Inch 2 Way Coaxial Car Speakers 100w RMS £269.00
In stock
Morel BMW Integration Performance IP-BMW4C 2 Way Plug & Play Coaxial Speakers - CEN
Morel BMW Integration Performance IP-BMW4C 2 Way Plug & Play Coaxial Speakers £399.00
In stock
Morel IR ME INT 42 Mercedes Premum 4 inch 2 Way Coaxial Speaker Set - CEN
Morel IR ME INT 42 Mercedes Premium 4 inch 2 Way Coaxial Speaker Set £929.00
In stock
Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

More from Morel

More options from the same range, in stock and ready to go

View all Morel ›
Morel Supremo 38 Anniversary Limited Edition 3 Way Component Speakers 140w RMS

Morel Supremo 38 Anniversary Limited Edition 3 Way Component Speakers 140w RMS

RRP £4,999.99Save 30%£3,499.99

View product
Morel BMW Integration Performance IP-BMW42 2 Way Plug & Play Component Speakers

Morel BMW Integration Performance IP-BMW42 2 Way Plug & Play Component Speakers

£449.00

 Morel Sensus 62 2-Way 6.5 Inch Component Speaker System 120w RMS

Morel Sensus 62 2-Way 6.5 Inch Component Speaker System 120w RMS

£559.00

 Morel MPS 1.1100 Amp Monoblock Class D Mono Subwoofer Amplifier 1100w RMS

Morel MPS 1.1100 Amp Monoblock Class D Mono Subwoofer Amplifier 1100w RMS

£1,099.00

 Morel Virtus 62.2 Reference Series 6.5" 2 Way Component Speaker 120w RMS 2 Ohm

Morel Virtus 62.2 Reference Series 6.5" 2 Way Component Speaker 120w RMS 2 Ohm

£749.00

Frequently Asked Questions

Q: Are the Morel Hybrid Integra 62 speakers sold as a pair?

A: Yes. The box contains 2 x Hybrid Integra 62 coaxial speakers.

Q: How much power can the Hybrid Integra 62 handle?

A: Each speaker is rated at 100W RMS (300W max transient), with a 4 ohm impedance and 91 dB sensitivity (2.83 V/1m).

Q: How is an Integra different from a normal coaxial speaker?

A: Integra uses point-source topology: the tweeter and woofer share the same axis to create a single sound source, which improves time alignment, imaging and dispersion compared with a conventional coaxial layout.
