Morel Hybrid CDM700 3.5 Inch Midrange Speakers 100w RMS
Couldn't Load Pickup availability

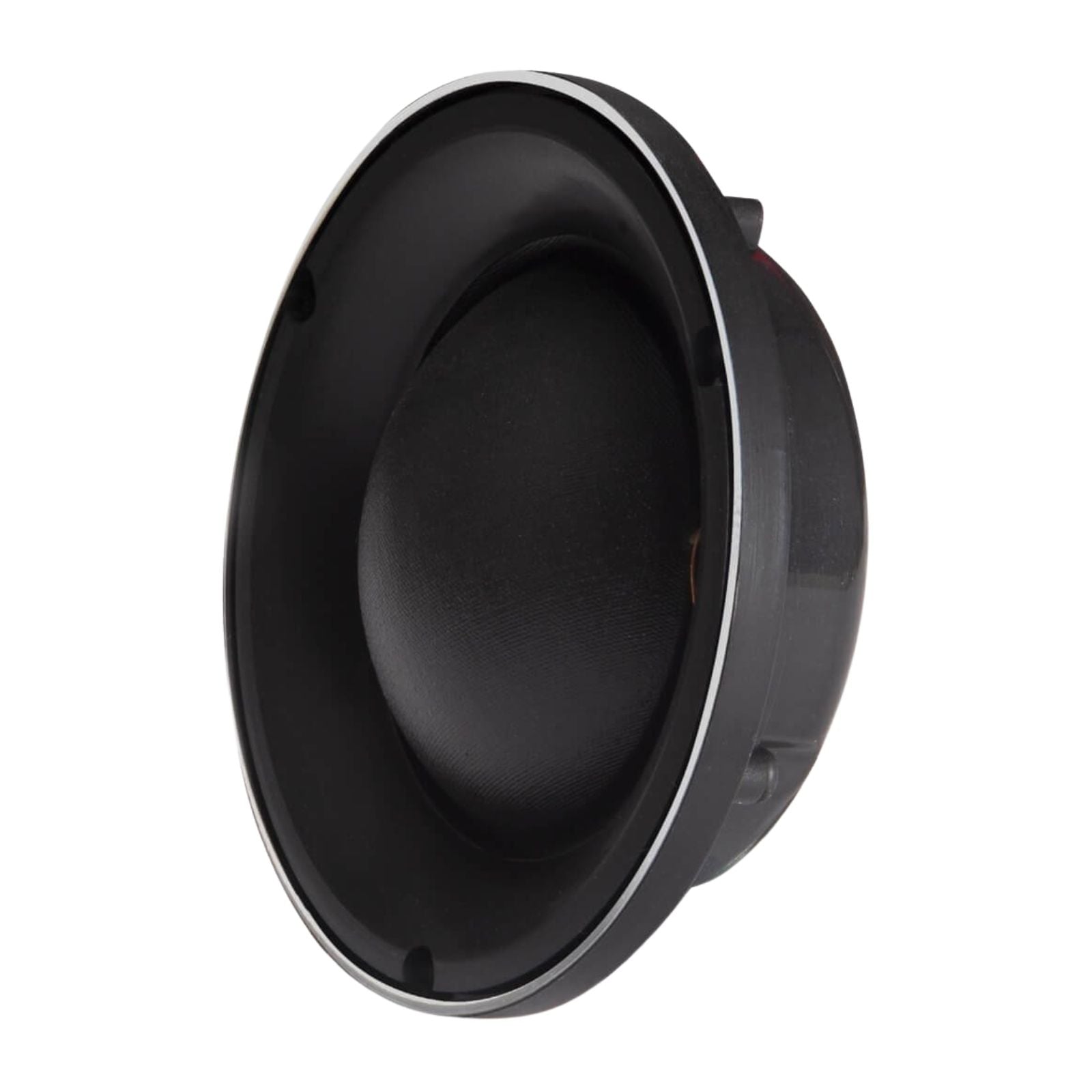

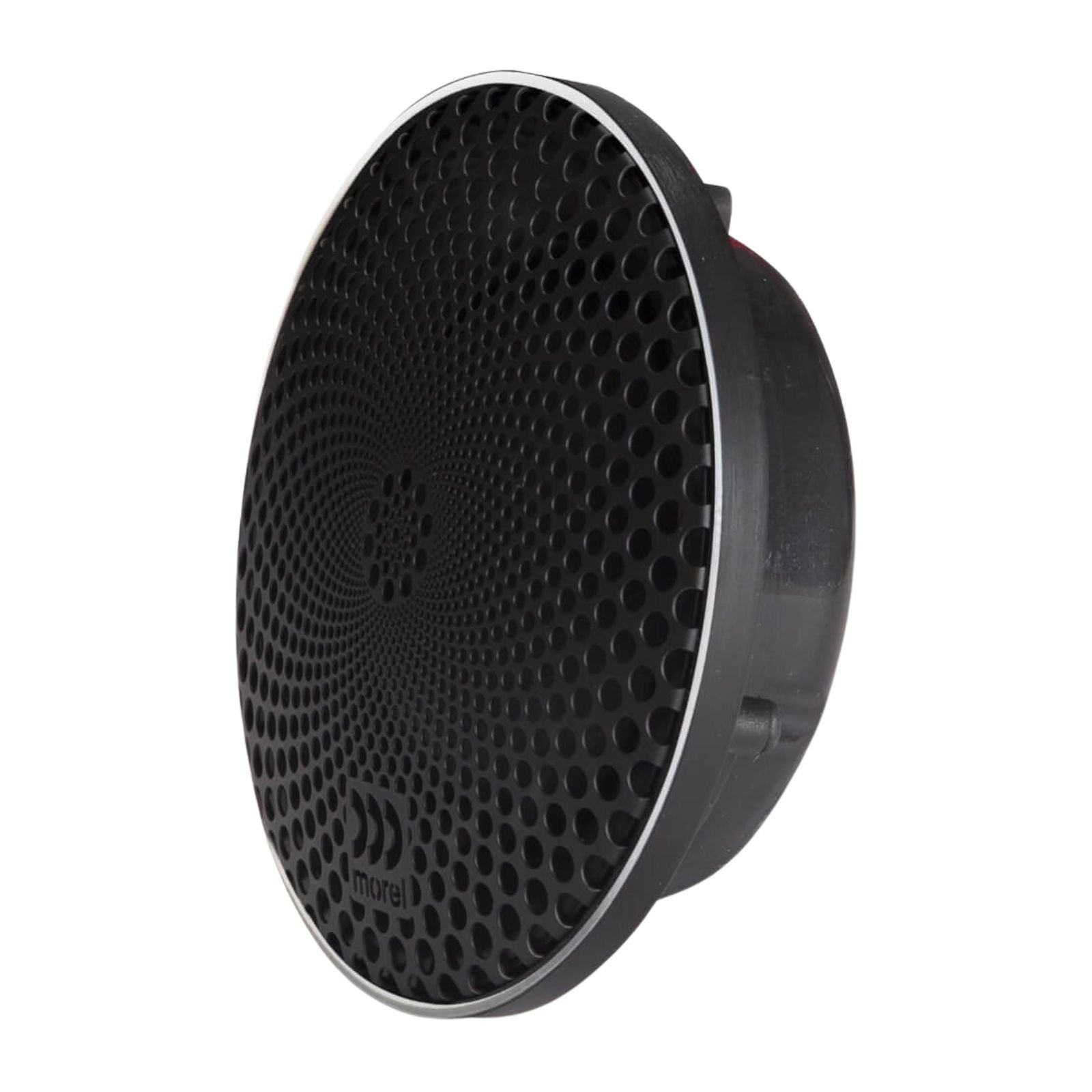

The Morel Hybrid CDM700 is a pair of 3.5 inch shallow soft dome midrange speakers rated at 100W RMS, part of Morel's Hybrid range. They feature a 2.1 inch Hexatech aluminium voice coil and a neodymium motor with Morel's C.A.R filter.
The CDM700 is the midrange driver used in the Morel Hybrid 63 3-way component system.
Key specifications
- Type: 3.5 inch midrange, very shallow design
- Dome: 2.1" coated silk soft dome
- Power handling: 100W RMS, 300W max transient (10ms)
- Impedance: 6 ohms
- Sensitivity: 90 dB (2.83V/1m)
- Frequency response: 600 - 6,000 Hz
- Mounting: 75.5mm cutout, 21mm depth
- Voice coil: 2.1" (54mm) Hexatech aluminium, aluminium former
- Quantity: pair
Morel Hybrid CDM700

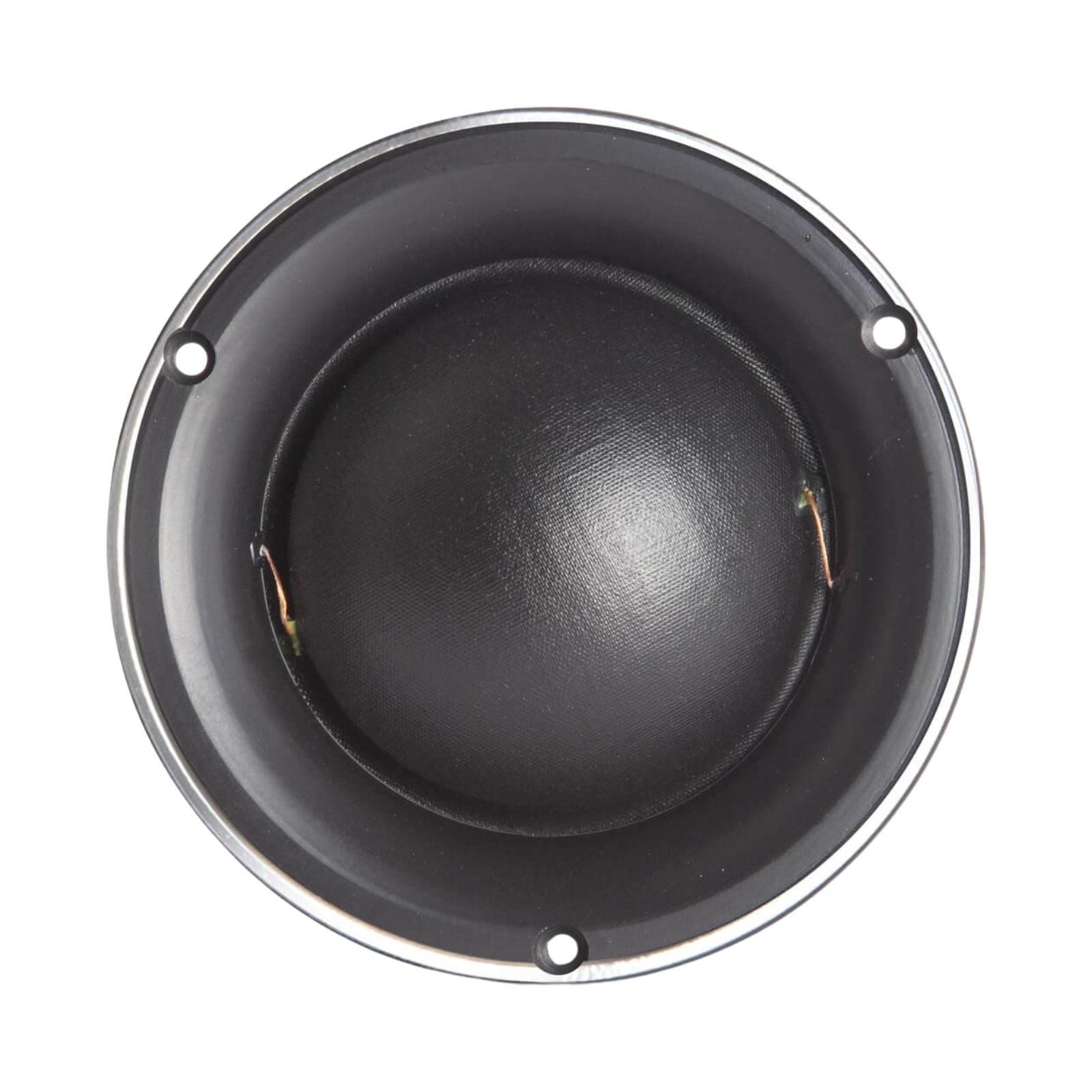

The CDM700 is a very shallow 2.1" soft dome midrange with a 2.1" low-mass aluminium Hexatech voice coil, allowing highly efficient cooling of the coil.
The neodymium motor system encapsulates the voice coil structure and forms a large venting pole with Morel's C.A.R filter to create a damped rear chamber. This produces low resonance frequency, low distortion and high power handling.

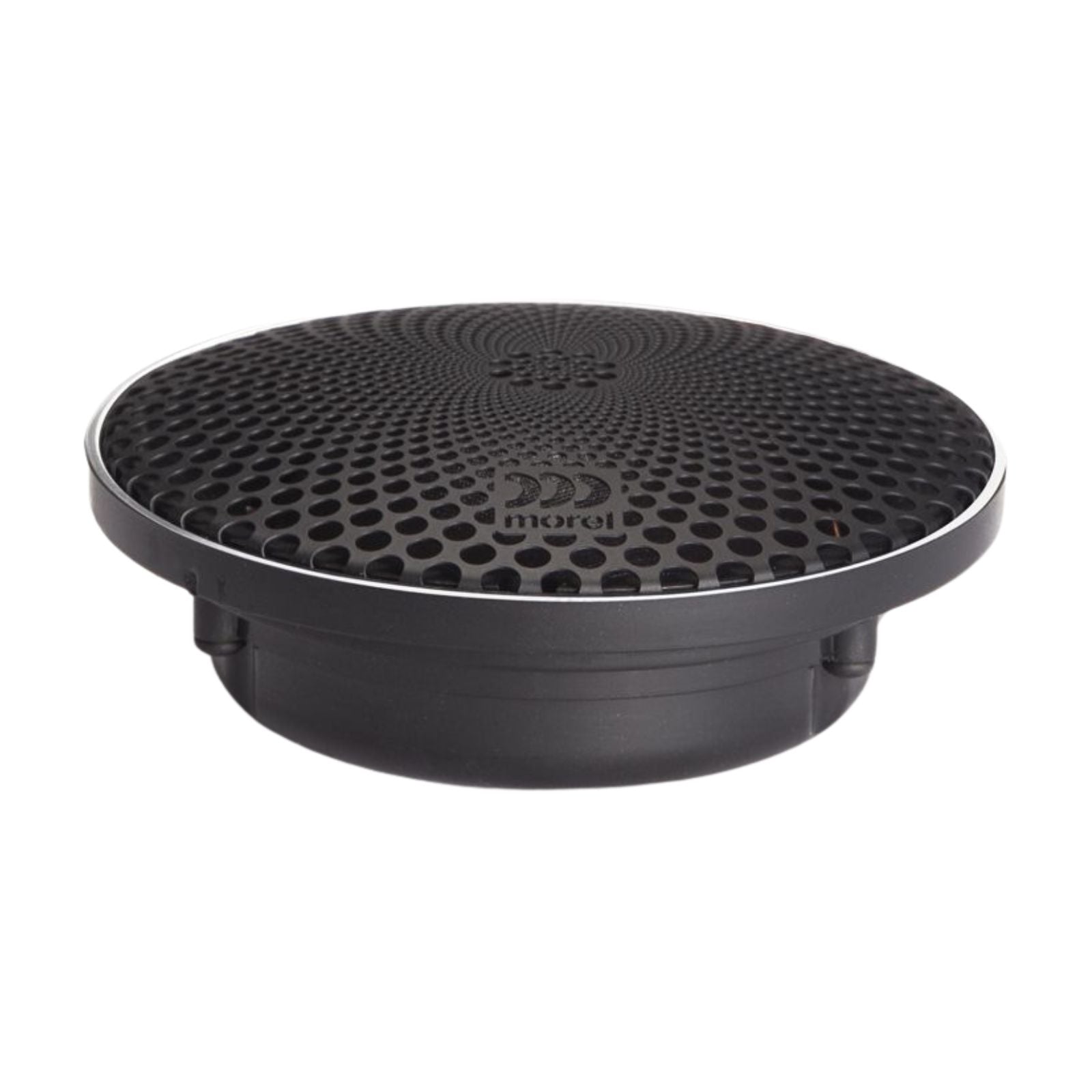

Its shallow depth means it can be fitted in a wide variety of locations within the car.
Features
C.A.R Filter
Controlled Acoustic Resistance – the C.A.R. Filter™ controls airflow within the driver to mimic the effects of a cabinet, improving power handling by 30% and giving greater control over cone movement for better bass dynamics.
Hexatech Aluminium Voice Coil
Made from 100% aluminium wire wound in a honeycomb shape, the Hexatech™ voice coil reduces air gaps in the windings, increasing efficiency by up to 20%. Its low mass contributes to the fast transient response Morel drivers are known for.
Neodymium Magnet
Neodymium is the most powerful magnet type available, allowing Morel to build compact midrange and tweeter drivers that fit in tight spaces without compromising sound quality.
Explore the full range in Morel Hybrid.
Specification
| Nominal Impedance (ohm) | 6 |
|---|---|
| Power Handling | Wrms 100 |
| Max. Trans. Pwr Handling Wrms (10ms) | 300 |
| Sensitivity | (2.83 V/1M) dB 90 |
| Frequency Response | Hz 600 - 6000 |
| FS Hz | 480 |
| Voice Coil | Diameter mm (inch) 54 (2.125) |
| Voice Coil | Former Aluminium |
| Voice Coil | Wire Hexatech™ aluminium |
| Magnet | System Neodymium Rear Vented |
| Dome Type | Coated soft dome |
| Dome Material | Silk |
| Unit Diameter mm (inch) | 88.00 (3.50) |
| Mounting Depth | mm (inch) 21.00 (0.83) |
| Mounting Cutout mm (inch) | 75.50 (2.97) |
| Net Weight Kg (lb) | 0.25 (0.55) |
What's Included

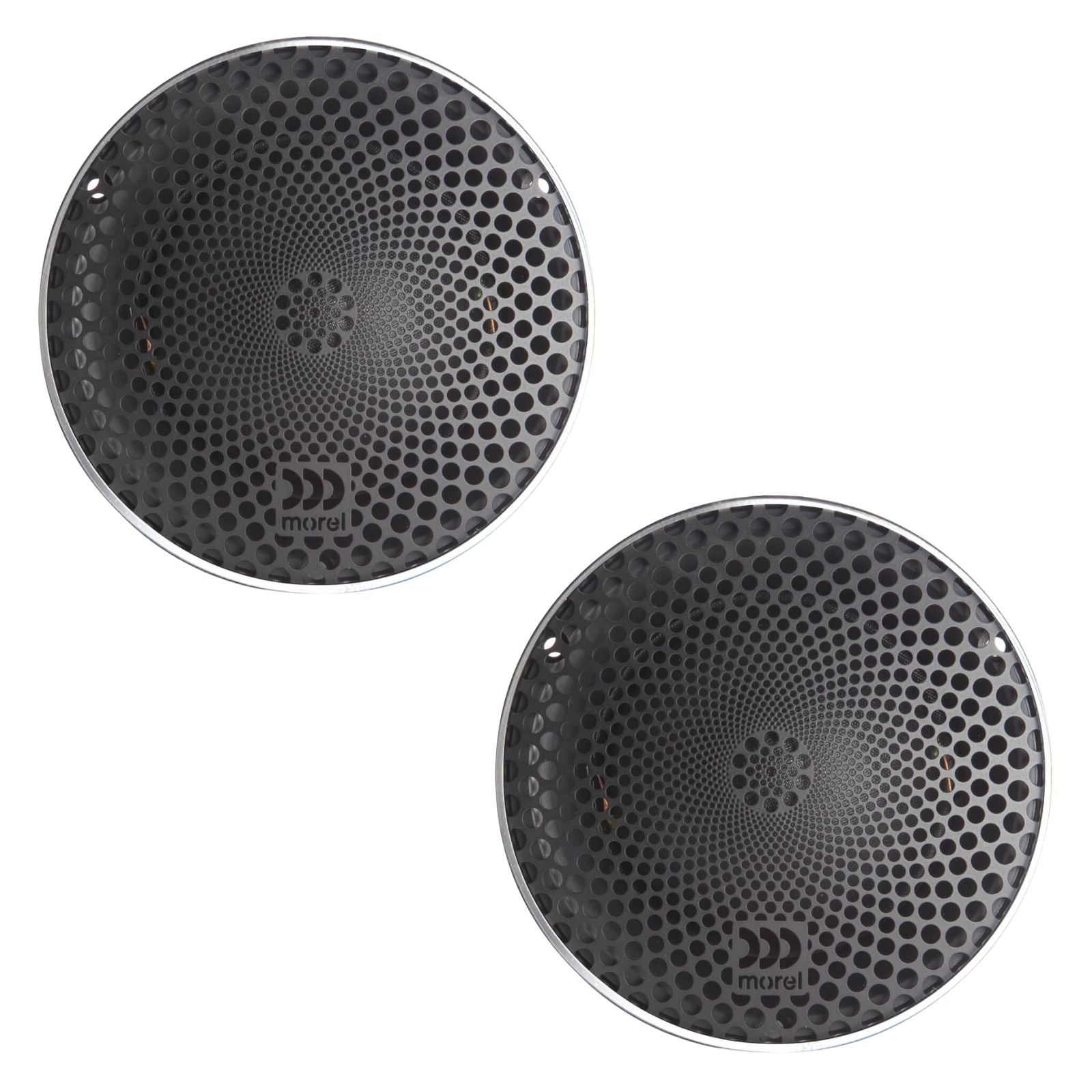

- 2 x Morel Hybrid CDM700
Morel
About the Morel Hybrid CDM700
From our tech experts at CEN
The Morel Hybrid CDM700 is a pair of very shallow 3.5 inch soft dome midrange speakers, with 2.1 inch coated silk domes and Hexatech aluminium voice coils. They are rated at 100 W RMS and 300 W transient at 6 ohms, with 90 dB sensitivity and a 600 Hz to 6 kHz response.
Who it suits
Three-way builds where the midrange goes in the dash or a pillar with little depth, and owners of the Hybrid 63 system, which uses this driver. They need a 75.5 mm cut-out and only 21 mm of depth.
Our tech experts advise
With a 600 Hz lower limit they need band-pass filtering from a DSP or three-way crossover, and a woofer that reaches up to meet them. Plan the 6 ohm load into your amplifier channels. Get in touch.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Morel
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Where can the Morel CDM700 be installed?
A: Its very shallow design and acoustic attributes mean it can be installed in various locations in the car.
Q: Is the CDM700 sold as a pair?
A: Yes. The box contains 2 x Morel Hybrid CDM700 midranges.
Q: What voice coil does the CDM700 use?
A: A 2.1 inch (54mm) extremely low mass Hexatech aluminium voice coil, which allows very efficient cooling of the coil.
Q: How much power can the Morel CDM700 handle?
A: Each CDM700 is rated at 100W RMS with 300W maximum transient power handling (10ms), at 6 ohms nominal impedance and 90 dB sensitivity.
Q: What size hole does the CDM700 need?
A: The mounting cutout is 75.5mm and the mounting depth is 21mm, with an 88mm unit diameter.
