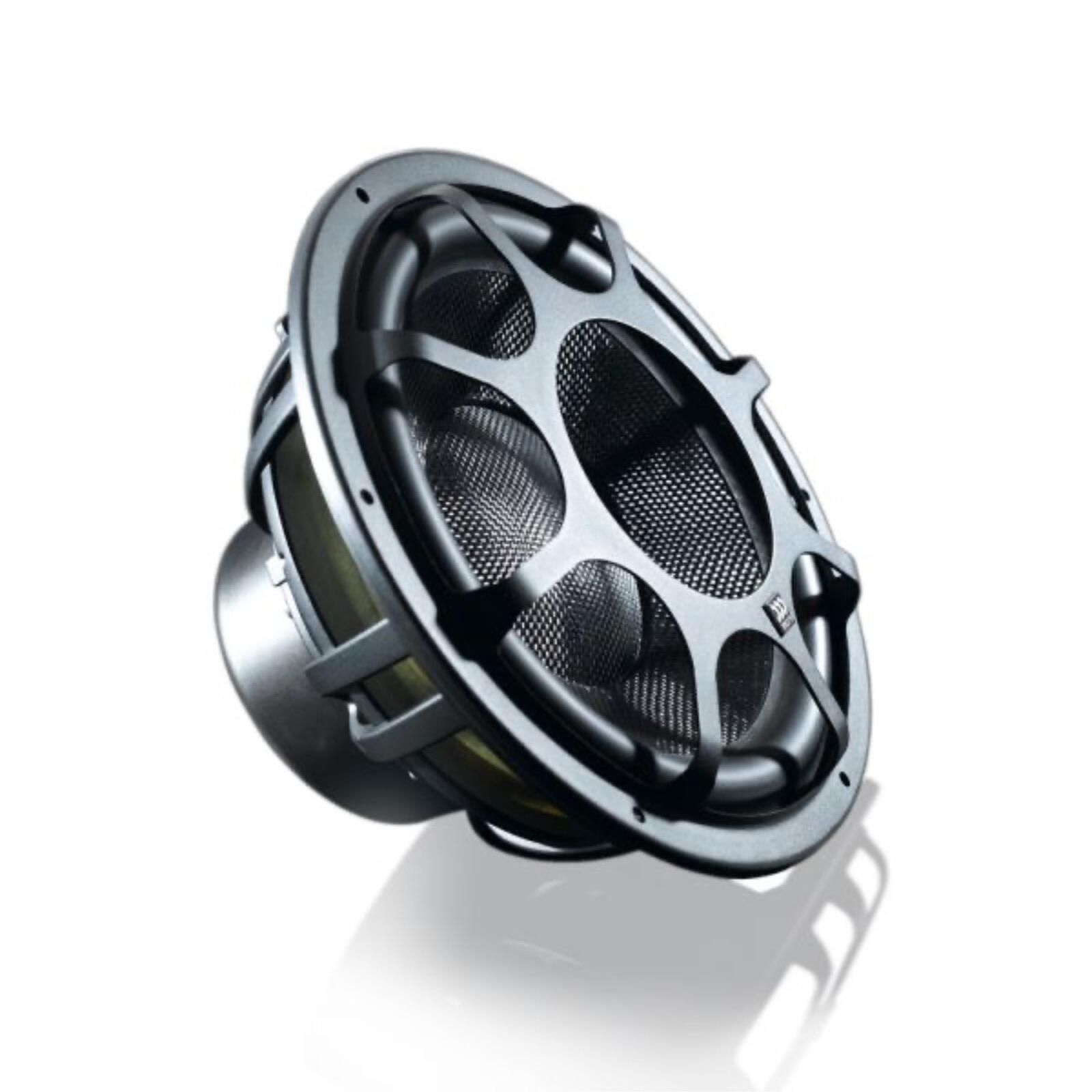

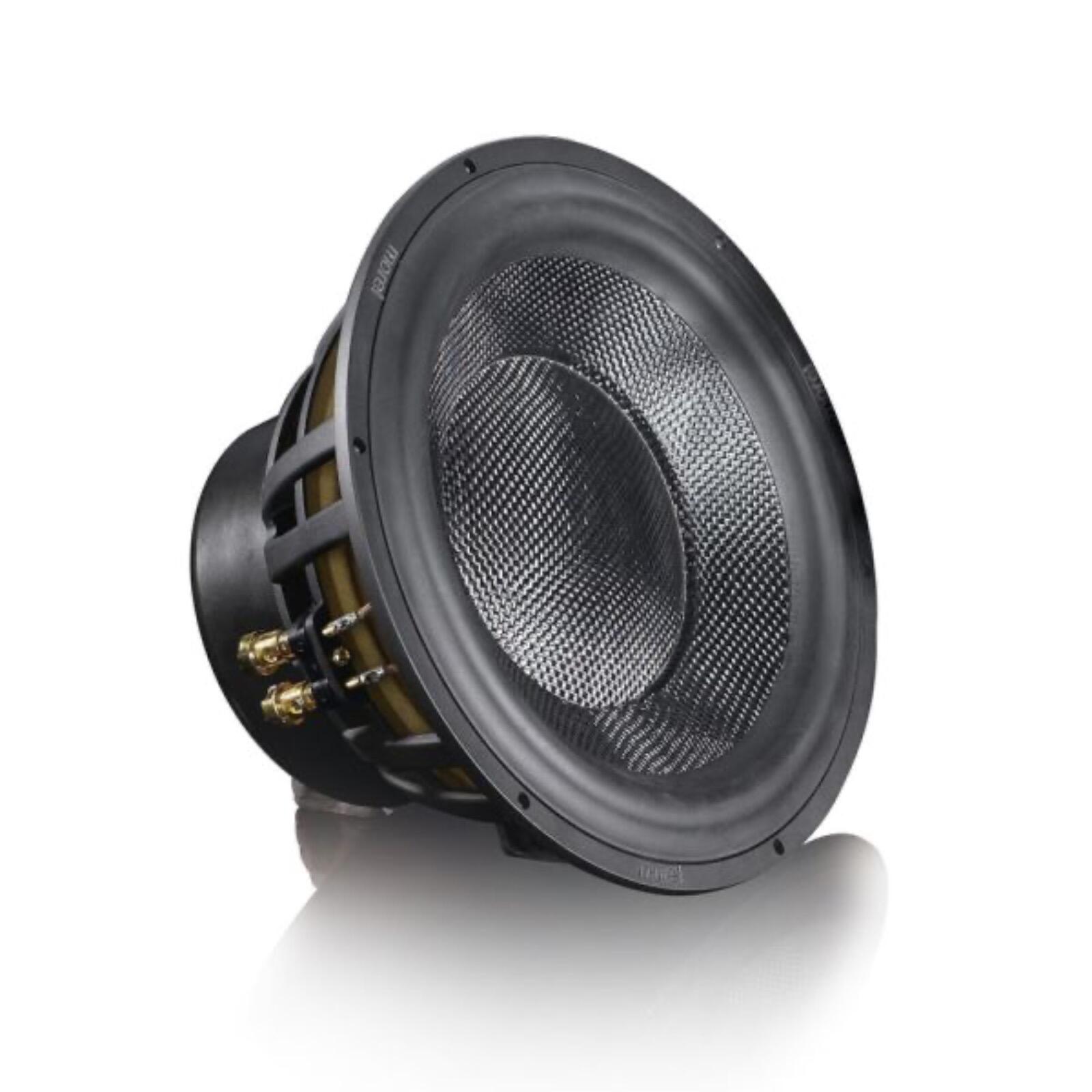

The Morel Ultimo TI 124 is a 12 inch (300 mm) single 4 ohm car subwoofer from Morel's flagship Ultimo Titanium range, rated at 1000 W RMS and built around a titanium voice coil former, a 5.1 inch Hexatech External Voice Coil and a copper shorting ring.
This listing is the 4 ohm version. The Ultimo TI 12 inch is also available as the 2 ohm Ultimo TI 122.
Key specifications
- Size: 12 inch (300 mm)
- Impedance: single 4 ohm voice coil
- Power handling: 1000 W RMS (3000 W peak)
- Sensitivity (1 W / 1 m): 86.3 dB
- Frequency response: 10 - 900 Hz
- Dimensions: 30.5 x 30.5 x 14.7 cm
- Mounting depth: 14.1 cm
- Mounting hole diameter: 27 cm
- Grille included
Ultimo TI 12 inch (300 mm) Subwoofer — 1000 W at 4 Ohm
The Ultimo Titanium is Morel's current flagship subwoofer series, building on the musicality and high power handling the original Ultimo range was known for.
At the heart of the design is Morel's titanium voice coil former — exceptionally stiff and lightweight, it improves driver dynamics for quicker transient response, lower distortion and increased power handling. A copper shorting ring reduces distortion further, producing a flatter impedance response — particularly important in subwoofers where distortion levels are inherently high.
The TI 124 retains the core technology from the Ultimo series: a 5.1 inch Hexatech™ External Voice Coil (EVC™), the DMM™ (Dual Magnet Motor) design achieving over 90% efficiency, and PFS™ (Progression Field Symmetry) spider/surround technology that stiffens the spider as excursion increases — maintaining linearity and minimising distortion throughout the bass range.
Continued parameter optimisation means the Ultimo Titanium works efficiently in smaller enclosures than its predecessors, while delivering higher resolution bass reproduction.
Explore the full range in Morel Subwoofers.
Specification
| Impedance | (Ohms) 4 |
|---|---|
| Sensitivity | (dB @ 1W/1m) 86.3 |
| Frequency Response | (Hz) 10-900 |
| Mounting Depth | (cm) 14.1 |
More specs
| |
What's Included
- ULTIMO TI 12" (300 MM) SUBWOOFER 1000W @ 4 OHM
Morel
About the Morel ULTIMO TI 124
From our tech experts at CEN
The Morel Ultimo TI 124 is a 12 inch (300 mm) single 4 ohm car subwoofer from Morel's flagship Ultimo Titanium range, rated at 1000 W RMS (3000 W peak). It features a titanium voice coil former, a 5.1 inch Hexatech External Voice Coil, a copper shorting ring, and Morel's DMM dual magnet motor. A grille is included in the box.
Who it suits
This subwoofer suits experienced car audio builders who want high-resolution, high-power bass and are running a dedicated 4 ohm mono amplifier. It is designed for custom sealed or ported enclosures. If your setup is wired for 2 ohms, consider the Morel Ultimo TI 122 instead.
Our tech experts advise
The mounting depth is 14.1 cm and the cutout diameter is 27 cm, so measure your enclosure carefully before ordering. Pair it with an amplifier rated at 1000 W RMS at 4 ohms for best performance. The design works efficiently in smaller enclosures than earlier Ultimo models. Fitting is priced per vehicle — see our car audio installation in Nottingham page for details.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Morel Subwoofers
More options from the same range, in stock and ready to go

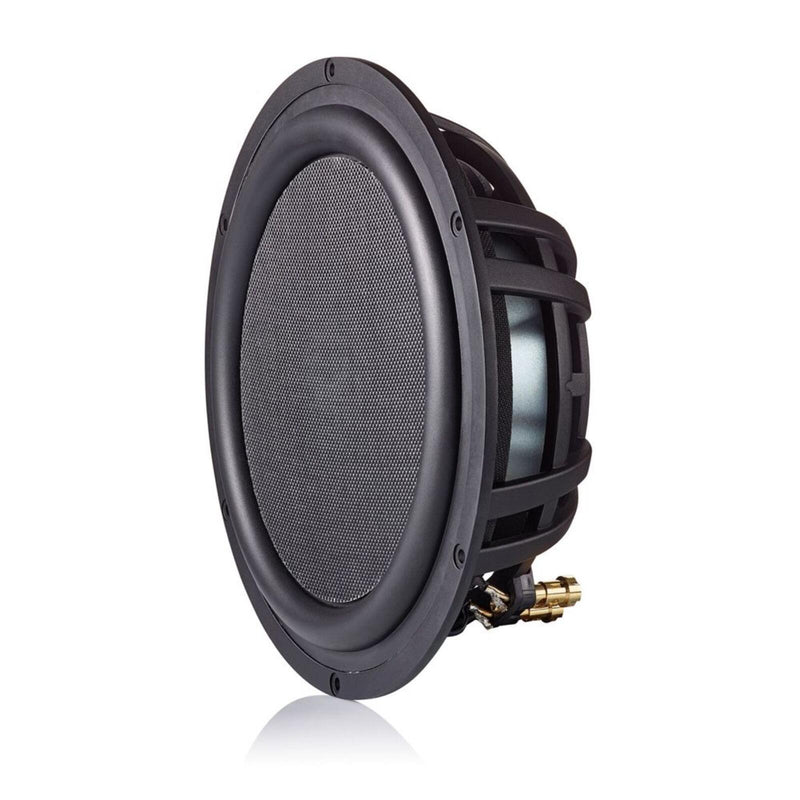

Morel Ultimo PS 104D 10inch Subwoofer 4 Ohm Voice Coils 700w
£849.00
View product

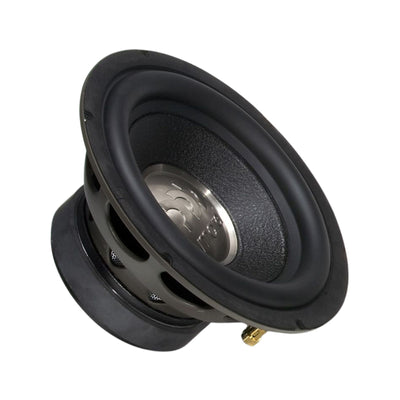

Morel Primo 804 8 Inch Single 4 Ohm Subwoofer 250w RMS
£149.00£349.00
Morel Primo Slimline PSL10AE 10 Inch Sub Active Enclosure Subwoofer 350w RMS
£599.00

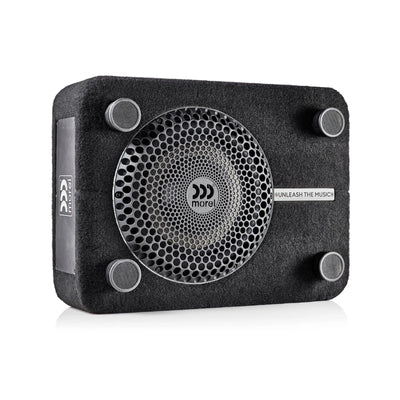

Morel Primo Slimline PSL8AE 8 Inch Sub Active Enclosure Subwoofer 350w RMS
£549.00
Morel Ultimo PS 124D 12inch Subwoofer 4 Ohm Voice Coils 700w
£899.00
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Is the Morel Ultimo TI 124 a single or dual voice coil subwoofer?
A: It has a single 4 ohm voice coil.
Q: How much power does the Ultimo TI 124 handle?
A: It is rated at 1000 W RMS and 3000 W peak.
Q: What mounting depth does the Ultimo TI 124 need?
A: Mounting depth is 14.1 cm with a mounting hole diameter of 27 cm. A grille is included.
