Morel Elate Carbon Pro 62 2 Way Component Speaker System
Couldn't Load Pickup availability

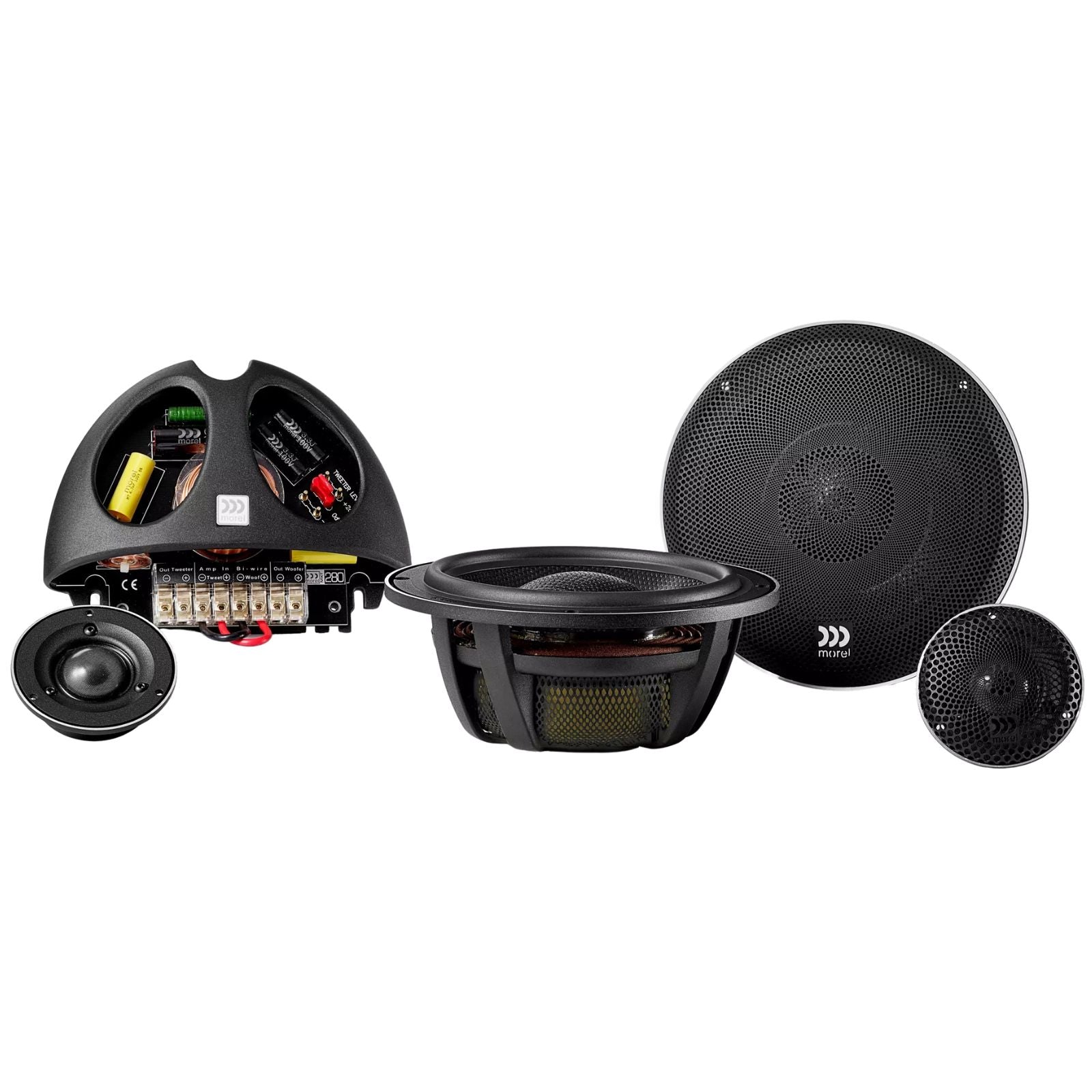

The Morel Elate Carbon Pro 62 is a 6.5-inch 2-way component speaker system from Morel's high-end Elate Carbon Pro range, featuring carbon fibre and Rohacell triple-layer cone woofers paired with the Elate Alto 28mm silk dome tweeter and MXT280C passive crossovers with bi-wire and bi-amp support.
For the standard Elate Carbon version with the compact MT450 tweeter, see the Elate Carbon 62.
Key specifications
- Configuration: 2-way component, passive with MXT280C crossovers

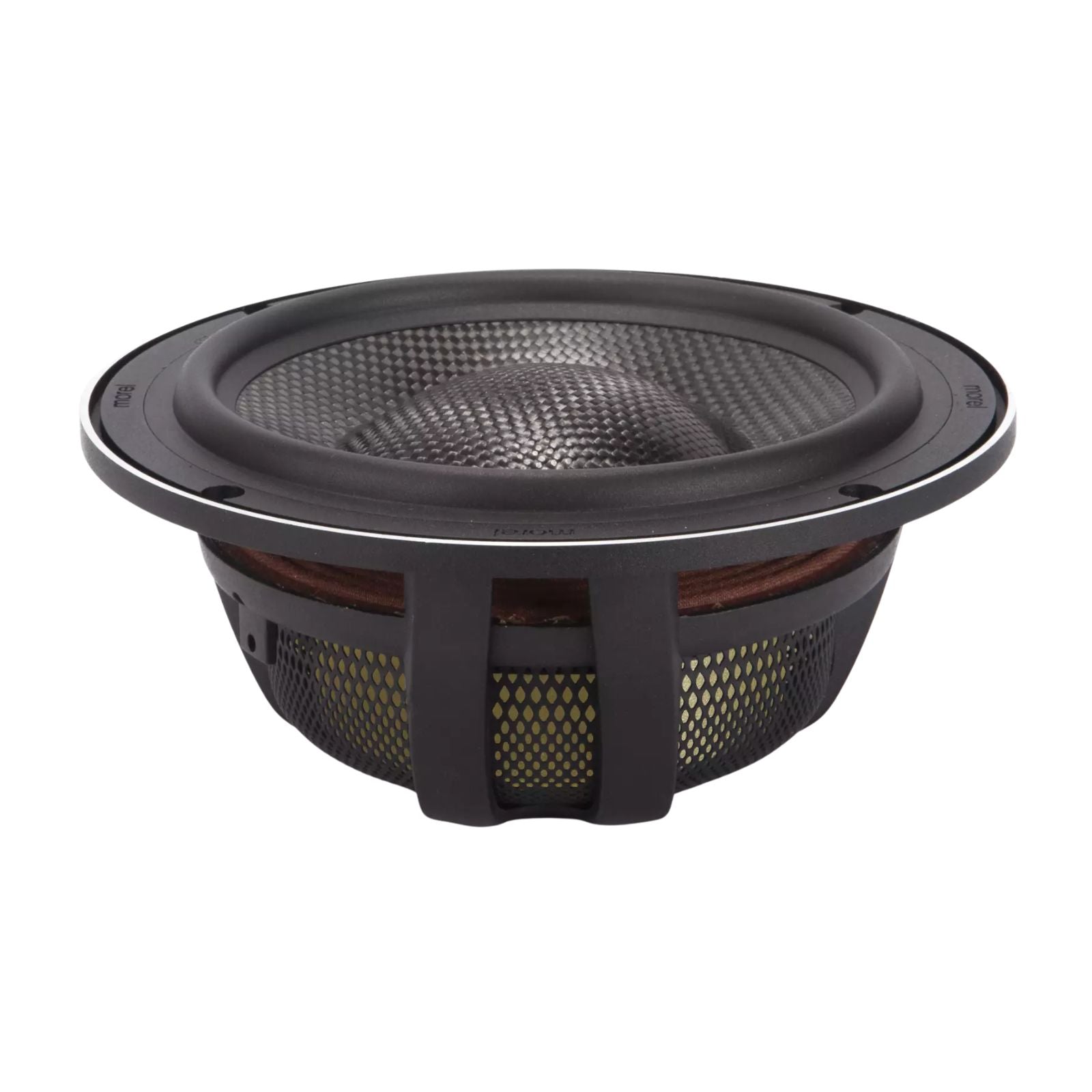

- Woofer: MW6 165mm (6.5") unit, 180W RMS, 1000W max transient, 87 dB, 30 – 4000 Hz
- Woofer cone: carbon fibre and Rohacell triple-layer cone (TLC)
- Woofer voice coil: 75mm (3") Hexatech aluminium, titanium former, 4 ohms
- Tweeter: Elate Alto 28mm Acuflex silk dome, 6 ohms, 220W RMS, 91 dB, 1400 – 25,000 Hz
- Crossover: W 2500Hz, T 2500Hz, 12dB/oct; tweeter +/- 2dB, bi-wire / bi-amp
- Grilles: included
Carbon and Rohacell Cones
The woofers use carbon fibre and Rohacell triple-layer cones. Detail stays clean at extreme volume, and power handling is high across the full frequency range.
The Elate Alto Tweeter
The cavity-back Alto tweeter leads the Pro series, with its design derived from the Supremo Piccolo, Morel's flagship tweeter. It delivers high resolution and high power handling together.
DMM and EVC Motor Technology
Morel's DMM double-magnet motor generates more energy than a single-magnet design, raising efficiency and dynamic range while shielding stray magnetic flux. The large-diameter EVC voice coils focus all available magnetic energy on the coil, keeping the design compact, efficient and powerful.
Explore the full range in Morel Elate Carbon.
Specification
| Nominal Impedance (Ohm) | 4 |
|---|---|
| Power Handling | Wrms 180 |
| Max Transient Power Handling Wrms | 1000 |
| Sensitivity | (2.83 V/1M) dB 87 |
| Frequency Response | 30 - 4000 |
| Resonant Frequency Fs Hz | 45 |
| Voice Coil | Diameter mm (inch) 75 (3) |
| Voice Coil | Height mm (inch) 14.50 (0.57) |
| Voice Coil | Type/Former Titanium |
| Voil Coil Wire | Hexatech Aluminium |
| DC Resistance (ohm) | 3.6 |
| Magnet | System Neodymium |
| Cone | Type Triple Layer Cone (TLC) |
| Cone | Material Carbon Fibre Composite |
| Unit Diameter mm (inch) | 165 (6.5) |
| Net Weight Kg (lb) | 1.18 (2.60) |
| Nominal Impedance (Ohm) | 6 |
| Power Handling | Wrms 220 |
| Max Transient Power Handling Wrms | 1000 |
| Sensitivity | (2.83 V/1M) dB 91 |
| Frequency Response | 1400 - 25000 |
| Resonant Frequency Fs Hz | 900 |
| Voice Coil | Diameter mm (inch) 28 (1.125) |
| Voice Coil | Former Aluminium |
| Voil Coil Wire | Hexatech Aluminium |
| DC Resistance (ohm) | 5.2 |
| Magnet | System Neodymium Rear Chamber Underhung |
| Dome Type | Acuflex Handcoated Soft Dome |
| Dome Material | Silk |
| Net Weight Kg (lb) | 0.35 (0.77) |
| Crossover Point | W: 2500Hz / 12dB - T: 2500Hz / 12dB |
| Crossover Controls | Tweeter +/- 2dB |
| Wiring Options | Bi Wire / Bi Amp |
What's Included
- x2 - Elate Carbon Pro 6.5" Woofers
- x2 - Elate Carbon Alto 28mm Tweeters
- x2 - MXT280C 2-Way Elate Crossovers
- Grilles Included
Morel
About the Morel ELATE CARBON PRO 62
From our tech experts at CEN
The Morel Elate Carbon Pro 62 is a 6.5-inch 2-way component speaker system from Morel's Elate Carbon Pro range, rated at 180W RMS with 1000W max transient power handling. The MW6 woofer uses carbon fibre and Rohacell triple-layer cones, paired with the Elate Alto 28mm Acuflex silk dome tweeter and MXT280C passive crossovers with bi-wire and bi-amp support.
Who it suits
These suit enthusiasts building a high-power, high-resolution car audio system where an external amplifier does the work. For a less demanding build, the Morel Hybrid 62 is worth considering, or for an active setup the Elate Carbon Pro 62A bypasses passive crossovers entirely.
Our tech experts advise
The 75mm Hexatech aluminium voice coil and 87dB sensitivity mean these benefit from a dedicated amplifier rather than head unit power alone. Tweeter output can be trimmed ±2dB at the MXT280C crossover to suit your cabin acoustics. Fitting is priced per vehicle; see our Nottingham car audio installation page for details.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Morel Elate Carbon
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: What is the difference between the Elate Carbon Pro 62 and the standard Elate Carbon 62?
A: The Pro version uses the cavity-back Elate Alto tweeter, whose design comes from Morel's flagship Supremo Piccolo and which handles 220W RMS. The standard Elate Carbon systems use the compact MT450 tweeter.
Q: Does the Elate Carbon Pro 62 come with crossovers?
A: Yes. It includes two MXT280C 2-way passive crossovers (W 2500Hz, T 2500Hz, 12dB per octave; tweeter +/- 2dB) that support bi-wiring and bi-amping.
Q: What's in the box with the Elate Carbon Pro 62?
A: 2 x Elate Carbon Pro 6.5 inch Woofers, 2 x Elate Carbon Alto 28mm Tweeters, 2 x MXT280C 2-Way Elate Crossovers and grilles.
