Morel Elate Carbon 62 2 Way Component Speaker System
Couldn't Load Pickup availability

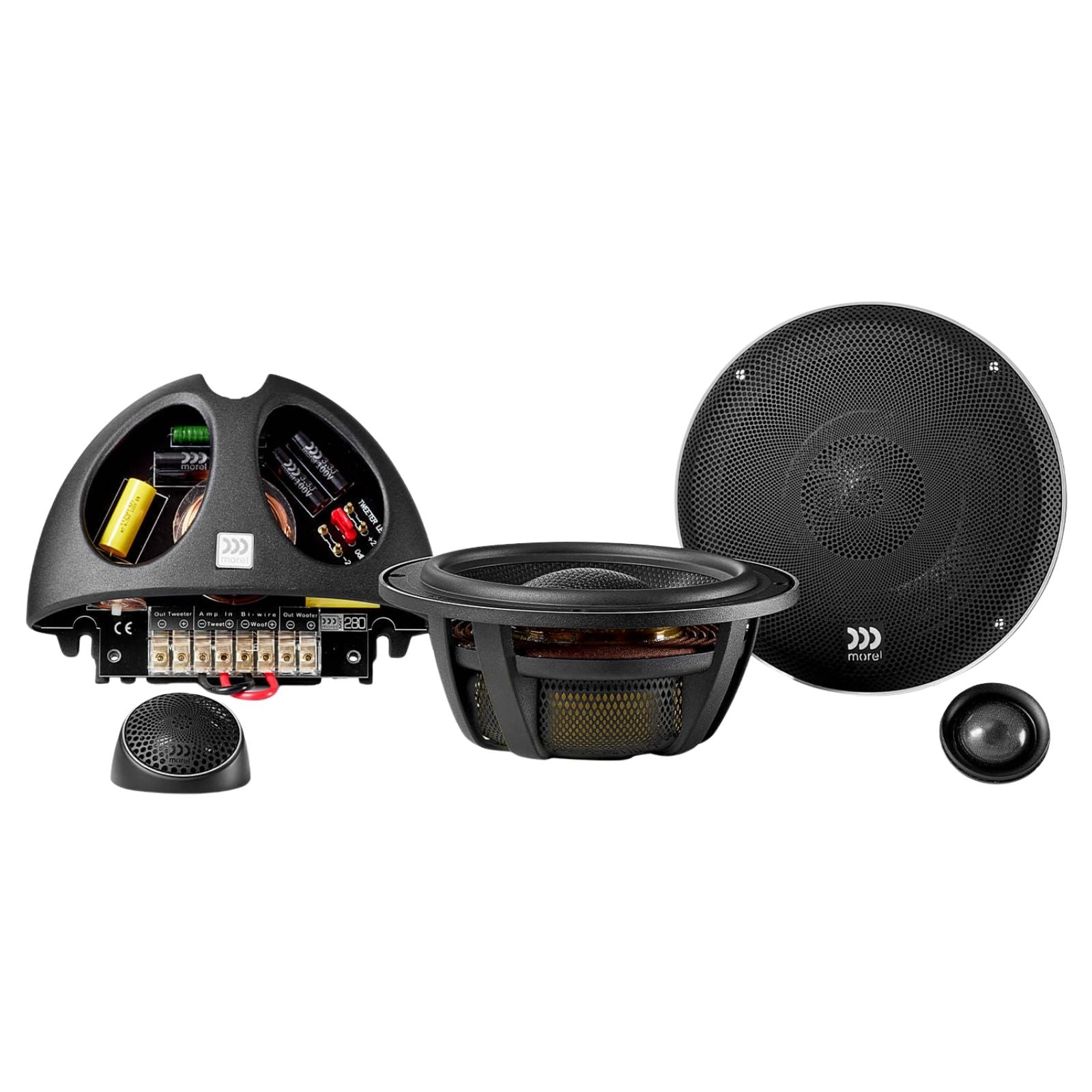

The Morel Elate Carbon 62 is a 6.5 inch 2-way passive component speaker system, supplied with MXT280C crossovers. It features MW6 triple-layer carbon fibre composite woofers and MT450 28mm Acuflex silk dome tweeters, and forms part of Morel's Elate Carbon range.
This is the passive version, supplied with MXT280C crossovers. For an active system with a DSP, see the Elate Carbon 62A.
Key specifications
- Configuration: 2-way component, passive with MXT280C crossovers
- Woofer: MW6 165mm (6.5"), 180W RMS, 1000W max transient, 87 dB, 30–4000 Hz
- Tweeter: MT450 28mm Acuflex silk dome, 6 ohm, 130W RMS, 91 dB
- Woofer voice coil: 75mm (3"), titanium former
- Woofer cone: triple-layer carbon fibre composite
- Woofer impedance: 4 ohms
- Crossover: 2500 Hz, 12 dB/oct, tweeter +/- 2 dB, bi-wire/bi-amp capable
Elate Carbon 62: 6.5 inch 2-way component system
The Elate Carbon range shares most of its high-end componentry with Morel's Pro siblings whilst taking a more practical approach. These 2-way systems are designed for listeners who want top-tier performance but prefer a discreet tweeter. The compact MT450 fits most factory tweeter locations or space-limited areas using the supplied mounts.
Small as it is, the MT450's Acuflex coated silk dome, open cavity design and dual neodymium magnet motor deliver strong detail and a smooth, flat frequency response.
Each woofer in the Elate Carbon range features a Klippel optimised EVC motor with a large 75mm (3 inch) voice coil and a carbon fibre/Rohacell sandwich cone, giving ultra-low distortion and high power handling.
Explore the full range in Morel Elate Carbon.
Specification
| Nominal Impedance (Ohm) | 6 |
|---|---|
| Power Handling | Wrms 130 |
| Max Transient Power Handling Wrms | 350 |
| Sensitivity | (2.83 V/1M) dB 91 |
| Frequency Response | 1400 - 25000 |
| Resonant Frequency Fs Hz | 1000 |
| Voice Coil | Diameter mm (inch) 28 (1.125) |
| Voice Coil | Former Aluminium |
| Voice Coil | Wire Hexatech Aluminium |
| DC Resistance (ohm) | 5.2 |
| Magnet | System Neodymium Rear Vented |
| Dome Type | Acuflex Handcoated Soft Dome |
| Dome Material | Silk |
| Unit Diameter mm (inch) | 43.00 (1.69) |
| Net Weight Kg (lb) | 0.07 (0.15) |
| Nominal Impedance (Ohm) | 4 |
| Power Handling | Wrms 180 |
| Max Transient Power Handling Wrms | 1000 |
| Sensitivity | (2.83 V/1M) dB 87 |
| Frequency Response | 30 - 4000 |
| Resonant Frequency Fs Hz | 45 |
| Voice Coil | Diameter mm (inch) 75 (3) |
| Voice Coil | Height mm (inch) 14.50 (0.57) |
| Voice Coil | Type/Former Titanium |
| Voice Coil | Wire Hexatech Aluminium |
| DC Resistance (ohm) | 3.6 |
| Magnet | System Neodymium |
| Cone | Type Triple Layer Cone (TLC) |
| Cone | Material Carbon Fibre Composite |
| Unit Diameter mm (inch) | 165 (6.5) |
| Net Weight Kg (lb) | 1.18 (2.60) |
| Crossover Point | W: 2500Hz / 12dB - T: 2500Hz / 12dB |
| Crossover Controls | Tweeter +/- 2dB |
| Wiring Options | Bi Wire / Bi Amp |
What's Included
- 2 x MT450 Tweeters
- 2 x MW6 Woofers
- 2 x MXT280C Crossover
Morel
About the Morel ELATE CARBON 62
From our tech experts at CEN
The Morel Elate Carbon 62 is a 6.5 inch 2-way passive component speaker system. It pairs MW6 triple-layer carbon fibre composite woofers (180W RMS, 75mm titanium voice coil) with MT450 28mm Acuflex silk dome tweeters, and includes MXT280C crossovers set at 2500 Hz with ±2 dB tweeter level adjustment.
Who it suits
Well suited to enthusiasts seeking high-end passive component speakers with a discreet tweeter. Those who want an active system with DSP control should consider the Morel Elate Carbon Pro 62A.
Our tech experts advise
Check the mounting depth in your vehicle before fitting, as the MW6 requires adequate clearance. At 87 dB sensitivity, a dedicated amplifier is needed to make the most of the 180W RMS rating. The MXT280C crossover supports bi-wiring and bi-amping for future upgrades. Installation is priced per vehicle; see our car audio installation page.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Morel Elate Carbon
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: What is included with the Morel Elate Carbon 62?
A: The set includes two MT450 tweeters, two MW6 woofers and two MXT280C crossovers.
Q: Is the Elate Carbon 62 passive or active?
A: It is passive and comes with MXT280C crossovers, which support bi-wiring and bi-amping. The Elate Carbon 62A is the active version without crossovers.
Q: How much power can the Elate Carbon 62 handle?
A: The MW6 woofers handle 180W RMS (1000W max transient); the MT450 tweeters handle 130W RMS (350W max transient).
