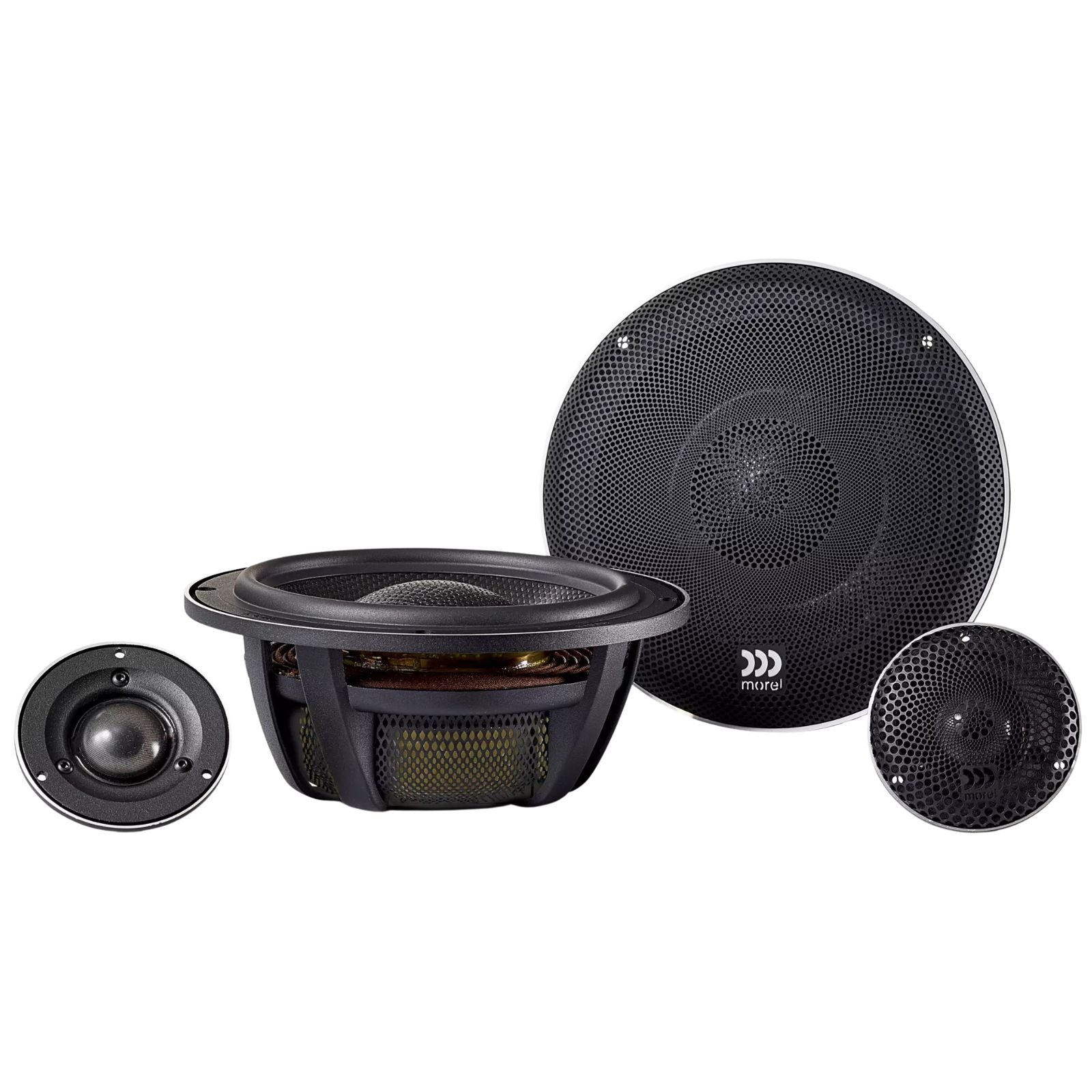

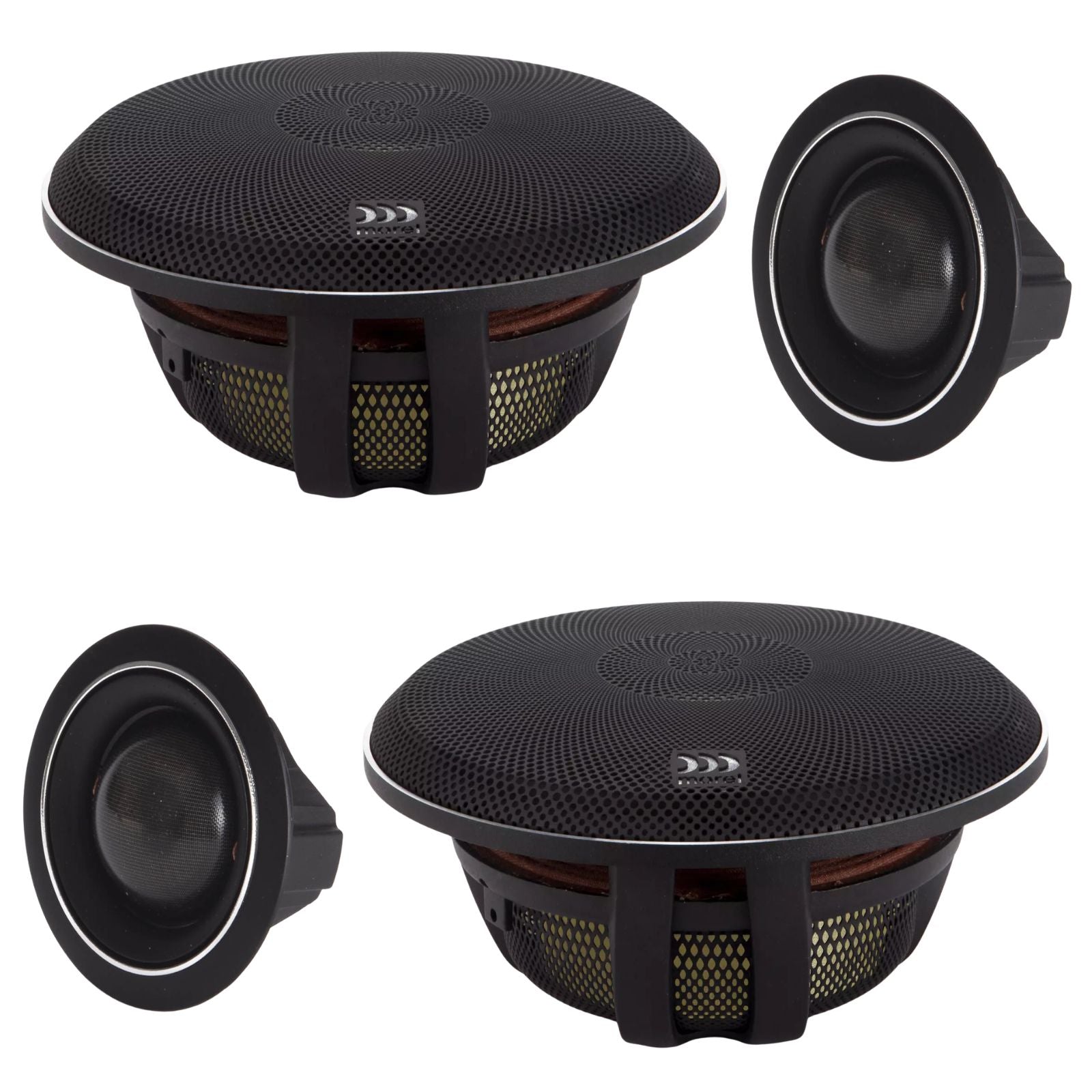

Morel Elate Carbon 62A 2 Way Component Speaker System

The Morel Elate Carbon 62A is a 6.5-inch 2-way active component speaker system from Morel's Elate Carbon range, featuring MW6 carbon fibre woofers and MT450 compact silk dome tweeters. It is supplied without passive crossovers for use with a DSP or active crossover setup.

The 62A is the active version of the Elate Carbon 62: it is supplied without passive crossovers, so the drivers are run from a DSP or active crossover with their own amplifier channels.

Key specifications

• Configuration: 2-way component, active (no passive crossovers)
• Woofer: MW6 165mm (6.5"), 180W RMS, 1000W max transient, 87 dB, 30–4000 Hz
• Tweeter: MT450 28mm Acuflex silk dome, 6 ohm, 130W RMS, 91 dB
• Woofer voice coil: 75mm (3"), titanium former
• Woofer cone: triple-layer carbon fibre composite
• Woofer impedance: 4 ohms

Elate Carbon 62A: 6.5-inch active 2-way component system

The Elate Carbon range shares most of its high-end componentry with Morel's Pro siblings whilst taking a more practical approach. These 2-way systems are designed for listeners who want top-level performance with a discreet tweeter. The compact MT450 fits most factory tweeter locations or space-limited areas using the supplied mounts.

Despite its small size, the MT450 uses an Acuflex-coated silk dome, open cavity design and dual neodymium magnet motor to deliver fine detail and a smooth, flat frequency response.

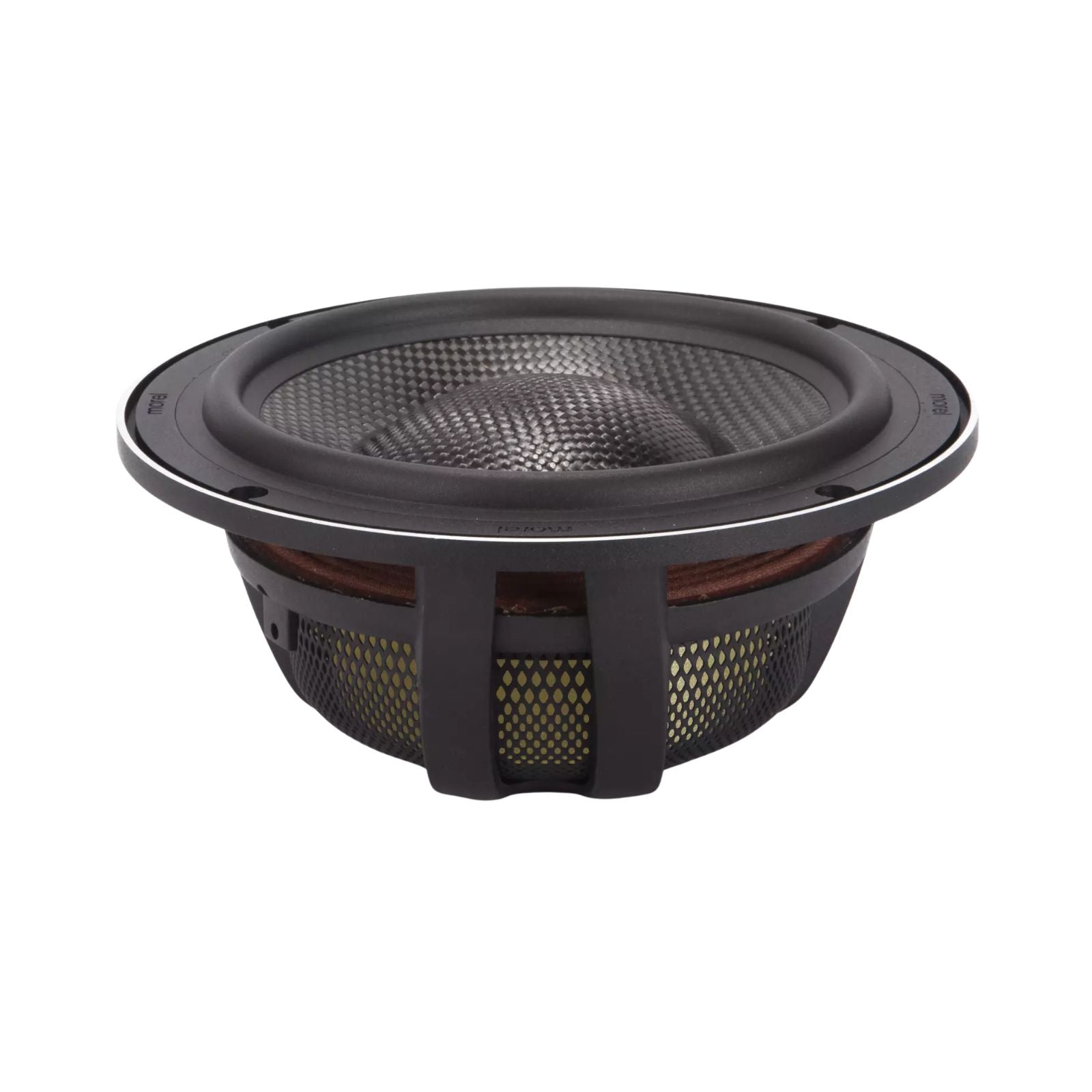

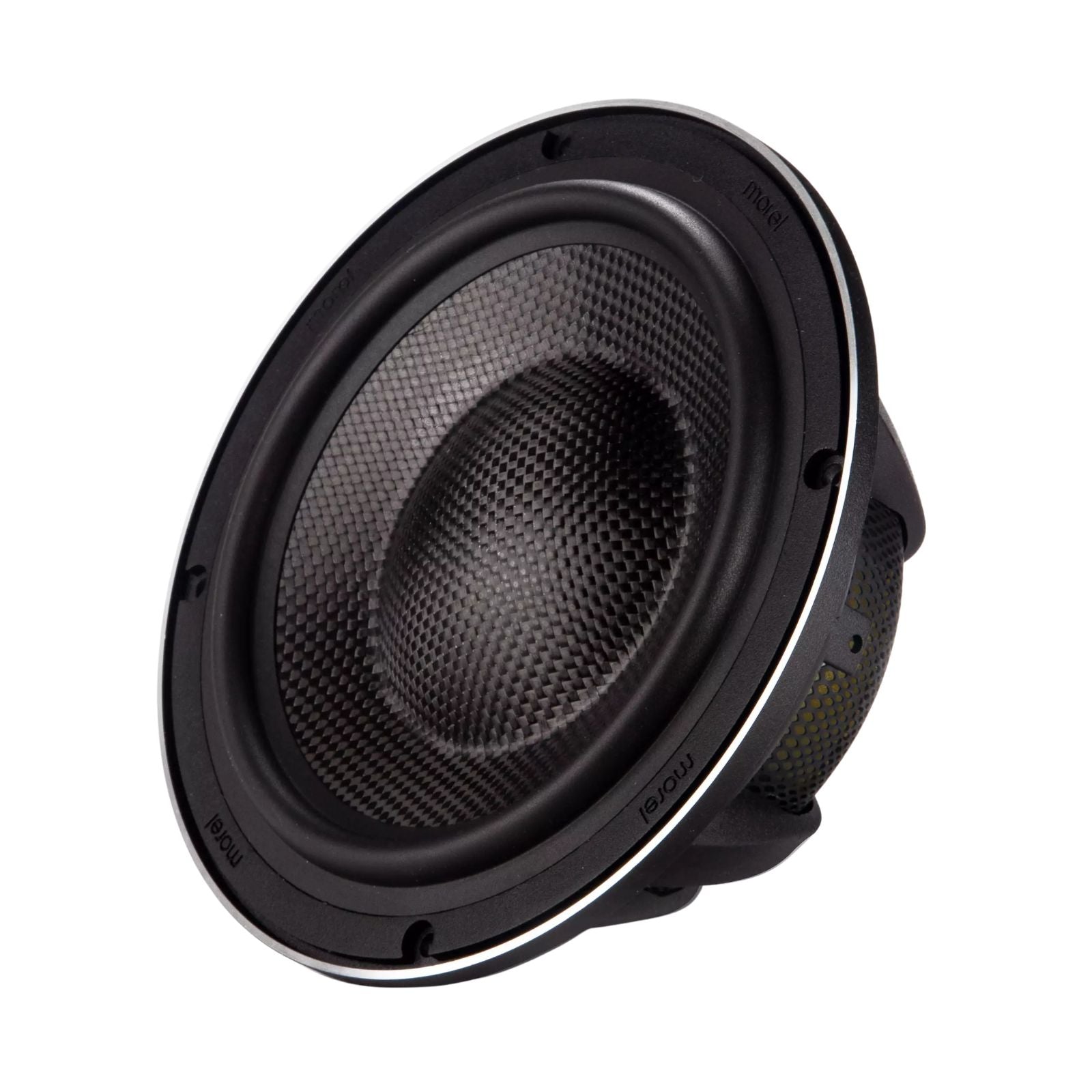

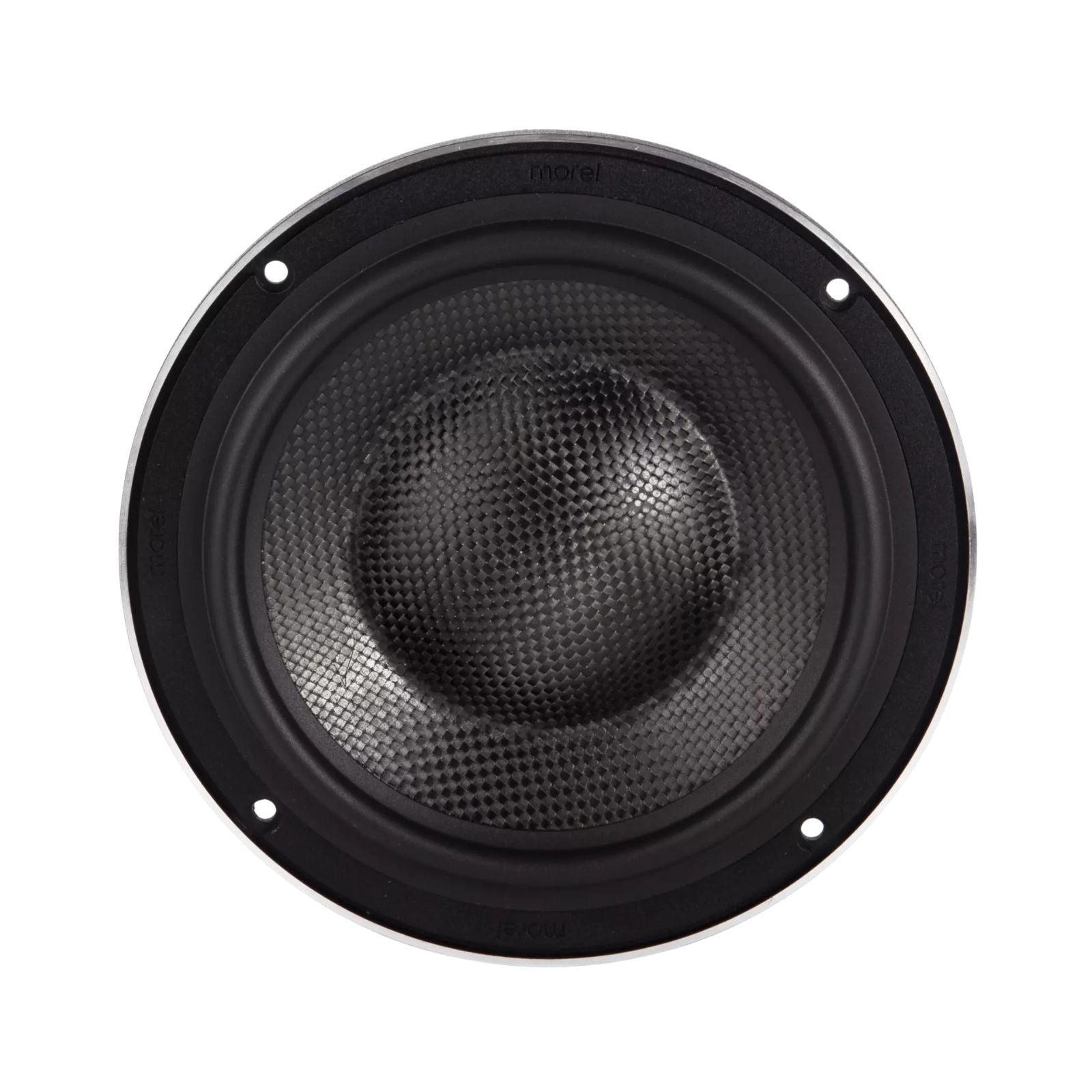

Each woofer in the Elate Carbon range features a Klippel-optimised EVC motor, a large 75mm (3-inch) voice coil and a carbon fibre/Rohacell sandwich cone for ultra-low distortion and high power handling.
