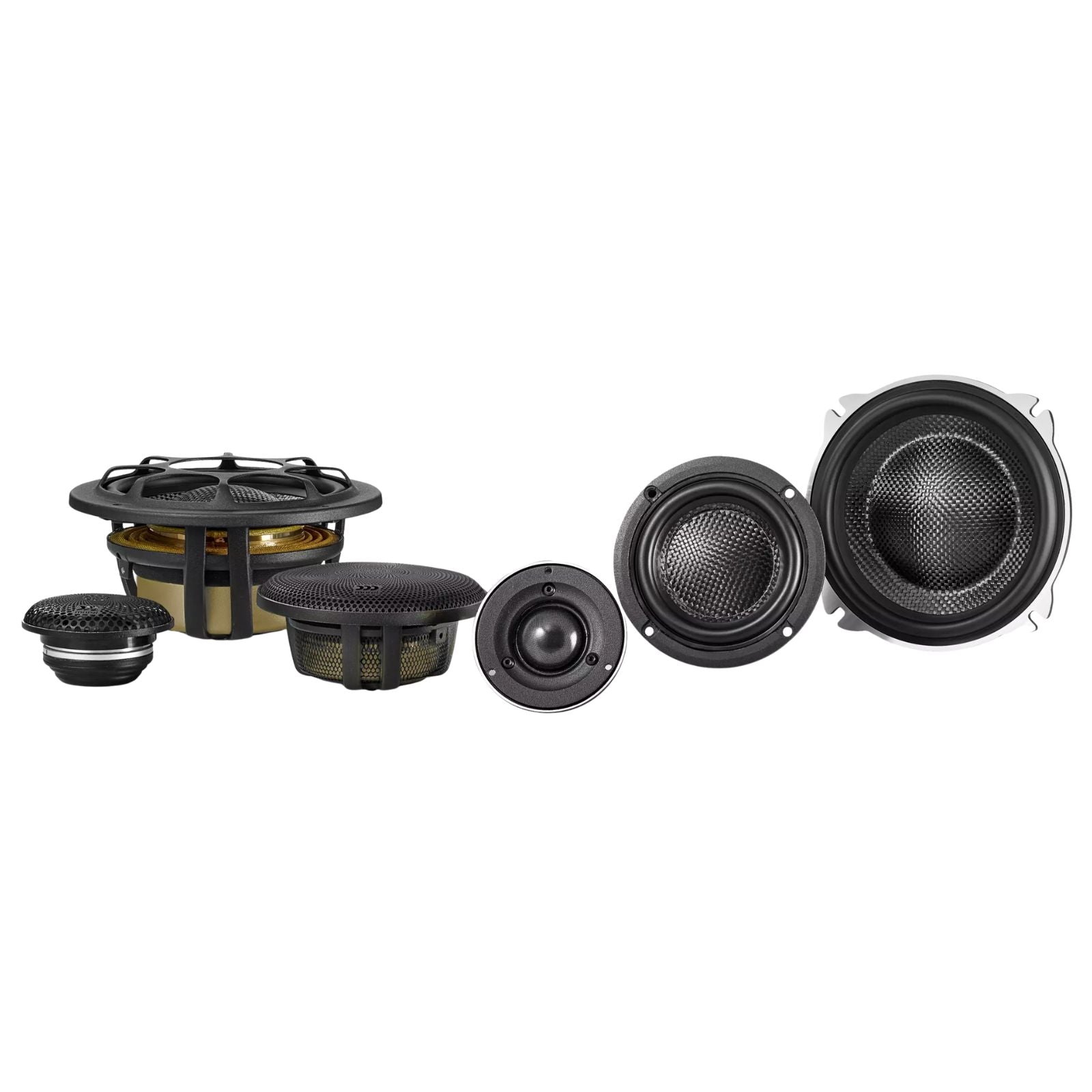

Morel Elate Carbon Pro 53A 3 Way Component Speaker System

The Morel Elate Carbon Pro 53A is a 3-way active component speaker system from Morel's high-end Elate Carbon Pro range. It pairs MW5 135mm carbon fibre and Rohacell cone woofers, MM3 100mm midranges, and the 28mm Elate Alto silk dome tweeter. Supplied without passive crossovers, each driver runs from its own amplifier or DSP channel.

For the passive version with MXT380C crossovers, see the Elate Carbon Pro 53. For the standard Elate Carbon version with the compact MT450 tweeter, see the Elate Carbon 53A.

Key specifications

• Configuration: 3-way component, active (no passive crossovers)

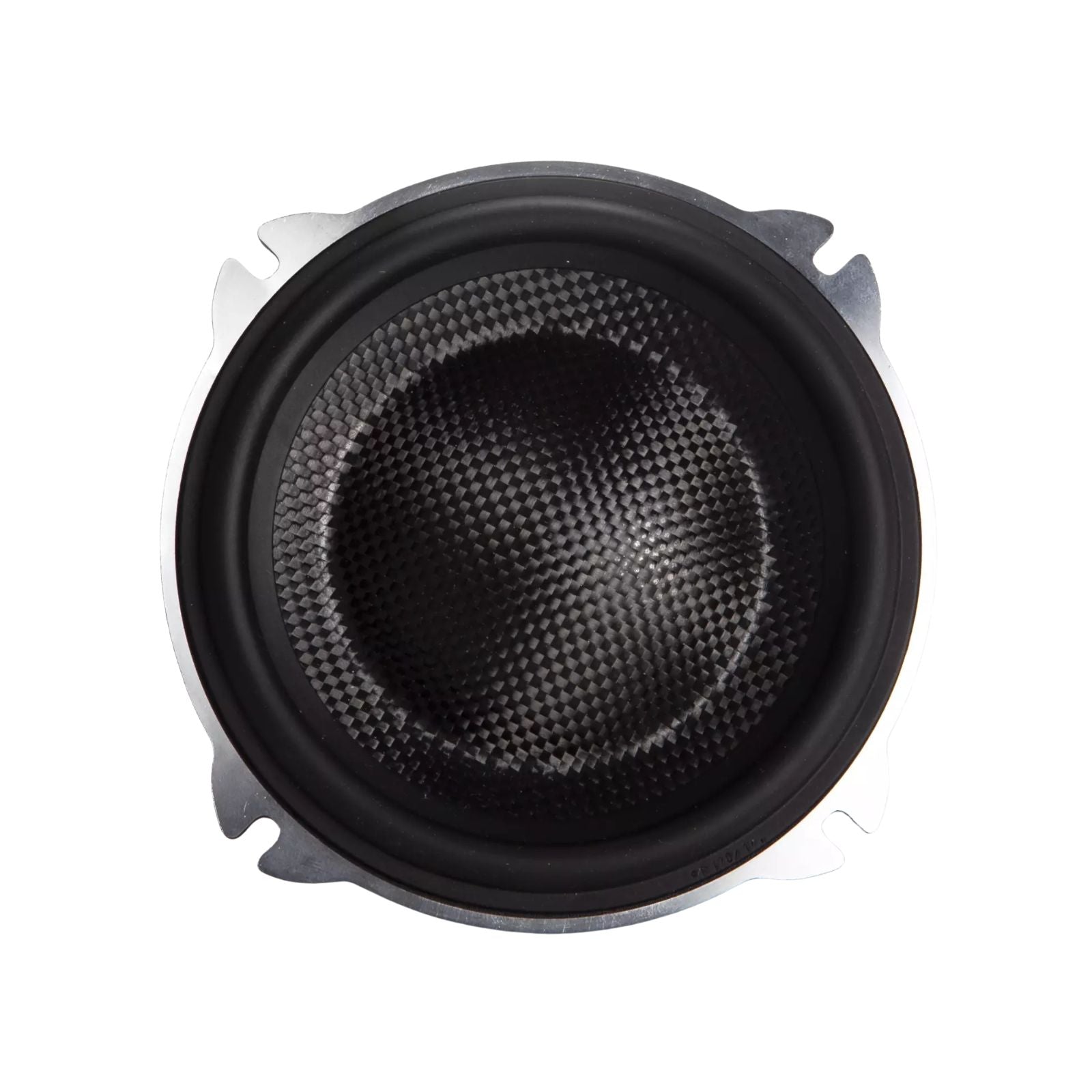

• Woofer: MW5 135mm (5.25"), 160W RMS, 1000W max transient, 85 dB, 40–5000 Hz
• Woofer cone: carbon fibre and Rohacell triple-layer cone (TLC)
• Woofer voice coil: 75mm (3") Hexatech aluminium, titanium former, 4 ohms
• Midrange: MM3 100mm (3.9"), 120W RMS, 400W max transient, 87 dB, 90–6000 Hz
• Tweeter: Elate Alto 28mm Acuflex silk dome, 6 ohms, 220W RMS, 91 dB, 1400–25,000 Hz
• Grilles: included

Carbon and Rohacell Cones

Woofers and midranges use carbon fibre and Rohacell triple-layer cones. Detail stays clean at extreme volume, and power handling is high across the full frequency range.

The Elate Alto Tweeter

The cavity-back Alto tweeter heads up the Pro series, with its design derived from Morel's flagship Supremo Piccolo. It delivers high resolution and high power handling together.

DMM and EVC Motor Technology

Morel's DMM double-magnet motor produces more energy than a single-magnet design, raising efficiency and dynamic range whilst shielding stray magnetic flux. EVC voice coils are large in diameter, ensuring all available magnetic energy acts on the coil — keeping the design compact, efficient and powerful.

Built for Active Systems

Each driver connects directly to an amplifier or DSP channel. You set the crossover points yourself, giving complete freedom to tune the system to your installation.
