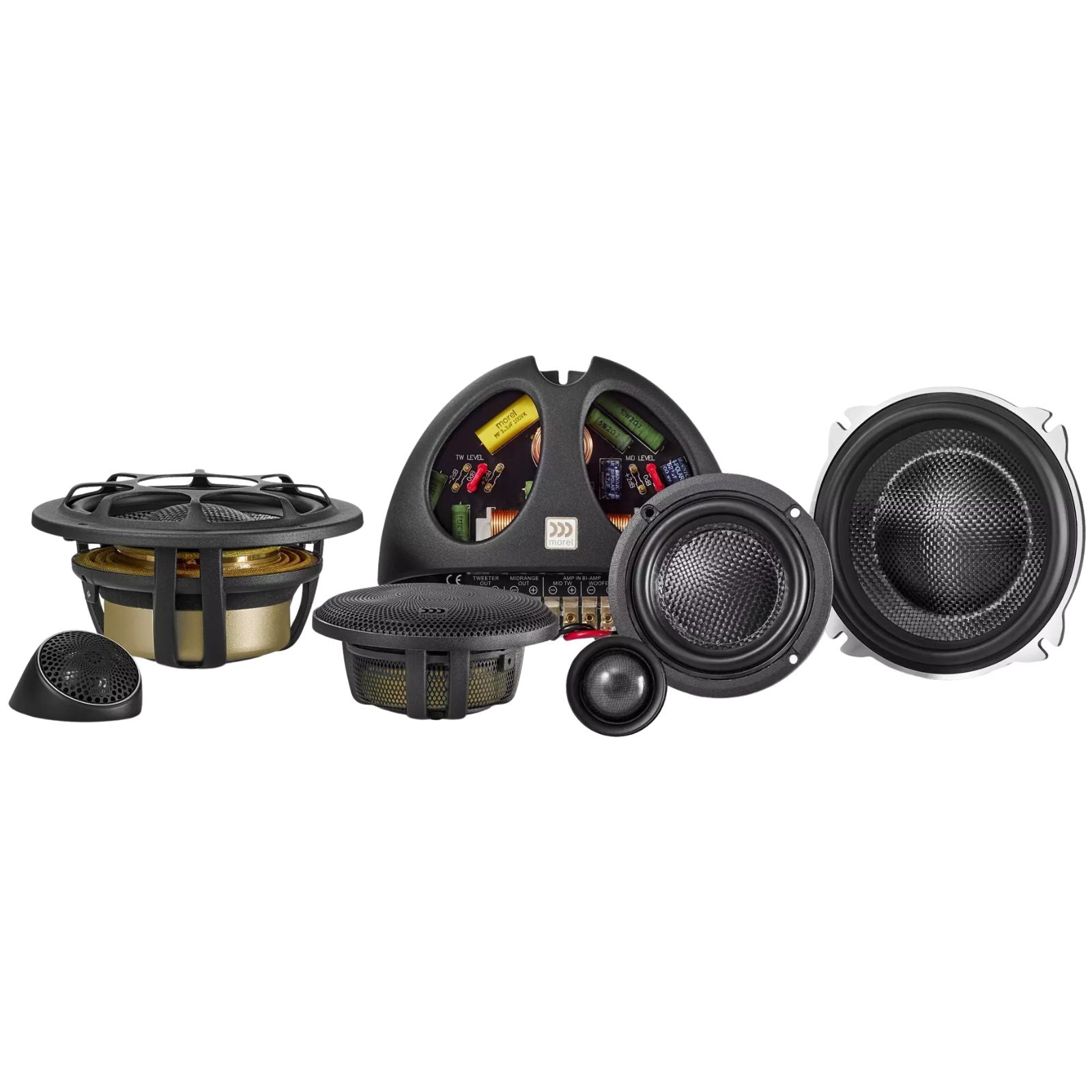

Morel Elate Carbon 53A 3 Way Component Speaker System

£3,449.00 Out of stock
Out of Stock
SKU: 93341MPN: ELATE CARBON 53A

ELATE CARBON 5.25 INCH ACTIVE 3-WAY

Elate Carbon 53A

The Elate Carbon shares most of its high-end componentry with its Pro siblings, yet takes a slightly more sensible approach. These 2-way and 3-way systems were designed for those who want the ultimate performance but are looking for a discreet tweeter.

The compact design of the MT450 tweeter allows users the option to place the speaker in most factory locations, or into space-limited areas using the supplied mounts. It may be small in size, but the MT450’s Acuflex coated silk dome, open cavity design and dual neodymium magnet motor give it amazing detail and a silky-smooth, flat frequency response.

All Elate Carbon 3-way systems receive the all new MM3 3.5″ cone midrange. This small midrange uses the best of Morel’s technology, including EVC motor, high power 2.1” diameter voice coil, and highly damped carbon- fiber/Rohacell cone, allowing it to play lower in frequency and with greater control than most 4.5” speakers. It also handles some serious power. These attributes drastically improve system performance while enabling them to fit in most factory midrange locations.

The Elate Carbon would not be complete without exercising their power. Whether using a 5.25”, 6.5” or 9-inch system, each of the woofers feature Klipple optimized EVC motors with large 3-inch diameter voice coils and carbon fiber/Rohacell sandwich cones for ultra-low distortion and high power handling levels.

The vast feature set and design of the Elate Carbon allow them to blow away your every expectation.

Specification
Nominal Impedance (Ohm)6
Power HandlingWrms 130
Max Transient Power Handling Wrms350
Sensitivity(2.83 V/1M) dB 91
Frequency Response1400 - 25000
Resonant Frequency Fs Hz1000
Voice CoilDiameter mm (inch) 28 (1.125)
Voice CoilFormer Aluminium
Voice CoilWire Hexatech Aluminium
DC Resistance (ohm)5.2
MagnetSystem Neodymium Rear Vented
Dome TypeAcuflex Handcoated Soft Dome
Dome MaterialSilk
Unit Diameter mm (inch)43.00 (1.69)
Net Weight Kg (lb)0.07 (0.15)
Nominal Impedance (Ohm)4
Power HandlingWrms 120
Max Transient Power Handling Wrms400
Sensitivity(2.83 V/1M) dB 87
Frequency Response90 - 6000
Resonant Frequency Fs Hz88
Voice CoilDiameter mm (inch) 54 (2.125)
Voice CoilHeight mm (inch) 10 (0.4)
Voice CoilType/Former Aluminium
Voice CoilWire Hexatech Aluminium
DC Resistance (ohm)3
MagnetSystem Neodymium
ConeType Triple Layer Cone (TLC)
ConeMaterial Carbon Fibre Composite
Unit Diameter mm (inch)100 (3.90)
Net Weight Kg (lb)0.38 (0.84)
Nominal Impedance (Ohm)4
Power HandlingWrms 160
Max Transient Power Handling Wrms1000
Sensitivity(2.83 V/1M) dB 85
Frequency Response40 - 5000
Resonant Frequency Fs Hz64.4
Voice CoilDiameter mm (inch) 75 (3)
Voice CoilHeight mm (inch) 14.50 (0.57)
Voice CoilType/Former Titanium
Voice CoilWire Hexatech Aluminium
DC Resistance (ohm)3.6
MagnetSystem Neodymium
ConeType Triple Layer Cone (TLC)
ConeMaterial Carbon Fibre Composite
Unit Diameter mm (inch)135 (5.25)
Net Weight Kg (lb)1.05 (2.31)
What's Included
  • 2 x MT450 Tweeters
  • 2 x MM3 Midrange Speakers
  • 2 x MW5 Woofers
