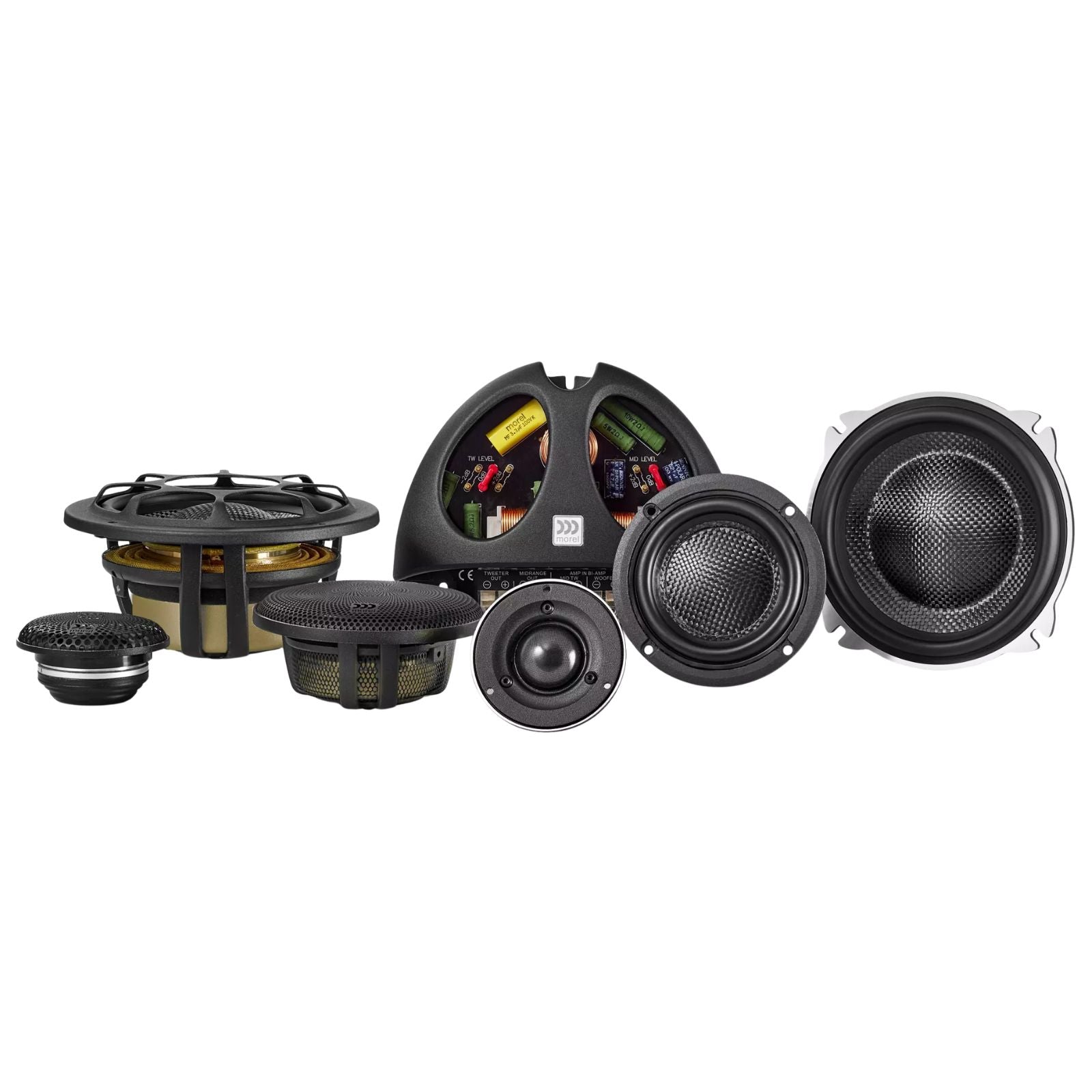

Morel Elate Carbon Pro 53 3 Way Component Speaker System

The Morel Elate Carbon Pro 53 is a 3-way passive component speaker system from Morel's high-end Elate Carbon Pro range. It pairs a 135mm carbon fibre and Rohacell woofer, an MM3 100mm midrange and the 28mm Elate Alto silk dome tweeter, with MXT380C crossovers supporting bi-wiring and bi-amping.

For the active version for DSP systems, see the Elate Carbon Pro 53A. For the standard Elate Carbon version with the compact MT450 tweeter, see the Elate Carbon 53.

Key specifications

• Configuration: 3-way component, passive with MXT380C crossovers
• Woofer: MW5 135mm (5.25"), 160W RMS, 1000W max transient, 85 dB, 40–5000 Hz
• Woofer cone: carbon fibre and Rohacell triple-layer cone (TLC)
• Woofer voice coil: 75mm (3") Hexatech aluminium, titanium former, 4 ohms
• Midrange: MM3 100mm (3.9"), 120W RMS, 400W max transient, 87 dB, 90–6000 Hz
• Tweeter: Elate Alto 28mm Acuflex silk dome, 6 ohms, 220W RMS, 91 dB, 1400–25,000 Hz
• Crossover points: W 2500Hz, M 450Hz/2700Hz, T 2500Hz, 12dB/oct; tweeter +/- 2dB, mid 0/-2dB
• Bi-wire / bi-amp capable
• Grilles: included

Carbon and Rohacell Cones

The woofer and midrange both use carbon fibre and Rohacell triple-layer cones. Detail stays clean at high volumes, and power handling is strong across the full frequency range.

The Elate Alto Tweeter

The cavity-back 28mm Elate Alto silk dome tweeter leads the Pro series. Its design draws from the Supremo Piccolo, Morel's flagship tweeter, combining high resolution with high power handling.

DMM and EVC Motor Technology

Morel's DMM double-magnet motor generates more energy than a single-magnet design, improving efficiency and dynamic range while shielding stray magnetic flux. EVC (Hexatech aluminium) voice coils are large in diameter, ensuring all available magnetic energy drives the coil — keeping the design compact, efficient and powerful.
