The Match M 2FX is an ultra-compact 2-channel Class GD mini amplifier delivering 440 W RMS total (2 x 125 W at 4 Ω / 2 x 220 W at 2 Ω), from the Match M-series range.
Key specifications
- Power RMS / max: 2 x 125 / 250 W @ 4 Ω; 2 x 220 / 440 W @ 2 Ω
- Amplifier technology: Class GD
- Inputs: 2 x high-level speaker input (ADEP), 1 x stereo line input, 1 x remote in
- Input sensitivity: RCA 2 – 6 V; high level 4 – 11 V
- Crossover: high-pass or low-pass, adjustable 15 Hz – 150 Hz, 12 dB/oct
- Signal-to-noise ratio: 100 dB (A-weighted)
- Operating voltage: 9.6 – 16 V (max. 5 s down to 6 V, start-stop capable)
- Fuse: 1 x 30 A LP mini plug-in fuse
- Dimensions (H x W x D): 35 x 85 x 110 mm

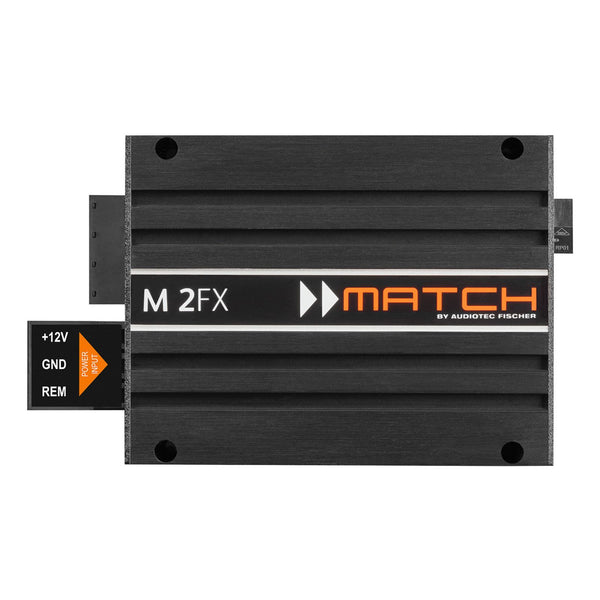

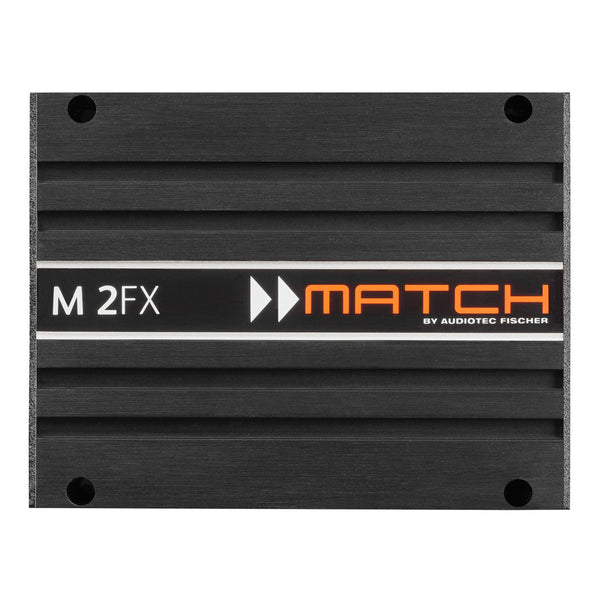

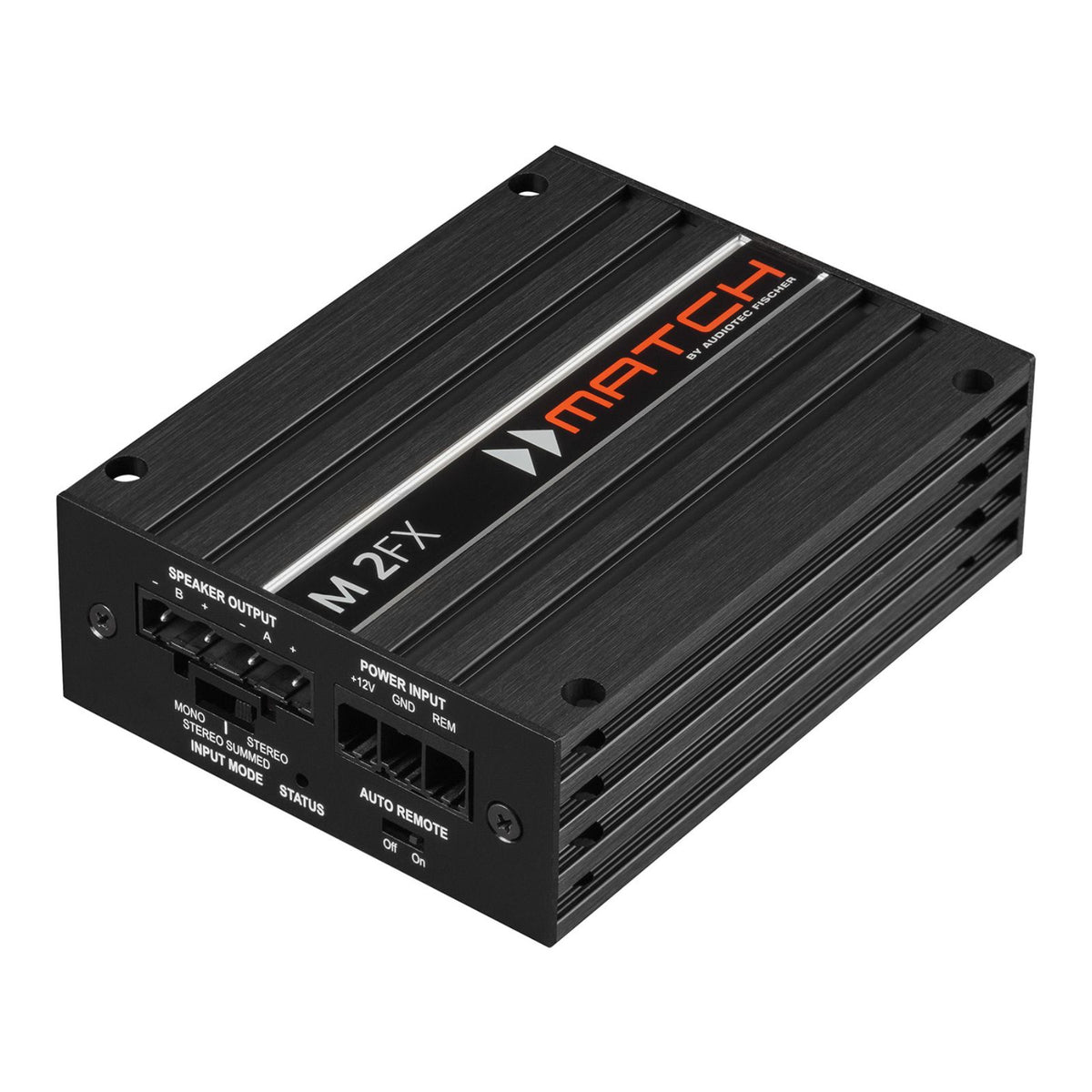

Match M 2FX 2-channel Class GD miniature amplifier
The M 2FX pairs minimal dimensions with high power output and broad versatility. It works as a stand-alone amplifier for demanding speaker systems or as a power source for subwoofer applications. Its load stability makes it particularly well suited to driving subwoofers with 2 x 2 Ω impedance.
Class GD technology delivers excellent sound quality alongside high efficiency. Low heat dissipation means it can be installed in tight or hidden locations that conventional amplifiers simply cannot fit.
It is designed as a partner for the five-channel M 5DSP from the Match portfolio.
Features
- Ultra-compact 2-channel Class GD amplifier
- Excellent sound quality combined with maximum efficiency
- Particularly stable under load — ideal for driving subwoofers with 2 x 2 Ω impedance

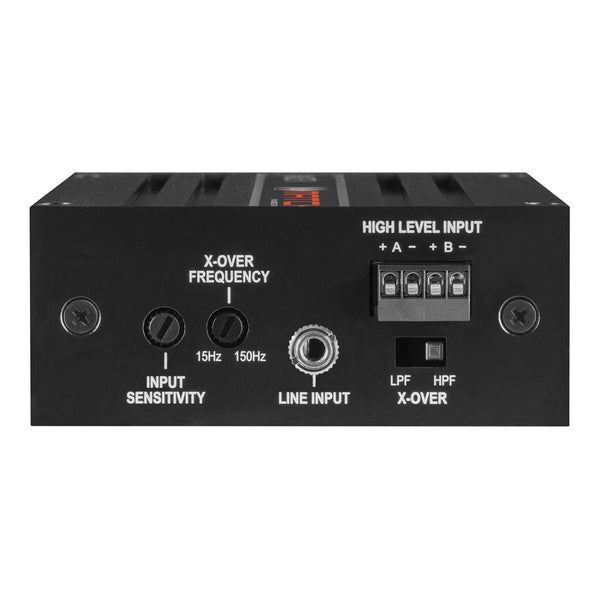

- Integrated active crossover with high-pass and low-pass filters
- Line input and high-level inputs with ADEP circuitry

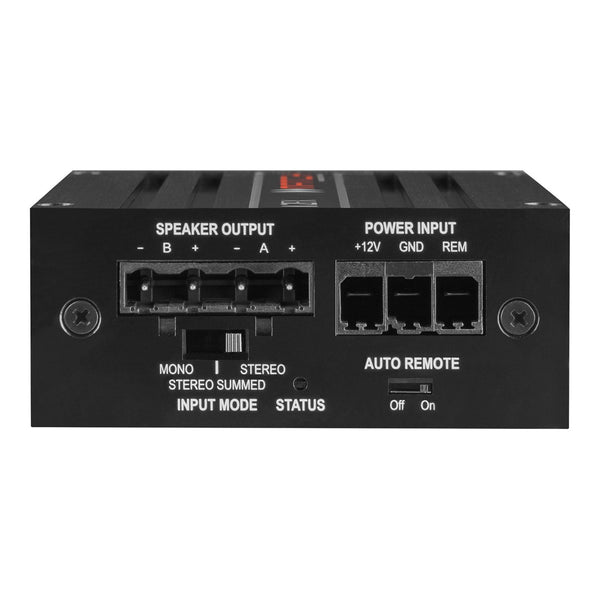

- Automatic remote switch
Class GD amplifier technology
Audiotec Fischer's Class GD concept combines Class G technology with Class D principles, achieving efficiency that surpasses conventional Class D amplifiers. At low and medium output levels the internal supply voltage of the power stages varies with the amplitude of the input signal, minimising power dissipation. The result is an exceptionally compact amplifier suited to concealed installs.
Intelligent high-level input
Modern factory head units actively diagnose connected speakers. Connecting an amplifier in their place can trigger error messages or cause functions such as the fader to stop working. The ADEP (Advanced Diagnostics Error Protection) circuit prevents these issues without placing unnecessary load on the head unit's speaker outputs at high volume.
Start-stop capability
The M 2FX's power supply maintains a stable internal voltage even during brief dips down to 6 V, keeping the amplifier fully operational during engine start events.
Explore the full range in Match Amplifiers & PP Cables.
Specification
| Power RMS / Max | @ 4 Ohm 2 x 125 / 250 Watts / @ 2 Ohm 2 x 220 / 440 Watts |
|---|---|
| Amplifier technology | Class GD |
| Inputs | 2 x High level speaker input / 1 x Line Input (Stereo) / 1 x Remote In |
| Input sensitivity | RCA 2 - 6 Volts / High Level 4 - 11 Volts |
| Input impedance RCA | 10 kOhm |
| Input impedance high level | 13 Ohm |
| Outputs | 2 x speaker output |
| Frequency range | 15 Hz - 40,000 Hz |
| High-pass | Adjustable from 15 Hz to 150 Hz |
| Low-pass | Adjustable from 15 Hz to 150 Hz |
| Slope of high/low pass | 12 dB/Oct. |
| Signal-to-noise ratio analog input | 100 dB (A-weighted) |
| Distortion (THD) | < 0,01 % |
| Damping factor | > 100 |
| Operating voltage | 9.6 - 16 volts (max. 5 sec. down to 6 volts) |
| Idle current draw | 360 mA |
| Fuse | 1 x 30 A LP mini plug-in fuse |
| Additional Features | Variable input sensitivity, regulated power supply, start-stop capability, active adjustable crossover, input mode switch, high-level input with automatic turn-on and Advanced Diagnostics Error Protection (ADEP) |
| Dimensions | (H x W x D) 35 x 85 x 110 mm |
What's Included
- 1 x MATCH micro amplifier M 2FX,
- 1 x line input connection cable (2 x RCA to 3.5 mm jack plug; 0.20 meters),
- 1 x mounting hardware,
- 1 x user manual
Match
About the Match M112001
From our tech experts at CEN
A 2-channel amplifier from Match, in a micro chassis built to hide under a seat or behind trim, rated at 440w RMS.
Who it suits
Drivers who need real power in a vehicle with nowhere to put a full-size amplifier.
Our tech experts advise
Matching matters more than headline watts, and gains want setting with a meter rather than by ear. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Match range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Match
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Match News & Guides
The latest Match product news, launches and guides from the CEN team in Nottingham.
Car Amplifier Buying Guide: Channels, Power and Matching Explained
The short version: choose a 4-channel amplifier to power your door speakers, a mono amplifier for a subwoofer, and match...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Audiotec Fischer Brands
High-End Car Hifi components from Audiotec Fischer
More from Match Amplifiers & PP Cables
More options from the same range, in stock and ready to go

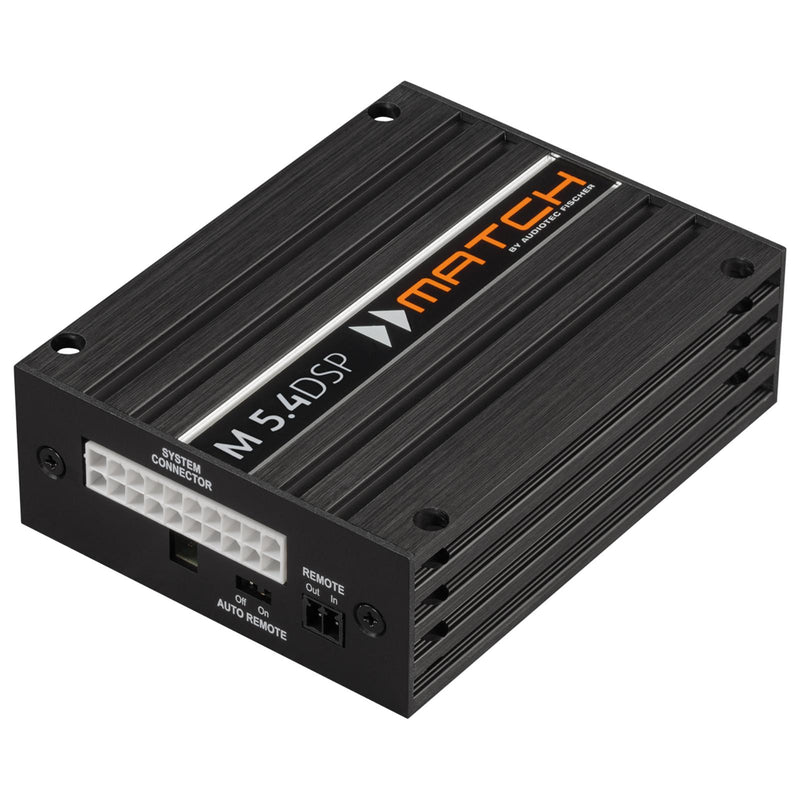

Match M 5.4DSP Amp 5 Channel Amplifier with Integrated 64 Bit 9 Channel DSP
£519.99RRP £574.99Save 9%

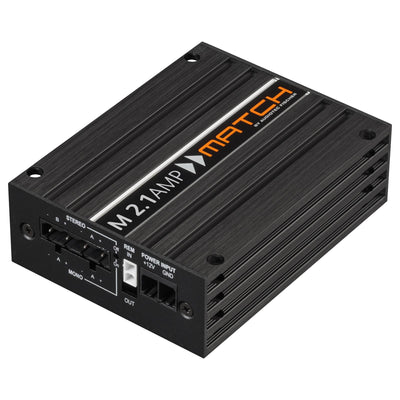

Match M 2.1 Amp Micro Amplifier Mono Subwoofer Mode or 2 Channel Stereo 350w RMS
£369.99£379.99
Match PP-ISO 2.20 Meter ISO Extension 20 Pole Molex for Plug & Play Amplifiers
£63.99£64.99

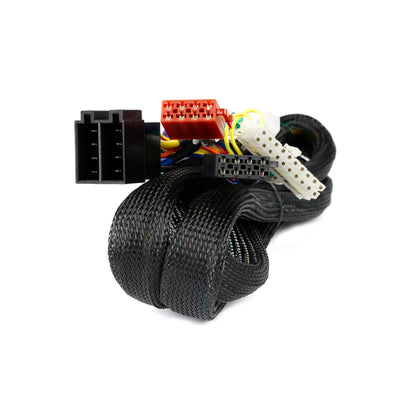

Match PP-ISO 1 Meter ISO Extension 20 Pole Molex for Plug & Play Amplifiers
£40.99
Match PP-ISO 5 Meter ISO Extension 20 Pole Molex for Plug & Play Amplifiers
£109.99£129.99
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the MATCH M 2FX deliver?
A: The M 2FX delivers 2 x 125 W RMS (2 x 250 W max) into 4 ohms and 2 x 220 W RMS (2 x 440 W max) into 2 ohms.
Q: Can the M 2FX be connected to a factory radio without RCA outputs?
A: Yes. It has two high-level speaker inputs with ADEP circuitry and automatic turn-on, so it can be fed straight from factory speaker wires. It also has a stereo line input (2 x RCA to 3.5 mm jack lead included).
Q: Does the M 2FX have a crossover for a subwoofer?
A: Yes. It has an integrated active crossover switchable between high-pass and low-pass, adjustable from 15 Hz to 150 Hz with a 12 dB/octave slope.
Q: What's in the box with the MATCH M 2FX?
A: The M 2FX amplifier, a 0.20 m line input cable (2 x RCA to 3.5 mm jack), mounting hardware and the user manual.
