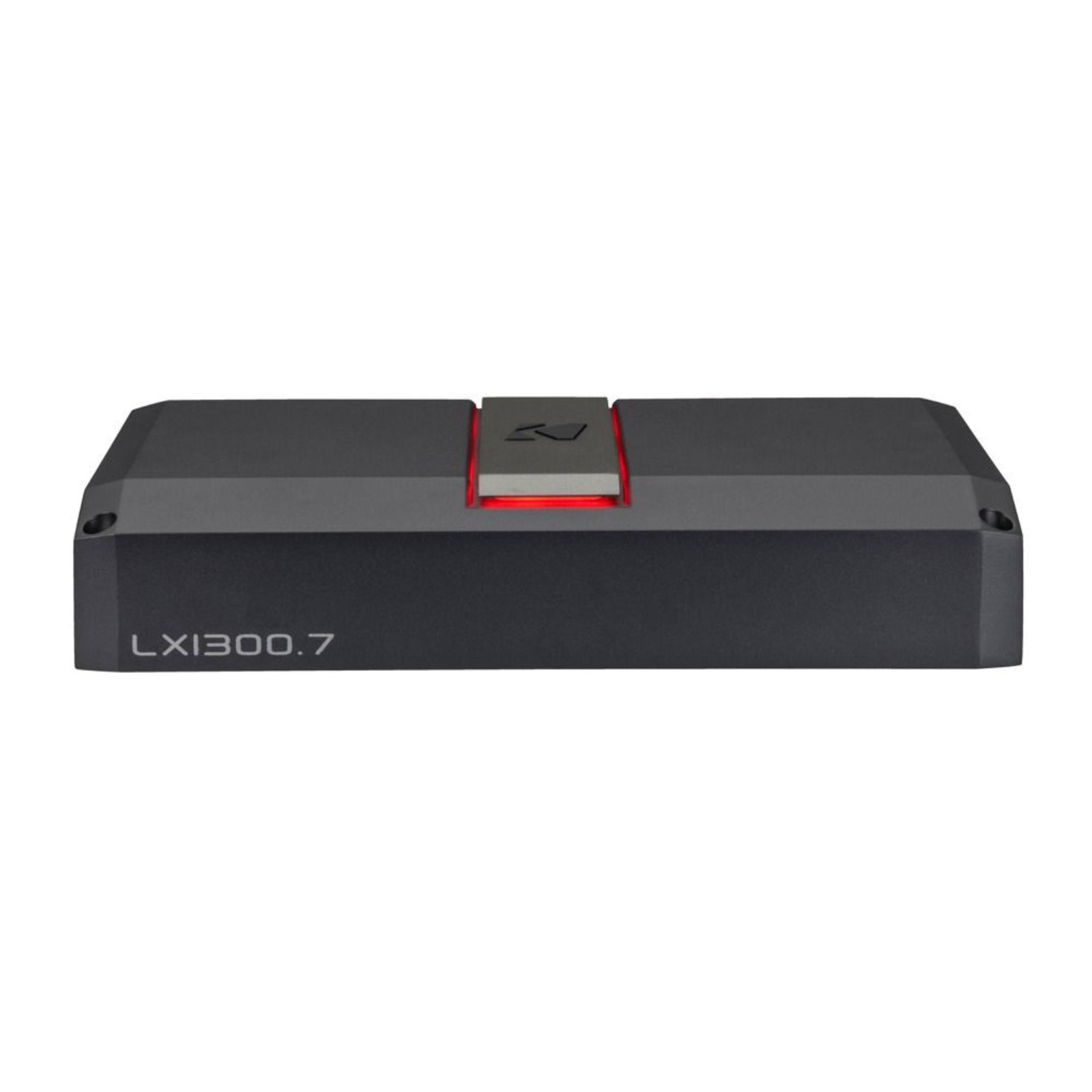

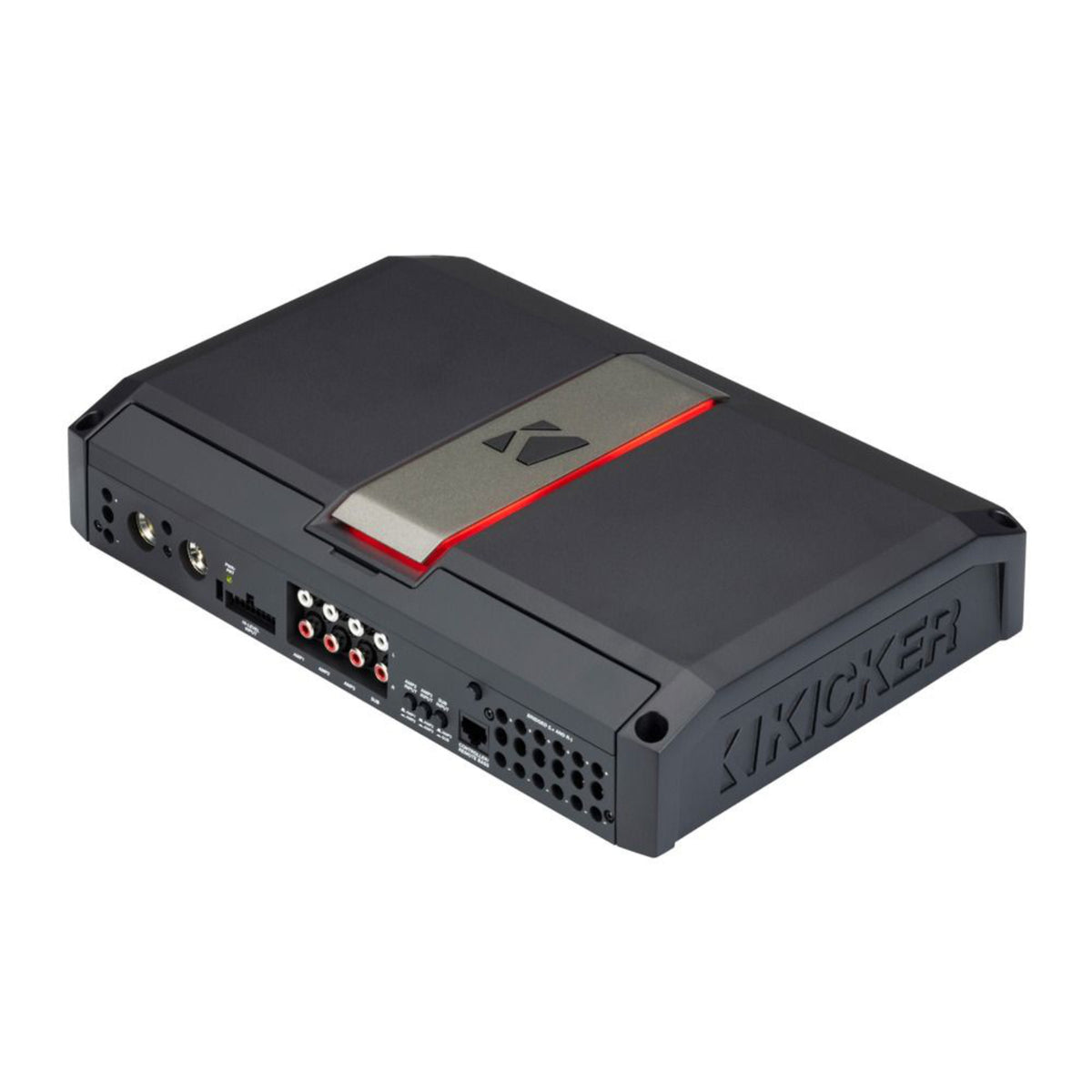

Kicker LX1300.7 Amp 7 Channel Car Amplifier with DSP Features & LX Controller
Couldn't Load Pickup availability
The Kicker LX1300.7 is a 7-channel Class-D car amplifier from Kicker's LX Series, delivering up to 700W RMS on the sub channel and up to 150W x 4 on the main channels. It includes the LXCC Control Center for DSP-style tuning and the LXRC bass remote with SHOCwave2.0™.
Key specifications
- Channels: 7 (4 + 2 + sub)
- Amp 1 and 2 @ 14.4V: 150W x 4 at 2 ohms, 125W x 4 at 4 ohms, 250W x 2 bridged
- Amp 3 @ 14.4V: 65W x 2 at 2 or 4 ohms, 130W x 1 bridged
- Sub channel @ 14.4V: 700W at 1 ohm, 550W at 2 ohms, 300W at 4 ohms
- Dynamic power: 1500W
- Crossovers: HP 20–5kHz, LP 40–5kHz on full-range channels; sub LP 40–160Hz
- Inputs: high level 1V–40V, low level 125mV–5V
- Dimensions: 6 cm H x 21.4 cm W x 32 cm L
- Included: LXCC Control Center and LXRC remote

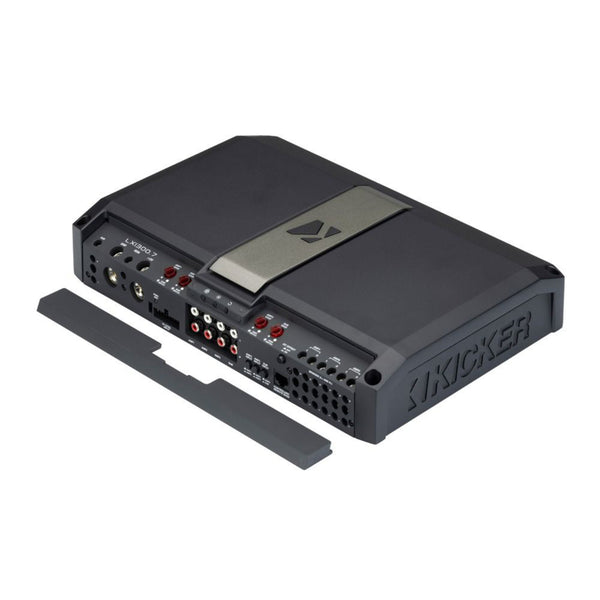

LX1300.7 7-Channel Amplifier
All LX multi-channel amplifiers are bridgeable and include the wired LXCC Control Center. LX amps with a sub section also include the LXRC robust remote level control, featuring SHOCwave2.0™.
The Kicker LX Series combines SQL design with high-powered output, delivering the most requested features while maintaining top performance.
From the Ground Up
The LX Series is Kicker's high-power premium amplifier line, designed in-house for precision control, next-level flexibility and lasting reliability.
- Dial in the entire system with the included LX Control Center
- Monitor and adjust the sub section with the included LXRC Dash Remote
- Class-D design for lower current draw, longer playing times and lower operating temperatures
- Gain-match LEDs indicate the correct gain setting
- KickEQ+™ parametric bass boost 0–6dB on the sub channel

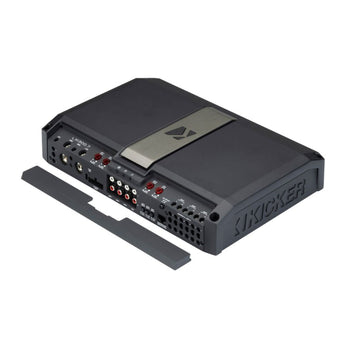

- Reversible centre panel and choice of 11 RGB LED accent colours for a customised look
- FIT+™ technology accepts low- and high-level signals up to 40V, with differential inputs to eliminate noise
- Choice of turn-on modes plus comprehensive thermal, circuit and voltage protection

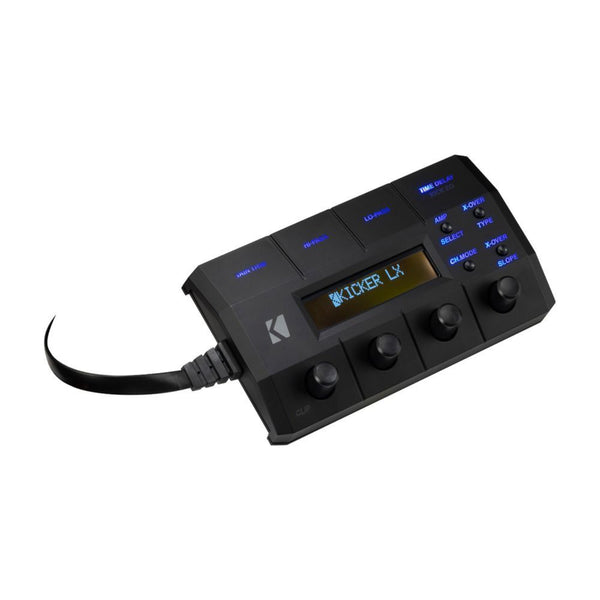

Comes with the LX Control Center (LXCC)
- Diagnostic readouts: monitor battery voltage, LED output clip indication, amp temperature and protection status in real time
- Precision control: adjust gain trim, left-channel time delay, and selectable crossover type, slope and frequency — supports HP, LP or BP crossovers on all full-range channels
- Integrated cable length: 3.28 feet (1m), wired directly into the amp
Comes with the LX Remote Control (LXRC)
- Dash-mounted remote for fingertip bass level adjustment
- SHOCwave2.0™ (Sub-Harmonic Octave Creation): Kicker's second-generation digital bass restoration algorithm, recovering lost low-bass frequencies
- Battery voltage shown in a fuel-gauge-style readout
- RGB LED brightness control
- Output clipping indicator to prevent distortion and protect the system
- Cable length: 19.75 feet (6m) RJ45 cable
Explore the full range in Kicker Amplifiers.
Specification
| Amp 3 (Stereo Pair) | 2Ω Stereo: 65 x 2 4Ω Stereo: 65 x 2 4Ω Bridged: 130 x 1 |
|---|---|
| Sub Channel | 1Ω mono: 700W 2Ω mono: 550W 4Ω mono: 300W |
| Frequency Response | [Hz] Stereo Channels 20–20k |
| Sub Channel | 10–160 (+0/-1dB) |
| Signal-to-Noise Ratio (a-weighted, re | rated power) >95dB |
| Signal-to-Noise Ratio (ref | 1W output) >75dB |
| Dimensions | [in, cm] Height 2-3/8 (6 cm) Width: 8-7/16 (21.4 cm) Length: 12-5/8 (32 cm) |
| HP | 20–5kHz LP: 40–5kHz |
| Sub Channel | LP 40–160Hz, 24dB/octave Linkwitz-Riley |
| Selectable Topology | 12, 18, or 24dB/oct Butterworth; 12 or 24dB/oct Linkwitz-Riley |
More specs
| |

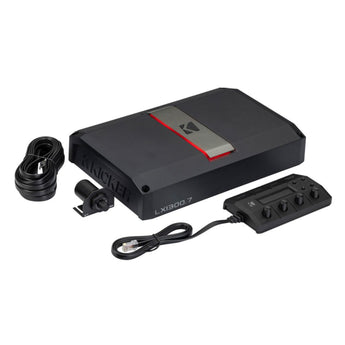

What's Included
- LX1300.7 7-Channel Amplifier
- LX Control Center LXCC (integrated 3.28 feet (1m) cable, directly into amp)
- LX Remote Control LXRC
- 19.75 feet (6m) RJ45 cable
Kicker
About the Kicker 51LX13007
From our tech experts at CEN
A 7-channel amplifier. Enough channels for a front and rear stage, or a front stage with the remaining channels bridged onto a sub.
Who it suits
Drivers who have upgraded their speakers and found the head unit cannot drive them. This is the step that makes good speakers sound like good speakers.
Our tech experts advise
Published power figures mean little until the amplifier is matched to the speakers and the gains are set with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge, the part we most often see done badly. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Kicker Amplifiers
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How many channels does the Kicker LX1300.7 have?
A: Seven: two stereo amp sections (four channels) rated 150W x 4 at 2 ohms, a third stereo pair rated 65W x 2, and a mono sub channel rated 700W RMS at 1 ohm.
Q: What controls come with the LX1300.7?
A: Both the LX Control Center (LXCC), with an integrated 1m cable, and the LXRC bass remote with a 6m RJ45 cable are included.
Q: What can I adjust with the LX Control Center?
A: Gain trim, left-channel time delay and crossover type, slope and frequency, with high-pass, low-pass or band-pass on all full-range channels. It also shows battery voltage, clipping, amp temperature and protection status.
