Kicker 49WXA10004 4 Channel Class D Amplifier 1000w RMS
Couldn't Load Pickup availability
The Kicker 49WXA10004 is a 4-channel Class D full-range amplifier rated at 1000W RMS, delivering 250W x 4 at 4 ohms or 450W x 4 at 2 ohms. It is part of Kicker's Warhorse series, designed for ultra-high SPL systems.
Key specifications
- Channels: 4, Class D (half-bridge)
- RMS power at 4 ohms: 250W x 4
- RMS power at 2 ohms: 450W x 4
- Bridged at 4 ohms: 900W x 2
- Frequency response: 10 Hz–20 kHz
- Inputs: low level 125mV–5V, high level 1V–40V (FIT+ differential)
- Start/stop compliant: operational to 6.5V
- Dimensions: 6.5 cm H x 23.2 cm W x 39.1 cm L
Warhorse 4 Channel Class D Full-Range Amplifier (49WXA10004)
The Warhorse was engineered entirely in-house by Kicker R&D for ultra-high SPL applications. Every component was tested to ensure extreme performance and reliability.
Fortified to Go Hard

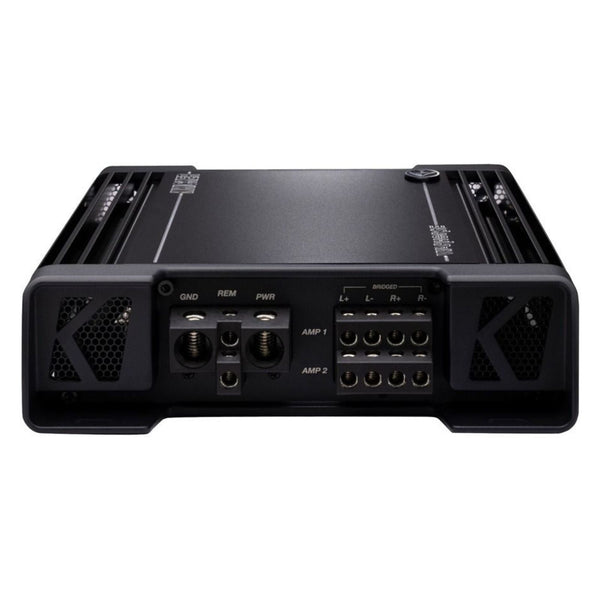

The 49WXA10004 features dual 1/0 power and ground connections, 4 AWG speaker terminals, dual 8 AWG remote terminals, and Tiffany-style RCA connectors. Quad microprocessor-controlled fans provide fast, quiet cooling on demand.
Real-Time Status Tools
A heavy-duty, magnetic-mount diagnostic tool is included, displaying battery voltage, thermal protection status, power-supply protection, and speaker current overload in real time. The tool connects via a 6 m (19.75 ft) RJ45 cable.
Compatible
KICKER FIT+™ (Fail-safe Integration Technology) differential inputs and a 125mV–40V RCA input range make the amp compatible with most factory and aftermarket source units. It is also fully start/stop compliant.
Features
- Engineered completely in-house by Kicker R&D
- Ultra-efficient, half-bridge Class D design
- Fully start/stop compliant – operational to 6.5V
- Dual 1/0 power and ground inputs
- Capable of daisy-chaining remote power across multiple amplifiers
- Includes heavy-duty, magnetic-mount diagnostic tool with 6 m RJ45 cable for monitoring voltage and amp protection status
- Quad micro-controller-regulated cooling fans
- Compatible with most factory and aftermarket source units via FIT+™ differential inputs
Explore the full range in Kicker Amplifiers.
Specification
| Dynamic Power (watts) | 2000 |
|---|---|
| Frequency Response | (Hz) 10-20k |
| Signal-to-Noise Ratio (dB; ref | 1W output): >70 |
| Input Sensitivity | low level 125mV-5V / high level 1V-40V |
| Selectable Electronic Crossover - AMP 1 | Off/HP/LP; 24dB/octave BW, variable 10-5kHz w/ 10X switch; |
| Selectable Electronic Crossover - AMP 2 | Off/HP/LP/BP; 24dB/octave BW, lo-pass 100-5000Hz, hi-pass 10-500Hz |
| Height (cm) | 6.5 |
| Width (cm) | 23.2 |
| Length (cm) | 39.1 |
More specs
| |
What's Included
- Kicker 49WXA10004
Kicker
About the Kicker 49WXA10004
From our tech experts at CEN
A 4-channel amplifier, rated at 1000w RMS. Enough channels for a front and rear stage, or a front stage with the remaining channels bridged onto a sub.
Who it suits
Drivers who have upgraded their speakers and found the head unit cannot drive them. This is the step that makes good speakers sound like good speakers.
Our tech experts advise
Published power figures mean little until the amplifier is matched to the speakers and the gains are set with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge, the part we most often see done badly. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Kicker Amplifiers
More options from the same range, in stock and ready to go
Best SellerKicker CXA1200.1 Amp 1 Channel Mono Subwoofer Car Amplifier up to 1200w RMS
£399.95
View product
Kicker 46CXA660.5 Amp 5 Channel Class A/B Full Range Car Amplifier up to 660w RMS
RRP £469.95Save 4%£449.95
Kicker 48PXA3001 1 Channel Waterproof Amplifier 300w RMS
£379.95

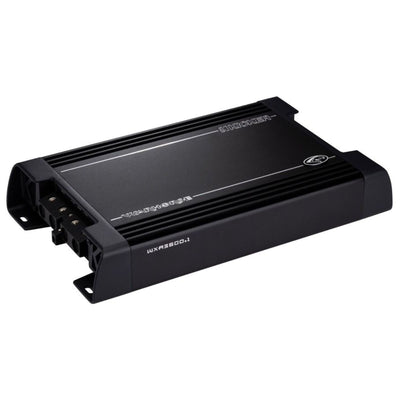

Kicker 49WXA36001 1 Channel Class D Amplifier 3600w RMS
£999.95
Kicker LX1300.7 Amp 7 Channel Car Amplifier with DSP Features & LX Controller
£949.95
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the Kicker 49WXA10004 produce?
A: It delivers 250W RMS x 4 at 4 ohms, 450W RMS x 4 at 2 ohms, or 900W RMS x 2 bridged at 4 ohms, all at 14.4V. Dynamic power is 2000W.
Q: Will the 49WXA10004 work with a factory head unit?
A: Yes. It has FIT+ differential inputs that accept low level signals from 125mV to 5V and high level speaker signals from 1V to 40V.
Q: Is the 49WXA10004 start/stop compatible?
A: Yes. Kicker states it is fully start/stop compliant and operational down to 6.5V.
