The Kicker 48KXMA12002 is a KXM Series marine 2-channel Class D amplifier rated at 1200W RMS total, delivering 300W x 2 at 4 ohms or 600W x 2 at 2 ohms. It features a DSP-controlled preamp, variable 24dB crossover and KickEQ bass boost, with all controls behind a gasket-sealed cover panel.
Key specifications
- Channels: 2
- Amplifier class: D
- RMS power: 300W x 2 @ 4Ω / 600W x 2 @ 2Ω
- Crossover: 24dB/octave, high-pass 10 to 500Hz, low-pass 40 to 500Hz (400Hz to 5kHz with 10x switch), band-pass capable
- Bass boost: KickEQ variable 6dB
- Fuse rating: 150A (4 AWG power cable)
- Turn-on: DC offset / 12V / audio
- Frequency response: 10Hz to 20kHz
- Dimensions: 5.5 x 28.4 x 21 cm
KXM Marine 1200W 2 Channel Class D Full-Range Amplifier (48KXMA12002)
Built for harsh conditions on the water, ATVs or UTVs, the 48KXMA12002 delivers 600W per channel of full-range power.

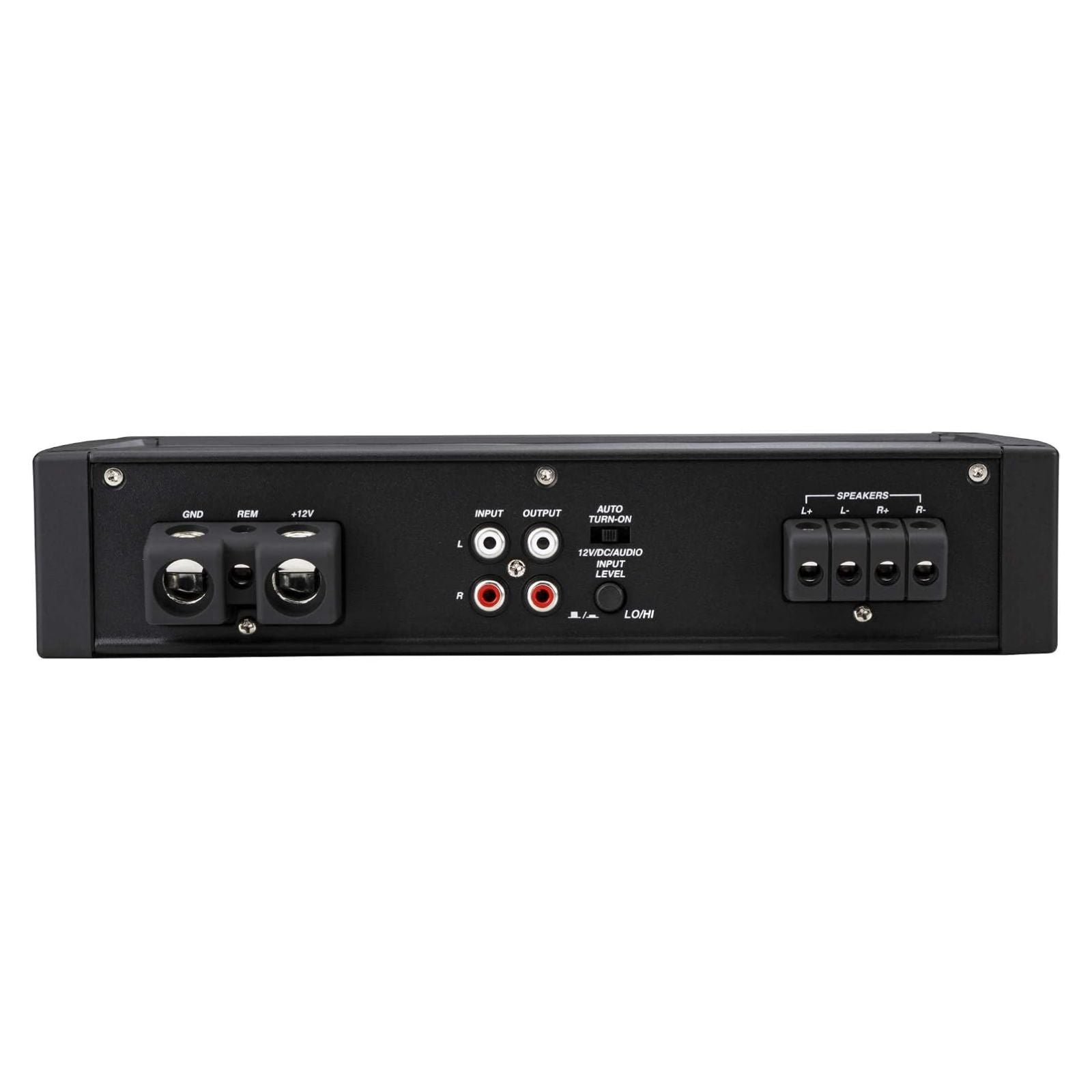

KickEQ™ adds up to 6dB of bass boost via a single knob. The 24dB variable crossover lets you tune your system quickly and accurately. A full-range RCA output lets you add a second amplifier without running new signal cable back to the head unit.
Conformal-coated circuit boards and a gasket-sealed cover panel protect the internals from moisture. ABYC/NMMA compliant power terminals make it suitable for marine installation.
Features
- Class D power plant
- Gain control with "Gain Match" LED indicator
- FIT2™ (Fail-Safe Integration Technology) circuitry
- Variable 24dB crossover
- DSP-controlled preamp
- KickEQ™ 6dB variable bass boost
- ABYC/NMMA compliant power terminals
- Conformal-coated circuit boards

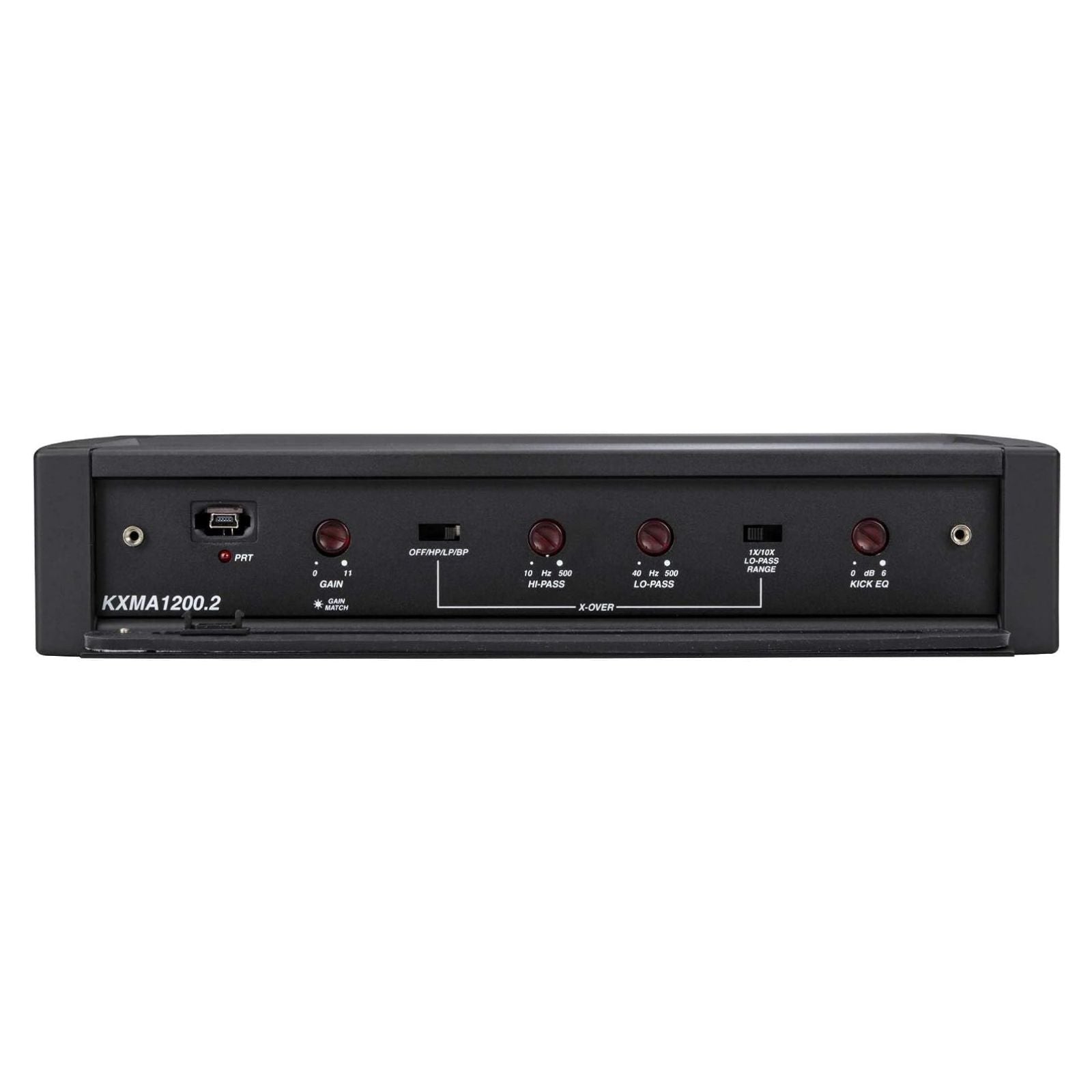

- Easy access to settings behind gasket-sealed cover panel
- Black anodised aluminium chassis

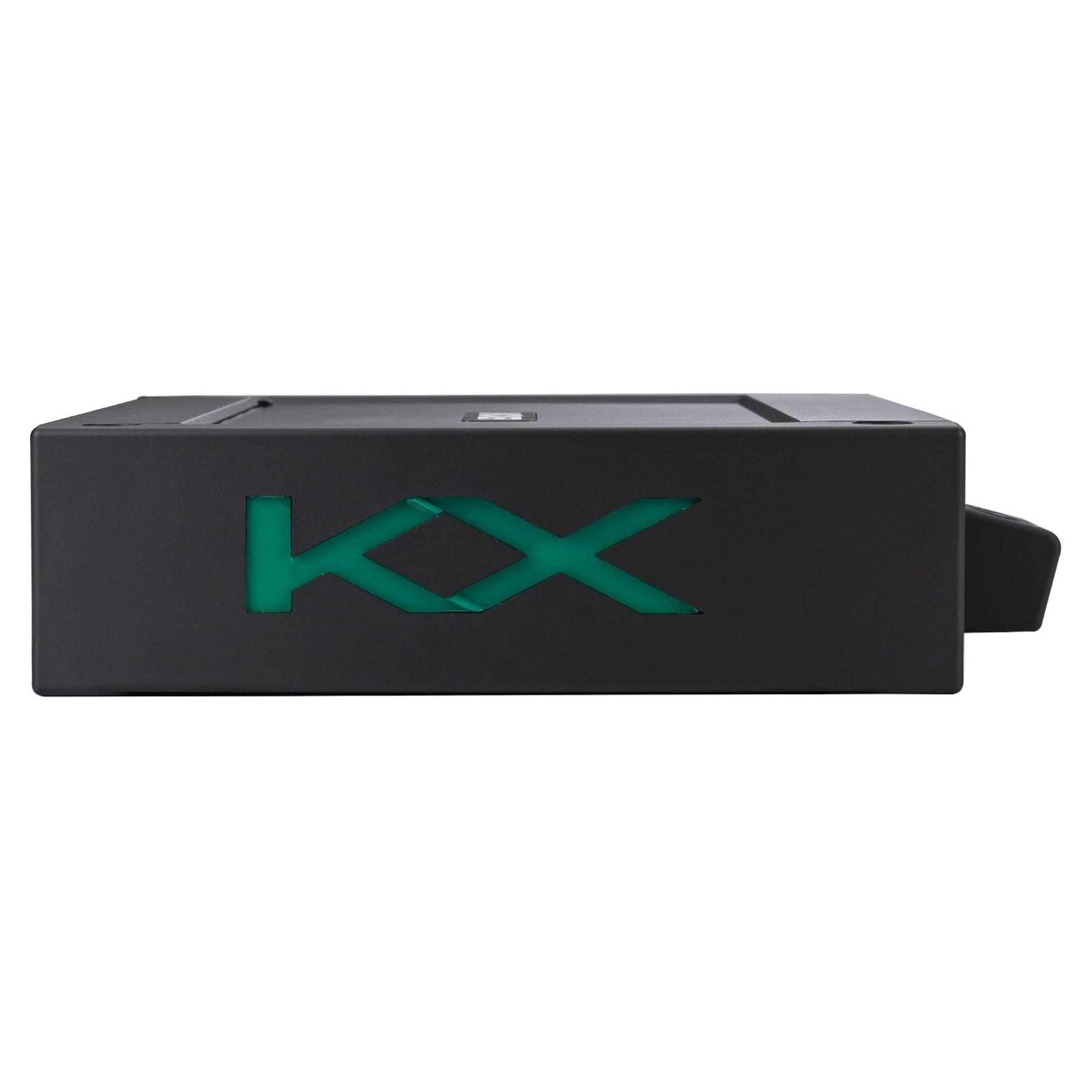

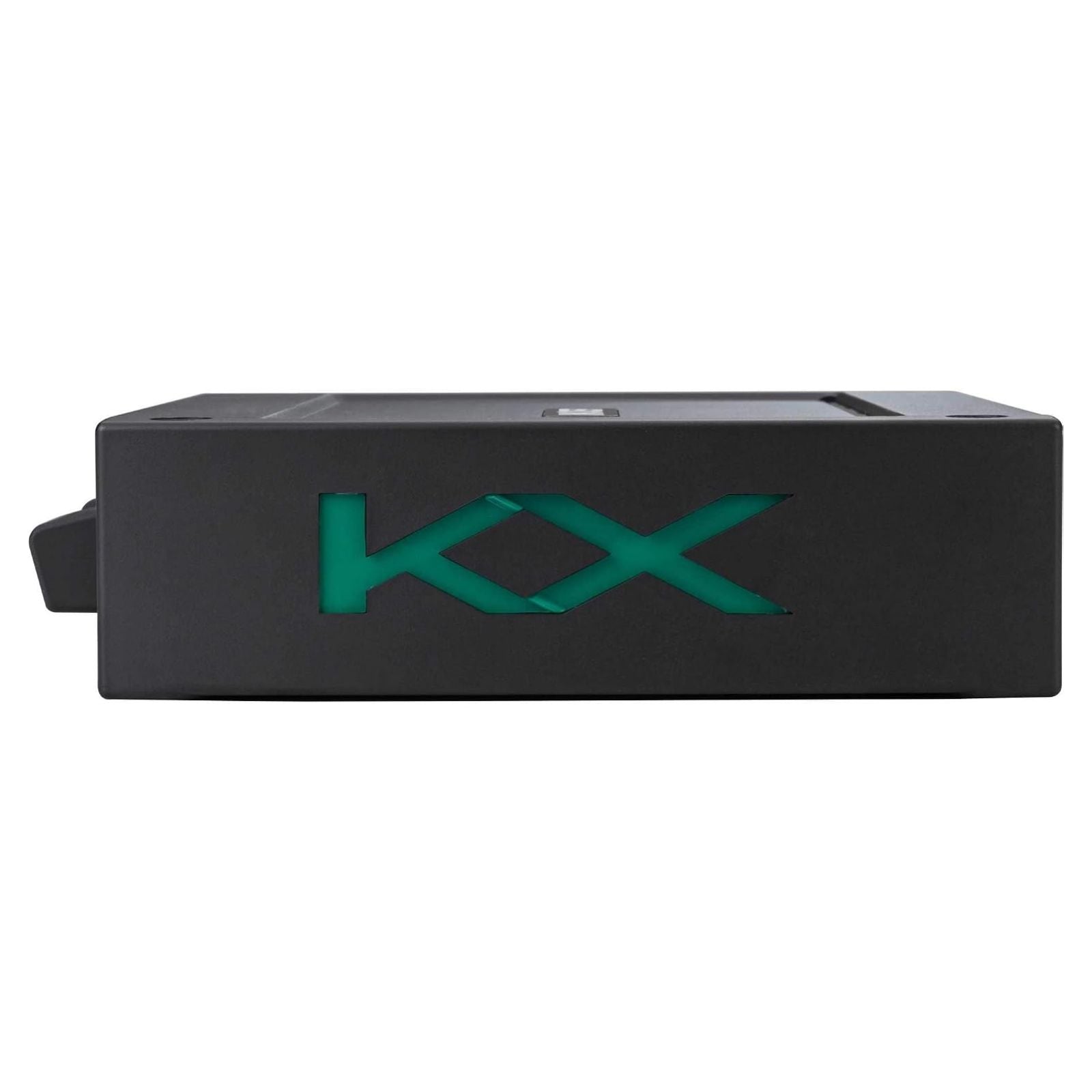

- Top-mounted teal LED light pipe
- Stainless steel mounting hardware included
Explore the full range in Amplifiers.
Specification
| RMS Power @ 14.4V | 300W x 2 @ 4Ω / 600W x 2 @ 2Ω |
|---|---|
| Output Channels | 2 |
| Voltage (V) | 12 |
| Class | D |
| Features | KickEQ Bass Boost / FIT2 Technology |
| Waterproof Rating | ASTM B117 200 hr Salt Fog Test Compliant |
| Filter | High-Pass / Low-Pass / Band-Pass |
| Active Crossover | 24dB/octave, Off/variable high pass / 10-500Hz, variable low pass / 40-500Hz (400-5kHz w/ 10x switch), band pass capable |
| Fuse Rating (A) | 150 |
| Cable Gauge (AWG) | 4 |
| Amp Turn-On | DC Offset / 12V / Audio |
| Frequency Response | (Hz) 10-20k |
| Signal-to-Noise Ratio (dB) | 95 |
| Input Channels | 2 |
| Input Type | High Level / Low Level |
| Input Sensitivity Low Level | 125mV-5V |
| Input Sensitivity High Level | 250mV-10V |
| Height (cm) | 5.5 |
| Width (cm) | 28.4 |
| Depth (cm) | 21 |
What's Included
- Kicker 48KXMA12002
Kicker
About the Kicker 48KXMA12002
From our tech experts at CEN
A marine-rated amplifier, 2 channel, rated at 1200w RMS, coated to cope with damp and salt air where a car amplifier would corrode.
Who it suits
Boats, ribs and open builds, and anywhere an amplifier is mounted somewhere it will get damp. Campers with outdoor speakers are an increasingly common use.
Our tech experts advise
Mount it somewhere ventilated and as dry as the boat allows, and fuse the feed at the battery. Marine wiring wants tinned cable and sealed joints. get in touch to talk through the install. See car audio installation.
Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Kicker Marine
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: How much power does the Kicker 48KXMA12002 deliver?
A: It delivers 300W RMS x 2 at 4 ohms or 600W RMS x 2 at 2 ohms, measured at 14.4V.
Q: Can I add another amplifier to the 48KXMA12002?
A: Yes. A full-range RCA output lets you add a second amplifier without running new signal cable back to the head unit.
Q: Is the 48KXMA12002 suitable for use on a boat?
A: Yes. It has conformal-coated circuit boards, a gasket-sealed cover panel over the controls, ABYC/NMMA-compliant power terminals, stainless-steel mounting hardware and ASTM B117 200 hour salt fog test compliance.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
