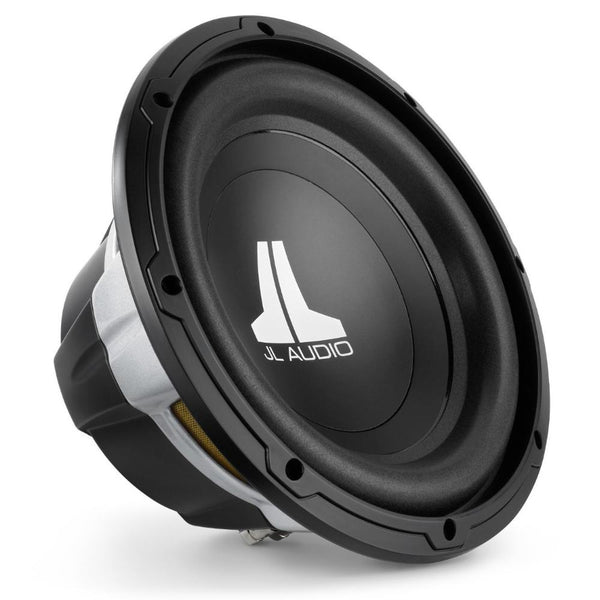

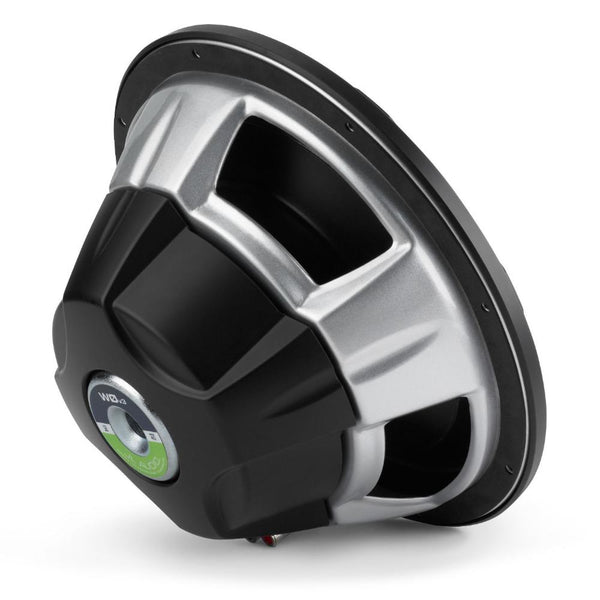

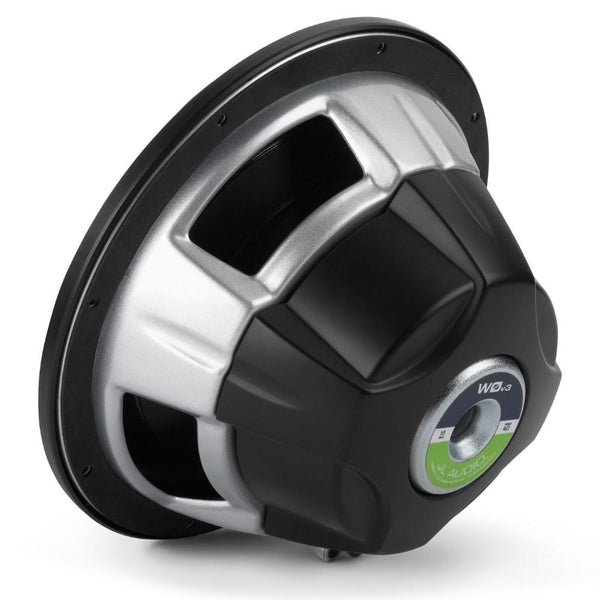

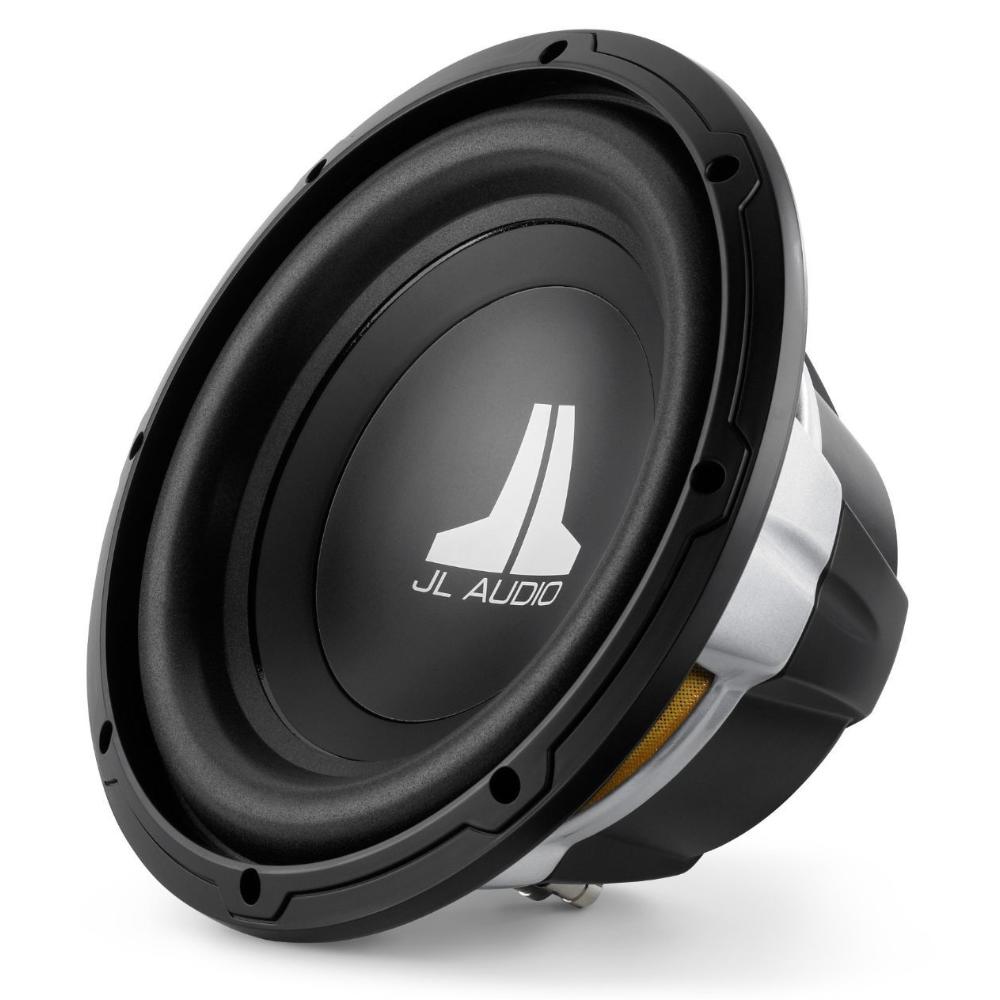

JL Audio 10W0v3-4 10" 25cm W0 Series Car Sub Subwoofer Driver 4ohm 300w RMS
Pickup Available at CEN
Usually ready in 1 hour
10W0v3-4
10-inch (250 mm) Subwoofer Driver, 4 Ω
W0v3 10-inch Subwoofer (300 W, 4 Ω)
The 10W0v3 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
Specification
Part Number: 10W0-V3-4
- Continuous Power Handling (RMS) 300 W
- Recommended Amplifier Power (RMS) 75 - 300 W
- Nominal Impedance (Znom) 4 Ω
- Nominal Diameter 10.0 in / 250 mm
- Overall Diameter (A) 10.52 in / 267 mm
- Mounting Hole Diameter (B) 9.0625 in / 230 mm
- Bolt Hole Circle Diameter (C) 9.7 in / 246.5 mm
- Motor Outer Diameter (D) 5.05 in / 128 mm
- Mounting Depth (E) 4.90 in / 124 mm
- Driver Displacement 0.034 cu ft / 0.96 L
- Net Weight 7.50 lb / 3.40 kg
- Free Air Resonance (Fs) 32.09 Hz
- Electrical “Q” (Qes) 0.64
- Mechanical “Q” (Qms) 10.752
- Total Speaker “Q” (Qts) 0.604
- Equivalent Compliance (Vas) 1.095 cu ft / 31.01 L
- One-Way Linear Excursion (Xmax)* 0.45 in / 11.4 mm
- Reference Efficiency (no) 0.15%
- Efficiency (1 W / 1 m)** 84.07 dB SPL
- Effective Piston Area (Sd) 48.909 sq in / 0.0316 sq m
- DC Resistance (Re) 4.280 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
What's Included
2 Year Warranty
- 10W0v3-4
- Owner's Manual
