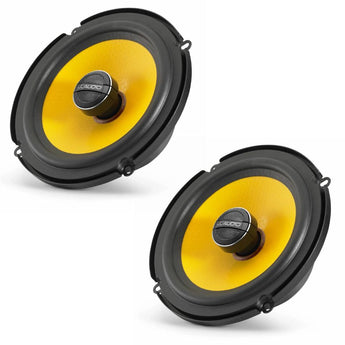

JL Audio C1-650x C1 Series 6.5" 16.5cm Coaxial Car Door Speakers 50w RMS Pair

RRP £84.90 £79.90 Save 6% Out of stock Best Seller
Black Friday
Out of Stock
SKU: 90959MPN: C1-650X
Part of the range · 29 productsPart of the JL Audio Speakers range · 29 products See the range →

The JL Audio C1-650x is a 6.5" (165mm) 2-way coaxial car speaker pair from the C1 Series, rated at 50W RMS, with a 0.75" (19mm) aluminium dome tweeter. Adaptor rings are included for 6.5" and 6.75" openings to simplify factory-fit installation.

This listing is the C1-650x coaxial pair. The C1 Series 6.5" speaker is also available as the C1-650 component system. The C1 Series coaxial range is also available in 5.25" and 4" sizes.

Key specifications

  • Size: 6.5" (165mm) woofer, 0.75" (19mm) aluminium dome tweeter
  • Power handling: 50W RMS continuous
  • Recommended amplifier power: 10–75W RMS per channel
  • Sensitivity: 90.5dB at 1W/1m
  • Impedance: 4 ohms
  • Frequency response: 48Hz–24kHz ±3dB
  • Mounting depth: 53mm (2.07")
  • Mounting hole diameter: 128mm (5.02")
  • Sold as a pair

C1 Series 6.5" 2-way coaxial speaker system

C1 speakers are designed for easy fit behind factory grilles. Multi-application adaptor rings are included, enabling drop-in installation in vehicles with 6.5" and 6.75" speaker openings. Without the ring, the speaker fits many standard "6-inch" locations too.

This is the updated version of the C1-650x, featuring an improved tweeter grille. Grilles are not available separately.

C1 woofer drivers use proprietary FEA modelling and JL Audio's low-frequency driver expertise to produce loud, smooth, low-distortion sound. At the core is a proprietary stamped steel 165mm frame with a DMA-optimised motor system. A mineral-filled, injection-moulded polypropylene cone is suspended with a rubber surround, and a flat Conex spider at the top of the voice coil controls motion precisely. Tinsel leads are routed and attached to the spider to prevent fatigue and buzzing.

The edge-driven aluminium dome tweeter delivers high-frequency clarity and strong off-axis response. It features a silk surround suspension, Ferrofluid in the voice coil gap, and a neodymium magnet circuit. A true 2nd order high-pass filter improves smoothness and power handling.

Specification
Mounting Depth(G)    2.07 in / 53 mm
More specs
  • Continuous Power Handling (RMS)    50 W
  • Recommended Amplifier Power (RMS)    10 - 75 W / Ch.
  • System Efficiency    90.5 dB @ 1 W / 1 m
  • System Nominal Impedance    4 Ω
  • System Frequency Response    48 Hz - 24 KHz ± 3 dB
  • Frame Outer Diameter* (A)    6.25 in / 159 mm
  • Grille Tray Outer Diameter (B)    N/A
  • Motor Outer Diameter (C)    3.15 in / 80 mm
  • Frontal Coaxial Tweeter Protrusion** (D)    0.72 in / 18 mm
  • Frontal Grille Protrusion (E)    N/A
  • Mounting Hole Diameter (F)    5.02 in / 128 mm
What's Included
  • Two 2-way speakers
  • 2 Multi-application adapter brackets
  • Eight 3/4" Screws (#8)
  • Eight 1/4" Thread forming screws (#8)
  • 8 Speed clips
  • Two 0.187" Crimpable female quick slides
  • Two 0.110" Crimpable female quick slides
  • Owner's manual


Product information

JL Audio

About the JL Audio C1-650X

From our tech experts at CEN

JL Audio C1 Series 6.5 inch coaxial speakers, with the tweeter mounted in the centre of the woofer, rated at 50w RMS.

Who it suits

Drivers replacing tired factory speakers who want a clear improvement without relocating tweeters. C1 is the straightforward upgrade over factory speakers.

Our tech experts advise

Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering. Door treatment matters as much as the speaker, and JL drivers repay an amplifier. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full JL Audio range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all JL Audio

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: Will these speakers fit my car?

A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.

Q: Do I need an amplifier to run these speakers?

A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.

Q: What is the difference between coaxial and component speakers?

A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.

Q: Do these come as a pair?

A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.

Q: Can CEN fit these speakers for me?

A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.

Q: Will the JL Audio C1-650x fit 6.75-inch speaker openings?

A: Yes. Multi-application adaptor rings are included for drop-in installation in 6.5-inch and 6.75-inch openings, and without the ring the speaker fits many 6-inch locations. The mounting depth is 53mm and the mounting hole diameter is 128mm.

Q: How much amplifier power does the C1-650x need?

A: JL Audio recommends 10 to 75W RMS per channel. The speakers handle 50W RMS continuous and have a sensitivity of 90.5dB at 1W/1m.

Q: Do the JL Audio C1-650x speakers come with grilles?

A: No, grilles are not available for the C1-650x. The box contains two 2-way speakers, two multi-application adaptor brackets, screws, speed clips, crimpable quick slides and the owner's manual.
