Edge Unlimited Series EDU15SPL-E2 Sub Dual 0.7 Ohms 15 Inch Subwoofer 5000w RMS
Couldn't Load Pickup availability
The Edge Unlimited Series EDU15SPL-E2 is a 15 inch competition SPL subwoofer rated at 5000W RMS and 10000W peak, with a dual 0.7 ohm, 100mm USA-built voice coil. It is part of the Edge Unlimited Series, designed for high-power SPL builds and competition use.
This listing is the 15 inch. The Unlimited Series is also available in 12 inch and 18 inch sizes.
Key specifications
- Size: 15 inch (380mm)
- Power handling: 5000W RMS, 10000W peak
- Impedance: dual 0.7 ohms
- Voice coil: 100mm, 4 layer 65mm flat aluminium winding
- Magnet: 612oz, 280mm x 25mm
- Mounting depth: 10.4 inch (265mm)
- Mounting diameter: 13.85 inch (352mm)
- Recommended amplifier: EDGE EDX5000.1FD-E9

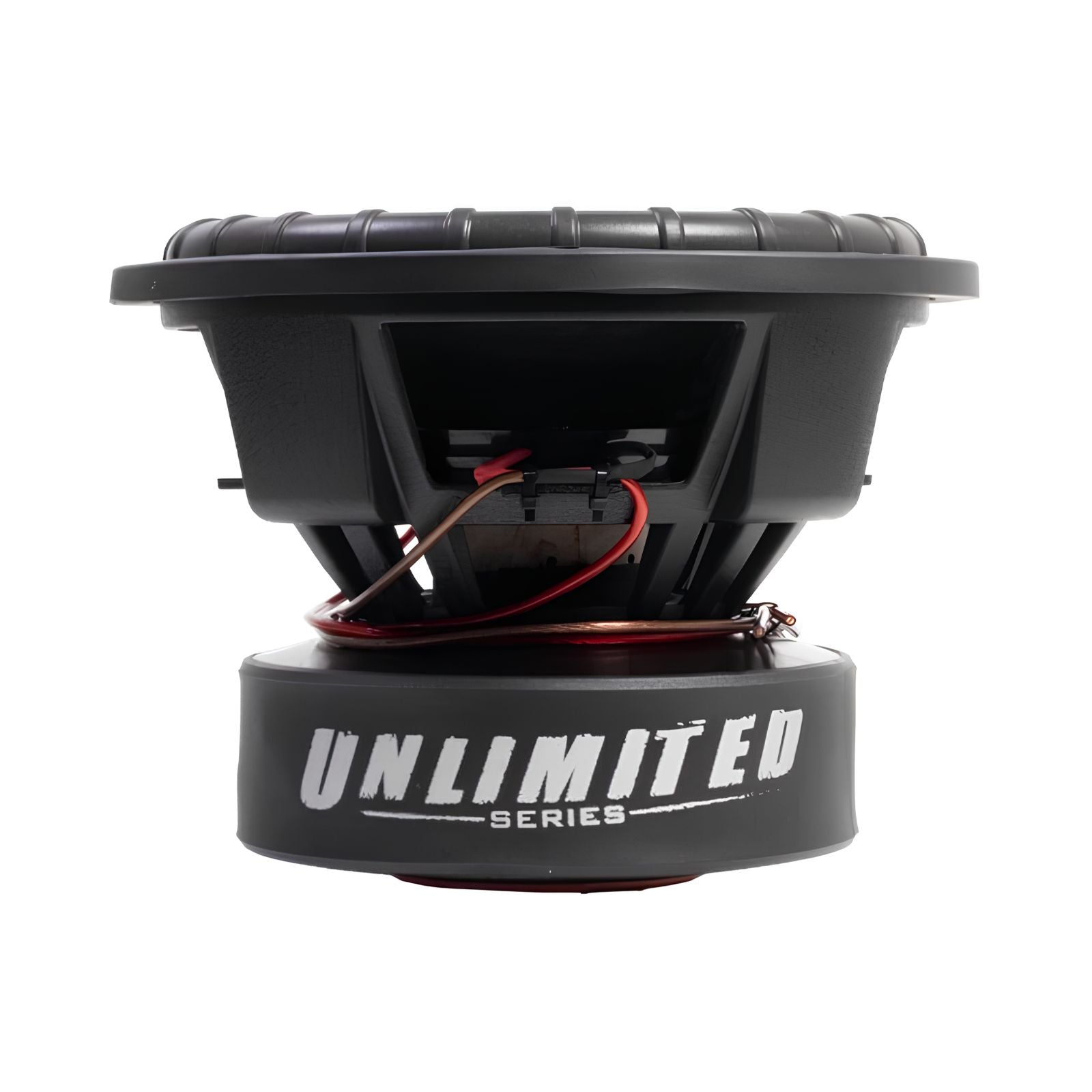

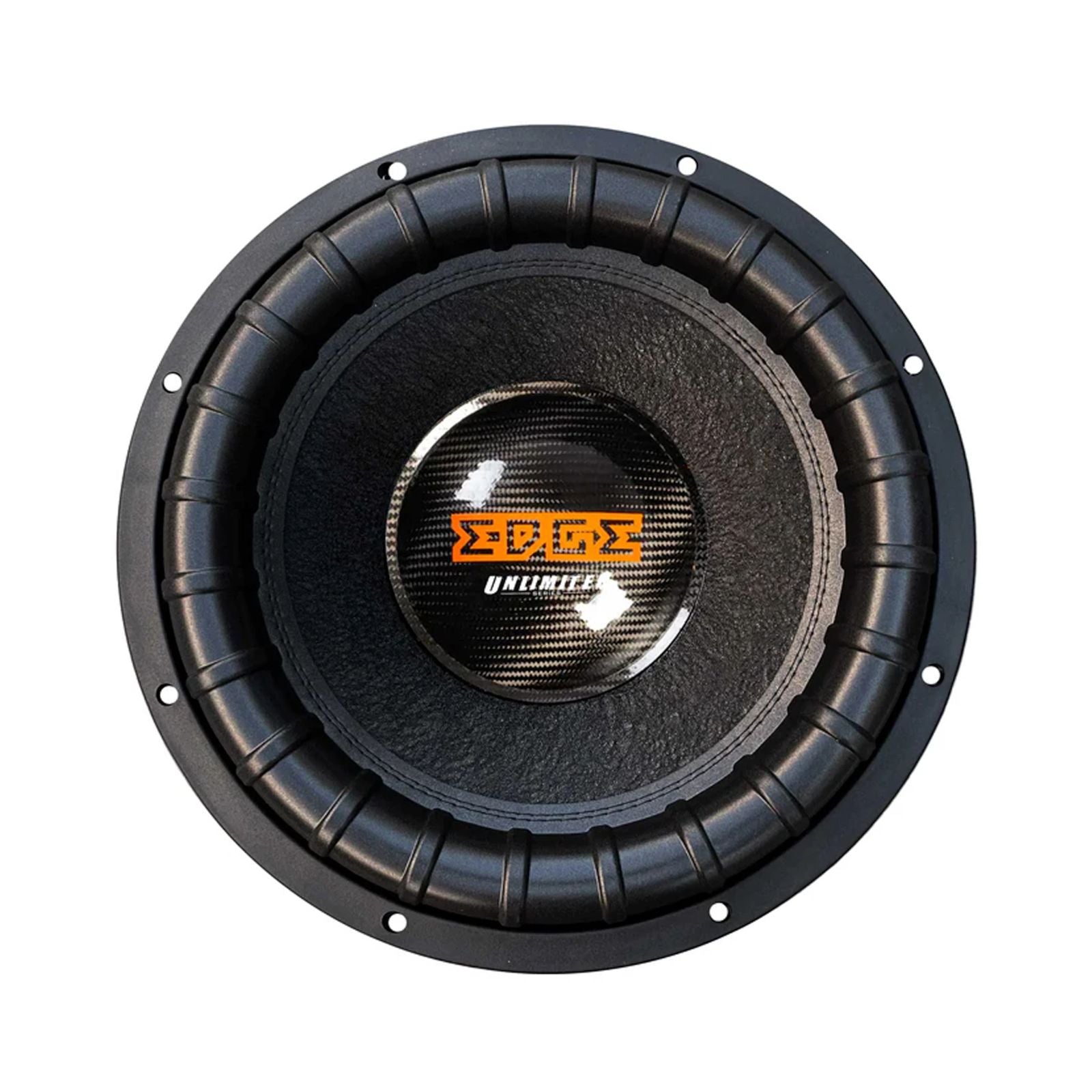

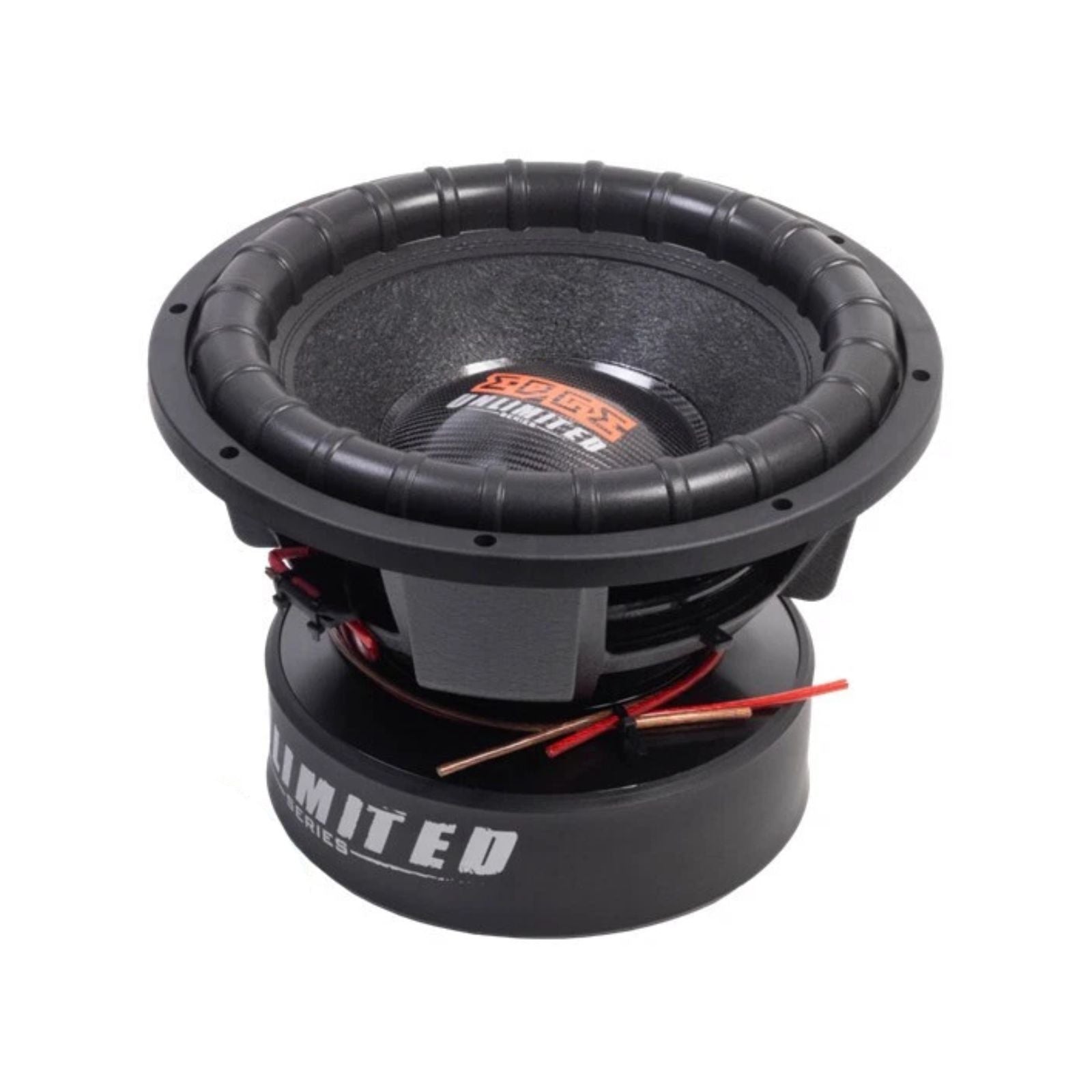

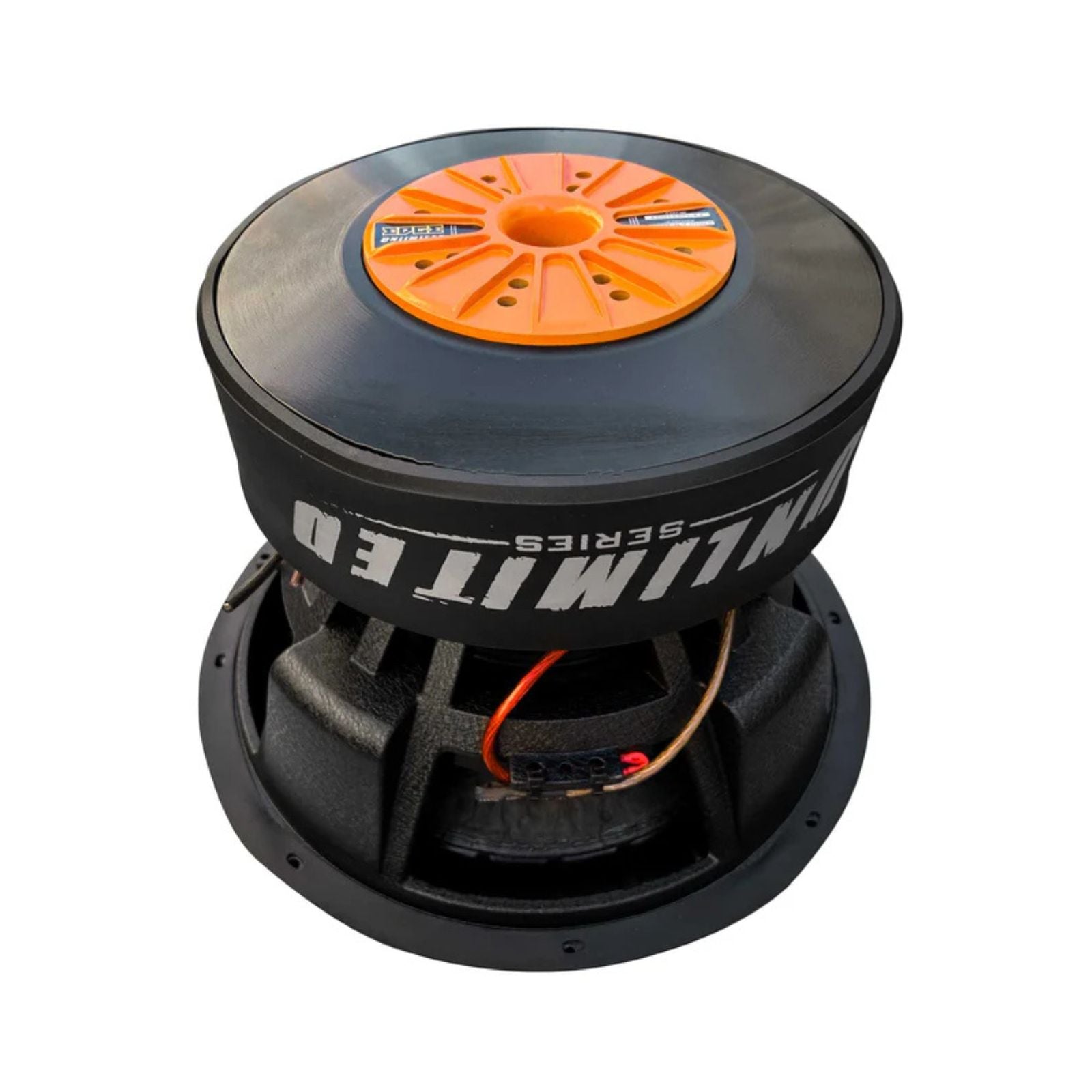

EDGE Unlimited Series 15 inch subwoofer (EDU15SPL-E2)
The Unlimited Series is built around maximum performance without compromise. Key technologies include the heat raptor system, carbon fibre dust cap, ribbed surround, and a USA-built voice coil — all engineered together to deliver exceptional results across motor design, suspension, and voice coil accuracy.
SPL
A high-power SPL-derived subwoofer built for competition performance, while still delivering smooth, musical bass playback.
Heat raptor technology
Heat raptor technology improves heat dissipation, allowing for louder output over longer listening sessions.
Sound
The ribbed surround, non-pressed paper cone and carbon fibre dust cap keep moving parts lightweight, producing a smooth sound-wave transition and a warm, rounded sound.
Power
5000W RMS power handling comes from a USA-built voice coil with a 65mm winding height and high-temperature black resin coating.
Features
- Ribbed surround
- USA-built voice coil
- Aluminium heat sink and extraction pole
- Cast alloy torsion basket
- Dual 0.7 ohm voice coil
- High power motor
Explore the full range in Edge Unlimited Series.
Specification
| Subwoofer Size | 15" (380mm) |
|---|---|
| RMS Power | 5000 watts |
| Peak Power | 10000 watts |
| Impedance | Dual 0.7 Ohms |
| Voice Coil | Diameter 100mm |
| Voice Coil | Winding 4 layer 65mm flat Aluminium |
| Recommended Amplifier | EDX5000.1FD-E9 |
| Magnet | Weight 612oz |
| Magnet | Dimensions 11" x 1" (280mm x 25mm) |
| Mounting Depth | 10.4" (265mm) |
| Mounting Diameter | 13.85" (352mm) |
What's Included
- EDU15SPL-E2
Edge
About the Edge EDU15SPL-E2
From our tech experts at CEN
An Edge 15 inch subwoofer, dual voice coil, 0.7 ohm, handling 5000w RMS.
Who it suits
Drivers building a system where the bass does real work, and SPL builds where output is the point.
Our tech experts advise
Enclosure volume and tuning decide most of what you hear, and the dual coils give you wiring options. Bigger output builds also need the electrical side checked, because large amplifiers pull current the standard charging system was never designed for. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge
More options from the same range, in stock and ready to go
Staff PickEdge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3
£179.00
View product
Best SellerEdge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair
£39.99
Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS
£174.99
Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS
£249.99
Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair
£49.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: What impedance is the EDGE EDU15SPL-E2?
A: It has dual 0.7 ohm voice coils, designed for high power competition amplifiers. EDGE recommends the EDX5000.1FD-E9 amplifier.
Q: How much power can the EDU15SPL-E2 handle?
A: It is rated at 5000W RMS and 10000W peak.
Q: How deep is the EDU15SPL-E2?
A: The mounting depth is 265mm and the mounting diameter is 352mm, so allow for this when designing the enclosure.
