Edge Street Series EDS5C-E4 2 Way Component Speakers 5.25 Inch 100w RMS Pair
Couldn't Load Pickup availability

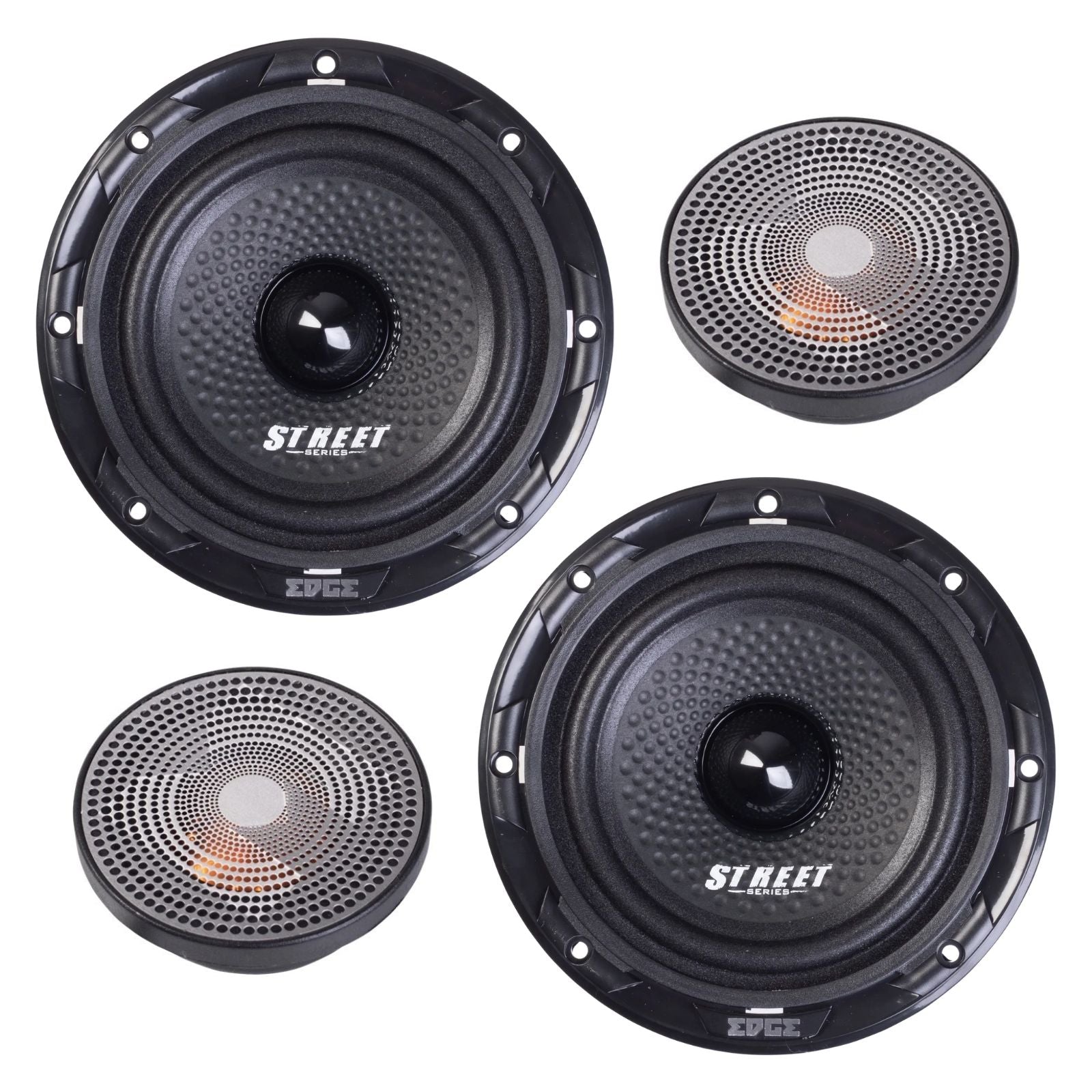

The Edge EDS5C-E4 is a 5.25 inch (130mm) 2-way component speaker set from the Edge Street Series, rated at 100W RMS (200W peak). It includes separate oversized PEI tweeters and dimpled Magnus cone woofers, sold as a pair.
This listing is the component version. The Street Series 5.25 inch speakers are also available as the EDS5-E4 coaxial speakers, which share the same size and mounting depth for a simpler drop-in fit.
Key specifications
- Model: EDS5C-E4
- Type: 2-way component
- Size: 5.25" (130mm)
- Power: 100W RMS / 200W peak
- Frequency response: 80Hz – 20kHz
- Impedance: 4 ohms
- Mounting depth: 46mm, mounting diameter: 112mm
- Grilles: included
- Sold as: pair
Edge Street Series 5.25 inch component speakers
Edge's engineers developed the EDS series with a focus on precision engineering, balanced components and extensive testing, drawing on design work from Edge's pro speaker range. The result is a component set that brings pro-derived technology into an affordable package.

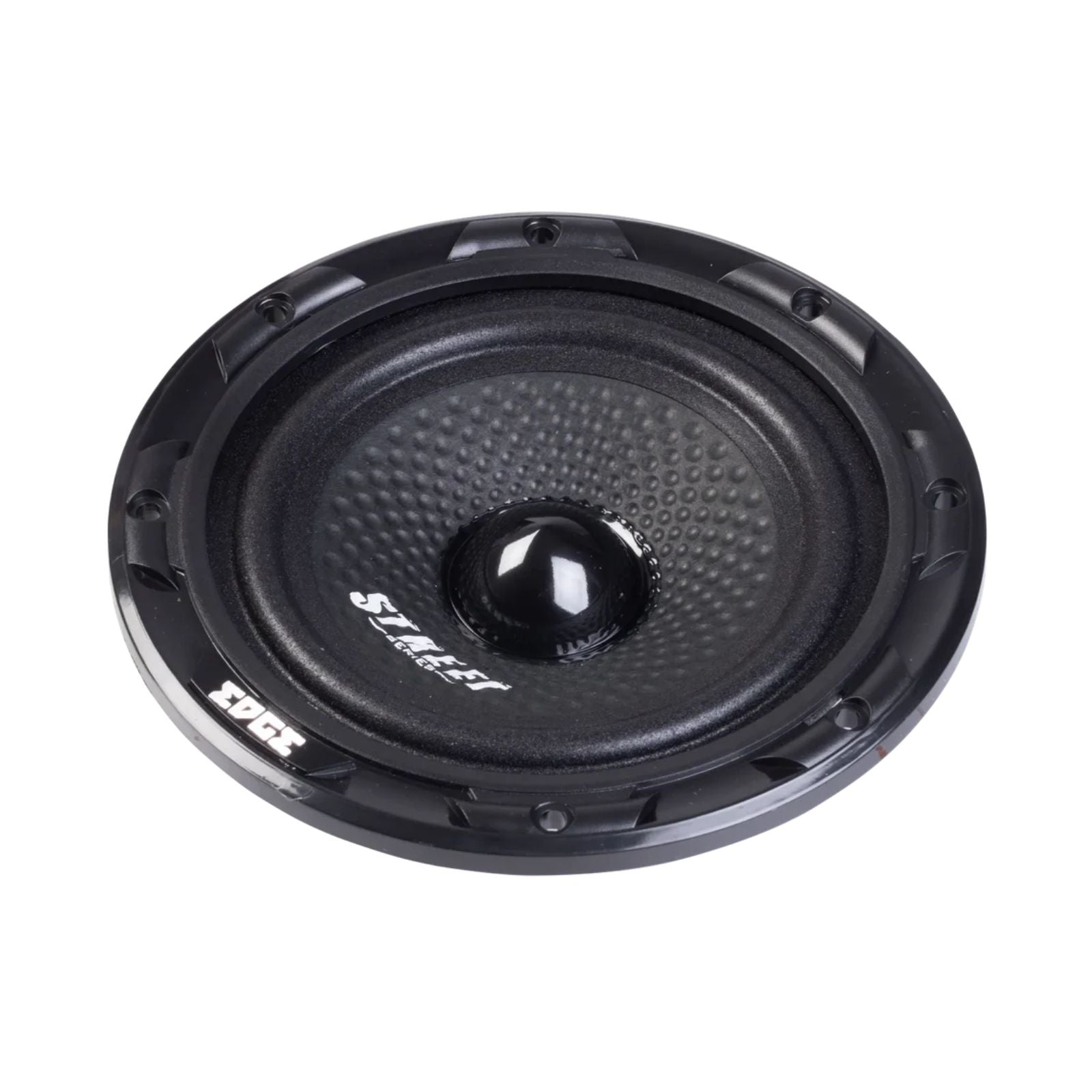

The dimpled Magnus cone originates from Edge's pro driver development. The dimpled surface adds rigidity and strength, reducing deformation for a cleaner sound. It also slightly increases cone surface area, allowing the speakers to play louder for their size.
Sound quality – The Street Series draws on technology from across Edge's ranges, delivering superior audio quality at an accessible price point.
Technology – Features an oversized PEI tweeter, precision OFC voice coil, ultra lightweight cone and a large ferrite magnet.
Fitment – A multi-fit basket design allows installation in most vehicles.
Styling – Stealthy black finish with signature Edge orange accents on the tweeter.
Features
- 2-way component speakers
- Ultra lightweight paper cone with unique oversized tweeter diaphragm
- Precision OFC voice coil
- Foam surround
- Multi-fit design for installation in most vehicles
Explore the full range in Edge Street Series.
Specification
| Type | Component |
|---|---|
| Configuration | 2-Way |
| Speaker Size | 5.25" (130mm) |
| Peak/RMS Power | 200W/100W |
| Frequency Response | 80Hz - 20kHz |
| Impedance | 4 Ohms |
| Mount Depth | 1.8" (46mm) |
| Mount Dia | 4.4" (112mm) |
| Grille | Yes |
What's Included
- EDS5C-E4
Edge
About the Edge EDS5C-E4
From our tech experts at CEN
Edge speakers, 5.25 inch, handling 100w RMS.
Who it suits
Drivers replacing tired factory speakers who want more output for the money.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge
More options from the same range, in stock and ready to go
Staff PickEdge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3
£179.00
View product
Best SellerEdge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair
£39.99
Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS
£174.99
Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS
£249.99
Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair
£49.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What is the Magnus cone on the EDS5C-E4?
A: It is a dimpled paper cone developed from Edge's pro drivers. The dimples add rigidity and strength for less deformation and a cleaner sound, and slightly increase cone area for more output.
Q: What is the mounting depth of the EDS5C-E4?
A: The woofer mounting depth is 46mm and the mounting diameter is 112mm. The multi-fit basket allows fitment in most vehicles.
Q: Do the EDS5C-E4 speakers come with grilles?
A: Yes. Grilles are included.
