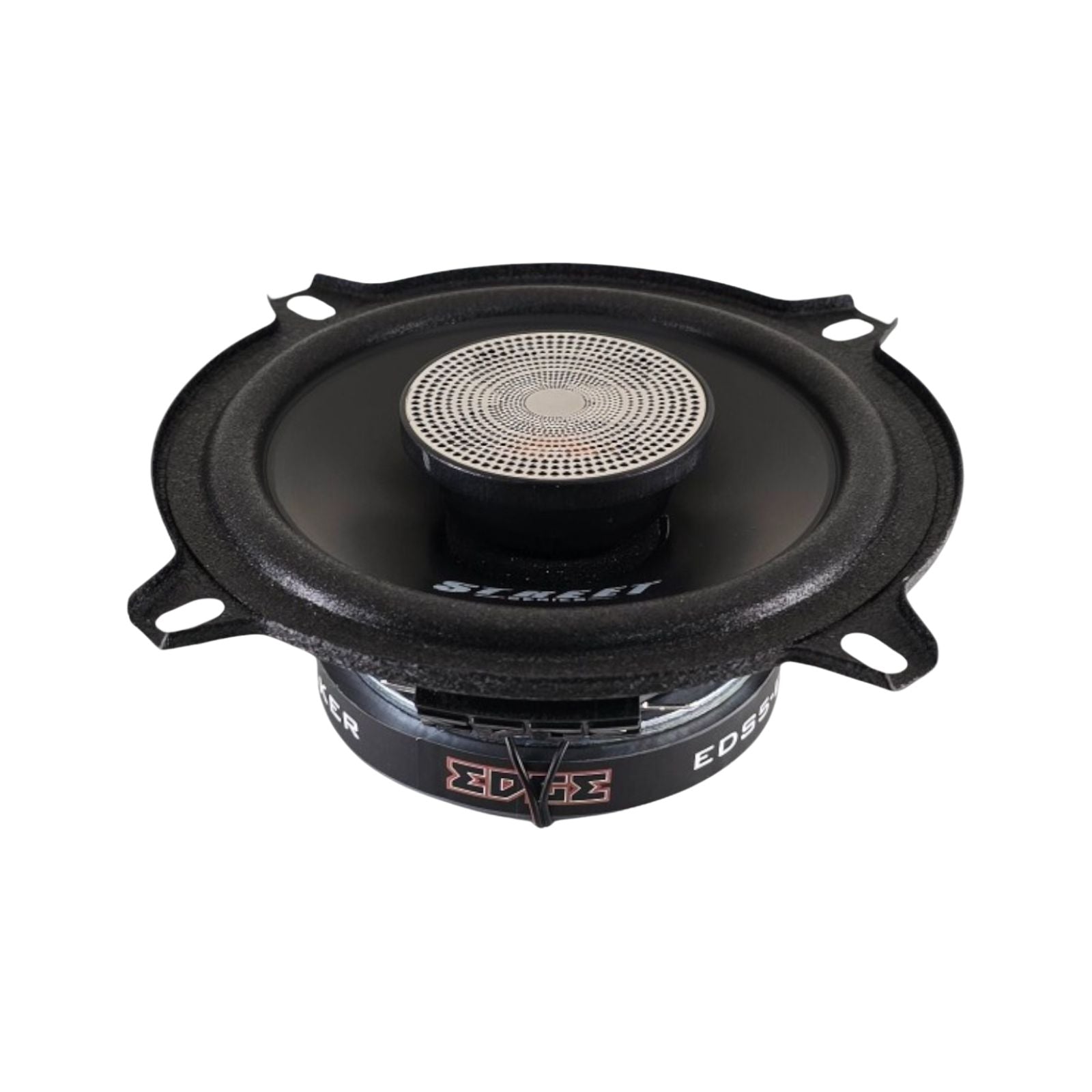

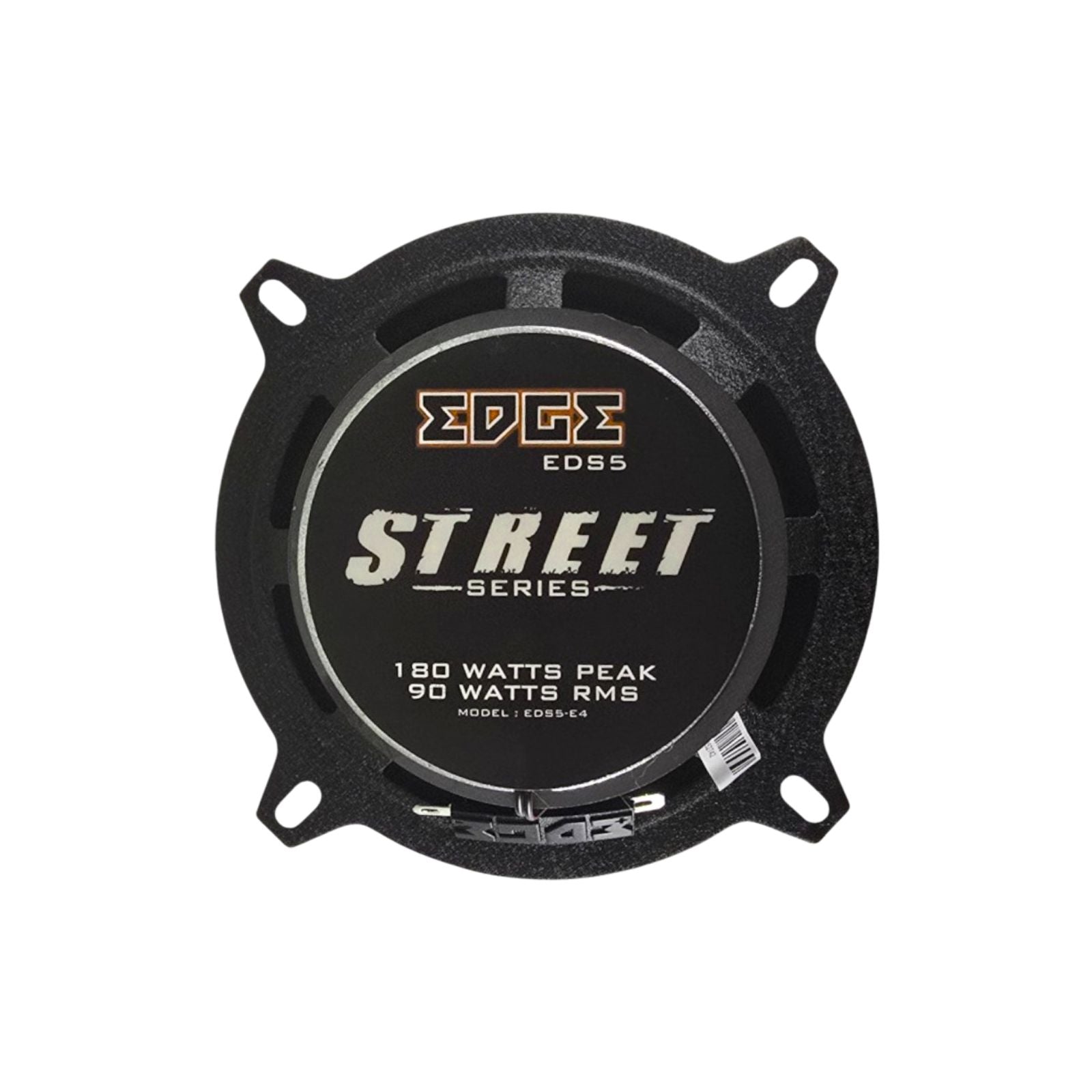

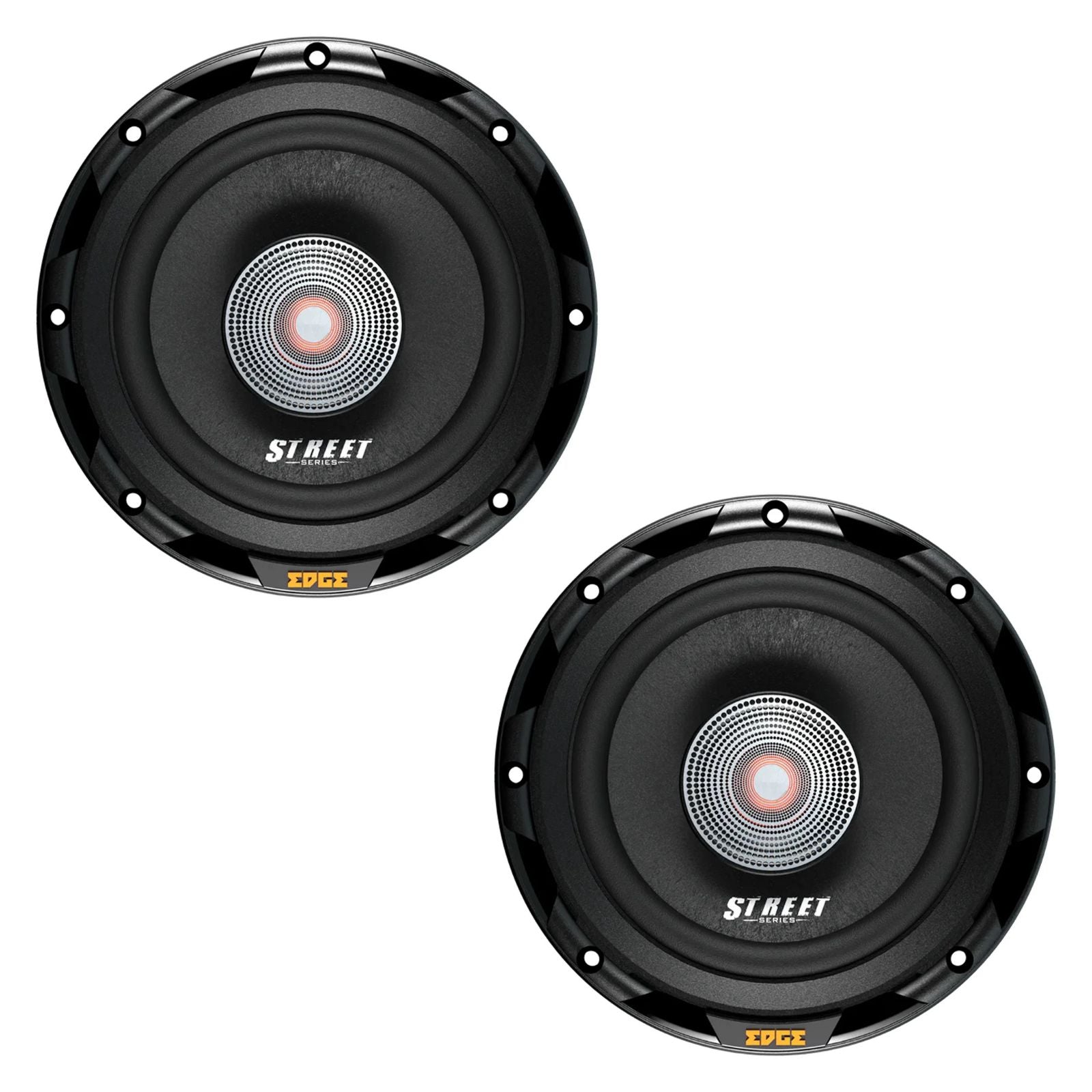

Edge Street Series EDS5-E4 2 Way Coaxial Speakers 5.25 Inch 90w RMS Pair
Couldn't Load Pickup availability
The Edge EDS5-E4 is a pair of 2-way coaxial car speakers in the Edge Street Series, sized 5.25 inch (130mm) and rated at 90W RMS (180W peak) each.
This is the coaxial version. For separate tweeters and better imaging, the EDS5C-E4 component speakers share the same 5.25 inch size and mounting depth.
Key specifications
- Model: EDS5-E4
- Type: 2-way coaxial
- Size: 5.25" (130mm)
- Power: 90W RMS / 180W peak
- Frequency response: 80Hz – 20kHz
- Impedance: 4 ohms
- Mounting depth: 46mm, mounting diameter: 112mm
- Grilles: included
Edge Street Series 5.25 inch coaxial speakers
Edge's R&D engineers developed the EDS series with the aim of producing the best-sounding speakers in their range, drawing on design elements from Edge's latest pro speakers. The result is a speaker built around precision engineering, balanced components, and extensive testing and tuning.
All coaxial speakers in the EDS range use an oversized tweeter of either 40mm or 50mm. The larger PEI tweeter membrane handles more of the directional sound and extends the bandwidth further than a standard coaxial tweeter.
Sound – High power handling with smooth midbass and vocal reproduction, making these a significant upgrade over factory speakers.
Technology – Oversized PEI tweeter and a large ferrite magnet for enhanced sound output.
Fitment – Multi-fit basket design allows installation in most vehicles.
Styling – Stealthy black finish with Edge's signature orange accents.
Features
- 2-way coaxial speakers
- Ultra-lightweight paper cone
- Oversized tweeter diaphragm
- Precision OFC voice coil
- Foam surround
- Multi-fit basket design for fitment in most vehicles
Explore the full range in Edge Street Series.
Specification
| Type | Coaxial |
|---|---|
| Configuration | 2-Way |
| Speaker Size | 5.25" (130mm) |
| RMS Power | 90 Watts |
| Peak power | 180 Watts |
| Frequency Response | 80Hz - 20kHz |
| Impedance | 4 Ohms |
| Mounting Depth | 1.8" (46mm) |
| Mounting Diameter | 4.4" (112mm) |
| Grille | Yes |
What's Included
- EDS5-E4
Edge
About the Edge EDS5-E4
From our tech experts at CEN
Edge speakers, 5.25 inch, handling 90w RMS.
Who it suits
Drivers replacing tired factory speakers who want more output for the money.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge
More options from the same range, in stock and ready to go
Staff PickEdge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3
£179.00
View product
Best SellerEdge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair
£39.99
Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS
£174.99
Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS
£249.99
Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair
£49.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Do the EDS5-E4 speakers come with grilles?
A: Yes. Grilles are included, and the speakers have a black finish with EDGE orange accents.
Q: What is the mounting depth of the EDS5-E4?
A: The mounting depth is 46mm and the mounting diameter is 112mm. The multi-fit basket allows fitment in most vehicles, but check the depth against your doors or contact CEN to confirm fitment.
Q: Will the EDS5-E4 run from a factory head unit?
A: Yes. They are 4 ohm speakers, so they work from a standard head unit, and with up to 90W RMS power handling each they also benefit from an amplifier.
