Edge Street Series EDS1SPLTN-E1 Titanium Dome Tweeters 1.9 Inch 120w RMS Pair

£39.99 Out of stock
Out of Stock
SKU: 92711MPN: EDS1SPLTN-E1
Part of the range · 22 productsPart of the Edge Street Series · 22 products See the range →

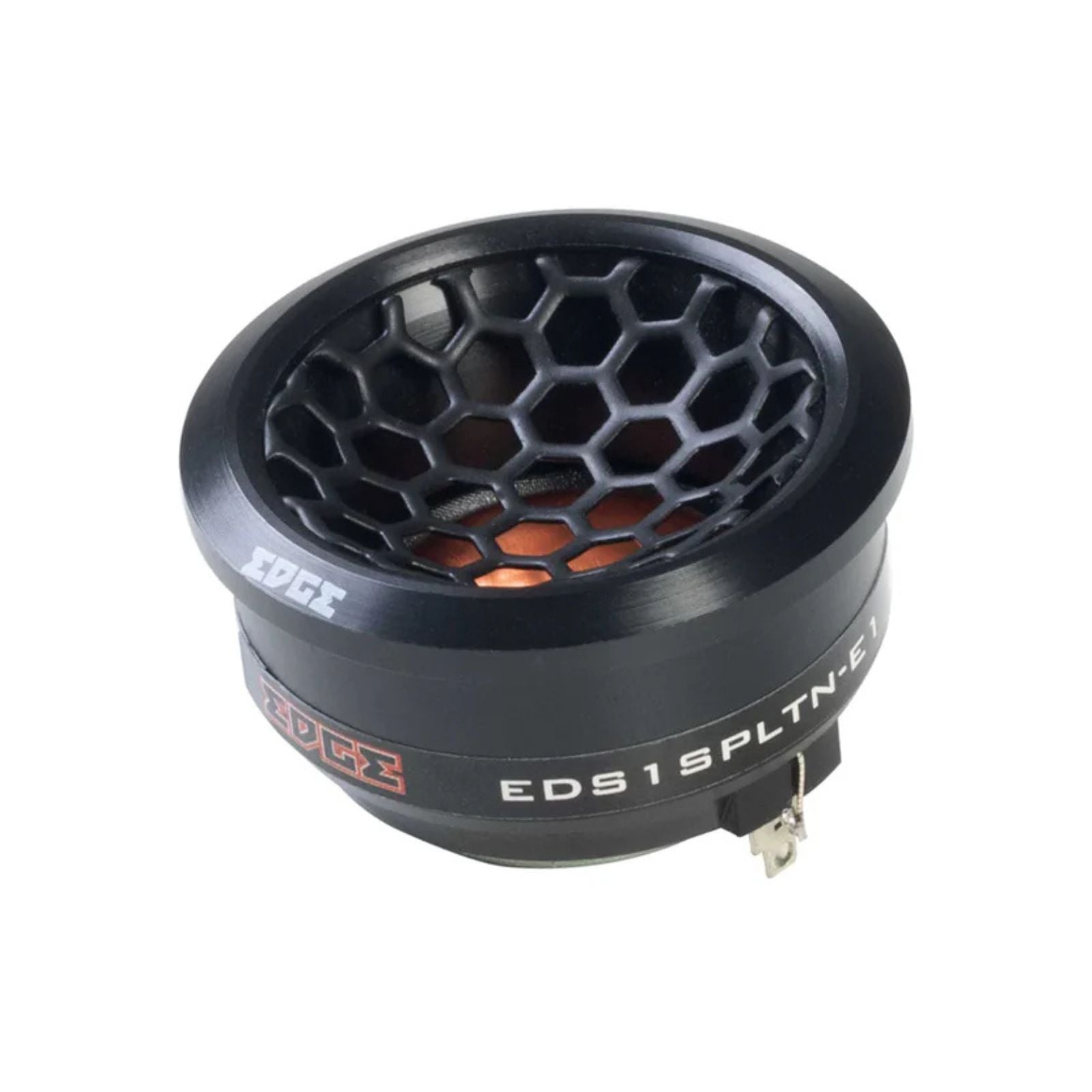

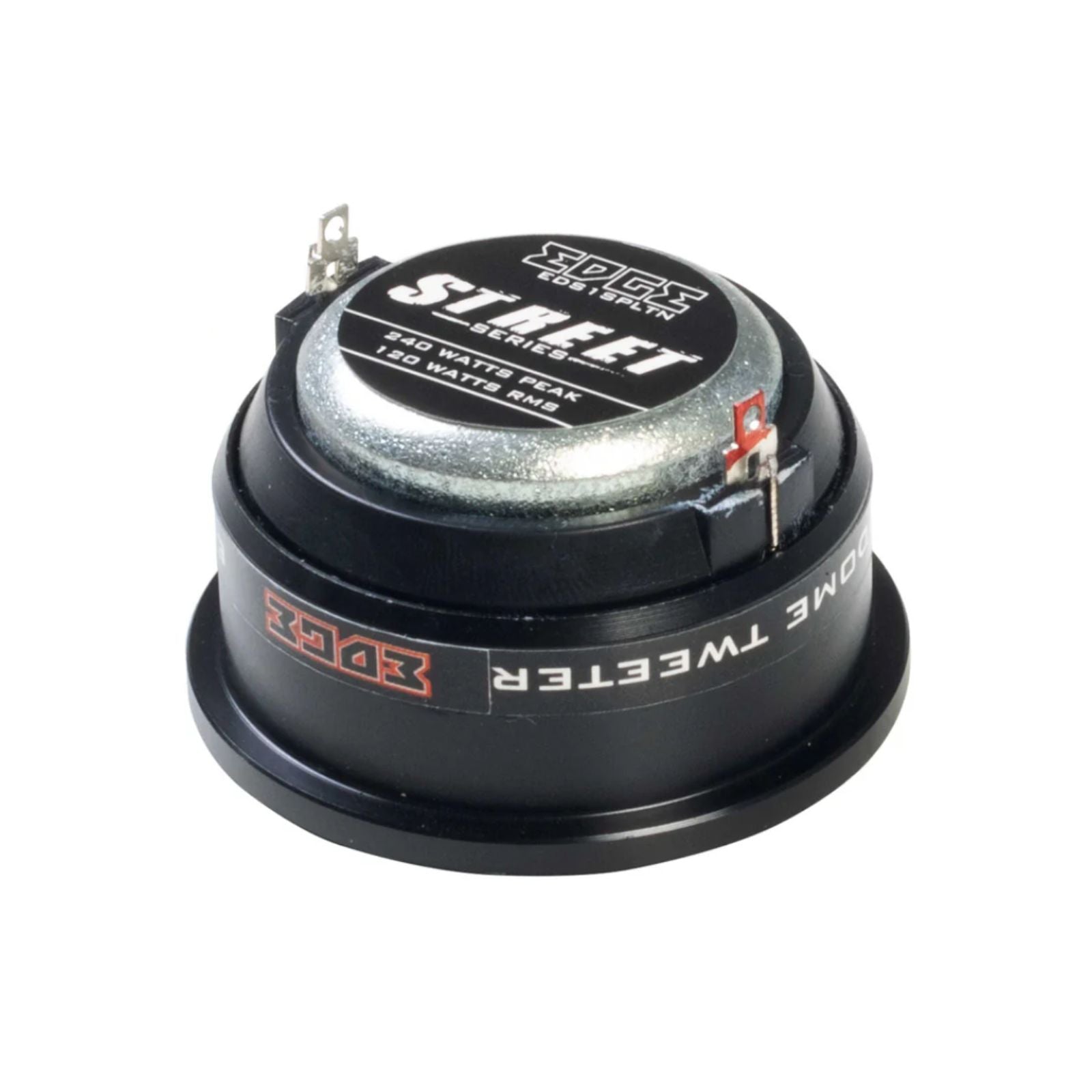

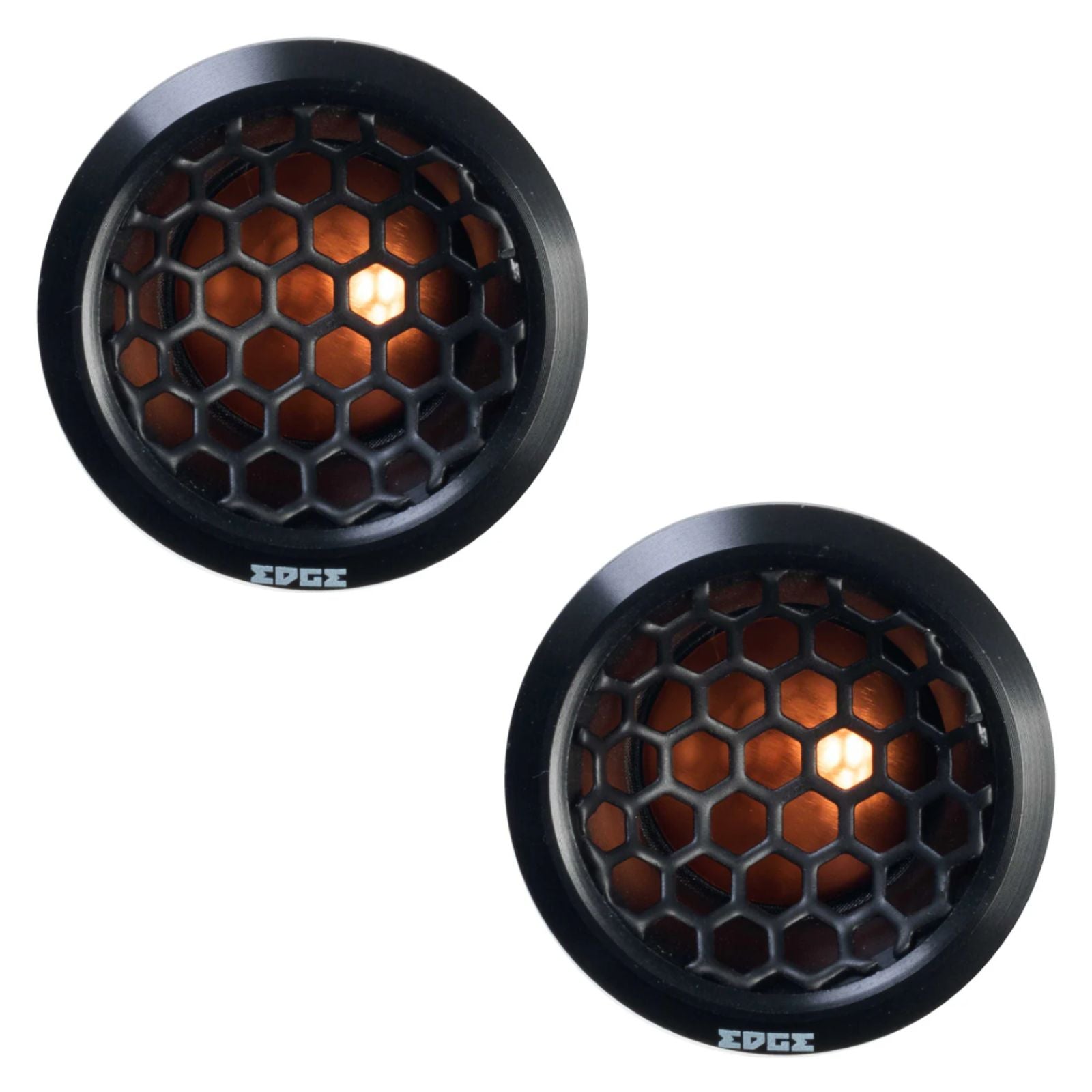

The Edge EDS1SPLTN-E1 is a pair of 1.9 inch (48mm) titanium dome tweeters rated at 120W RMS (240W peak) each, with 98dB sensitivity. They are part of the Edge Street Series, designed for loud, crisp and accurate high-frequency reproduction.

This listing is for the titanium dome SPL version. For a smoother, warmer sound, the silk dome EDS1SQTN-E1 shares the same size and mounting dimensions.

Key specifications

  • Model: EDS1SPLTN-E1
  • Type: 1-way component tweeter, titanium dome
  • Size: 1.9" (48mm)
  • Power: 120W RMS / 240W peak
  • Sensitivity: 98dB
  • Frequency response: 1.2kHz–20kHz
  • Impedance: 4 ohms
  • Mounting depth: 23mm, mounting diameter: 43mm
  • Sold as: pair

Edge Street Series 1.9 inch titanium dome tweeters

The EDS1SPLTN-E1 SPL tweeter delivers high-volume output with a crisp, sharp and accurate high-frequency response. Paired with any Edge Pro mid-range speaker, it makes a strong combination for those prioritising sensitivity and clarity at higher listening levels.

Features

  • Titanium diaphragm
  • Alloy chassis
  • Hexagon mesh grille
  • High sensitivity

Explore the full range in Edge Street Series.

Specification
Configuration1 way
Speaker Size1.9" (48mm)
RMS Power120 watts
Peak Power240 watts
Frequency Response1.2kHz - 20kHz
Sensitivity98dB
Impedance4 Ohms
Recommended AmplifierEDA100.4-E7
Mounting Depth0.9" (23mm)
Mounting Diameter1.7" (43mm)
What's Included
  • EDS1SPLTN-E1
Product information

Edge

About the Edge EDS1SPLTN-E1

From our tech experts at CEN

Edge tweeters, 1.9 inch, handling 120w RMS, a dome design for smoother top end.

Who it suits

Drivers building a front stage where the tweeter needs to sit higher than the door.

Our tech experts advise

Placement and aiming change the result more than the tweeter does, and they must be crossed over so they are never asked to play too low. get in touch. See car audio installation.

Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Edge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3 - CEN
Staff Pick Edge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3 £179.00
In stock
Edge Street Series EDS10ADSP-E4 10 Inch Compact Active Bass Enclosure 300w RMS
Save 33% Best Seller Edge Street Series EDS10ADSP-E4 10 Inch Compact Active Bass Enclosure 300w RMS RRP £299.99 £199.99 Save 33%
In stock
Edge EDS8DSP-E3 Street Series 8 Channel DSP Digital Sound Processor - CEN
Save 28% Edge EDS8DSP-E3 Street Series 8 Channel DSP Digital Sound Processor RRP £249.99 £179.00 Save 28%
Low stock
Edge DB Series EDB1TN-E1 Component Dome Tweeters 1.8 Inch 25w RMS Pair
Best Seller Edge DB Series EDB1TN-E1 Component Dome Tweeters 1.8 Inch 25w RMS Pair £19.99
Low stock
Edge DB Series EDBPRO37T-E0 Pro Audio Tweeters 3.7 Inch 75w RMS Pair
Edge DB Series EDBPRO37T-E0 Pro Audio Tweeters 3.7 Inch 75w RMS Pair £39.99
In stock
Edge DBX Series EDBX12ADSP-E3 12 Inch Active Bass Enclosure DSP 400w RMS
Best Seller Edge DBX Series EDBX12ADSP-E3 12 Inch Active Bass Enclosure DSP 400w RMS £199.99
Low stock
Edge DBX Series EDBX2200.1D-E4 Amp Class D 1 Channel Mono Amplifier 2200w RMS
Save 4% Best Seller Edge DBX Series EDBX2200.1D-E4 Amp Class D 1 Channel Mono Amplifier 2200w RMS RRP £249.99 £239.99 Save 4%
Low stock
Edge 10 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB10A 250w RMS - CEN
Save 7% Edge 10 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB10A 250w RMS RRP £149.00 £139.00 Save 7%
Low stock
Edge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair
Best Seller Edge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair £39.99
In stock
Edge DBX Series EDBX1800.1D-E4 Amp Class D 1 Channel Mono Amplifier 1800w RMS
Edge DBX Series EDBX1800.1D-E4 Amp Class D 1 Channel Mono Amplifier 1800w RMS £199.99
Low stock
Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

More from Edge

More options from the same range, in stock and ready to go

View all Edge ›
Edge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3 Staff Pick

Edge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3

£179.00

View product
Edge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair Best Seller

Edge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair

£39.99

 Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS

Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS

£174.99

 Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS

Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS

£249.99

 Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair

Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair

£49.99

Frequently Asked Questions

Q: What is the difference between the EDS1SPLTN-E1 and EDS1SQTN-E1?

A: The EDS1SPLTN-E1 has a titanium dome for crisp, high volume sound, rated at 120W RMS and 98dB. The EDS1SQTN-E1 has a silk dome for smoother, warmer sound, rated at 100W RMS and 96dB. Both are 1.9 inch with the same mounting size.

Q: What size hole do the EDS1SPLTN-E1 tweeters need?

A: The mounting diameter is 1.7 inches (43mm) and the mounting depth is 0.9 inches (23mm).

Q: What amplifier does Edge recommend for the EDS1SPLTN-E1?

A: Edge recommends the EDA100.4-E7 amplifier. Each tweeter is rated at 120W RMS (240W peak) at 4 ohms.

Q: Can CEN fit these tweeters for me?

A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
